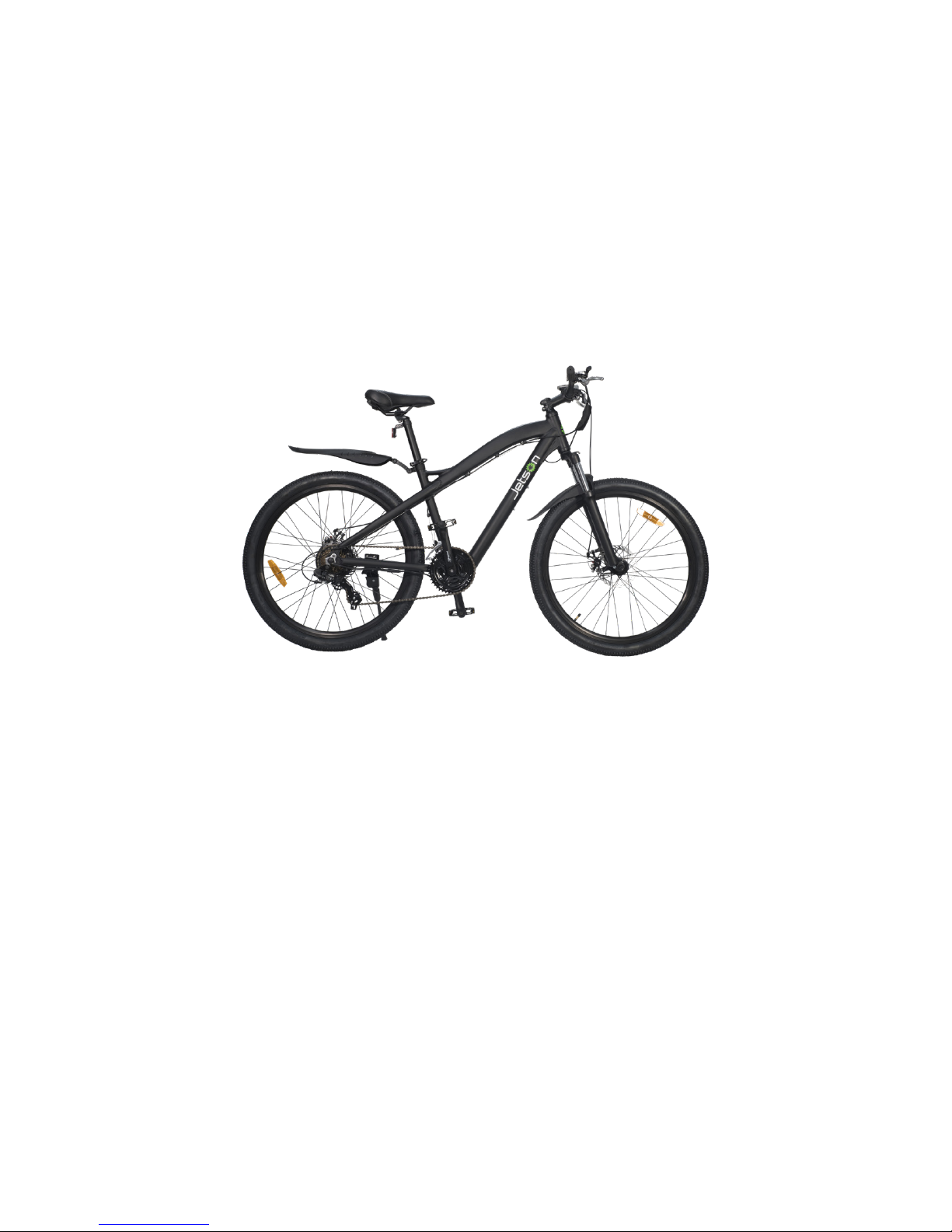

Jetson Runner Manuel utilisateur

RUNNER

ELECTRIC BIKE

TABLE OF CONTENTS

What’s in the Box 1

Diagram 2

Features & Specs 3

Attaching the Handlebar 4

Attaching the Front Wheel 5

Attaching the Seat 6

Attaching the Pedals 7

Attaching the Fenders and Reflectors 8

Charging the Battery 9

Operating the Runner 10

Riding the Runner 11

Care and Maintenance 12

Safety Warnings 13

1. WHAT’S IN THE BOX

1. MAIN FRAME

2. FRONT TIRE

3. QUICK RELEASE

4. FRONT REFLECTOR

5. PEDALS

6. SEAT

7. SEAT POST

8. FRONT FENDER

9. REAR FENDER

10. REAR REFLECTOR

11. CHARGER

12. CHARGING CABLE

1 2

345 6 789

Assembling the Runner

should take between 30-35

minutes (including unboxing).

2. DIAGRAM

1. REAR FENDER

2. SEAT

3. SEAT CLAMP

4. HANDLEBAR

5. FRONT TIRE

6. REAR TIRE

7. PEDAL

8. FRONT FENDER

3. FEATURES & SPECS

• Product Dimensions: 57.5” x 9.65” x 32.7”

• Weight Limit: 300 lbs./ 136 kg

• Product Weight: 38 lbs./ 17 kg

• Recommended Age: 13+

• Tire Size: 26”

• Max Speed: Up To 20 mph/ 32 km/h

• Max Range: Up To 30 miles/ 48 km

• Battery: 36V, 5.2Ah Lithium-Ion

• Motor: 250W Hub Motor

• Charger: 110-240V

• Charge Time: Up To 3 Hours

• Climbing Angle: Up To 20°

• Frame Material: Aluminum Alloy

RUNNER

4. ATTACHING THE HANDLEBAR

4.1 4.2

4.3 4.4

Remove the 4 bolts from the

Metal Guard. Then, remove the

Metal Guard.

First, turn the Handlebar Stem.

Remove the Metal Guard. Place the Handlebar into the

Handlebar Stem. Make sure the

markings on the Handlebar are

centered.

4.5 4.6

Replace the Metal Guard by

tightening the 4 bolts.

Tighten Velcro Cover around

the Handlebar wires.

5. ATTACHING THE FRONT WHEEL

5.1 5.2

5.3 5.4

Remove the plastic protector

from the Fork. Then, lift the

Fork up.

Slide the Front Tire between the

Fork.

Disc

Brake

Disc

Hook the Fork onto both sides of

the tire and slide the Disc Brake

into the Disc.

Quick Release

Spring

Cap

Remove the Cap and one Spring

from the Quick Release.

5.5 5.6

Slide the Quick Release through

the Front Tire. Then, place the

Spring and Cap back onto the

Quick Release.

Tighten the Cap and Lever. Close

the Lever to lock.

Lever

6. ATTACHING THE SEAT

6.1 6.2

6.3

Loosen the Bolt at the bottom of the

Seat post and remove the top plate

and lock nut.

Align the Seat Post with the bars of

the Seat and replace the top plate

and lock nut. Tighten the bolt to lock

the Seat.

Slide the Seat Post into the Seat

Tube. Close the Seat Clamp to secure

the Seat.

Seat Clamp closed
