Jenn-Air JXT9130CDP Manuel utilisateur

RANGE HOOD

INSTALLATION

GUIDE

TABLE OF CONTENTS

Safety Instructions.................................................... 1

Mounting Heights.................................................... 2

Ducting..............................................................3-7-8

Specifications...........................................................4

Installation............................................................5-6

MK7530

MK7536

Model Number: JXT9130CDP JXT9136CDP

Manufacturer Number: MK7530 MK7536

Size: 30” 36”

INSTALLATION GUIDE

Read all Instructions before Installing and operating this appliance

MODELS: JXT9130 JXT9136

Installation

The installation in this manual is intended for qualified installers, service technicians or persons

with similar qualified background. DO NOT attempt to install this appliance yourself. Injury could

result from installing the unit due to lack of appropriate electrical and technical background.

All electrical wiring must be properly installed, insulated and grounded. Overly accumulated

grease in old duct work should be cleaned out or duct work should be replaced if necessary to

avoid the possibility of a grease fire. Check all joints on duct work to insure proper connection

and all joints should be properly taped.

* Please check for latest specification revisions before any custom work or cutouts.

IMPORTANT SAFETY NOTICE

WARNING

LIST OF MATERIALS

1 - Hood

2 - Baffle filters (2-30", 3-36")

2 - Halogen light bulbs (2-30", 3-36")

1 - Hardware packet containing:

4 - 2” drywall screws

4 - 1 1/2” drywall screws

4 - 1” drywall screws

4 - 1/2” washers

3 - wire connectors

1- 6 to 3 1/4” x 10” rectangular adapter

NO DUCTING IS INCLUDED

INSTALLATION 2

MOUNTING HEIGHTS

DUCTING

10"

36"

96"

Min 24"-Max 32"

Minimum mounting height between range top

to hood bottom should be no less than 24".

Maximum mounting height should be no

higher than 32".

It is important to install the hood at the

proper mounting height. Hoods mounted too

low could result in heat damage and fire

hazard; while hoods mounted too high will be

hard to reach and will loose performance

and efficiency.

If available, also refer to range manufacturer's

height clearance requirements and recom-

mended hood mounting height above range.

A minimum of 6" round or 3-1/4” x 10"rectangular

duct must be used to maintain maximum air flow

efficiency.

Always use rigid type metal ducts only.

Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on right) to compute total

available duct run when using elbows, transitions

and caps.

ALWAYS, when possible, reduce the number of

transitions and turns. If long duct run is required,

increase duct size from 6" to 7” or 8". If a reducer

is used, install a long reducer instead of a pancake

reducer. Reduce duct size as far away from open-

ing as possible.

If turns or transitions are required:

Install as far away from opening and as far

apart, between 2, as possible.

Duct Run Calculation:

Maximum run

6" or 3-1/4” x 10" duct

Deduct:

each 90 Elbow used

each 45 elbow used

each 6" to 3/14 x 10"

transition used

each 3/14 x 10" to 6"

transition used

Side Wall Cap w/ damper

Roof Cap

100 FT

15 FT

9 FT

1 FT

5 FT

30 FT

e.g.- 1 roof cap, 2x90 elbows, 1 x 45 elbow used:

=30' + 30' + 9' =69' used, 31' available for straight duct runs.

Minimum Duct Size:

Round:

6" minimum

Rectangular:

3-1/4” x 10”

INSTALLATION 3

DUCTING

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or

garages. All exhaust must be ducted to the outside.

Use metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

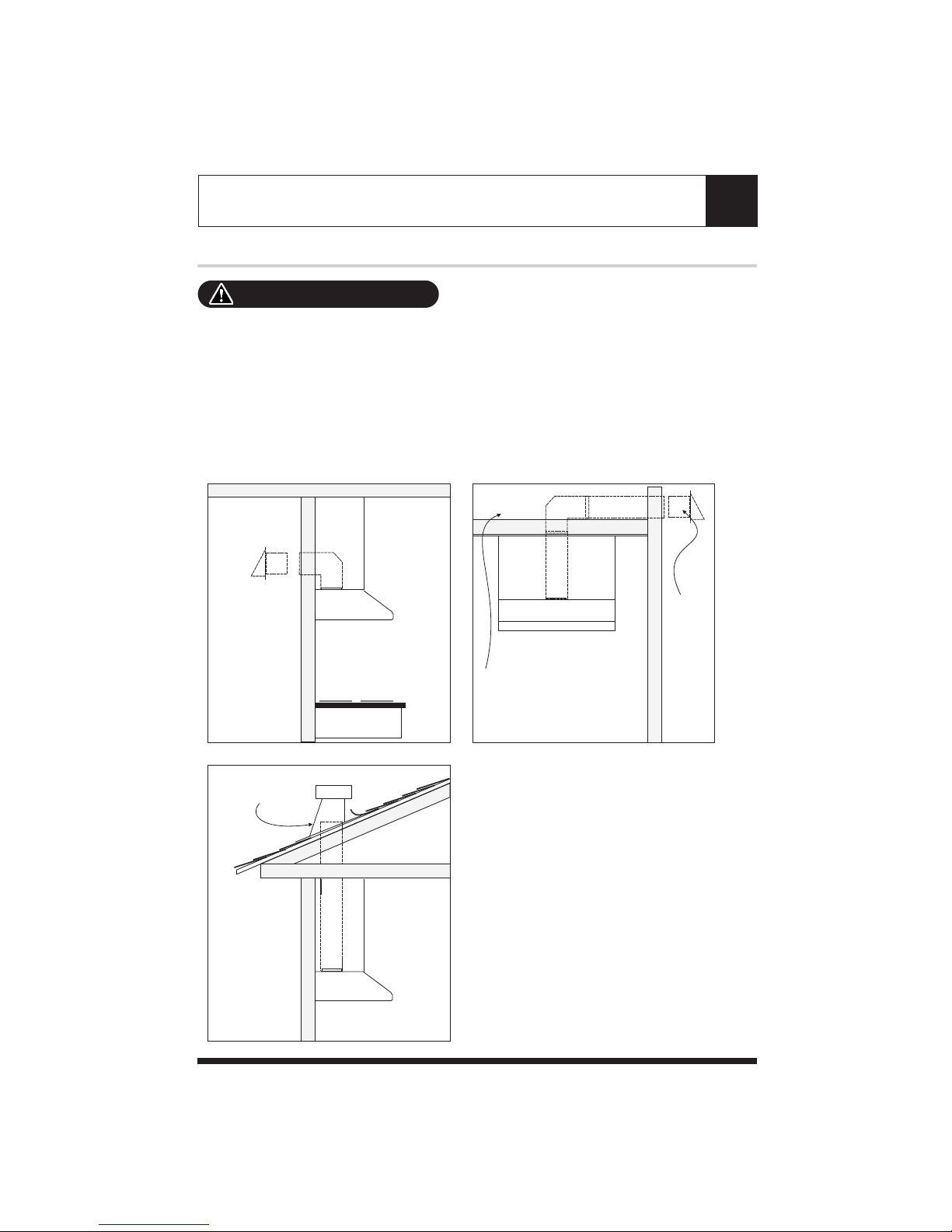

Some Ducting Options:

Side wall cap

w/ gravity damper

Side wall cap

w/ gravity damper

Soffit or crawl space

Roof Pitch w/

Flashing & Cap

INSTALLATION 4

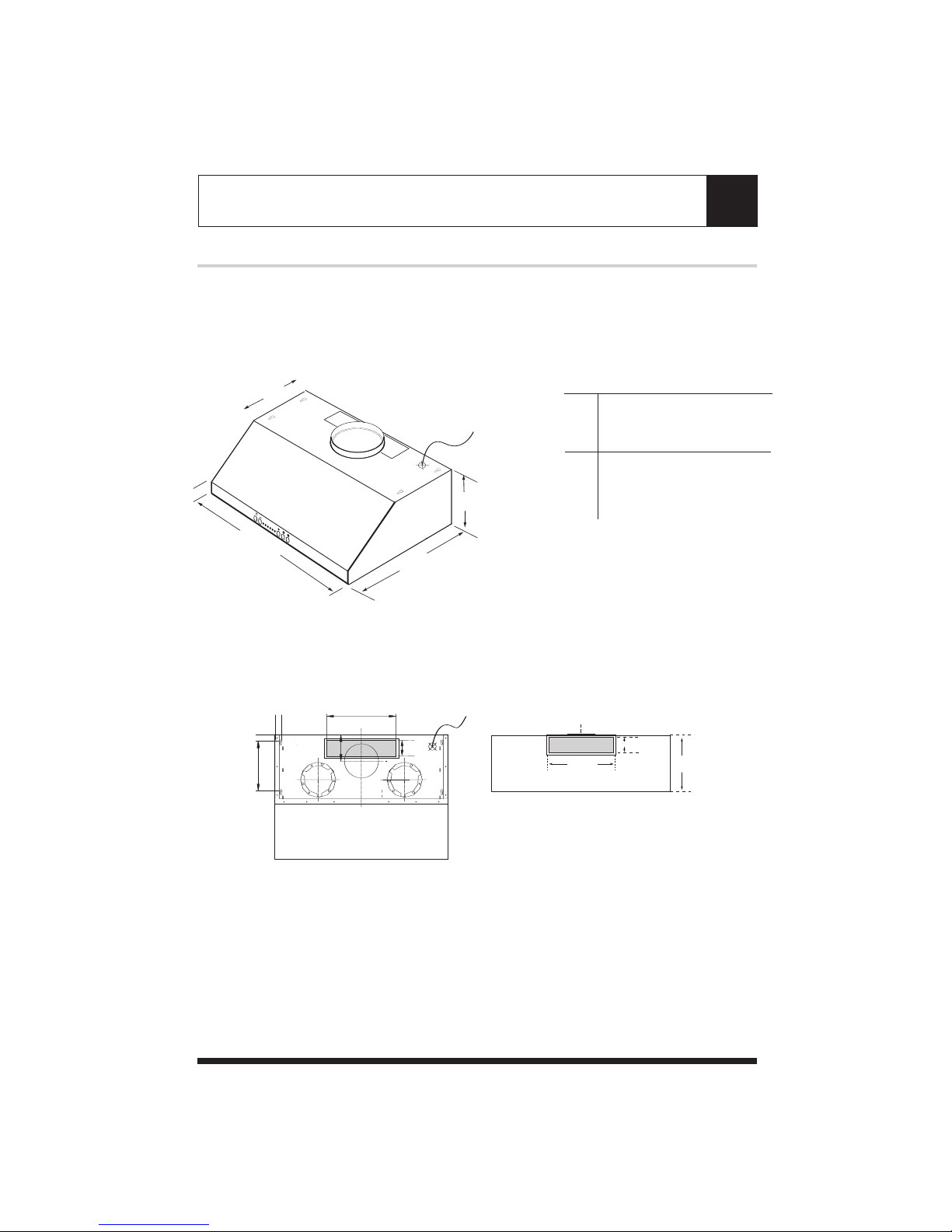

SPECIFICATIONS

10"

22"

12"

30"

36"

3-1/4"

10"

TOP VIEW REAR VIEW

10"

8-5/8"

4-1/2"

3-1/4"

1-1/8"

1/2" Elec K.O. 1/2" Elec K.O.

10"

22"

3-1/4"

10"

TOP VIEW REAR VIEW

10"

8-5/8"

4-1/2"

3-1/4"

1-1/8"

1/2" Elec K.O. 1/2" Elec K.O.

Position of electrical knockout

30” 2 1/2” from right

1 1/4” from back

36” 5 1/2” from right

1 1/4” from back

INSTALLATION 5

MOUNTING THE RANGEHOOD

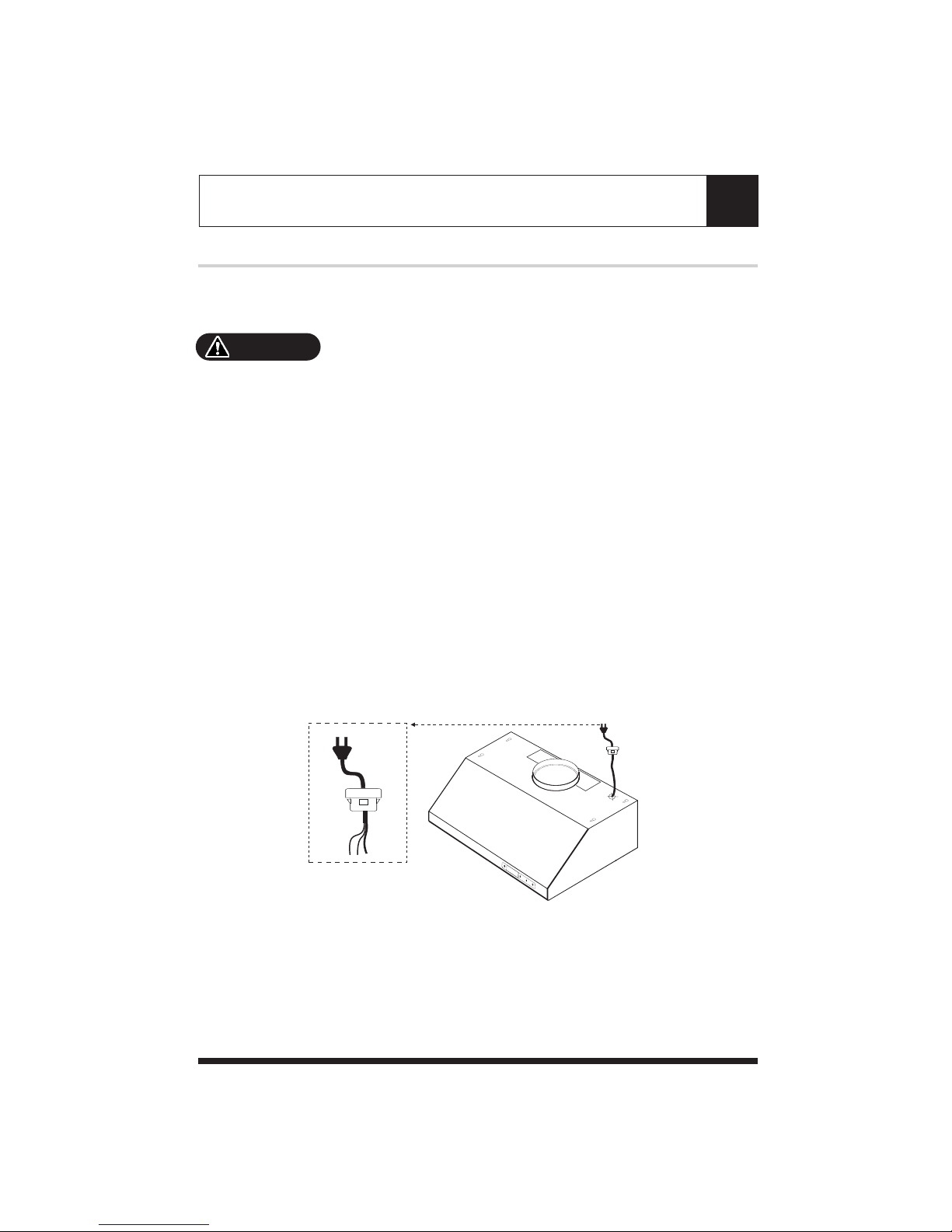

ELECTRICAL

All Electrical work must by performed by qualified electrician or person with similar technical

know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation.

Do not use extension cord or adapter plug with this appliance.

Follow National electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, connected to an individual, properly grounded

branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2

wire w/ ground. Please also refer Electrical Diagram labeled on product.

Cable Lock:

A cable locking connector (not supplied) might also required by local codes. Check with local

requirements and codes, purchase and install appropriate connector if necessary.

WARNING

Cable Lock

INSTALLATION 6

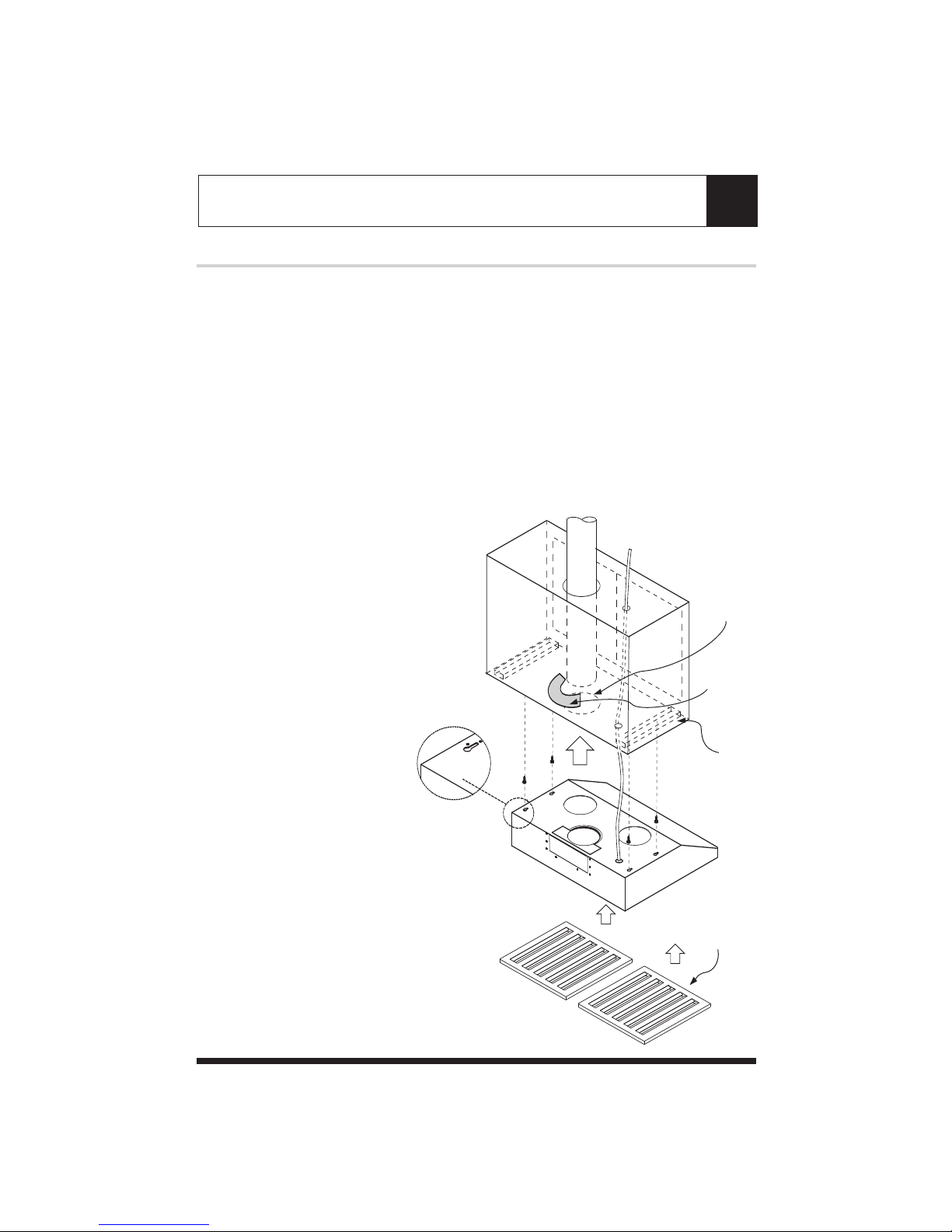

MOUNTING THE RANGEHOOD

1. This range hood is mounted under a

kitchen cabinet unit.

2. Select preferred duct location on rear or

top of unit. (See page 6 & 7 for ducting

conversion options)

3. Begin installation by temporarily removing

the baffle filters.

4. Reinforce cabinet base with 1x2 wood

strips if additional strengthening is

required.

5. Temporarily position the range hood in

the desired mounting location.

Measure and mark the mounting holes,

duct and electrical access locations with

a pencil.

6. Drill/cut out the required openings for

duct and electrical access; make sure the

duct opening is large enough to apply

duct tape.

7. Fasten hood onto cabinet with screws

and washers provided.

8. Install electrical.

9. Install duct work and duct-tape.

10. Reinstall the baffle filters.

11. Power up hood and check for leaks

around duct-tape.

duct/silver

tape

6. Duct

opening

cutout

4. Add 1x2

wood strips

3. Baffle

filters

INSTALLATION 7

CONVERTIBLE OPTIONS

This range hood is equipped with the option of a 6” vertical discharge, 3 1/4”x10” vertical discharge,

or 3 1/4”x10” rear discharge. Additional accessories are provided to convert to either of the above

discharge methods.

Convertible Options

Vertical discharge 6” round

Vertical discharge 3 1/4”x10”

Horizontal rear discharge 3 1/4”x10”

Convertible Accesories

Round to rectangular transition adaptor

Rectangular to round transition adaptor

Gasket (pre-mounted)

Rectangular rear cap (pre-mounted)

3 1/4”x10” starting collar

3 1/4”x10” Vertical Discharge

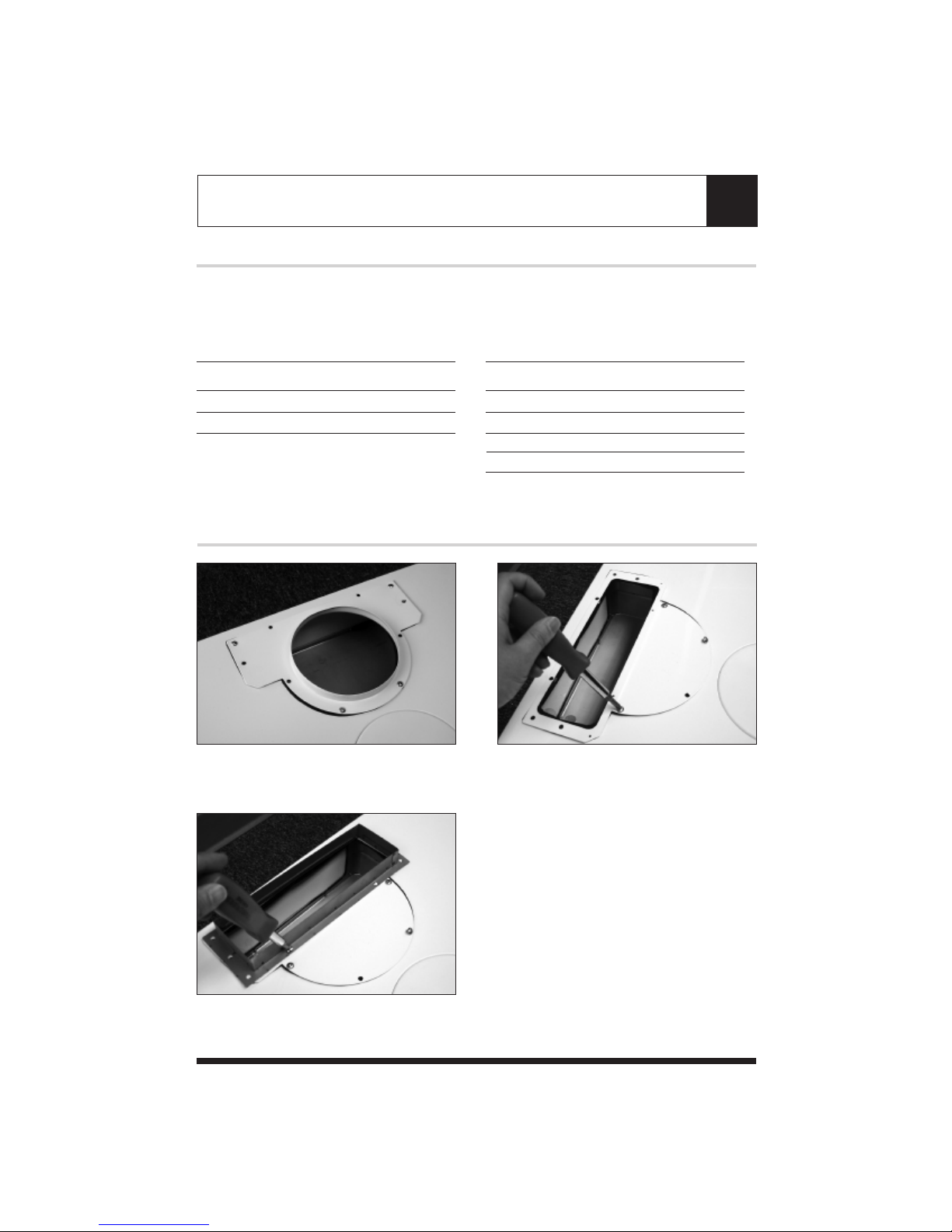

1. Remove pre-mounted 6” transition adaptor or duct

opening. Leave attached gasket in its original place.

3. Mount the 3-1/4”x10” starting collar on top of

transition piece with remaining screws.

2. Place rectangular transition adaptor as shown over

gasket and by first installing 4 screws on half round

section.

(pre-mounted)

INSTALLATION 8

CONVERTIBLE OPTIONS

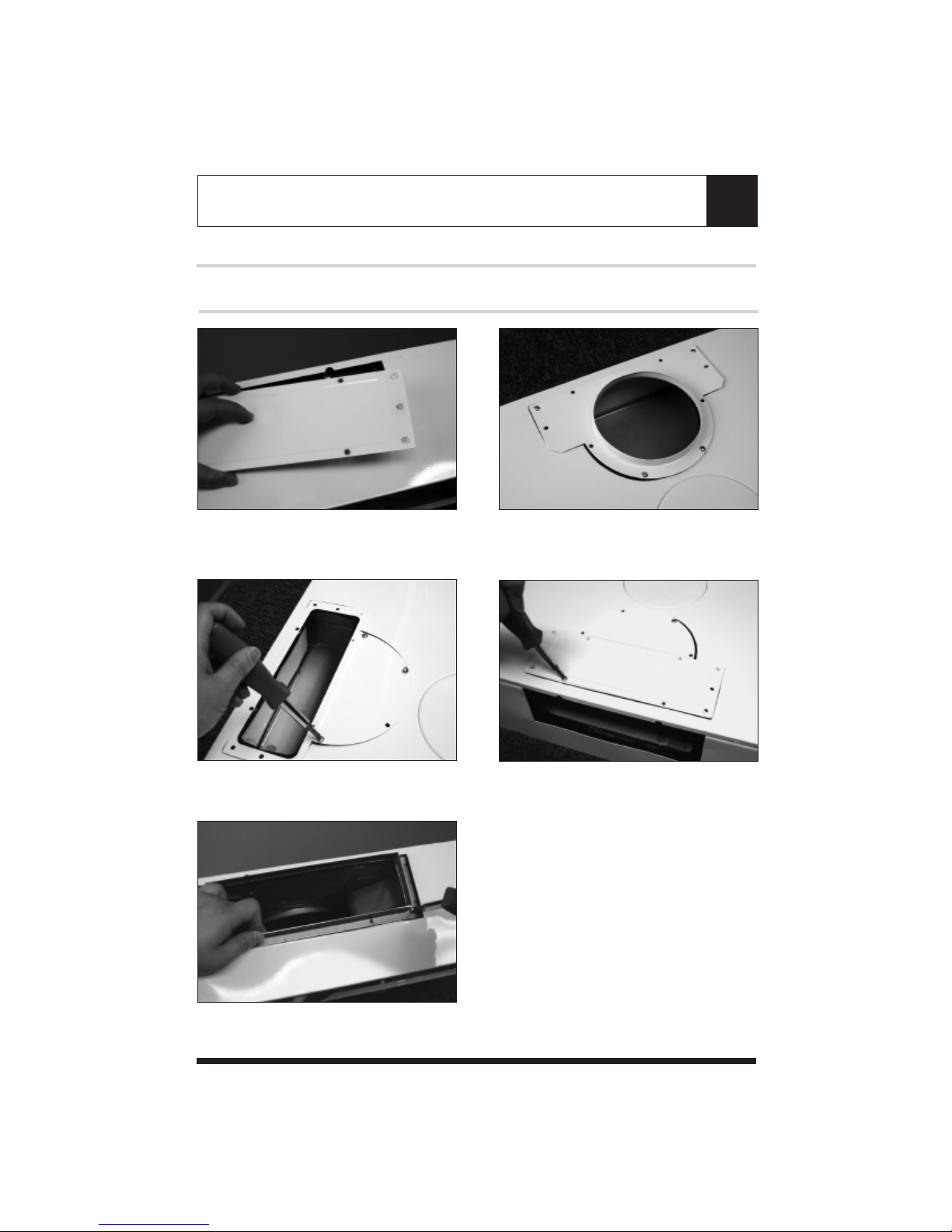

3 1/4”x10” Rear Discharge

1. At rear of range hood, remove all screws on pre-

mounted rear rectangular cap and remove cap.

5. Mount starting collar (provided) at rear discharge

opening with gasket.

4. Mount rectangular cap (previously removed) on top

of transition adaptor.

3. Mount rectangular transition piece at opening with

gasket as shown.

2. Remove top pre-mounted transition piece. Leave

attached gasket in its original place.
