RANGE HOOD

INSTALLATION

GUIDE

TABLE OF CONTENTS

Safety Instructions.................................................... 1

Mounting Heights.................................................... 2

Ducting....................................................................3

Specifications...........................................................4

Installation............................................................5-7

Model Number: JXT9030CDP JXT9036CDP JXT9048CDP

Manufacturer Number: MK7030 MK7036 MK7048

Size: 30” 36” 48”

MK7030

MK7036

MK7048

INSTALLATION GUIDE

Read all Instructions before Installing and operating this appliance

MODELS: JXT9030 JXT9036 JXT9048

Installation

The installation in this manual is intended for qualified installers, service technicians or persons

with similar qualified background. DO NOT attempt to install this appliance yourself. Injury could

result from installing the unit due to lack of appropriate electrical and technical background.

All electrical wiring must be properly installed, insulated and grounded. Overly accumulated

grease in old duct work should be cleaned out or duct work should be replaced if necessary to

avoid the possibility of a grease fire. Check all joints on duct work to insure proper connection

and all joints should be properly taped.

* Please check for latest specification revisions before any custom work or cutouts.

IMPORTANT SAFETY NOTICE

WARNING

LIST OF MATERIALS

1 - Hood

2 - Baffle filters (2-30”, 3-36”, 4-48”)

2 - Halogen light bulbs (3-48”)

2 - Wall mounting brackets

1 - Hardware packet containing:

4 - 2” drywall screws

4 - 1 1/2” drywall screws

4 - 1” drywall screws

4 - 1/2” washers

3 - wire connectors

NO DUCTING IS INCLUDED

WOOD PANEL NOT INCLUDED

Wood panel needs to be purchased prior to install.

Dimensions - 1/2” thick x 3” high x 29”, 35” or 47” wide.

INSTALLATION 2

MOUNTING HEIGHTS

DUCTING

18"

36"

96"

Min 24"-Max 32"

12"

Minimum mounting height between range top

to hood bottom should be no less than 24".

Maximum mounting height should be no

higher than 32".

It is important to install the hood at the

proper mounting height. Hoods mounted too

low could result in heat damage and fire

hazard; while hoods mounted too high will be

hard to reach and will loose performance

and efficiency.

If available, also refer to range manufacturer's

height clearance requirements and recom-

mended hood mounting height above range.

A minimum of 8" round duct must be used to

maintain maximum air flow efficiency.

Always use rigid type metal ducts only.

Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on right) to compute total

available duct run when using elbows, transitions

and caps.

ALWAYS, when possible, reduce the number of

transitions and turns. If long duct run is required,

increase duct size from 8" to 9” or 10". If a reduc-

er is used, install a long reducer instead of a pan-

cake reducer. Reduce duct size as far away from

opening as possible.

If turns or transitions are required:

Install as far away from opening and as far

apart, between 2, as possible.

Minimum Duct Size:

Round:

8" minimum

Duct Run Calculation:

Maximum run

Calculated Length:

each 90 Elbow used

each 45 elbow used

each 8"

transition used

each 3/14 x 10" to 8"

transition used

Side Wall Cap w/ damper

Roof Cap

100 FT

15 FT

9 FT

1 FT

5 FT

30 FT

e.g.- 1 roof cap, 2x90 elbows, 1 x 45 elbow used:

=30' + 30' + 9' =69' used, 31' available for straight duct runs.

INSTALLATION 3

DUCTING

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or

garages. All exhaust must be ducted to the outside.

Use Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape.

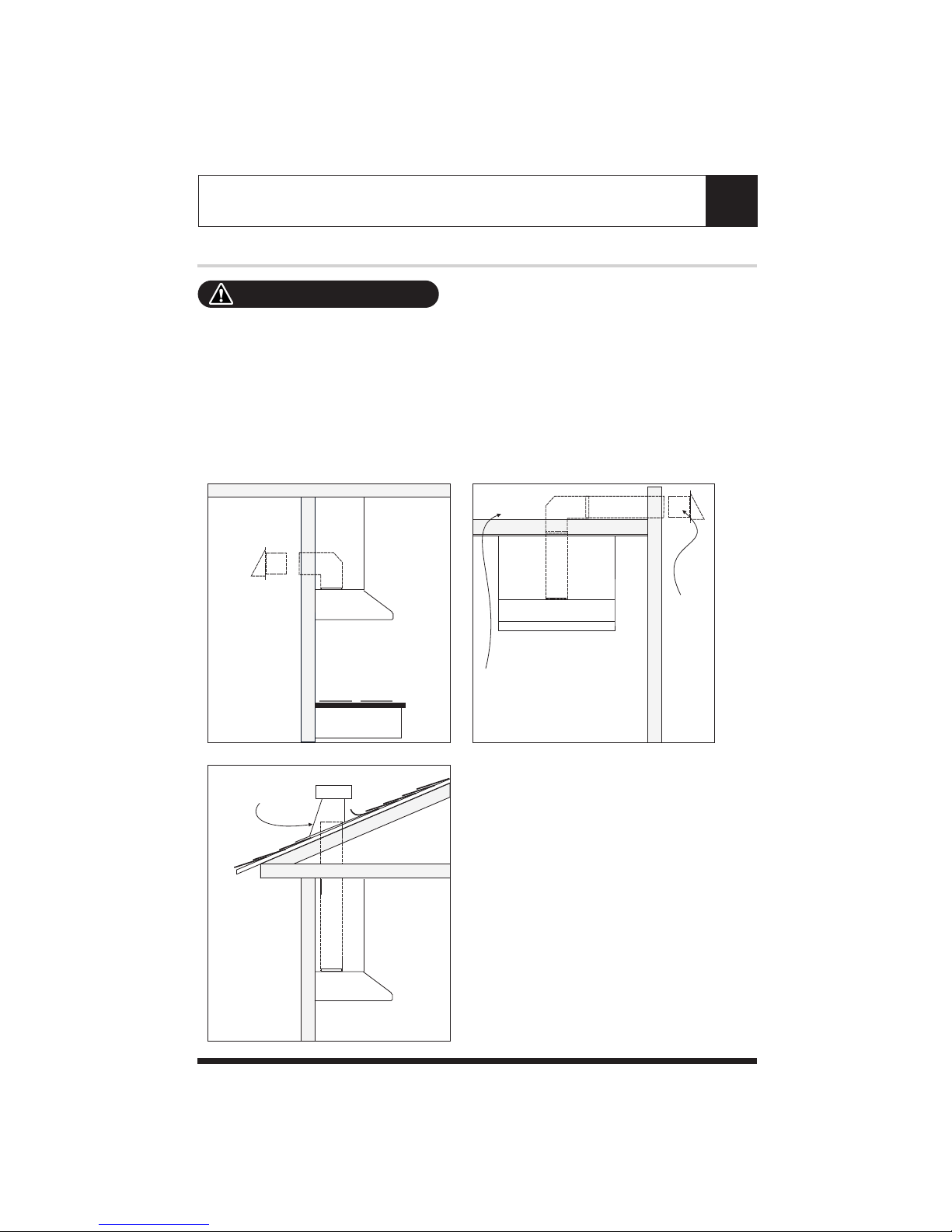

Some Ducting Options:

WARNING FIRE HAZARD

Side wall cap

w/ gravity damper

Side wall cap

w/ gravity damper

Soffit or crawl space

Roof Pitch w/

Flashing & Cap

INSTALLATION 4

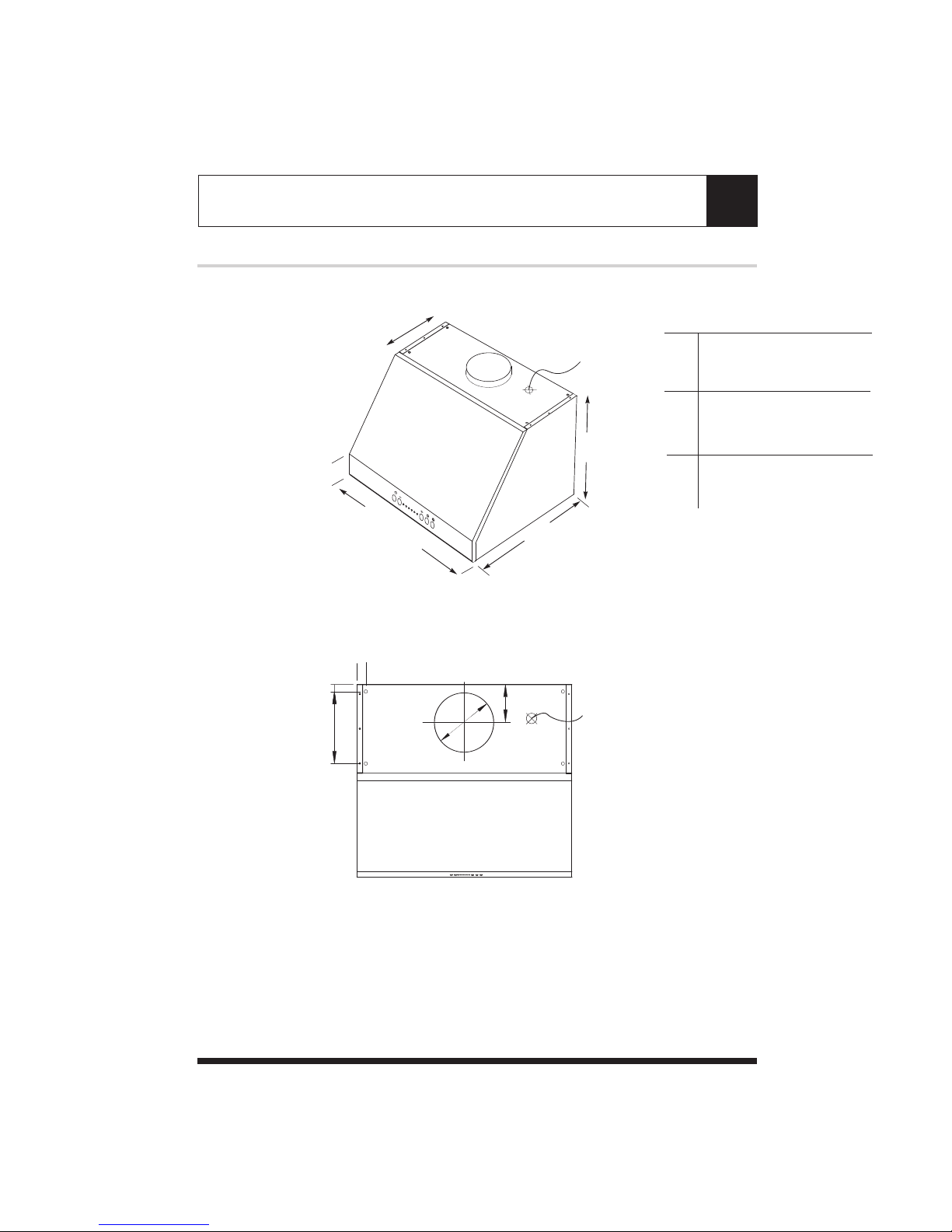

SPECIFICATIONS

9" 8"

1-1/8"

4-5/8"

18"

24"

12"

Elec K.O.

30"

36"

48"

TOP VIEW

1/2" Elec K.O.

9" 8"

1-1/8"

4-5/8"

18"

24"

12"

Elec K.O.

30"

36"

48"

TOP VIEW

1/2" Elec K.O.

Position of electrical knockout

30” 13 3/4” from the right

1 3/4” from the front

36” 3 7/32” from the right

4 23/32” from the back

48” 4 3/8” from the right

4 23/32” from the back

INSTALLATION 5

MOUNTING THE RANGEHOOD

ELECTRICAL

All Electrical work must by performed by qualified electrician or person with similar technical

know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation.

Do not use extension cord or adapter plug with this appliance.

Follow National electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, connected to an individual, properly grounded

branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2

wire w/ ground. Please also refer Electrical Diagram labeled on product.

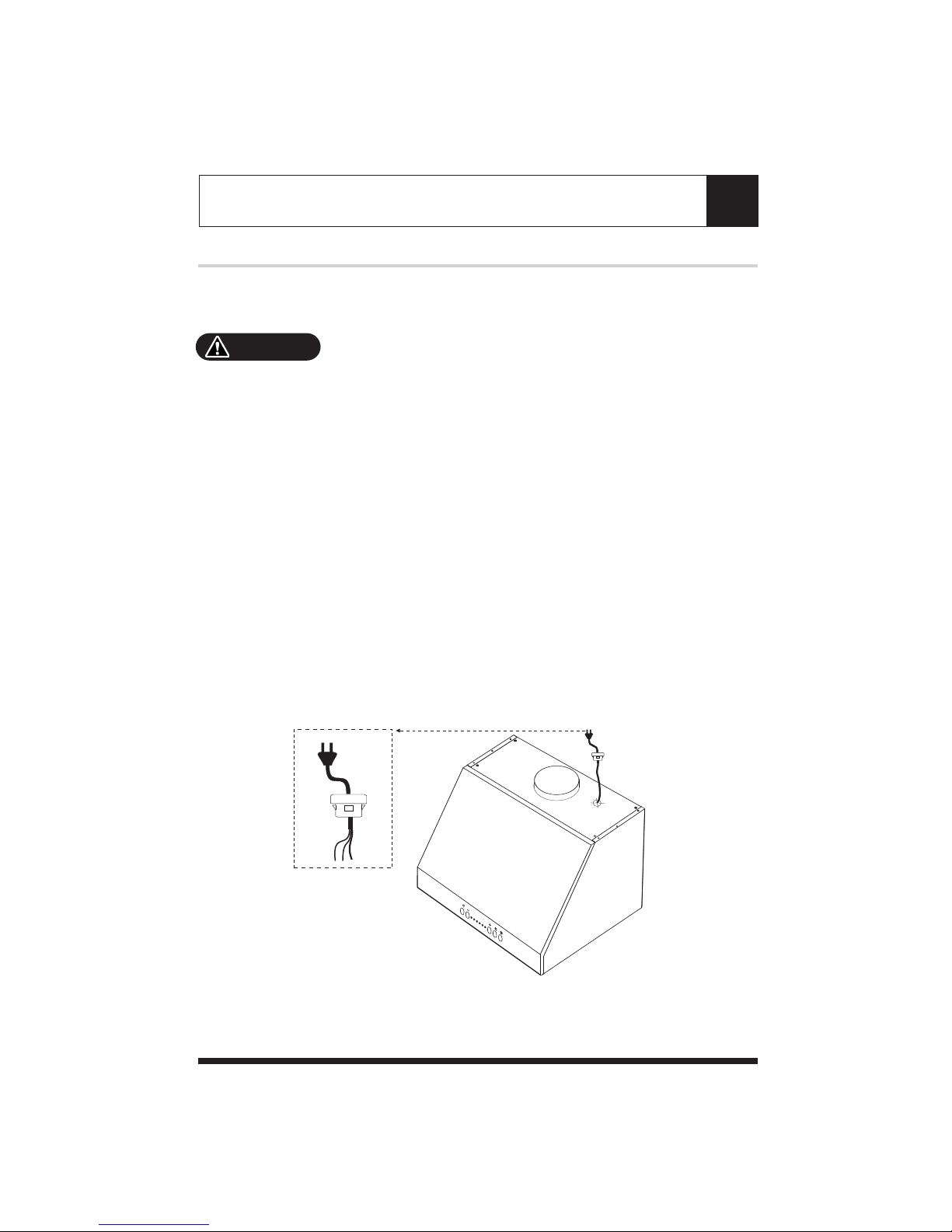

Cable Lock:

A cable locking connector (not supplied) might also required by local codes. Check with local

requirements and codes, purchase and install appropriate connector if necessary.

WARNING

Cable Lock

INSTALLATION 6

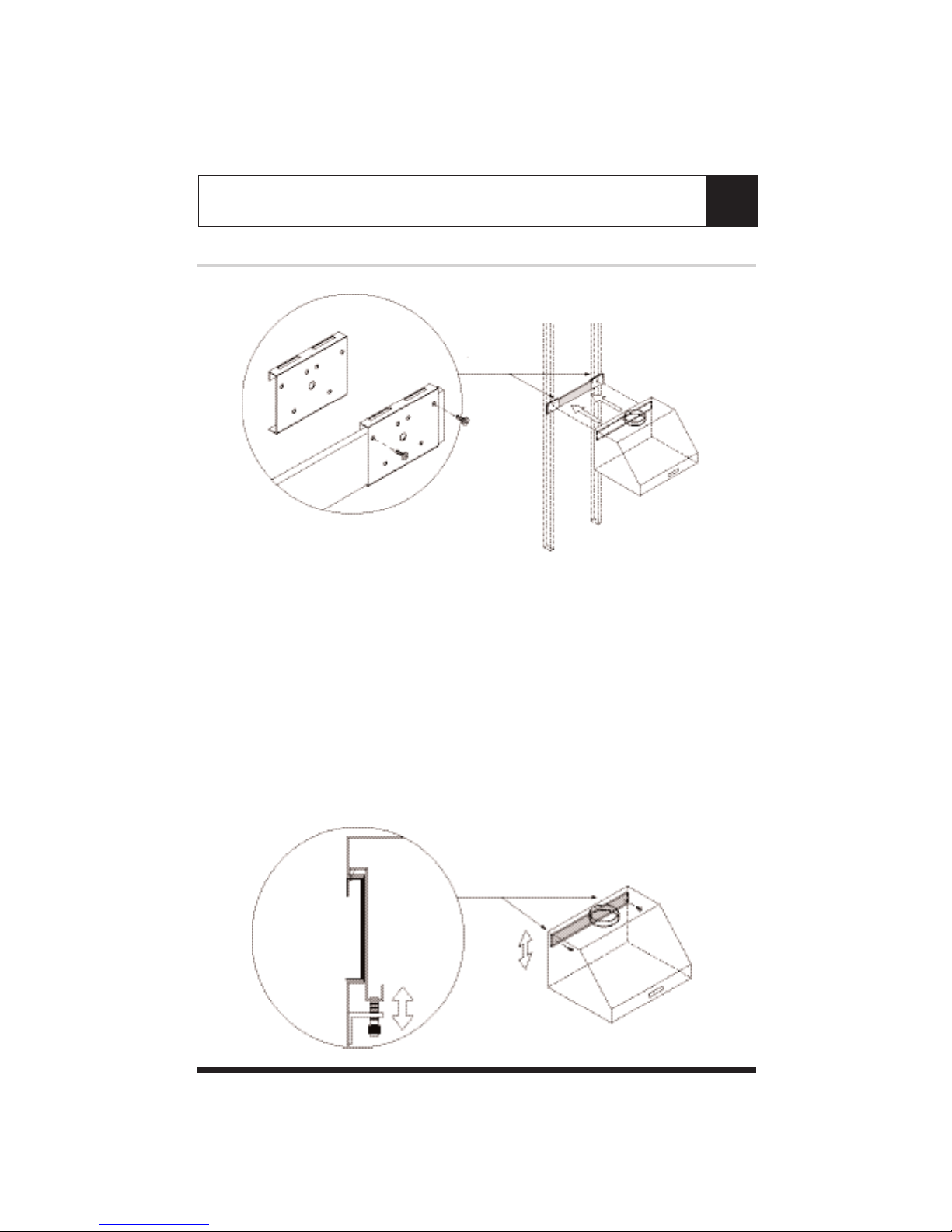

MOUNTING THE RANGEHOOD

1. Begin by determining hood mounting height on wall.

2. *Level and mount the wood panel onto the wall at the appropriate height and secure it to the

studs. This wood panel should be 1/2" x 3" and the width will either be 29", 35" or 47"

depending on the width of the hood. Measure the distance between the wall mounting brackets

and fasten them onto the wood panel. Refer to the diagram for how the brackets attach to the

panel. Make sure they will line up with the brackets on the back of the hood. Lift the hood and

hang it onto the brackets.

3. Temporarily remove the baffle filters from hood, and level hood by adjusting the metal brackets

located inside of the hood. (Note: there is approximately 10cm total adjustability up and down).

These brackets are adjusted by a screw that can be easily turned with your fingers. There is one

on each side on the inside back wall of the hood. After ensuring that the hood is level, complete

ly tighten the screws to secure the hood to the wall.

4. After the hood is attached to the mounting brackets, you may further secure it by screwing two

screws into the wall from the inside of the hood. There are two screw holes near the bottom that

you can use as a guide.

* Wood panel not included.

INSTALLATION 7

MOUNTING THE RANGEHOOD

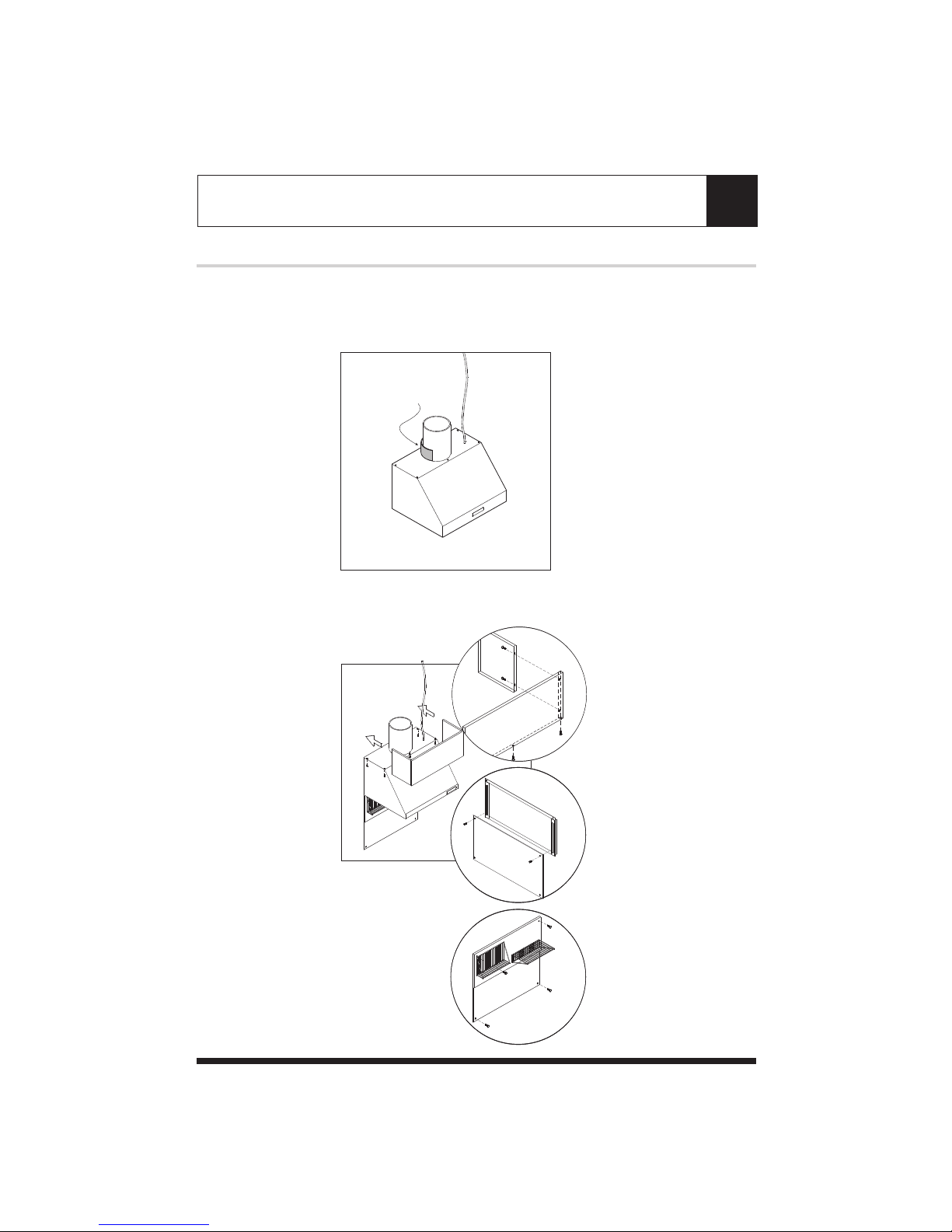

5. Install electrical.

6. Install duct work and tape all joints.

7. Power up hood and check for leaks around duct joints, and if necessary apply more duct tape.

8. Install optional duct cover and/or backsplash. Note that the duct cover and backsplash are

sold separately.

9. Reinstall the baffle filters.

duct/silver

tape

HOTTE DE CUISINIÈRE

INSTALLATION

GUIDE

TABLE DES MATIÈRES

Consignes de sécurité...............................................1

Hauteurs de montage...............................................2

Canalisation.............................................................3

Caractéristiques techniques......................................4

Installation............................................................5-7

Numéro de modèle: JXT9030CDP JXT9036CDP JXT9048CDP

Numéro du fabricant: MK7030 MK7036 MK7048

Dimensions: 30” 36” 48”

MK7030

MK7036

MK7048
