JBL C29AV-1/WH Manuel utilisateur

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL C29AV-1

/WH REV G

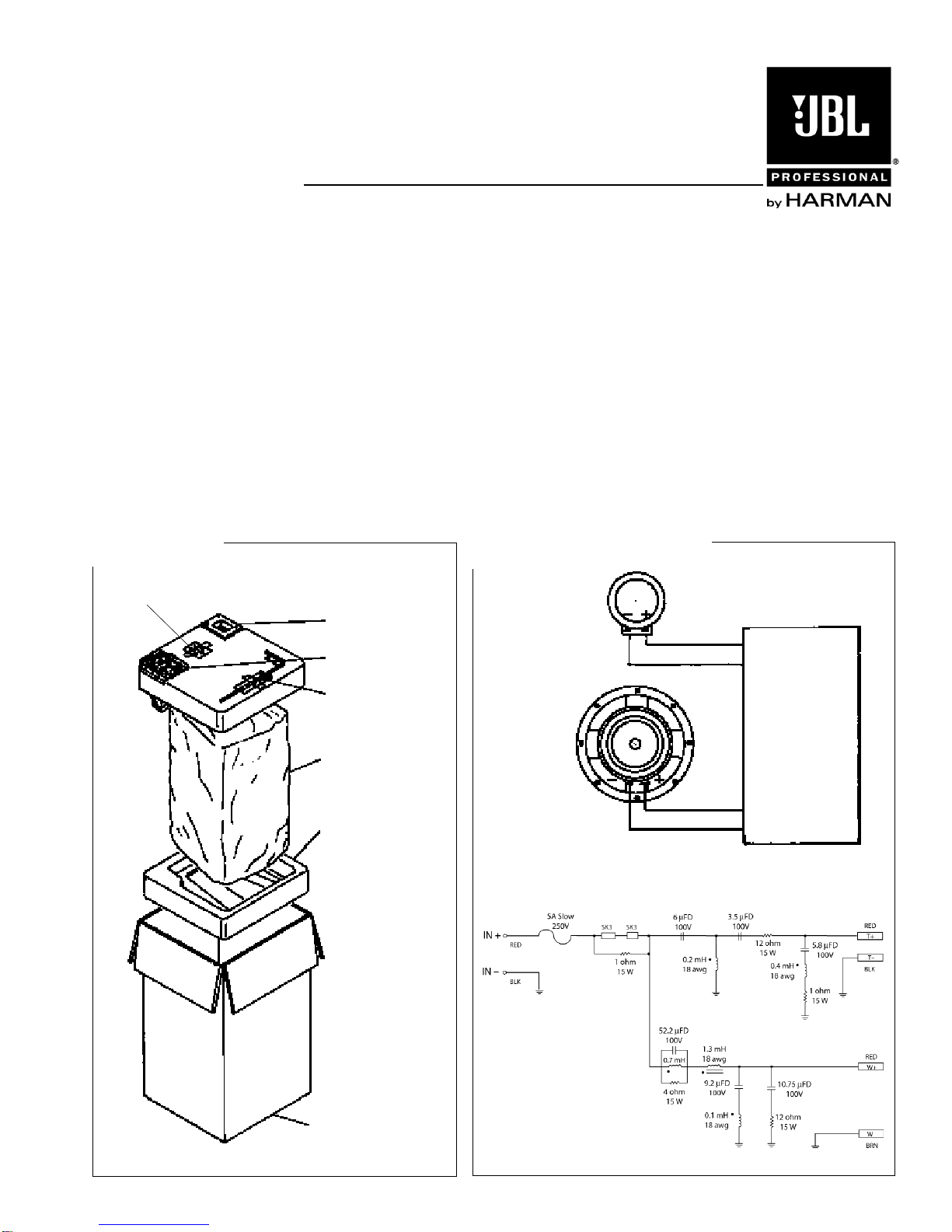

PACKAGE WIRING DIAGRAM

10-11

Technical Manual

JBL C29AV-1/WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Power Capacity: 300W Continuous Program

150W Continuous Pink Noise

• Frequency Range: 40 Hz – 19 kHz (–10dB)

• Sensitivity: 91 dB, 1 Watt @ 1 Meter

• Crossover Frequency: 3rd Order High Pass,

2nd Order Low Pass With

Impedance Compensation

2.5 kHz Crossover

SYSTEM COMPONENTS:

• Cabinet Enclosure (Not for Sale)

• Grille: 337703-001, 337841-001 (WH)

• System DC Resistance: 5.9 ohms

•Low Frequency 200mm (8 in.) Kevlar Cone

Transducer: (337646-001)

• DC Resistance: 5.0 ohms

• Transformer Taps: 70V: 110W, 55W, 28W, and 14W

100V: 110W, 55W, and 28W

Thru Position 8 ohms Nominal

SYSTEM COMPONENTS:

(CONT’D)

• High Frequency 2413H,25 mm (1 in.) Compression

Transducer: Driver, Pure Titanium Diaphragm

• DC Resistance: 3.7 ohms

• Crossover Network/ 361414-001

Terminal Cup: 337692-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 20 Hz to 20 kHz

B. L.F. Aural Sweep Test: 7.0V Input, 20 Hz to 1 kHz

C. H.F. Aural Sweep Test: .75V Input, 1.2 kHz to 10 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 520 x 306 x 277 mm D

(20.5 x 12.0 x 10.9 in. D)

•Shipping Weight: 38.8 lb (14.0 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Owners Manual

337715-001

Carton

337720-001

Screw (4)

Nylon Invisiball

Assembly

337711-001

337842-001 (Wh)

Wrench

337712-001

6mm x 10”

Polybag

End Pad,

Top and Bottom

337709-001

MTC-PC2

337710-001 RED

BRN

BLK

RED

Network

361414-001

Speaker,

High Freq

2413H

(337663-001)

SCHEMATIC 361414-001

Speaker,

Low Freq

337646-001

Specification Sheet

337716-001

Install Kit

for Eyebolts

337714-001

Fuse

337836-001

JBL C29AV-1/WH

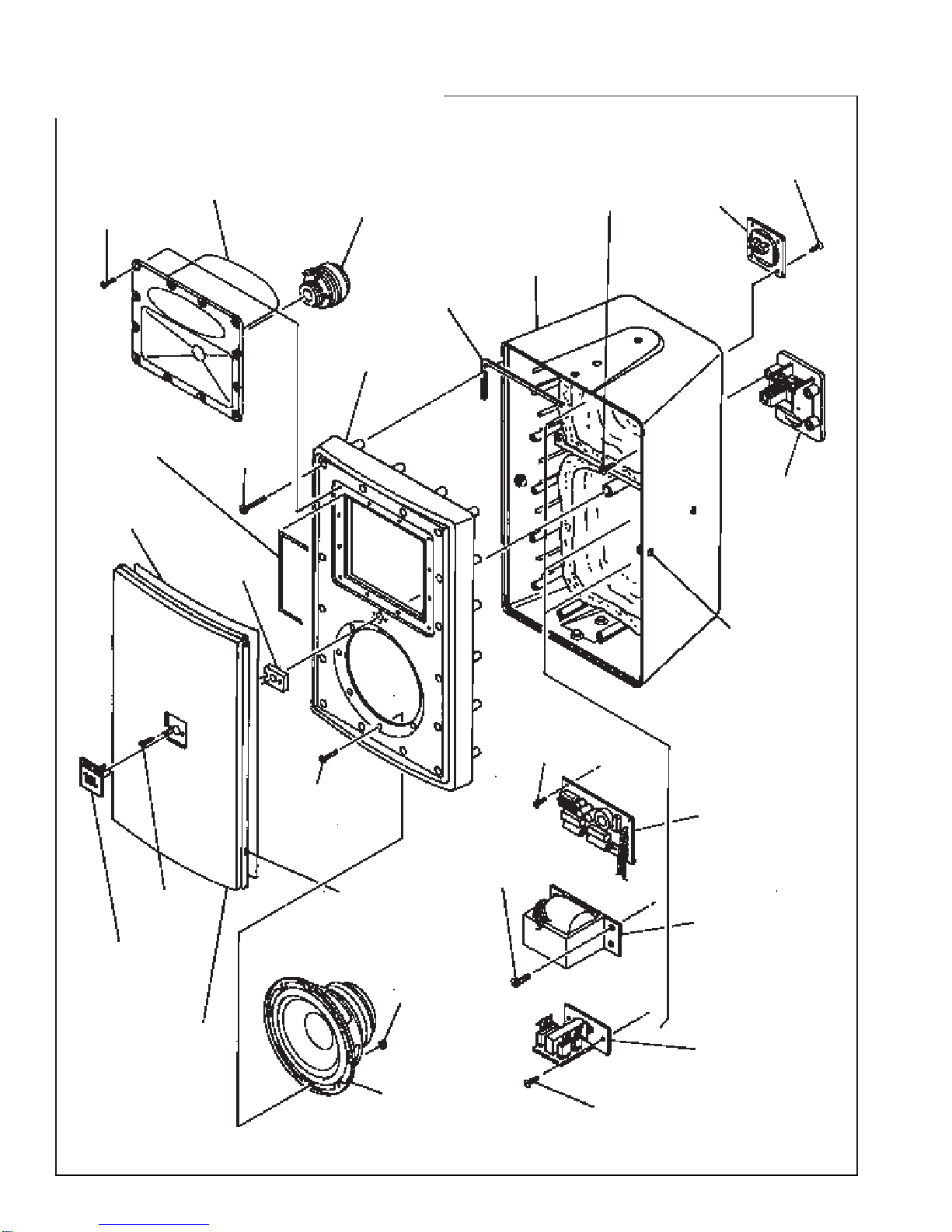

COMPONENT EXPLODEDVIEW

Screw (4)

(Claw Holder)

10 X 5/8

354584-001 Terminal Cup

337692-001

Baffle

337645-001

(not for sale)

Gasket

337674-001

Enclosure

C29AV-1/WH

(Not Available for Sale

Transformer

337690-001

Rubber Plugs

337697-001

Network Assy

361414-001

Screw (4)

354585-001

6 X 3/8

Screw (2)

354587-001

6 x 3/8

Screw (2)

354589-001

6 x 3/4

Screw (4)

No. 6 x 3/8

354587-001

Screw (4)

354588-001

8 x 1/2

Screw (8)

337658-001

No. 8 x 1

Logo

362155-001

362155-002 (WH)

Speaker,

Low Freq

337646-001

Ring Gasket,

M6 Inserts (10)

337684-001

Rubber Plugs

337683-001 (10)

337839-001 (10)(Wh)

Claw Assy

337694-001

Claw Holder

337695-001

Tap Switch

337691-001

Tap Switch Label

337699-001

Grille Foam

337704-001

(included w/Grille)

Grille Spacer

337705-001

Grille

337702-001

337841-001 (WH)

Grille Seal (4)

Rubber

337706-001

Nut (8)

337659-001

Speaker,

High Freq

2413H

(337663-001)

Screw (12)

354583-00

6 x 5/8

Screw (16)

354586-001

8x 1-1/4

Seal Gasket

337660-001

Horn

337662-001
