JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL AM5215/95-WH

REV B

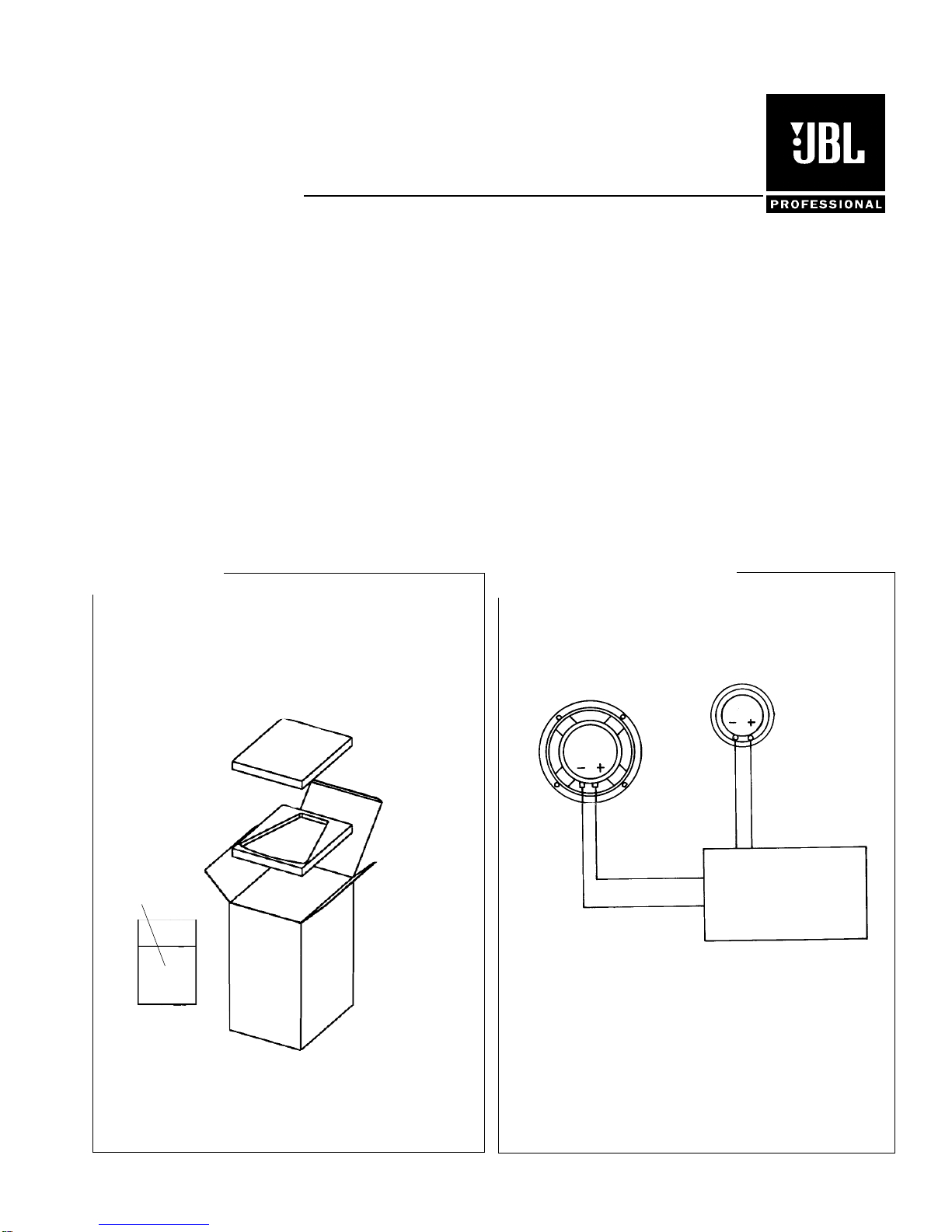

PACKAGE WIRING DIAGRAM

01-10

Technical Manual

JBL AM5215/95-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Transducer Power

Rating (AES): LF: 500W (2000W peak), 2 hrs

350W (1400W peak), 100 hrs

HF: 40W (160W peak), 2 hrs

• Long-Term Power

Rating (IEC): Passive mode: 350W (1400W peak),

100 hrs

• Frequency Response: 41 Hz - 18 kHz (±3 dB)

• Frequency Range: 35 Hz - 20 kHz (-10 dB)

• Maximum SPL:

Bi-amp mode: LF: 125 dB-SPL cont avg (131 dB peak)

HF: 129 dB-SPL cont avg (135 dB peak)

Passive mode: 124 dB-SPL cont avg (130 dB peak)

• System Sensitivity: Passive mode: 98 dB SPL

1 watt @ 1 meter

• Crossover Frequency: 1.8 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 338163-002, 338163-102 (WH)

SYSTEM COMPONENTS:

(CONT’D)

• Low Frequency: 265H-1, 380 mm (15 in) driver

Transducer: with 50.8 mm (2 in) dual voice coil

• DC Resistance: 5.25 ohm +/- 10%

• High Frequency 2408H-1, 38 mm (1.5 in) exit

Transducer: compression driver, 38 mm (1.5 in)

voice coil

• DC Resistance: 4.80 ohm +/- 0.2 ohm

• Crossover Network: 443677-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 10 Hz to 10 kHz

Sweep Duration: 5 seconds

B. L.F. Aural Sweep Test: 7.0V Input, 10 Hz to 300 Hz

C. H.F. Aural Sweep Test: 0.75V Input, 200 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 783 x 422 x 504 mm D

(30.8 x 16.6 x 19.85 in.D.)

• Net Weight: 55 lb (25.0 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

YEL/BLK

GRN/BLK

GRN

YEL

Network Assembly

443677-001

Driver, Low Freq.

265H-1

(363837-003X)

Cone Repl

C8R265

Driver, High Freq

2408H-1

(365011-001X)

Diaph Repl

D8R2408-1

SEE NETWORK SCHEMATIC PAGE

Carton

351684-001

Filler (2)

351408-001

PKG,Microfoam (6)

49790P

20” x 18” Sheets

Warranty

59660

Installation Sheet

339390-062

Sticker, Logo

339398-001

Bag

21784

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

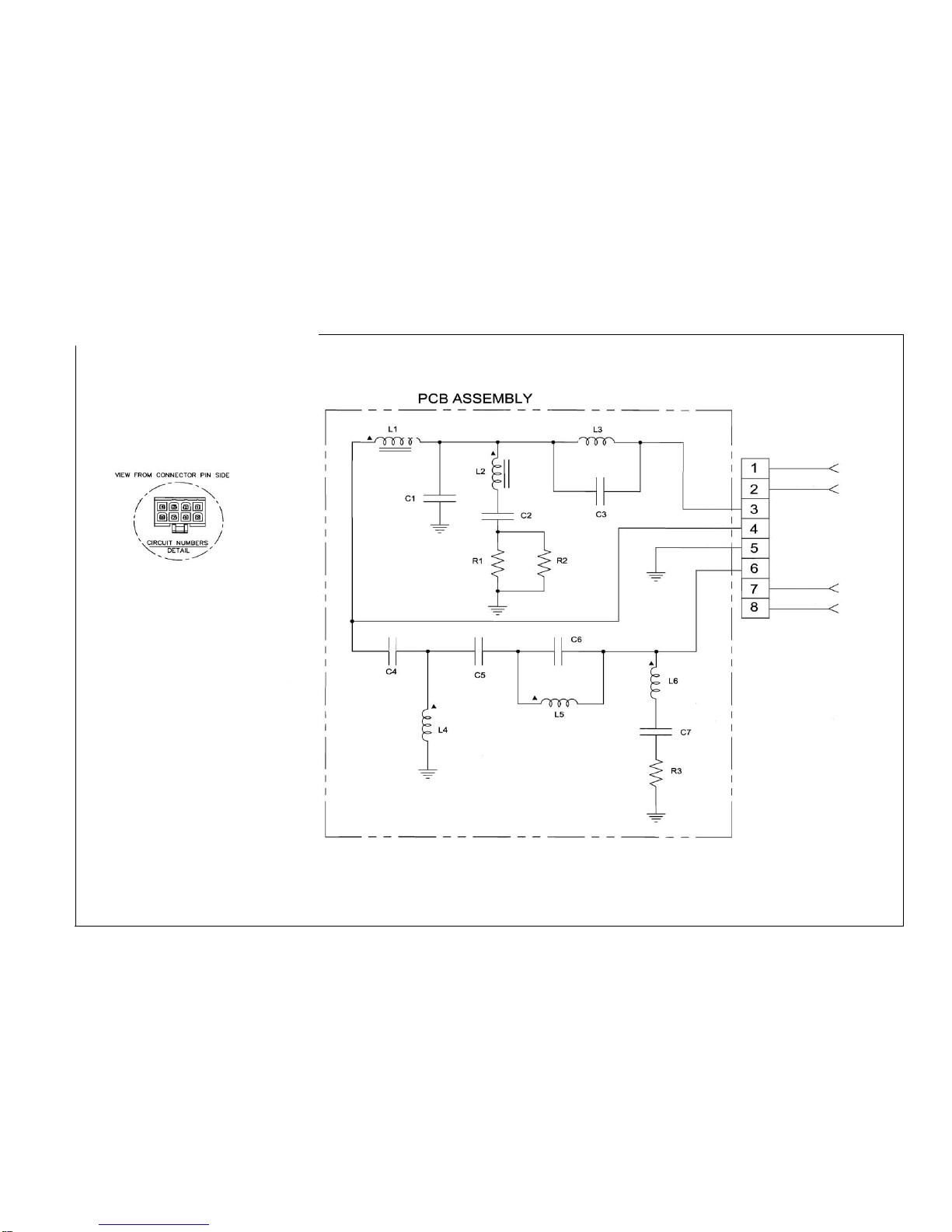

SCHEMATIC (443677-001) JBL AM5215/95-WH

JBL AM5215/95-WH

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

1.75mH

5.00mH

0.200mH

0.620mH 0.030mH

0.200mH

16.0uF

250V 14.0uF

250V 20.0uF

250V

1.62uF

250V 2% 10.0uF

250V

10.0uF

250V

14.0uF

250V

40.0 Ohms

3.3 Ohms

GRN/BLK

GRN

YEL/BLK

YEL

GRN

RED

BLK

YEL

+ 0.187

- 0.187

+ 0.250

- 0.250

8 Pin

Connector

Molex P/N

39-01-2080

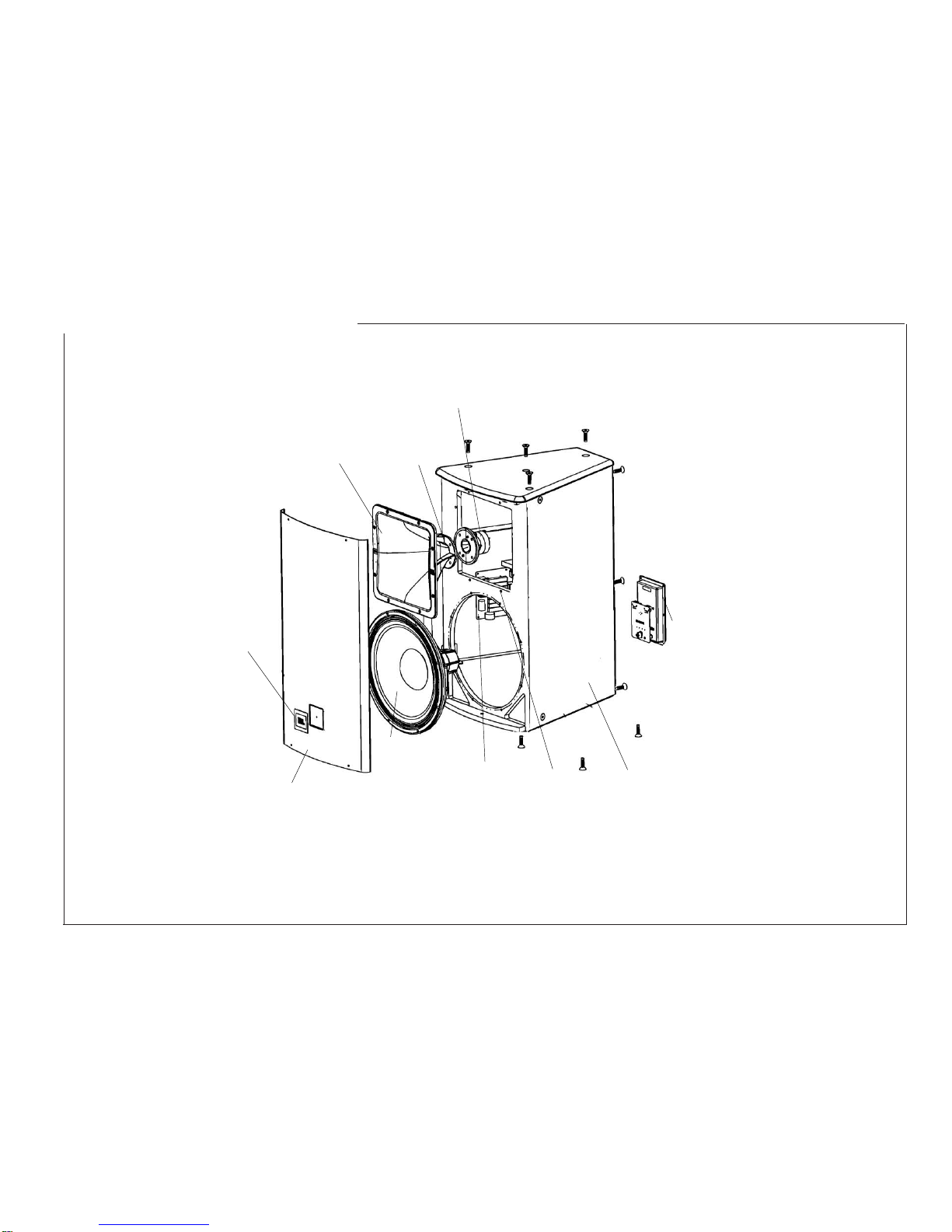

COMPONENT EXPLODEDVIEW JBL AM5215/95-WH

JBL AM5215/95-WH

Grille Assembly

338163-002

338163-102 WH)

Screw (8)

882-51110-12

882-51160-12 (WH)

6 x 3/4

OV,PH,PTCL,

ZINC,LCS

Driver, Low Freq.

265H-1

(363837-003X)

Cone Repl

C8R265

Screw (8)

804-01110-16

10-32 x 1

FIL, PH,BLK ZINC

LCS

Gasket, Rear

360-70002-01

15”

Dome

71646-04

T-Nut (16)

61861

10-32 x 7/16

Step Barrel

Mounting Support (6)

381-00023-01

90 DEGREES

Bolt (15)

352051-001

352051-002 (WH)

M10 x 25MM, HEX

Screw (12)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK ZINC,LCS

Mounting Bracket (3)

338652-001

FLAT SINGLE, M10

Screw (6)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK ZINC,LCS

Network

Asembly

443677-001

Screw (9)

882-41110-10

6 x 5/8

PAN,PH,PB

BLK ZINC,LCS

Input Plate

339336-001

Screw (6)

882-41110-10

6 x 5/8

PAN,PH,PB,

BLK ZINC,LCS

Input Label (HADM)

440926-007

Label

339339-067

Driver, High Freq.

2408H-1

(365011-001X)

Diaph Repl

D8R2408-1

Throat Adapter

443323-001

Bolt (4)

854-03010-16

1/4-20 x 1

CAP,BLK ZINC,

LCS

Nut (4)

834-30010-00

1/4-20

KEPS,BLK

ZINC, LCS

RIGHT

Waveguide

443495-001

Screw (8)

804-41110-12

10-32 x 3/4

PAN,PH,BLK

ZINC,LCS

Logo, Grille

339402-001

339402-002 (WH)

Push Nut

350689-001

7/16”

Compression Spring

365201-001

Washer

76168

BLK.175ID .75OD Enclosure Assembly

AM5215/66-WH

(not available for sale)
