JBL TLX105 Manuel utilisateur

TLX105, TLX121,

TLX151, TLX171,

TLX181

simple

set-up guide

thank you for choosing JBL. For over 50 years, JBL has

been involved in every aspect of musical and film recording and

reproduction, from live performances to monitoring the recordings

you play in your home, car, or office.

We’re confident that the JBL loudspeakers you have

chosen will provide every note of enjoyment that you expected –

and that when you think about purchasing additional audio

equipment for your home, car, or office, you will once again

choose JBL.

Please take a moment to complete the enclosed profile card. It

enables us to keep you posted on our latest advancements, and

helps us to better understand our customers and build products

that meet your needs and expectations.

JBL Consumer Products

TLX Series OM 9/11/98 11:56 AM Page 1

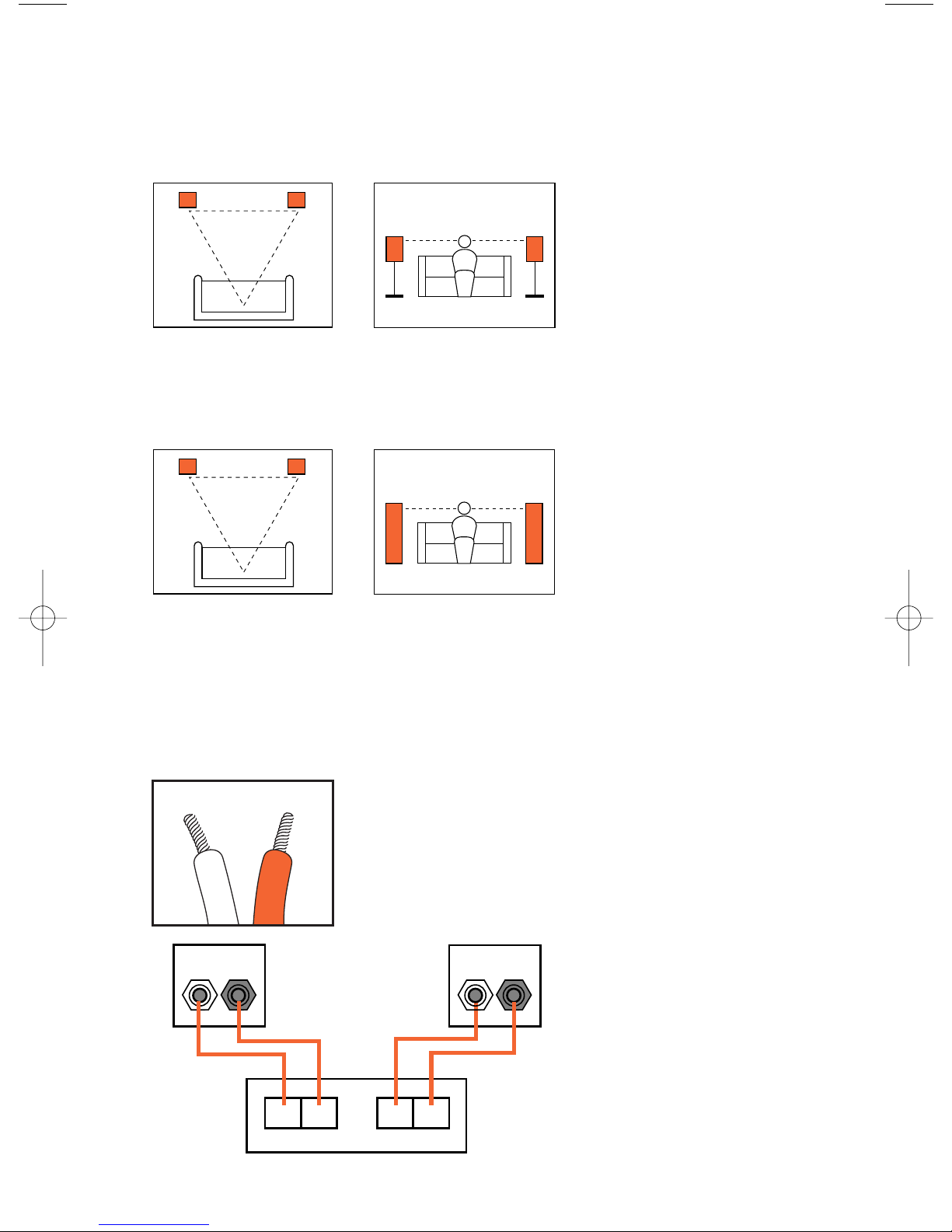

one. Speaker Placement

two. Speaker Connections

Connection Tips

– +– +

– + – +

Speaker Outputs

RIGHT LEFT

Speakers and electronics ter-

minals have corresponding (+)

and (–) terminals. It is impor-

tant to connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and

(–) on the speaker to (–)

on the amplifier. Wiring “out

of phase” results in thin

sound, weak bass and a poor

stereo image.

TLX105, TLX121, TLX151

TLX171, TLX181

Tweeters should be at

ear level.

Tweeters should be at

ear level.

TLX Series OM 9/11/98 11:56 AM Page 2

Troubleshooting

If there is no sound from

any of the speakers, check

the following:

• Receiver/amplifier is on and

a source is playing.

• Review proper operation of

your receiver/amplifier.

If there is no sound coming

from one speaker, check the

following:

• Check the “Balance” control

on your receiver/amplifier.

• Check all wires and connec-

tions between receiver/

amplifier and speakers.

• Make sure all wires are

connected. Make sure none of

the speaker wires are frayed,

cut or punctured.

If the system plays at low

volumes but shuts off as

volume is increased, check

the following:

• Check all wires and connec-

tions between receiver/

amplifier and speakers.

• Make sure all wires are con-

nected. Make sure none of the

speaker wires are frayed, cut

or punctured.

• If more than one pair of

main speakers is being used,

check the minimum imped-

ance requirements of your

receiver/amplifier.

If there is low bass output,

check the following:

• Make sure the polarity

(+ and –) of the left and

right “Speaker Inputs” are

connected properly.

Declaration of Conformity

We, JBL Europe A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the products described

in this owner’s manual are in compliance with technical

standards:

EN 50 081-1/1992

EN 50 082-1/3.1995

Steen Michaelsen

JBL Europe A/S

Birkerød. DENMARK. 3/97

TLX Series OM 9/11/98 11:56 AM Page 3

JBL Consumer Products

80 Crossways Park West, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

1-800-336-4JBL (4525) (USA only)

www.jbl.com

A Harman International Company

SYSTEM TLX151 TLX171

Frequency Response (–6dB): 50Hz – 25kHz 35Hz – 25kHz

Recommended Maximum

Power Handling*: 125 watts 150 watts

Sensitivity @ 1 watt/1 meter:

90dB 90dB

Normal Impedance: 8 ohms 8 ohms

Crossover Frequency: 600Hz, 3000Hz 600Hz, 3000Hz

Woofer: 8" 8"

Midrange: 4" 4" cast frame

Tweeter: 10mm titanium laminate 10mm titanium laminate

Finish: black ash woodgrain vinyl black ash woodgrain vinyl

Dimensions (HxWxD): 20-7/8 x 9-7/8 x 12" 33-7/8 x 10-1/4 x 12-7/16"

530 x 250 x 305mm 860 x 260 x 315mm

Weight (each): 21.25 lbs/9.5 kg 35.25 lbs/16 kg

SYSTEM TLX181

Frequency Response (–6dB): 30Hz – 25kHz

Recommended Maximum

Power Handling*: 200 watts

Sensitivity @ 1 watt/1 meter:

90dB

Normal Impedance: 8 ohms

Crossover Frequency: 600Hz, 3000Hz

Woofer: 10" with 10" passive radiator

Midrange: 4" frame

Tweeter: 10mm titanium laminate

Finish: black ash woodgrain vinyl

Dimensions (HxWxD): 37-3/8 x 11-3/4 x 12-7/16"

950 x 300 x 315mm

Weight (each): 43 lbs/19.5 kg

*The maximum recommended

amplifier power rating will ensure

proper system head-room to allow

for occasional peaks. We do not

recommend sustained operation at

these maximum power levels.

Occasional refinements may be

made to existing products without

notice, but will always meet or

exceed original specifications

unless otherwise stated.

Specifications

SYSTEM TLX105 TLX121

Frequency Response (–6dB): 75Hz – 20kHz 55Hz – 25kHz

Recommended Maximum

Power Handling*: 50 watts 75 watts

Sensitivity @ 1 watt/1 meter:

86dB 89dB

Normal Impedance: 8 ohms 8 ohms

Crossover Frequency: 2200Hz 3000Hz

Woofer: 5-1/4" 6-1/2"

Midrange: N/A N/A

Tweeter: 2" 10mm titanium laminate

Finish: black ash woodgrain vinyl black ash woodgrain vinyl

Dimensions (HxWxD): 11 x 6-1/2 x 7-1/4" 13-3/4 x 7-7/8 x 9-5/8"

280 x 165 x 184mm 350 x 200 x 245mm

Weight (each): 7 lbs/3.2 kg 10.5 lbs/4.8 kg

JBL is a registered trademark

of JBL, Incorporated.

Printed in USA 3/97

Part No. TLXOM

TLX Series OM 9/11/98 11:56 AM Page 4
