INSTRUCTION MANUAL

PSS

Multiaxis Rotative PCB Support

Allen Key .................................................... 1 unit

Ref. 0032547

Manual ....................................................... 1 unit

Ref. 0032070

Rotative Support ...................................... 1 unit

Packing List

The following items are included:

This manual corresponds to the following reference:

PSS-A

Application

PSS is designed to support and fix PCBs to perform soldering and desoldering jobs with or without

preheaters. JBC’s rotary support can work with JBC’s PHSE Preheater.

Preheater

PCB

Support

Caution: Take care when working with preheaters since metal surfaces of the support

can be hot - especially the sliding guide and the spring guide.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Scale for

Support Height Positions

(3 Positions)

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Sliding Guide

Spring Guide

Allen Key

for Clamp

Knobs

Features - Horizontal Position

Sliding Guide

Release Lever

Clamp Knob

Slot

Clamps

Pushbutton

for PCB Rotation

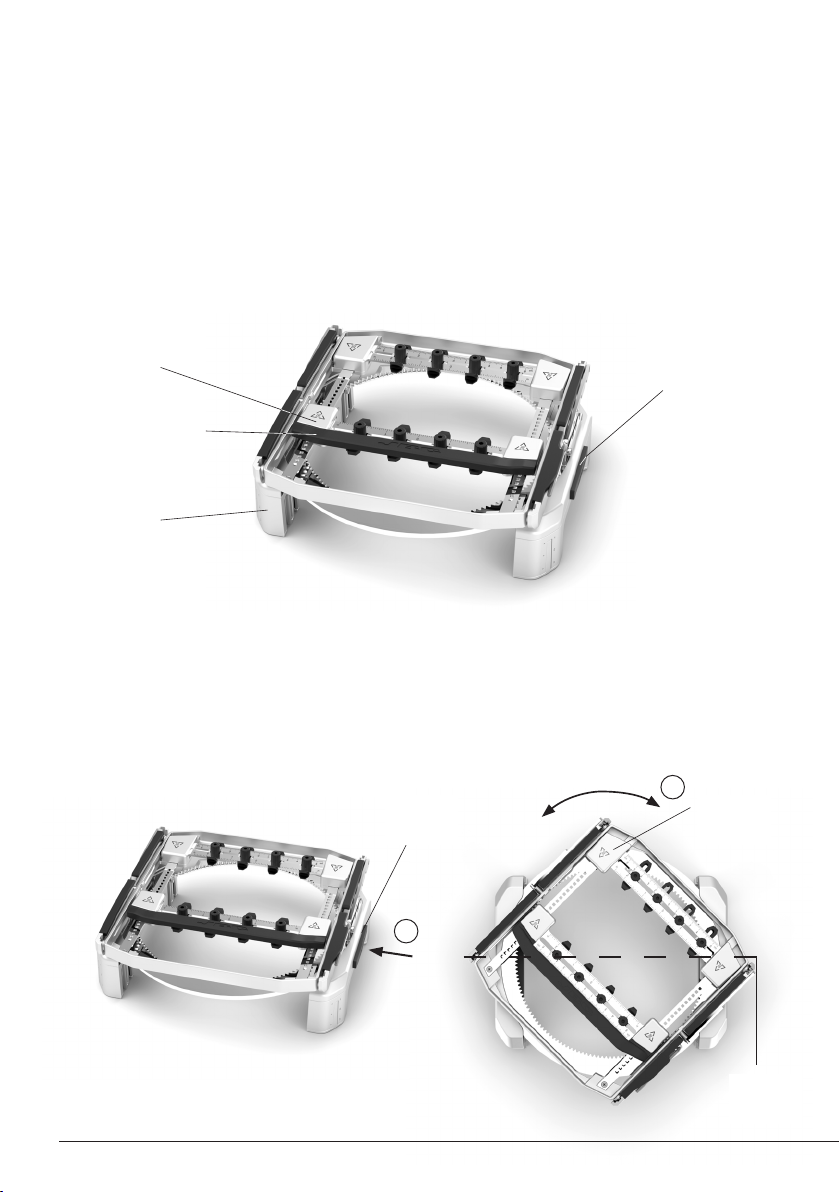

Features - Inclined and Rotated Position

ESD Connections

ESD Connector

(connect to ESD Common

Grounding Point)

Push Tabs for Support

Height Adjustment

PCB Holder:

rotating, tilting and

ﬂipping area

Support:

with 3 adjustable

height levels

Positioning

Lever

Positioning Arm

(4 Tilt Positions)

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Height Adjustment

The support incorporates a height adjustment mechanism inside the support legs. Choose between

3 different height levels.

Lift the support while holding the tabs and let its feets drop down under their own weight (2).

While continuing to hold the lower tabs, place the support on the workplace and lower it until it

reaches the desired height.

Release the tabs and the legs will automatically lock into position (3).

Note: Make sure that the components already mounted on the PCB do not come too close to the

preheater plate.

If components are too close to the heating surface, they may be damaged. To avoid this, set the

support height to level 2 or level 3 or set an adequate PCB holder angle to ensure sufficient distance.

Pay special attention when turning the PCB holder upside down.

To adjust the height, press the two lower push tabs upward at the same time and hold them

pressed (1).

Level 1

Without support elevation

Level 3

Support elevation

22.5mm/0.89in

Level 2

Support elevation

10mm/0.04in

Push tabs located on both sides of the support

PCB Holder Positions

Default Position

(Level 1 - without elevation)

By default, the sliding guide realease lever is located at the front and the push button for holder rotation

on the right side.

Rotated Position

(360º range)

To rotate the PCB holder, press the lateral push button (1) to unlock its position. While the button is

pressed, the holder can be rotated to the desired position (2). Note: In order to be able to rotate freely,

the support needs to have a free space of at least 30 cm in diameter.

Release the lateral push button and the holder will rest in the desired position.

PCB

Holder

Height-

Adjustable Feet

Push Button

for Holder

Rotation

Rotated

PCB Holder

Sliding Guide

Realease Lever

Pushbutton for

Holder Rotation

ø 300 mm

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Holder Angle

55º

Lever position for

a holder angle of 0º

Positioning

Lever

Inclined Position

To place the holder in an inclined position, lift the rear end slightly upwards and hold the holder in the

desired angular position (1).

With the other hand, turn the positioning lever upwards (2) and insert its stud into one of the openings

of the positioning arm (3). Do the same on the opposite side to completely fix the holder in the desired

position.

It is possible to choose between 4 different angular positions: 25º, 35º, 45º and 55º. Note: When

working at 55º and level 3 height, the total height of PSS reaches 24.5 cm (up to 30 cm at 90º).

To return the holder to the horizontal position, set the lever to its horizontal position (4) - for a holder

angle of 0º.

Caution: When adjusting and changing the support positions, be aware that the metal

surfaces may be hot.

45º

35º

25º

Positioning

Arm

If the holder is in an inclined position,proceed as follows to turn it upside down:

Grasp the holder at the top and slide it upwards (1). Both position levers will automatically drop down

to their horizontal position (2) and will release the previous holder position.

Then tilt the holder all the way back (3) until it comes to rest in a horizontal position again (4).

The holder is now completely turned around by 180º and the top side of the PCB is facing down.

Proceed in reverse order if you want to work on the top side of the PCB again.

Upside Down Position

(180º - inverted position)

The PCB holder can be turned upside-down (180º), this means the top side of the PCB then faces

downwards.

This has the advantage that the PCB does not have to be repositioned if soldering is to be carried out

on the top and on the bottom side of the PCB.

Note: Be aware that after turning it around, larger components may come too close to the preheater

heating surface or table. If necessary, set a different support height (see chapter “Height Adjustment”

on page 5).

If the holder is in a horizontal position, procced as follows to turn it upside down:

Grasp the holder at the front (1) and slide it upwards until it is in a vertical position (2).

Horizontal Upside Down Position

Angular Upside Down Position

Front

PCB is facing upside down

Positioning

Lever

Desired

lever

position

PCB facing

upside down

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

PCB PLACEMENT 1

PCB PLACEMENT 2 PCB PLACEMENT 3

PCB PLACEMENT 1

PCB PLACEMENT 2 PCB PLACEMENT 3

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Keep lifting the holder until it is in a vertical position (3).

Then tilt the holder all the way to the desired angular position (4) and insert the studs of the positioning

levers in the desired position to fix the holder in place (5).

The PCB is now turned around by 180º and the top side of the PCB is facing down.

Proceed in reverse order if you want to work on the top side of the PCB again.

PCB Placement

Loosen the knobs of the spring guide clamps (1), adjust their distance according to the PBC width (2)

and tighten the knobs again. Clamps that are not needed can be slided to the side (3) (or disassembled).

Loosen the knobs of the sliding guide clamps (4) and slide unneeded clamps aside (5).

Insert the PCB into the slots of the spring guide clamps (6) and into at least one slot clamp on the side

of the sliding guide (7) and tighten the clamp knob (8).

Press the sliding guide against the PCB to move it together with the spring guide slightly backwards

(9) until the sliding guide clicks into place.

Sliding guide

clicks into place

Spring Guide

Sliding Guide

Maintenance

Before carrying out maintenance or storage,

always allow the support to cool down.

- Check periodically that the Support is clean,

especially the axes of the sliding guide.

- Use a damp cloth when cleaning. Alcohol

can only be used to clean the metal parts

- Replace any defective or damaged piece.

Use original JBC spare parts only.

- Repairs should only be performed by a JBC

authorized technical service.

PCB PLACEMENT 1

PCB PLACEMENT 2 PCB PLACEMENT 3

Now adjust the positions of the other requiered slot clamps to the PCB shape and tighten their clamp

knobs (10) after the adjustment.

The clamp knobs can be loosened and tightened by hand and/or by means of the provided Allen key.

The Allen key is stored on the side of the support and held in place by a built-in magnet.

Allen Key

Note: The spring guide is not adjustable, but is spring loaded, which allows to change PCBs quickly.

See next chapter “Fast PCB Repalcement”.
