Reference Guide

MICRO TWEEZERS

STATION

MICRO TWEEZERS

STATION

Reference Guide

CP / MICRO TWEEZERS STATION

CONTENTS

CONTROL UNIT MICRO HOT TWEEZERS

PA-A

CABLE COLLECTOR

CC8193

CARTRIDGES

C120002 (x2)

MANUAL

MICRO HOT TWEEZERS

Reference Guide

MANUALPOWER CORD

COMPLETE STATION

CABLE COLLECTOR ASSEMBLY

CABLE ASSEMBLY

CABLE POSITION

DOME RELEASE

METAL BRUSH

CL6217

STAND

CABLE COLLECTOR

Use the cable collector for

keeping workplace clear of

cable

METAL BRUSH

Use brush to clean tips and to

eliminate oxidation for easy

retinning

RUBBER BANDS

Tap cartridge smoothly against

bands to remove excess solder

from tip

WORK

220

time

SLEEP

220

time

HIBERNATION

room

temperature

INSTALLATION

HEAT MANAGEMENT

Main switch

Equipotential

connector

CONTROL UNIT

MICRO HOT TWEEZERS

PA-A

Power Cord

Socket

JBC stations intelligently manage the tool temperature:

Work mode: When the tool is used, pre-set work temperature is 350º C.

Sleep mode: When the tool is in the stand, the temperature goes down to 220º C.

Hibernation mode: After longer periods of inactivity (pre-set i.e 30 minutes), the power is cut off and

the tool cools down to room temperature.

The advantage of this heat management is lifespan increase which ensure low cost of ownership.

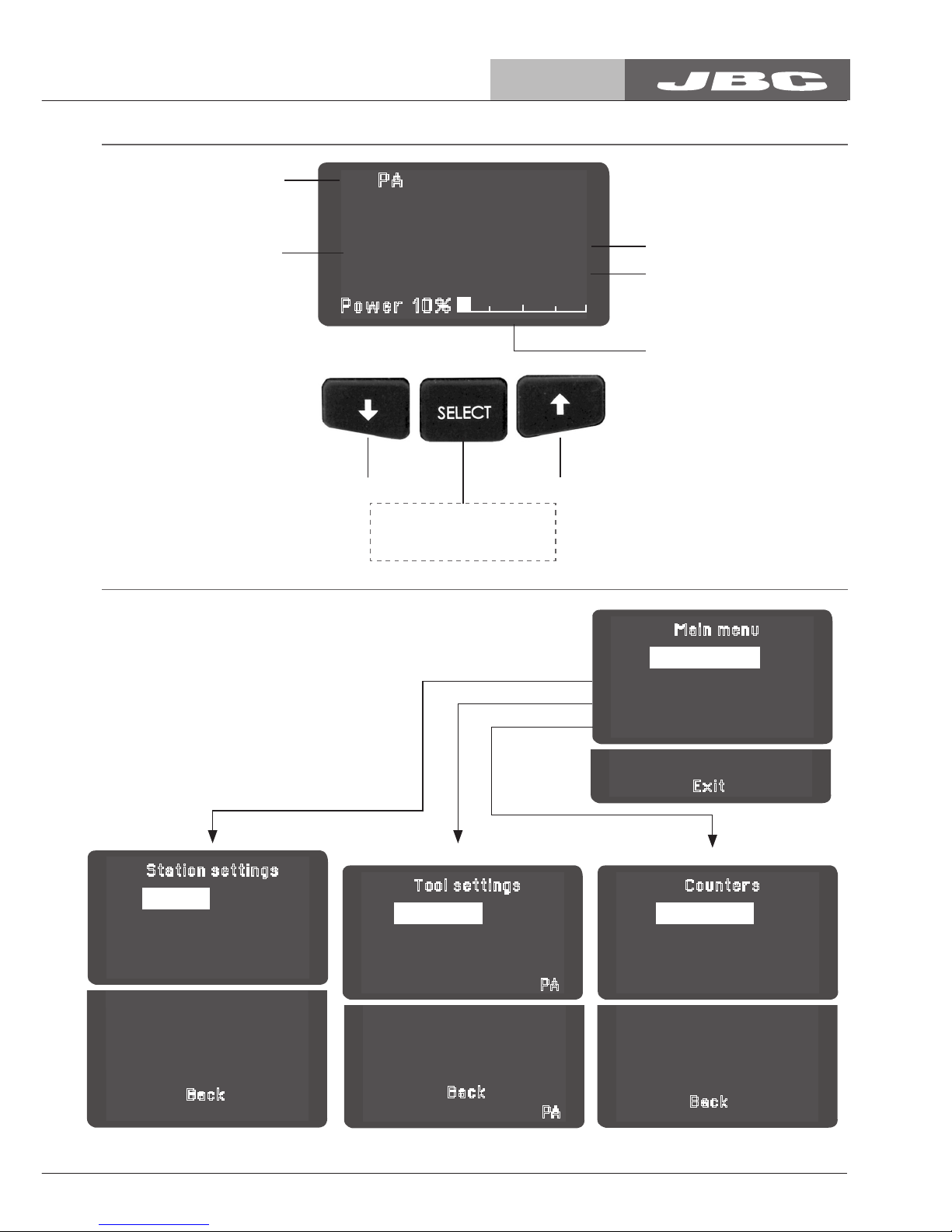

Main menu

Counters

Tool settings

1 Reset settings

Station settings

Tool settings

Counters

Plugged hours 0

Working hours 0

Sleep hours 0

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

Program version

Hibernation hours 0

No tool hours 0

6 Sleep cycles

Sleep temp 220

Hibernation delay 0 min

Temp adjust O

Tool PA

Exit

Back

Tool

Power 10%

350

220

Sleep

oSelected temperature

WORKING

SETTINGS

Decrease & move down Selection Increase & move up

Tip temperature

% Instant power supplied to the tool

Working tool model

Status

ORIGINAL PIN: 0105

SELECT key 2 seconds

to enter Menu

Station settings

1 Temp unit

Celsius

Maximum temp 400

Minimum temp 200

Help text OFF

Beep ON

6 Power limit 130W

7 Popup ON

Change PIN ON

Back

MORE INFORMATION

www.jbctools.com

SERIAL N`

STAMP OF DEALER

DATE OF PURCHASE

0009520-0110

TECHNICAL SPECIFICATIONS

- Temperature selection from 90 to 450°C (±5%).

- Power: 75W.

- Safety transformer, mains separator and double isolation, with temperature protection fuse.

- CP-2A 230V control unit. Input: 230V 50Hz. Output: 24V.

- CP-1A 120V control unit. Input: 120V 60Hz. Output: 24V.

- Total weight of unit: 2,6 Kg.

- Complies with CE standards on electrical safety, electromagnetic compatibility and ESD protected housing

“skin effect”.

- RoHS compliant.

- Equipotential connector and the tool tip are connected to station mains ground supply for ESD protection.

This product should not be

thrown in the garbage.

ENGLISH / WARRANTY

JBC’s 2 years warranty guarantees this equipment against all ma-

nufacturing defects, covering the replacement of defective parts

and all necessary labour.

Warranty does not cover product wear due to use or mis-use.

In order for the warranty to be valid, equipment must be returned,

postage paid, to the dealer where it was purchased enclosing this

fully completed form.
