Jbc RMVE-D Manuel utilisateur

Premium

Complete Rework Station

with Pneumatic Pump

Ref. RMVE-D

INSTRUCTION MANUAL

www.jbctools.com

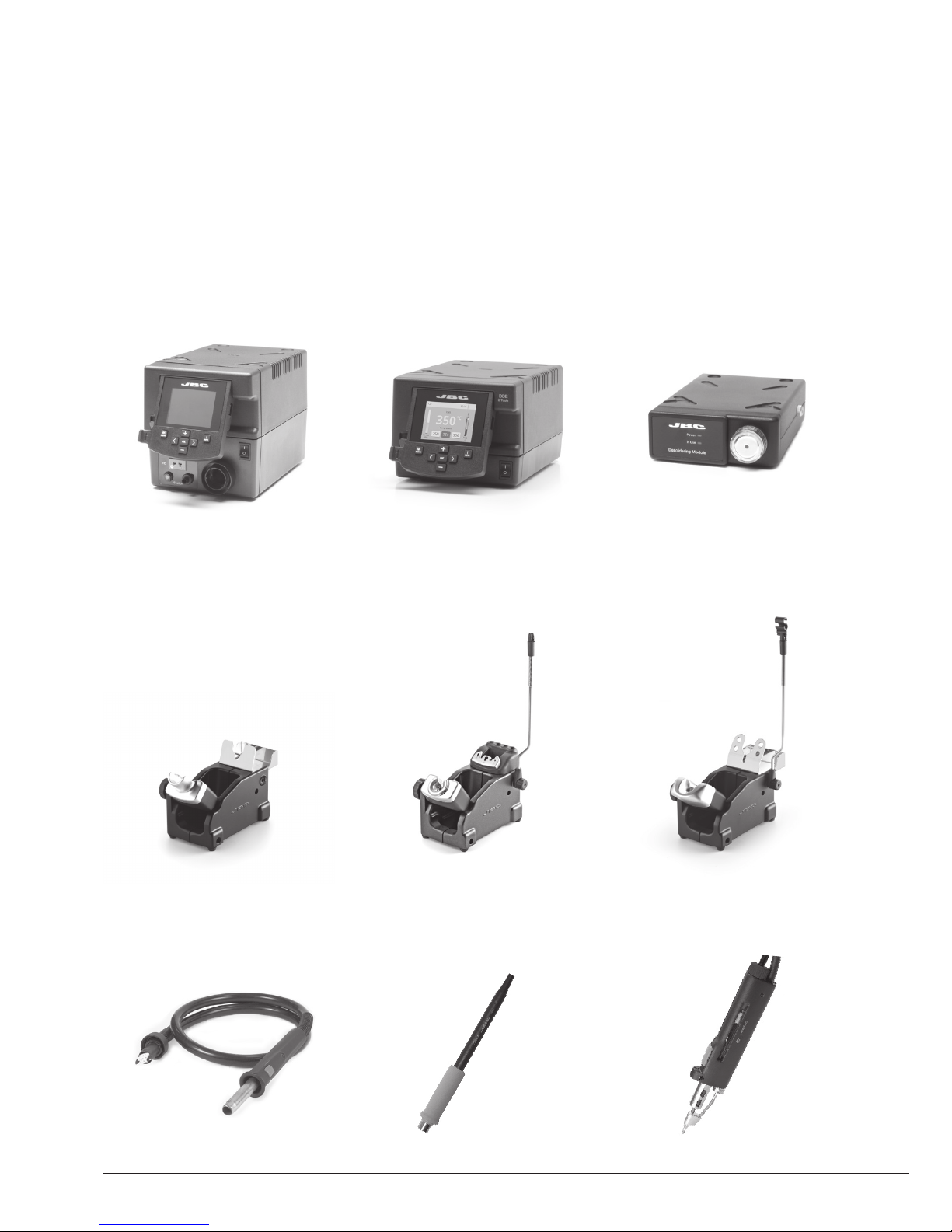

Packing List

The following items should be included:

Stand ................................ 1 unit

Ref. AD-SE

Pneumatic

Desoldering Module ........ 1 u

Ref. MVE-A

DDE Control Unit .............. 1 u

Ref. DDE-1B (120V)

DDE-2B (230V)

DDE-9B (100V)

Desoldering Iron ........... 1 unit

Ref. DR560-A

C560003 already inserted

Stand ............................... 1 unit

Ref. DR-SE

General Purpose

Handle .............................. 1 unit

Ref. T245-A

Heater hose set ............ 1 unit

Ref. JT-T1A (100V / 120V)

JT-T2A (230V)

Stand ................................ 1 unit

Ref. JT-SE

JTSE Control Unit ............ 1 u

Ref. JTSE-1A (100V - 120V)

JTSE-2A (230V)

ESD Tip Cleaner ........... 1 unit

Ref. CL8499

JT Accessory set

Ref. 0012332

Extractor stand* ........... 1 unit

Ref. 0008752

Suction Tube*

Ref. 0932330

Suction Cups*

R e f. 0 9 3 0110

Ø 10 - 0934050 (x3)

Ø 4.7 - 0934070 (x1)

Extractors*

Ref. E2184

E2064

E2052

Protectors*

Ref. P2220

P2230

P2235

P4000

P4010

Tripod*

Ref. T2050

(Ø 39mm)

T2250

(Ø 85mm)

Nozzles

Ref. JN2015 (x1)

JN2012 (x1)

JN2020 (x1)

Sponge ............ 1 unit

Ref. S0354

Metal Brush .... 1 unit

Ref. CL6217

Cartridges ..... 2 units

Ref. C245903 (x1)

Ref. C245906 (x1)

* These accessories are not supplied with JTSE-1QA / JTSE-2QA stations.

Sponge ............ 1 unit

Ref. CL6210

www.jbctools.com

Venturi Filter ... 1 unit

Ref. 0008446

Suction Filter ... 1 unit

Ref. 0821830

Cotton Filter ... 1 unit

Ref. 0781046

It contains 10 filters

Filter Box ......... 1 unit

Ref. 0005966

It contains 50 filters

DR560 Accessories

R ef. 0 010211

Internal gasket .............. 1unit

Ref. 0019208

It contains 2 gaskets

Tip cleaning set ................................... 1 unit

Ref. 0965970

Spanner ................... 1 unit

Ref. 0780550

Glass solder

collector .......................... 1 unit

Ref. 0812620

Long Tip Cleaning set ....................... 1 unit

Ref. 0965760

Metal solder

collector ................... 1 unit

Ref. 0812630

Tips .......................... 3 units

Ref. C560005 (x1)

Ref. C560013 (x1)

Ref. C560004 (x1)

Filter Box ................. 1 unit

Ref. 0780840

It contains 10 filters

INSTRUCTION MANUAL

Manual ...............................1 unit

Ref. 0020527

Premium

Complete Rework Station

with Pneumatic Pump

Ref. RMVE-D

Stand Cable ................. 2 units

R ef. 0 01128 3

Power cord

For DDE ........................... 1 unit

Ref. 0013671 (100/120V)

0010569 (230V)

Module Cable ................ 1 unit

R ef. 0 014 874

Cleaning stick ................1 unit

Ref. 0786640

Pick & Place ................... 1 unit

Ref. T260-A

Straight Needles Set ... 1 unit

Ref. 0901546

Bent Needles Set ......... 1 unit

Ref. 0861660

Cups Set ......................... 1 unit

Ref. 0940163

Thermocouple

Type K .............................. 1 unit

Ref. PH218

Union Flanges ............... 1 unit

R ef. 0 0113 5 6

Power cord

For JTSE .......................... 1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

www.jbctools.com

JTSE Features

Hot Air button

(On / Off)

Power Socket

Fuse

USB connector

Robot RS232

connector

P-005 Pedal connector

Equipotential

connector

Auxiliar

connector

Heating element

Suction Tube

For tripods and extractors

Heater Hose set

Ref. JT-T1A (100V/120V )

JT-T2A (230V)

Thermocouple type K

Ref. PH218

Stand

Ref. JT-SE

Activates the suction pump

USB-A connector

JTSE Connection

USB-A connector

Filter cover

LED status

indicators

2,8” Color TFT screen

Tilt the display

for easy reading

DDE Features

MVE Features

www.jbctools.com

Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals).

RJ12 connector for Robot

USB-B connector

Equipotential connection

Power Socket

Control Unit

Ref. DDE-B

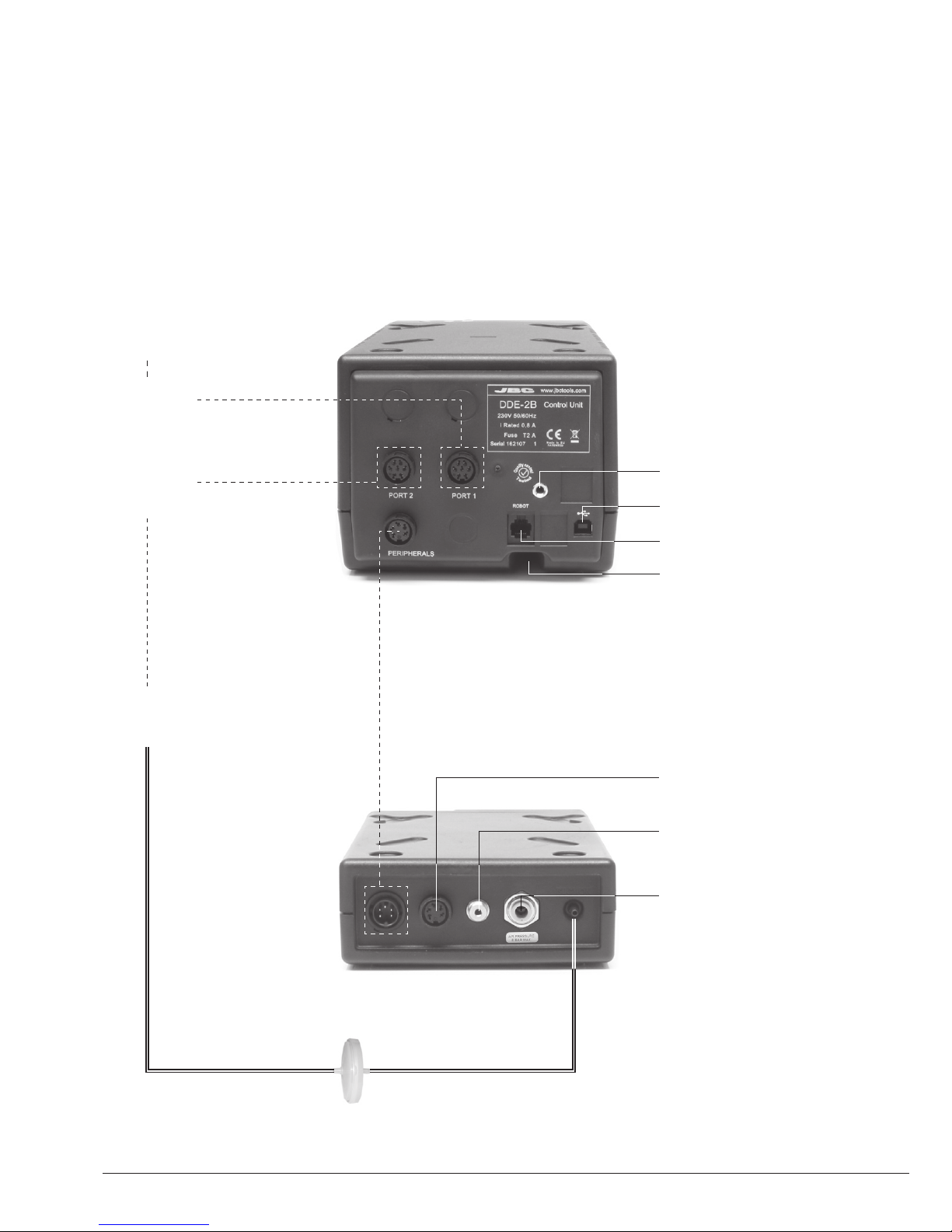

DDE & MVE Connections

Suction Filter

Ref. 0821830

Pneumatic

Desoldering Module

Ref. MVE-A

To another peripheral

Pedal

Ref. P-005

Stand

Ref. DR-SE

Stand

Ref. AD-SE

Desoldering Iron

Ref DR560-A

General purpose handle

Ref T245-A

Air pressure (4-6 bar)

Tubing Ø4 x Ø6 mm

(Not supplied)

* The MNE Nitrogen Flow Regulator is required.

**If you need to connect the MS, MV, MN or FS modules, an adapter is required (Ref. IM2496).

DDE Compatibility

MVE Compatibility

Hot Air Stations Compatibility

Select the equipment that best suit your soldering or desoldering needs.

Basic working system Peripherals**

Control

Unit Tool Cartridge

Range Stand MSE-A /

MVE-A MNE-A FSE-A P-005

DDE-B

T210-A C210

AD-SET245-A C245

T470 -A C245

T210-NA* C210

DN-SET245-NA*

C245

T470 -N A*

AP250-A C250 AP-SE

PA120-A C120 PA-SE

HT420-A C420 HT-SE

DS360-A C360 DS-SE

DR560-A C560 DR-SE

Module Tool Cartridge

Range Stand

Control Units Peripherals

DDE DME P-005

MVE-A

DS360-A C360 DS-SE

DR560-A C560 DR-SE

Basic working system Nozzle Peripherals

Control

Unit Tool Heating Element Stand JN Series TN Series P-005

JTSE-A

TESE-B

JT-A

0014107 (230V)

JT-SE

0014105 (100V/120V)

TE-B 0012374 (100V/120V/230V) TE-SE

www.jbctools.com

Clean periodically

Maintenance

Before carrying out maintenance or storage, always allow the equipment to cool.

1. Pull off the fuse holder and remove the fuse.

If necessary use a tool to lever it off.

2. Press the new fuse into the fuse holder and

replace it in the station.

- Clean the station screen with a glass cleaner

or a damp cloth.

- Use a damp cloth to clean the casing and the

tool. Alcohol can only be used to clean the

metal parts.

- Periodically check that the metal parts of the

tool and stand are clean so that the station

can detect the tool status.

- Maintain tip surface clean and tinned prior to

storage in order to avoid tip oxidation. Rusty

and dirty surfaces reduce heat transfer to the

solder joint.

- Periodically check all cables and tubes.

Fuse holder

Fuse

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

- Replace a blown fuse as follows:
