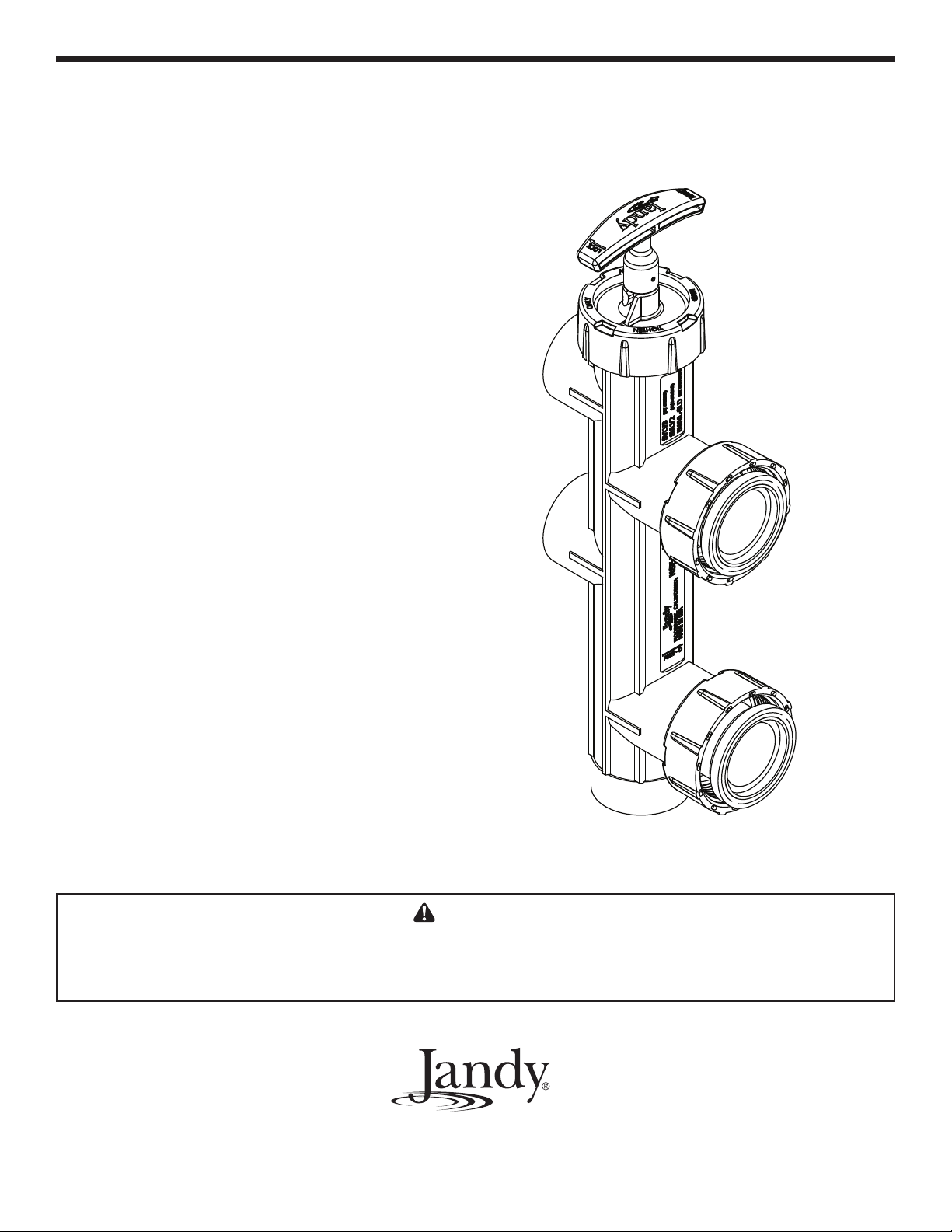

Jandy®Slide

Backwash Valve

Installation and

Operation Manual

WARNING

FOR YOUR SAFETY - This product must be installed and serviced by authorized personnel

qualied in pool/spa installation and maintenance. Improper installation and/or operation

will void the warranty.

Installation and Operation Data

Table of Contents

Section 1. SVLV8 Installation ................................................................................................ 3

Section 2. SVLV2 and Versa-Coupler Installation ............................................................... 4

Section 3. Normal Operation ................................................................................................. 5

Section 4. Backwash Mode ................................................................................................... 6

Section 5. Servicing ............................................................................................................... 6

Section 6. Winterizing ............................................................................................................ 7

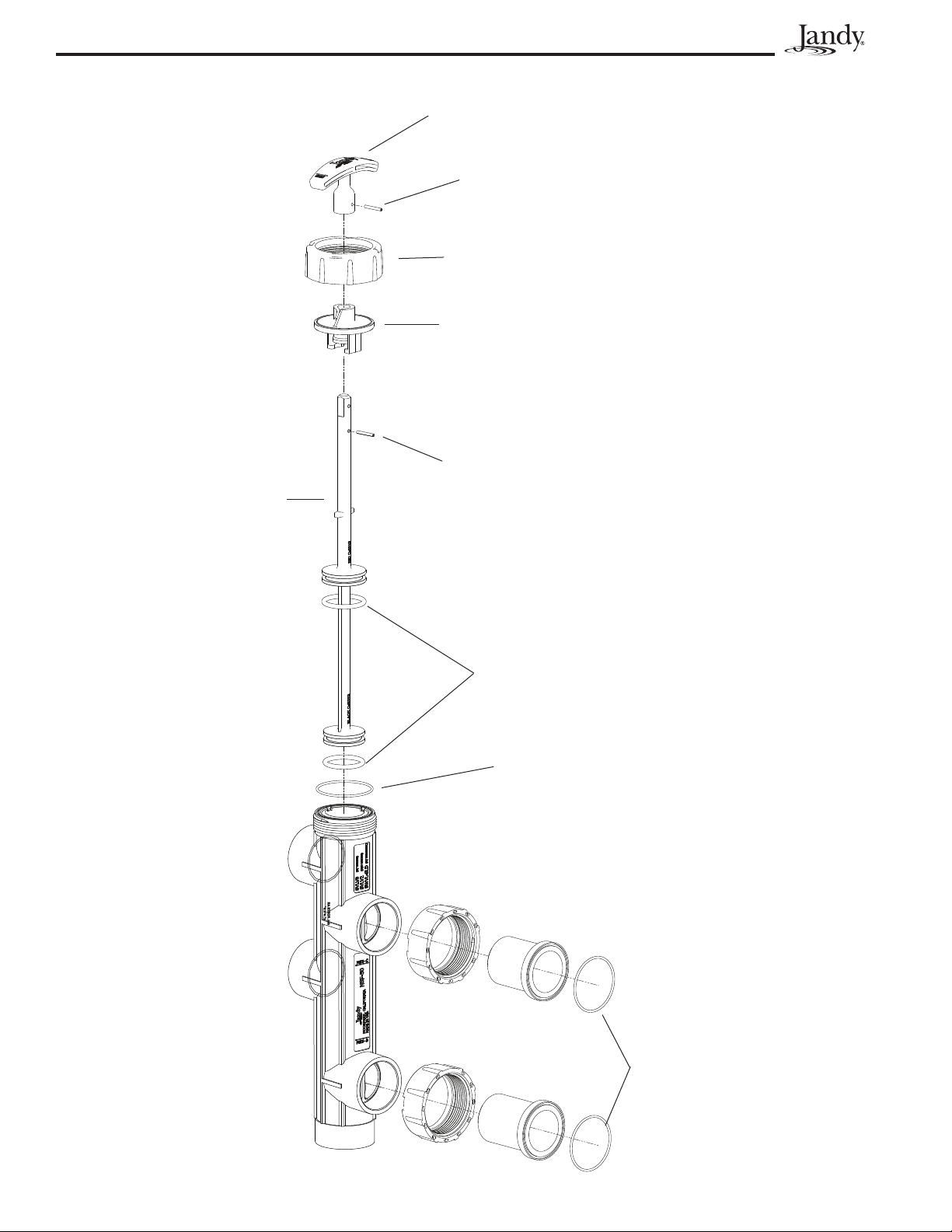

Section 7. Jandy Slide Valve Exploded View and Replacement Parts List ...................... 9

Page 3

Section 1. SVLV8 Installation

1. Remove the Slide Valve from the packaging. Twist

the handle on the Slide Valve several times to

verify that the piston moves freely.

WARNING

FOR YOUR SAFETY: This product must be installed and serviced by a professional pool/spa service techni-

cian. The procedures in this instruction sheet must be followed exactly. Improper installation and/or operation

will void the warranty.

WARNING

Ensure that all electrical power to the system is turned off before approaching, inspecting or troubleshooting

any leaking valves that may have caused other electrical devices in the surrounding area to get wet. Failure to

do so could result in an electrical hazard that could result in death or serious injury due to electrical shock, and

may also cause damage to property and/or operation.

This document provides instructions for installing the

Jandy Slide Valve. The instructions must be followed

exactly. Read through the instructions completely before

starting the procedure. Please save these instructions.

The Jandy Slide Valve is designed to be used on either

sand or diatomaceous earth (DE) lters with a center-to-

center dimension of 8 inches (center of the inlet port to

the center of the outlet port). Combined with the Jandy

Versa-Coupler, the Slide Valve can be used on lters

with center-to-center dimensions of 7 to 9 inches.

For Jandy Filters, Slide Valve p/n SVLV8 (with unions)

is ready to mount to DEL48 or DEL60 model lters

(in which the top port is the lter outlet), BWVL-SLD

mounts to DEV48, DEV60 or JS series model lters. If

mounting a Jandy Slide Valve on Pentair®* or Sta-Rite®*

Filters, use a combination of p/n SVLV2 (Slide Valve

without unions) and p/n 8044 (Versa-Coupler Kit).

The Slide Valve is a two position valve. The valve

handle must be fully extended or fully depressed. This

valve can not be throttled. To operate the Slide Valve

on a DEL, DEV or JS series lters in normal ltration

mode, fully depress the handle. To operate the Slide

Valve from a manufacturer other than Jandy (with the

inlet being the top port) on a sand lter in normal ltra-

tion mode, fully extend the valve handle. See Figure 1.

Figure 2. O-ring Placement

Coupling Nut

O-ring

Union Tail Piece

WARNING

Ensure that all electrical power to the system

is turned off before approaching, inspecting or

troubleshooting any leaking valves that may have

caused other electrical devices in the surrounding

area to get wet.

2. Turn off all power to the system. For retrot

installations only, follow steps "a" through "d".

For new installations skip steps "a" through "d"

and proceed to step 3.

a. Open the pressure relief valve on top of the

lter. Wait for all air to evacuate the system.

b. If the lter is below pool level, close the

suction and return line valves to isolate the

ltration system.

c. Remove the drain plug from the lter. Let the

water drain from the lter.

d. Remove the existing valve from the lter.

3. Remove the two (2) o-rings from the packaging.

4. Place the o-rings on the face of the union tail

pieces, where the face of the Slide Valve union

will connect to the lter bulkheads. (See Figure 2).

Make sure each o-ring is properly seated into the

groove of each union tail piece.

Figure 1. Handle Positions - Filter/Circulation

Mode (SVLV2 shown)

Jandy DEV, DEL or JS

series Filter

Handle fully depressed

(pushed down)

Other

manufacturer

filter with top

filter port as the

inlet

Handle fully

extended

(pulled up)

* Pentair and Sta-Rite are registered trademarks of Pentair, Inc. and/

or its afliated companies.

Page 4

Figure 4. Jandy Versa-Coupler

To Pool

(PORT A)

To Waste (PORT E)

From

Pump

(PORT B)

Figure 3. SVLV8 Installed on Jandy DEL48 or

(DEL60)

5. Hold the Slide Valve upright and place onto the

lter bulkheads. See Figure 3.

6. Tighten both union nuts to secure the valve on the

lter.

7. Place lter and valve in proper location on the

equipment set pad.

8. Plumb the discharge of the pump into the Slide

Valve inlet labeled

PORT B

9. Plumb the Slide Valve outlet labeled

PORT A

to the

heater or pool return lines.

10. Plumb the Slide Valve outlet labeled

PORT E

to the

waste line as needed. Allow the connections to dry

for 24 hours.

11. When the glue is dry, start the system and check

for proper water ow.

NOTE: For new installations other than Jandy DEL48

or DEL60, use the SVLV2 and the Versa

Coupler Kit, p/n 8044. See Figure 4.

If using the Slide Valve with a Pentair® lter, use

Pentair Pool Products®* Union Set #27002, and

then proceed to Section 2. If using a Sta-Rite®

lter, use Sta-Rite® Union Set #PKGM188, and

then proceed to Section 2.

Section 2. SVLV2 and Versa-Coupler

Installation

NOTE Certain lters may require only one (1) versa-coupler

(p/n 8044).

1. Slide one (1) versa-coupler into

PORT C

and one

(1) into

PORT D

on the Slide Valve.

2. Hold the Slide Valve up to the lter and twist the

versa-couplers until they slide into the lter inlet

and outlet ports.

NOTE Make sure to align each versa-coupler to the

lter and the Slide Valve prior to gluing the

assembly. When the parts are in alignment,

mark each piece to ensure correct reassembly.

3. Remove the valve from the lter. Clean the versa-

couplers and glue them onto the valve using the

alignment marks as a reference.

4. Clean the versa-coupler and glue onto the lter.

Hold the coupler in place for a minimum of one

(1) minute.

5. Plumb the discharge of the pump into the Slide

Valve inlet labeled

PORT B

CAUTION

The Slide Valve has molded labels on each port. (See

Figure 1.) The ports on the SVLV8 are equipped with

union connections that match the connections on the

filter ports. Do not use pipe sealants on union nuts.

To Filter Body

(cut away view)

Filter Outlet

(PORT C)

Filter Inlet

(PORT D)

CAUTION

Do not let any adhesive get inside the Slide Valve

body. Adhesive inside the valve body will prevent the

piston from moving freely, or cause the valve to leak.

CAUTION

To avoid costly equipment damage, after verifying

proper water flow and prior to putting system into

normal operating conditions, flush the system using

Backwash mode until the waste water is clean.

Refer to Section 4 for Backwash mode operation

instructions.

Alignment

Mark

Versa-

Coupler

p/n 8044

* Pentair Pool Products is a registered trademark of Pentair Water

Pool and Spa, Inc.

Page 5

NOTE Refer to Figure 5 for Steps 6 and 7.

6. (Jandy DEL, DEV, and JS series Filters) Plumb

the Slide Valve outlet labeled

PORT A

to the heater

or pool return lines.

(Other Manufacturers Filters with the lter top

port as the inlet) Plumb the Slide Valve outlet

labeled

PORT E

to the heater or pool return lines.

7. (Jandy DEL, DEV, and JS series Filters) Plumb

the Slide Valve outlet labeled

PORT E

to the waste

line as needed.

(Other Manufacturers Filters with the lter top

port as the inlet) Plumb the Slide Valve outlet

labeled

PORT A

to the waste line as needed.

8. Allow the connections to dry for 24 hours.

9. When the glue is dry, start the system and check

for proper water ow.

Section 3. Normal Operation

WARNING

NEVER attempt to assemble,

disassemble or adjust the lter when

there is pressurized air in the system.

Starting the pump while there is

any pressurized air in the system

can cause the lter lid to be blown

off, which can cause death, serious

personal injury or property damage.

1. Turn off the system pump(s).

2. Open the air release valve on top of the lter tank

to release all pressure from inside the tank and

system. Wait for all the air to evacuate the system.

3. (Jandy DEL, DEV, and JS series Filters) Ensure

that the Slide Valve handle is fully depressed

(handle and piston pushed all the way down). Turn

the handle until the stainless steel pin on the piston

locks into the position bracket.

(Other Manufacturers Filters with the lter

top port as the inlet) Ensure that the Slide Valve

handle is fully extended (handle pulled all the way

up).

4. Turn on the lter pump(s). Check the system for

normal water ow.

Figure 6. SVLV2 Plumbing Conguration for

Other Manufacturers Filters with Inlet at

Top Port - Filtration Mode

Handle Pulled Up

To Pool

(PORT A)

From Pump

(PORT B)

Filter Outlet

(PORT C)

Filter Inlet

(PORT D)

To Waste

(PORT E)

Figure 5. SVLV2 Plumbing Conguration for

DEL, DEV and JS Series Filters -

Filtration Mode

Handle Pushed

Down

CAUTION

To avoid costly equipment damage, after verifying

proper water flow and prior to putting system into

normal operating conditions, flush the system using

Backwash mode until the waste water is clean.

Refer to Section 4 for Backwash mode operation

instructions.

To Waste

(PORT A)

From Pump

(PORT B)

Filter Inlet

(PORT C)

Filter Outlet

(PORT D)

To Pool

(PORT E)

Page 6

Section 4. Backwash Mode

1. Turn off the system pump(s).

WARNING

NEVER attempt to assemble,

disassemble or adjust the lter when

there is pressurized air in the system.

Starting the pump while there is

any pressurized air in the system

can cause the lter lid to be blown

off, which can cause death, serious

personal injury or property damage.

2. Open the air release valve on top of the lter tank

to release all pressure from inside the tank and

system. Wait for all the air to evacuate the system.

3. (Jandy DEL, DEV, and JS series Filters) Ensure

that the Slide Valve handle is fully extended

(handle pulled all the way up). See Figure 7.

(Other Manufacturers Filters with the lter

top port as the inlet) Ensure that the Slide Valve

handle is fully depressed (handle and piston

pushed all the way down). Turn the handle until

the stainless steel pin on the piston locks into the

position bracket.

4. Turn on the system pump(s) and run the system

until the waste water runs clean.

Figure 7. Handle Positions (SVLV2 shown)

Caution - Handle Positions for

Backwash Only

DE Filter

Handle

Fully

Extended

(pulled up)

Sand Filter

Handle Fully

Depressed

(pushed down)

Lid Union Nut

Figure 8. Loosen Lid Union Nut

4. Grab the Slide Valve handle and pull the shaft

assembly out of the valve. See Figure 9.

5. Inspect the shaft and the o-rings for wear, cuts,

cracks, and debris. If the o-rings show any sign

of wear or damage, replace with Jandy o-ring and

Roll Pin Replacement Kit (P/N R0442100).

IMPORTANT NOTE: Be sure to follow any and all

applicable local codes related to proper discharge/

drainage of water from your pool/spa.

5. Turn off the system pump(s).

6. Return the Slide Valve handle to the normal

operating position. See Section 3.

7. Turn on system pump(s) and check for normal

water ow.

Section 5. Servicing

WARNING

NEVER attempt to assemble,

disassemble or adjust the lter when

there is pressurized air in the system.

Starting the pump while there is

any pressurized air in the system

can cause the lter lid to be blown

off, which can cause death, serious

personal injury or property damage.

1. Turn off the system pump(s).

2. Open the air release valve on top of the lter tank

to release all pressure from inside the tank and

system. Wait for all the air to evacuate the system.

3. Loosen the lid union nut. See Figure 8.

Page 7

NOTE The o-ring inspection includes the lid o-ring.

Please be aware that the roll pins are different

lengths; the handle roll pin is 1" long and the

shaft roll pin is 13/16" long.

6. Wash the shaft and o-rings with clean water and

dry with a lint-free cloth. Ensure that all debris is

removed.

7. Wash the lid surface of the valve (where the lid

o-ring is seated) and dry with a lint-free cloth.

Ensure that all debris is removed.

8. Lubricate o-rings with 100% silicone grease

lubricant, like Magic Lube®*II. Do not use any

lubricant containing petroleum products.

9. Place the shaft back into the Slide Valve and

tighten the lid union nut.

10. Return the Slide Valve handle to the normal

operating position. See Section 3.

11. Turn on system pump(s) and check for normal

water ow.

Lid O-ring

Shaft O-ring, Top (Black)

Shaft O-ring, Bottom

(Purple)

Shaft Assembly

Figure 9. Remove Slide Valve Shaft Assembly

Lid Union Nut

Index Plate/Lid

Section 6. Winterizing

CAUTION

If not properly winterized, damage to the Slide Valve

will occur, which will increase the potential of injury.

1. Turn off the system pump(s).

WARNING

NEVER attempt to assemble,

disassemble or adjust the lter when

there is pressurized air in the system.

Starting the pump while there is

any pressurized air in the system

can cause the lter lid to be blown

off, which can cause death, serious

personal injury or property damage.

2. Open the air release valve on top of the lter tank

to release all pressure from inside the tank and

system. Wait for all the air to evacuate the system.

3. Loosen the lid union nut. See Figure 8.

4. Grab the Slide Valve handle and pull the shaft

assembly out of the valve. See Figure 9.

5. Allow all water to drain out the valve.

6. When it is conrmed that there is no water left in

the valve, place the shaft back into the Slide Valve

and tighten the lid union nut.

7. Position the Slide Valve in Backwash mode. See

Section 4.

(Jandy DEL, DEV, and JS series Filters) Ensure

that the Slide Valve handle is fully extended

(handle pulled all the way up). See Figure 7.

(Other Manufacturers Filters with the lter

top port as the inlet) Ensure that the Slide Valve

handle is fully depressed (handle and piston

pushed all the way down). Turn the handle until

the stainless steel pin on the piston locks into the

position bracket.

* Magic Lube is a registered trademark of Aladdin Equipment Company.

Page 8

Figure 10. Slide Valve Head Loss Curve (Slide Valve with DE Filter Data Shown)

0.0

2.3

4.6

6.9

9.2

11.5

0 50 10025 75 125

Flow Rate, GPM

Design Head Loss

(Feet Head)

0.0

1.0

2.0

3.0

4.0

5.0

Design Pressure Drop (psi)

Page 9

Section 7 Jandy Slide Valve Exploded View and

Replacement Parts List

Key

No.

Description Qty. Model Order

Part No.

1Rebuild Kit (O-rings, Roll Pins

and Index Plate/Lid)

O-ring, Lid

O-ring, Shaft, Top, Black

O-ring, Shaft, Bottom,

Purple

O-ring, Union Tail Piece

Roll Pin, Handle (1")

Roll Pin, Shaft (13/16")

Index Plate/Lid

SVLV8

SVLV2

R0442100

2Rebuild Kit (O-rings, Roll Pins

and Index Plate/Lid)

O-ring, Lid

O-ring, Shaft, Top, Black

O-ring, Shaft, Bottom,

Purple

O-ring, Union Tail Piece

Roll Pin, Handle (1")

Roll Pin, Shaft (13/16")

Index Plate/Lid

BWVL-SLD R0473000

3 Shaft Replacement Kit

Shaft

Handle

Roll Pin, Handle (1")

Roll Pin, Shaft (13/16")

Index Plate/Lid

Lid Union Nut

O-ring, Lid

O-ring, Shaft, Top, Black

O-ring, Shaft, Bottom,

Purple

All R0442200

4 Handle Replacement Kit

Handle

Roll Pin, Handle (1")

Roll Pin, Shaft (13/16")

Lid Union Nut

Lid O-ring

All R0442300

Page 10

1, 2

1, 2, 3, 4

3, 4

1, 2, 3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jandy Unité de contrôle

Jandy

Jandy Jandy Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
