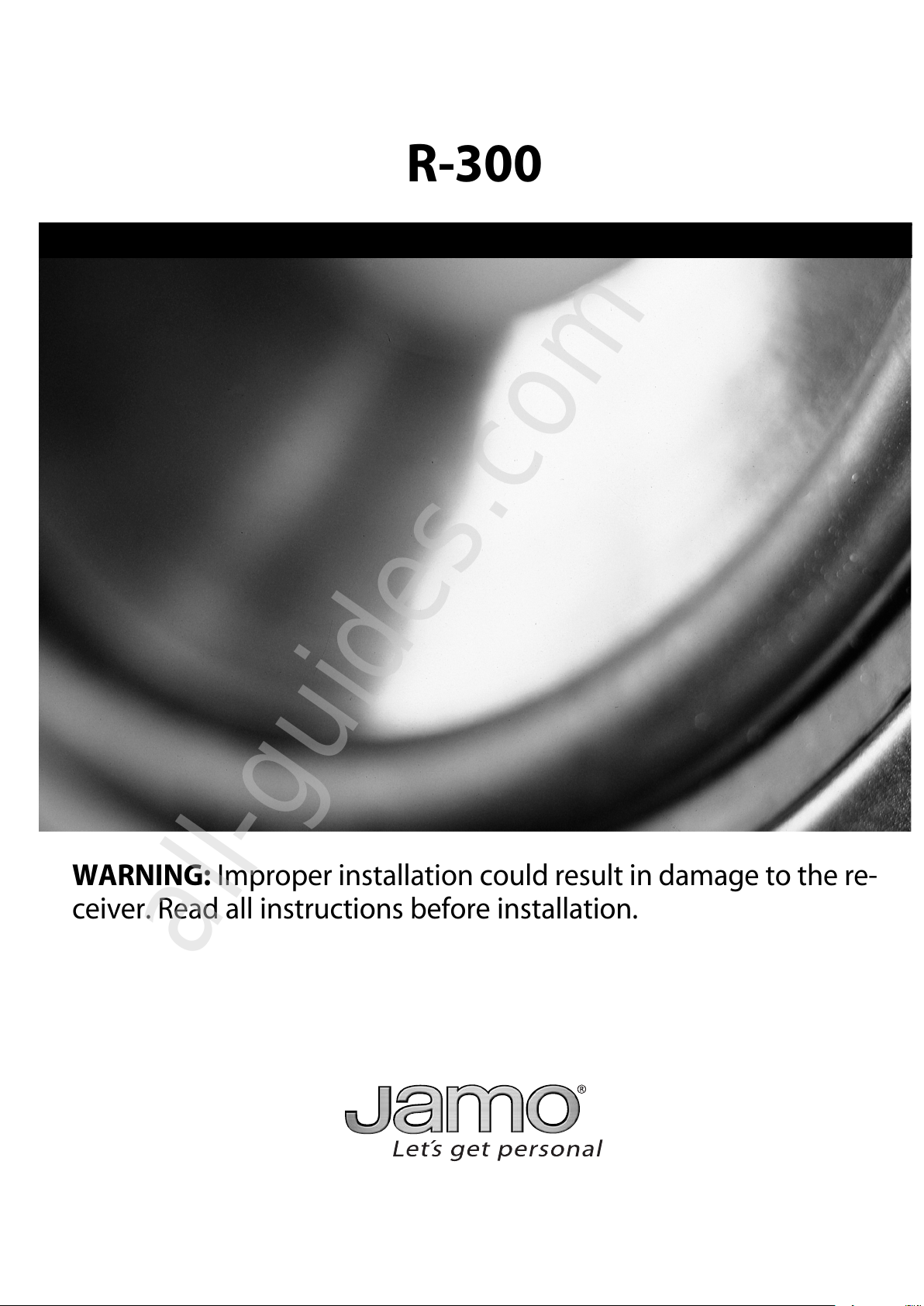

R-300

WARNING: Improper installation could result in damage to the re-

ceiver. Read all instructions before installation.

All manuals and user guides at all-guides.com

all-guides.com

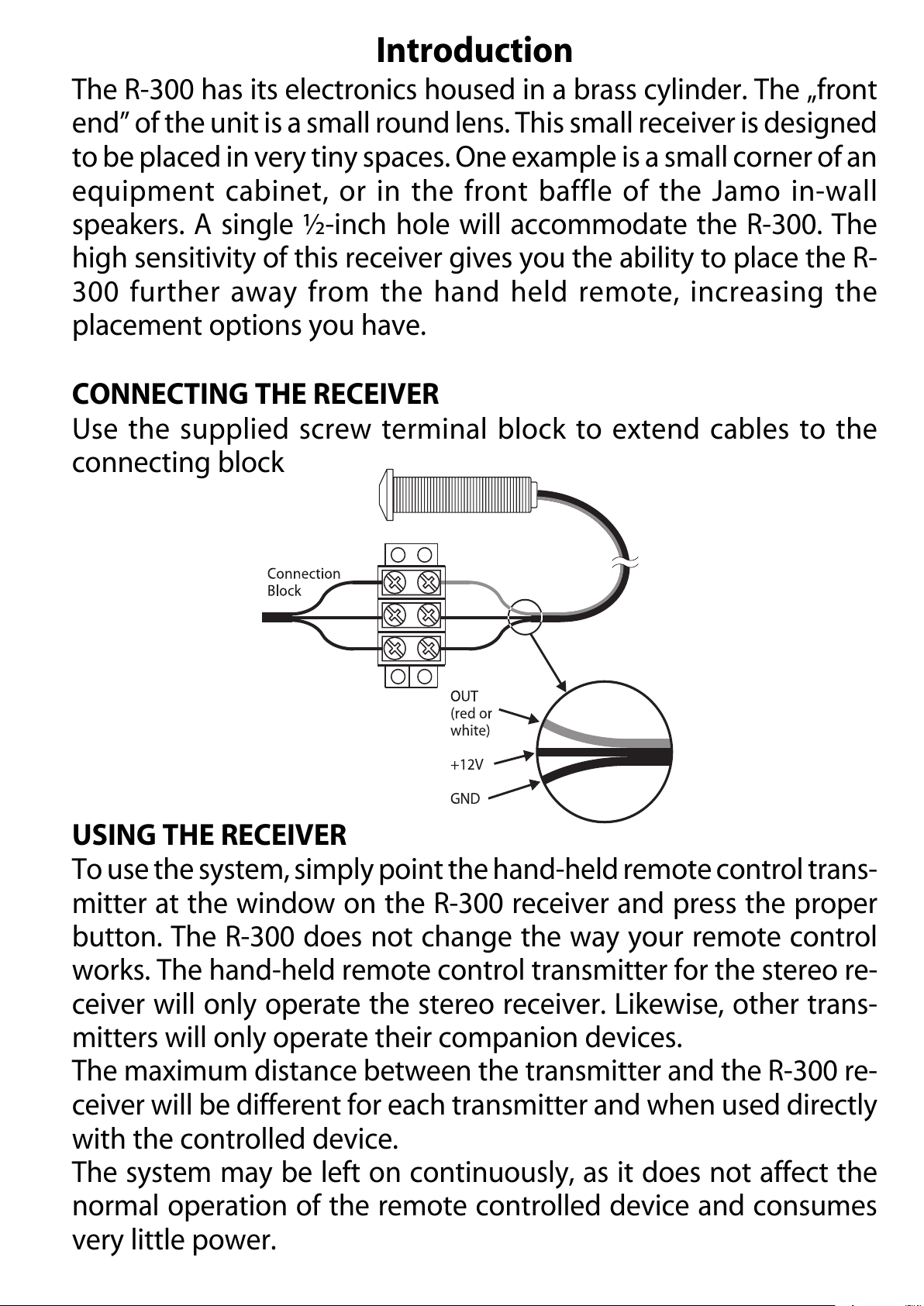

Introduction

The R-300 has its electronics housed in a brass cylinder. The front

end of the unit is a small round lens. This small receiver is designed

to be placed in very tiny spaces. One e ample is a small corner of an

equipment cabinet, or in the front baffle of the Jamo in-wall

speakers. A single ½-inch hole will accommodate the R-300. The

high sensitivity of this receiver gives you the ability to place the R-

300 further away from the hand held remote, increasing the

placement options you have.

CONNECTING THE RECEIVER

Use the supplied screw terminal block to e tend cables to the

connecting block

USING THE RECEIVER

To use the system, simply point the hand-held remote control trans-

mitter at the window on the R-300 receiver and press the proper

button. The R-300 does not change the way your remote control

works. The hand-held remote control transmitter for the stereo re-

ceiver will only operate the stereo receiver. Likewise, other trans-

mitters will only operate their companion devices.

The ma imum distance between the transmitter and the R-300 re-

ceiver will be different for each transmitter and when used directly

with the controlled device.

The system may be left on continuously, as it does not affect the

normal operation of the remote controlled device and consumes

very little power.

All manuals and user guides at all-guides.com

FEATURES

 E tremely small package, only 2in / 51mm deep.

 Works in normal 3-wire mode.

 Talkback green LED tests system for correct wiring as well as

indicating infrared reception.

 RF Grid included for EMI interference reduction.

The R-300 is available in two versions as follows:

R-300B Standard version, with mini 3 conductor 18 feet ribbon

cable and separate screw terminal block (supplied)

R-300W Same as the R-300B e cept with white bezel.

SPECIFICATIONS

 Infrared modulation frequency bandwidth: 30-100 kHz.

 Nominal reception range: > 30 feet / 9m

 Nominal reception angle: 55 degrees off a is

 Cable requirements for long lengths: (three-conductor)

24 AWG = 200ft / 60m

22 AWG = 600ft / 180m

20 AWG = 2000ft / 600m

18 AWG = 5000ft / 1500m

(unshielded OK)

 Ma imum cable length: 1 mile / 1.6 km with 18 gauge.

 Ma imum current output: 100 milliamps.

 Ma imum number of directly driven IR emitters: Up to four

connected in series. (Use Jamo Connecting Blocks for emitter

e pansion).

 Power requirements: 12 volts DC @ 10 mA.

Requires PS-1 power supply.

 Dimensions: ½in / 13mm diameter, 2in / 51cm deep.

All manuals and user guides at all-guides.com

69428 / 33.2000

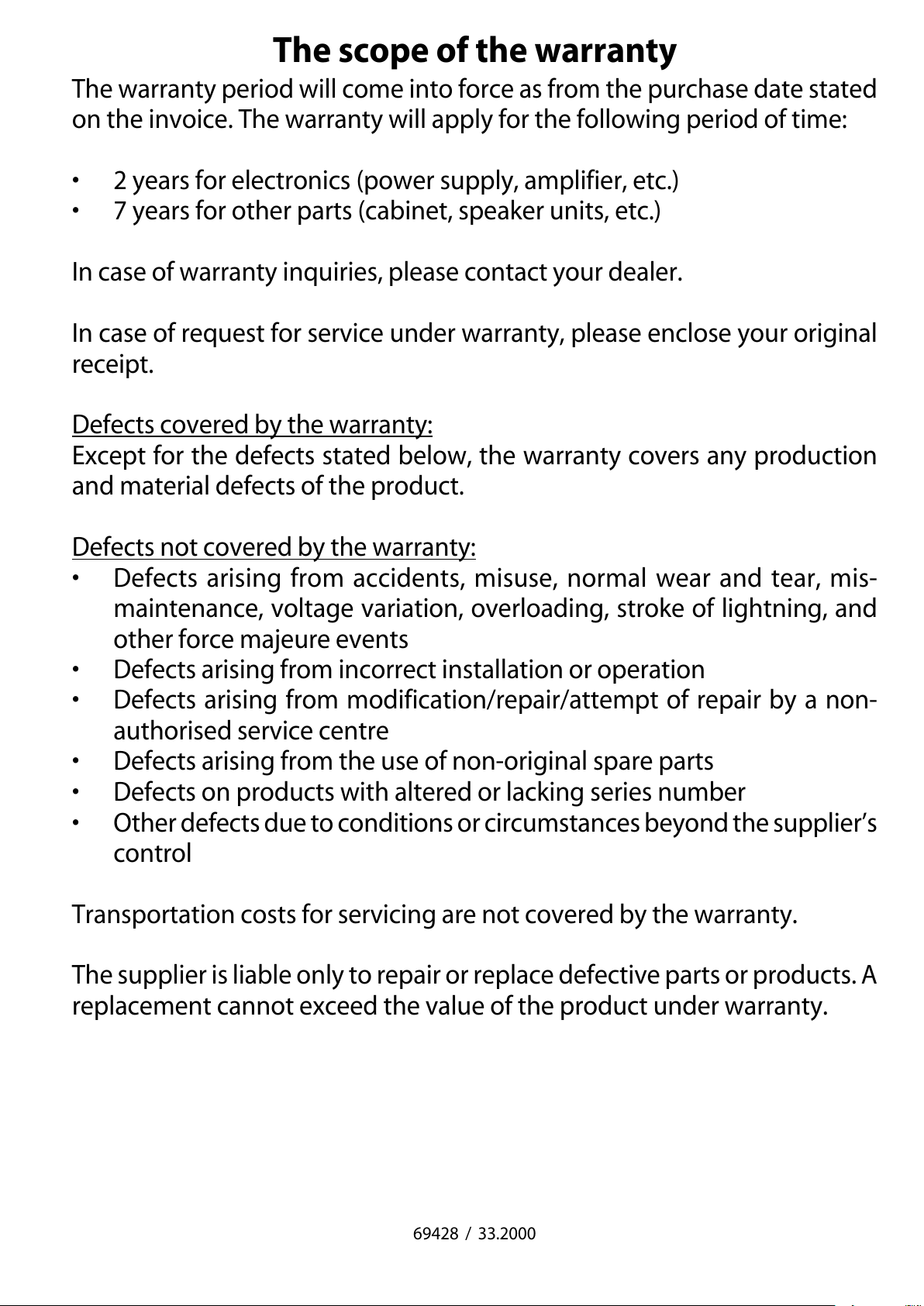

The cope of the warranty

The warranty period will come into force as from the purchase date stated

on the invoice. The warranty will apply for the following period of time:

 2 years for electronics (power supply, amplifier, etc.)

 7 years for other parts (cabinet, speaker units, etc.)

In case of warranty inquiries, please contact your dealer.

In case of request for service under warranty, please enclose your original

receipt.

Defects covered by the warranty:

E cept for the defects stated below, the warranty covers any production

and material defects of the product.

Defects not covered by the warranty:

 Defects arising from accidents, misuse, normal wear and tear, mis-

maintenance, voltage variation, overloading, stroke of lightning, and

other force majeure events

 Defects arising from incorrect installation or operation

 Defects arising from modification/repair/attempt of repair by a non-

authorised service centre

 Defects arising from the use of non-original spare parts

 Defects on products with altered or lacking series number

 Other defects due to conditions or circumstances beyond the suppliers

control

Transportation costs for servicing are not covered by the warranty.

The supplier is liable only to repair or replace defective parts or products. A

replacement cannot e ceed the value of the product under warranty.
