nova™ 536 whirlpool bath and soaking bath

nova—a brightly burning star. the nova™ whirlpool bath—a rejuvenating point of light in your day, your night, your routine.

Clean lined and classic, the Nova™

whirlpool is versatility deﬁned.

features:

• 4 Fully adjustable TheraPro™ jets

• 2 Directionally adjustable AccuPro™ lumbar jets

• Sculpted armrest

• Contoured backrest

• Handrails

• Exclusive Tru-Level™ base system

• Slip-resistant bottom

• Patented Silent Air™ Induction system

• Electronic controls

• Drain included on whirlpool baths

nova™ 536

whirlpool bath

model number: H532 – RH, H531 – LH

exterior dimensions:

60" long x 36" wide x 19¼" high

interior dimensions (at bottom):

34½" long x 22" wide(mid) x 14" wide (end)

# of Jets/type of Jets:

4 TheraPro™ Jets

2 AccuPro™ Jets

operating gallons:

42 gallons

nova™ 536

soaking bath

model number: H533

exterior dimensions:

60" long x 36" wide x 19¼" high

interior dimensions:

34½" long x 22" wide

Nova® 536 Whirlpool Bath

Model: H531, H532

Nova® 536 Bath

Model: H533

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

H532 Nova® 536 Whirlpool Bath

Right Hand

H531 Nova® 536 Whirlpool Bath

Left Hand

H533 Nova® 536 Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 36” W x 19-1/4” H

(1524 mm) L x (914 mm) W x (489 mm) H

Drain/Overﬂow

A: 15-1/8” (384 mm) B: 9” (229 mm)

Cutout

58” x 34”

Total Weight

H531, H532: 683 lb (310 kg) / 46 lb/ft2(222 kg/m2)

H533: 660 lb (299 kg) / 44 lb/ft2(215 kg/m2)

Operating Gallonage

42 U.S. Gal. (159 Liters)

Product Weight

H531, H532: 83 lb (38 kg)

H533: 60 lb (27 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models H531, H532 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional Models H531, H532 only)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

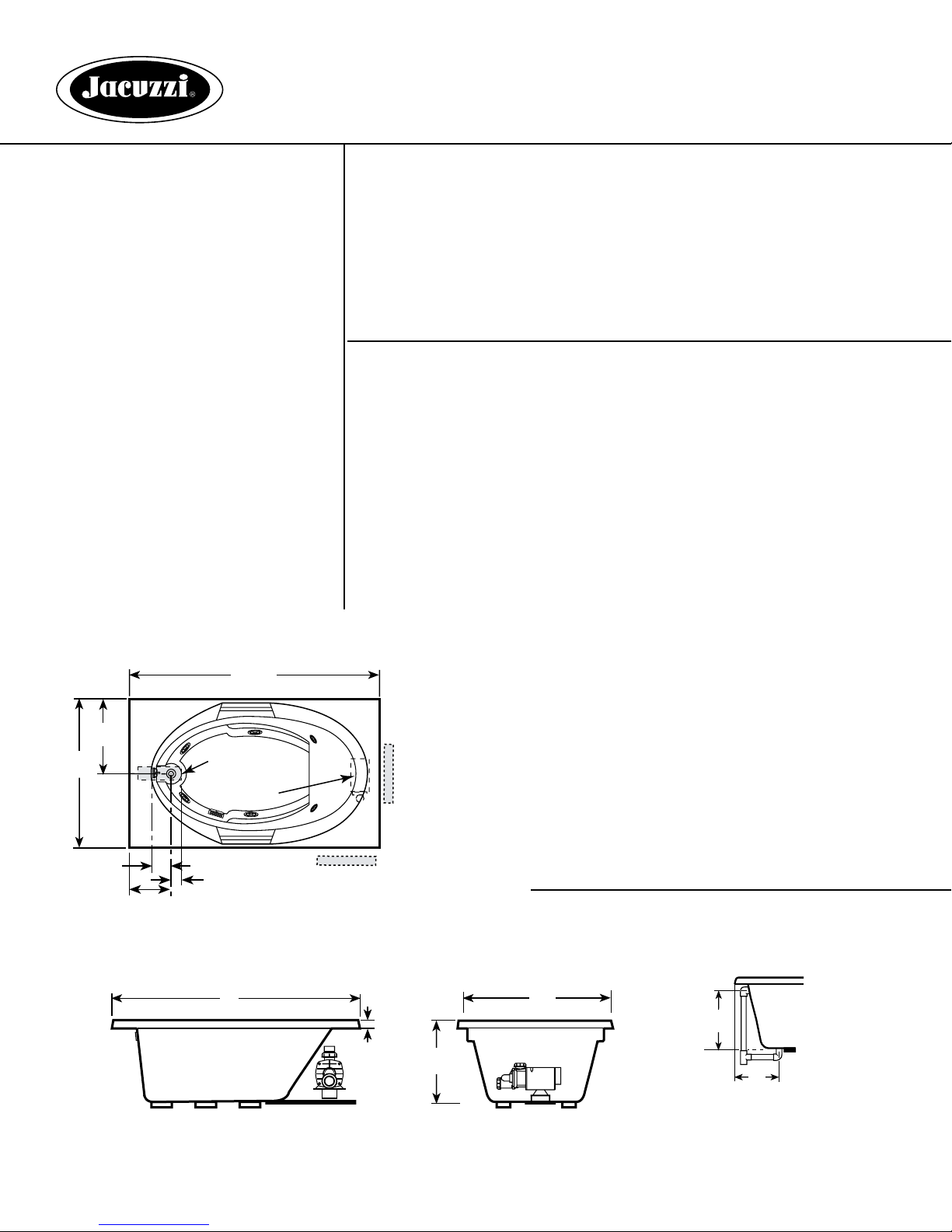

NOVA™ 536, Left Hand

10" x 4"*

Motor

12" H x 18" L

Service Access

Opt. Service Access

36"

60"

18"

4-5/8"

END VIEW

SIDE VIEW

#FR88 12/06

DRAIN/OVERFLOW

Product Shown: Nova® 536 Whirlpool Bath Left Hand Model: H531

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
