Allusion®7236

SALON™ SPA with

ILLUMATHERAPY™

MODEL NUMBER:

BT70

EXTERIOR DIMENSIONS:

72" long x 36" wide x

26" high

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets

6 AccuPro™ Jets

OPERATING GALLONS:

75 gallons

An allusion is a “hint,” a “reference.” The Allusion®

Salon™ Spa bath is a true glimpse of the good life. With

clean, contemporary, minimalist lines, the Allusion®

family of products makes astriking statement — one

that speaks to more than a hint of style.

FEATURES:

• Multi-speed motor

• 4 fully adjustable TheraPro™ jets

• 6 fully adjustable back jets

• 800 watt variable speed heated air blower

• Bottom air channels for maximum massage

• 256 color Chromatherapy lighting system

• Illumatherapy optional

• Drain-assist purge system

• Water-level sensor

• RapidHeat™ inline heater

• All-in-one electronic control panel

• PrO3

™ Ozone Sanitation System standard

Allusion®7236 |SALON™ SPA BATH

Allusion®7236

SALON™ SPA with

CHROMATHERAPY

MODEL NUMBER:

BK20

EXTERIOR DIMENSIONS:

72" long x 36" wide x

26" high

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets

6 AccuPro™ Jets

OPERATING GALLONS:

75 gallons

Allusion®7236

SALON™ SPA BATH

Technical Speciﬁcations

DIMENSIONS

72” L x 36” W x 26” H

(1829 mm) L x (914 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 17-3/8” (441 mm) B: 11-15/16” (210 mm)

CUTOUT

Template Provided Part Number: BY20000

TOTAL WEIGHT

1001 lb (454 kg) / 56 lb/sq. ft. (272 kg/m2)

OPERATING GALLONAGE

75 U.S. Gal. (284 Liters)

Min. 65 U.S. Gal. (246 Liters)

Max. 85 U.S. Gal (322 Liters)

PRODUCT WEIGHT

220 lb (100 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

All require a dedicated GFCI protected separate circuit(s).

Blower: 120VAC, 20AMP, 60 Hz. .

Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

HEATER (STANDARD)

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

Product Shown: Allusion®7236 Salon™Spa

Right Hand (BK20) Shown.

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

#FR10000 10/07

BK20 Allusion®7236 Salon™Spa Left Hand with

Chromatherapy lighting

BT70 Allusion®7236 Salon™Spa Right Hand with

Illumatherapy™ jet lighting

• Left and Right Hand Drain Location

• Accessories / Hardware:

HTC Jet Trim Kit: #D095

Heater

5" x 5"*

8-1/2"

12" H x 18" L

Service Access

Opt. Service

Access

12" H x 18" L

Service Access

(Blower)

(Motor)

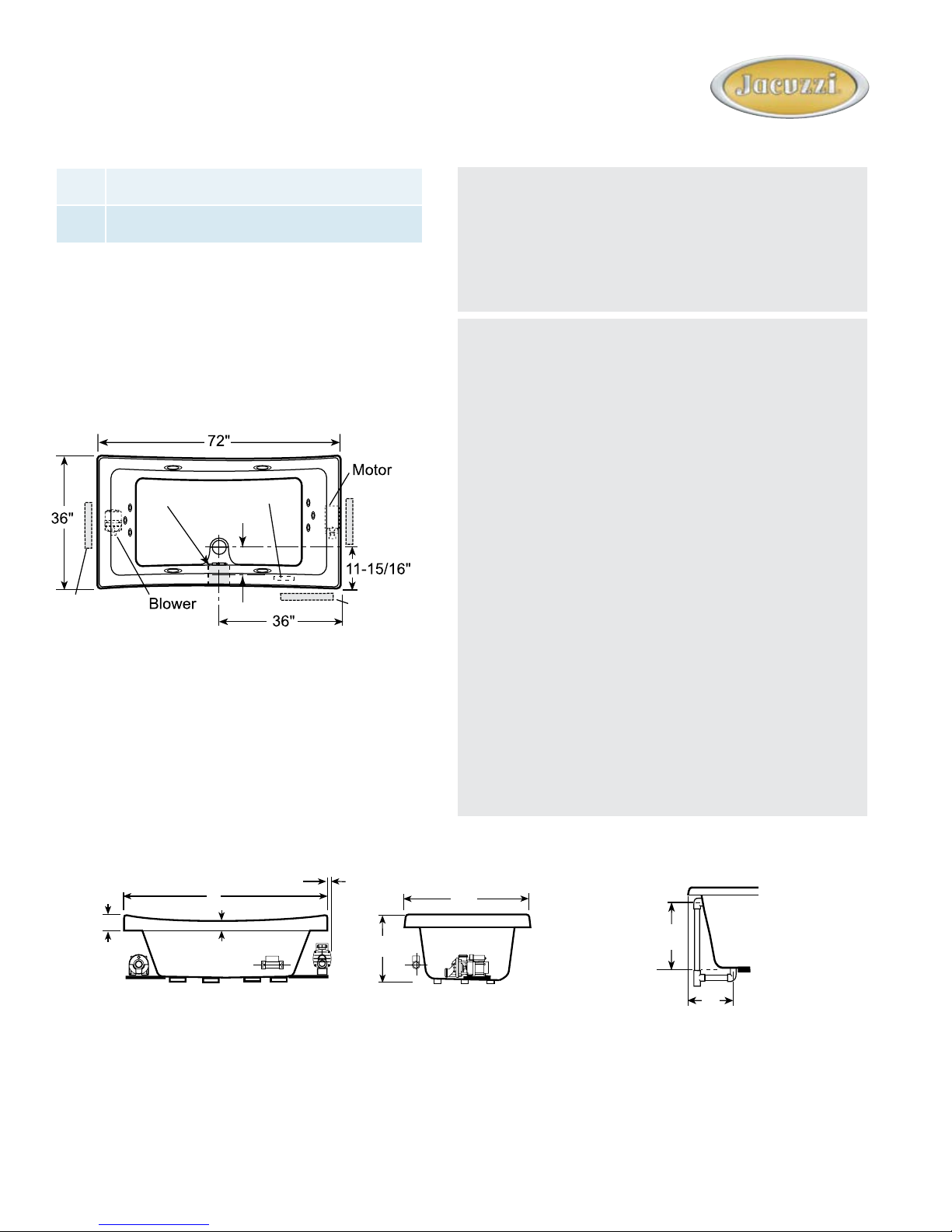

END VIEW

SIDE VIEW

ALLUSION SIDE END

(Heater)

MAX 1/2"**

DRAIN/OVERFLOW

** See Install manual for installations instructions.
