Luxura®5 pure air®II bath with integral skirt

luxura means, quite literally “luxury”—and what more could you ask? simply, your water never felt this good.

Luxura® 5 (with integral skirt)

pure air®II bath

model number: EA50 – LH, EA60 – RH

exterior dimensions:

60" long x 32" wide x 20¼" high

interior dimensions:

44½" long x 19" wide

operating gallons:

45 gallons

Perfectly stylish in contemporary

décors, but wonderfully relevant in

more classic settings, the Luxura®bath

is both a restorative and retroﬁt dream.

features:

• Exclusive 360º Balanced Airﬂow™ system

• 600 watt variable speed heated air blower

• Thermal Lumbar Comfort (TLC)™

• Timed purge cycle

• Safely use salts and aromatic oils

• PrO3™ Ozone Sanitation System standard

Luxura® 5 Pure Air II Bath with Integral Skirt

Model: EA50, EA60

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EA50 Luxura® 5 Pure Air II Bath with

Integral Skirt Left Hand

EA60 Luxura® 5 Pure Air II Bath with

Integral Skirt Right Hand

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 32” W x 20-1/4” H

(1524 mm) L x (813 mm) W x (514 mm) H

Drain/Overﬂow

A: 15-1/4” (387 mm) B: 8-1/4” (210 mm)

Cutout

Not Applicable

Total Weight

707 lb (321.4 kg) / 53 lb/ft2(24 kg/m2)

Operating Gallonage

45 U.S. Gal. (170 iters),

Min. 39 U.S. Gal. (148 Liters)

Max. 50 U.S. Gal. (189 Liters)

Product Weight

117 lb (53 kg)

Skirt Mounting

Integral

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Blower: 120 VAC, 15 AMP, 60 Hz.

Heater

No water heater is available on this unit. Blower has integral air heater.

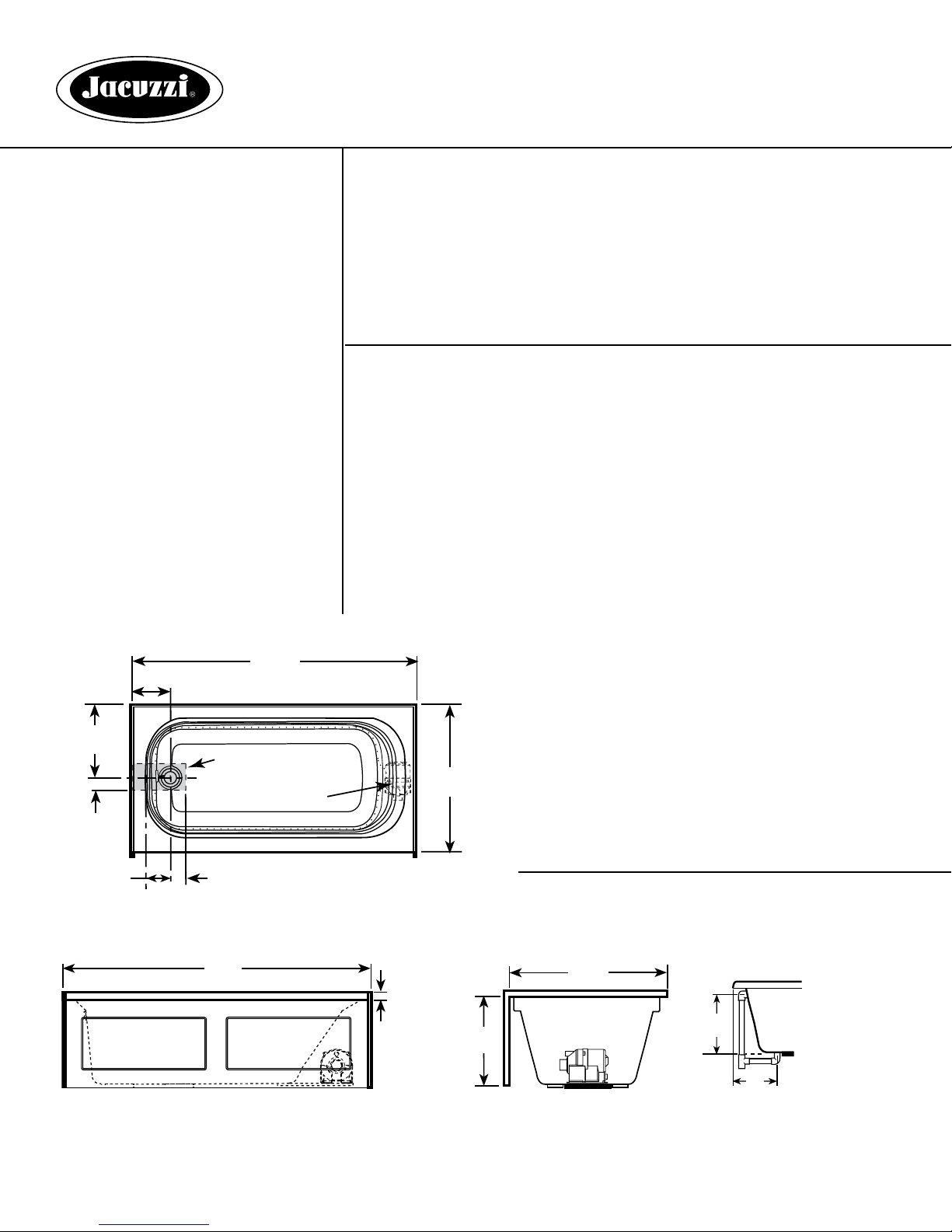

LUXURA™ 5 WITH INTEGRAL SKIRT,

LEFT HAND AIR BATH

2-1/2"

12" x 5"

8-1/4"

Blower

2-1/2"

5-1/4"

*60"

15-3/8"

32"

60"

(25 mm)

20-1/4"

32"

SIDE VIEW

LUXURA™ 5 WITH INTEGRAL SKIRT, LEFT HAND AIR BATH

END VIEW

(Blower)

# FQ76 12/06

DRAIN/OVERFLOW

Product Shown: Luxura® 5 Pure Air II Bath with Integral Skirt Left Hand Model: EA50

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.
