Jacuzzi FUZION 7236 RH Manuel utilisateur

Bathing has never been like this before. Incorporating exotic woods, acrylic and

state-of-the art bathing technologies, the Fuzion™combines everything you need

to create your ideal spa experience.

FEATURES:

• Multi-speed motor

• 2 fully adjustable TheraPro®jets

• 12 directionally adjustable AccuPro™ jets

• 900 watt variable speed heated air blower

• Bottom air channels for maximum massage

• Chromatherapy™ lighting system capable of 256 colors

• Water level sensor

• Drain-assist purge system

• Sculpted armrest and contoured backrest with pillows

• All-in-one electronic control panel

• Inﬁnity-edge drain system

• RapidHeat™ inline heater

• Undermount or choose Wenge or Teak wooden deck

• PrO3

™Cleansing System

Fuzion™7236 |SALON™ SPA UNDERMOUNT with CHROMATHERAPY

Fuzion™7236

SALON™ SPA

UNDERMOUNT with

CHROMATHERAPY

MODEL NUMBER:

FE05 (RH)

EXTERIOR DIMENSIONS:

7011⁄16" long x

353⁄8" wide x 24" high

# OF JETS/TYPE OF JETS:

2 TheraPro™ Jets

12 AccuPro™ Jets

OPERATING GALLONS:

82 gallons

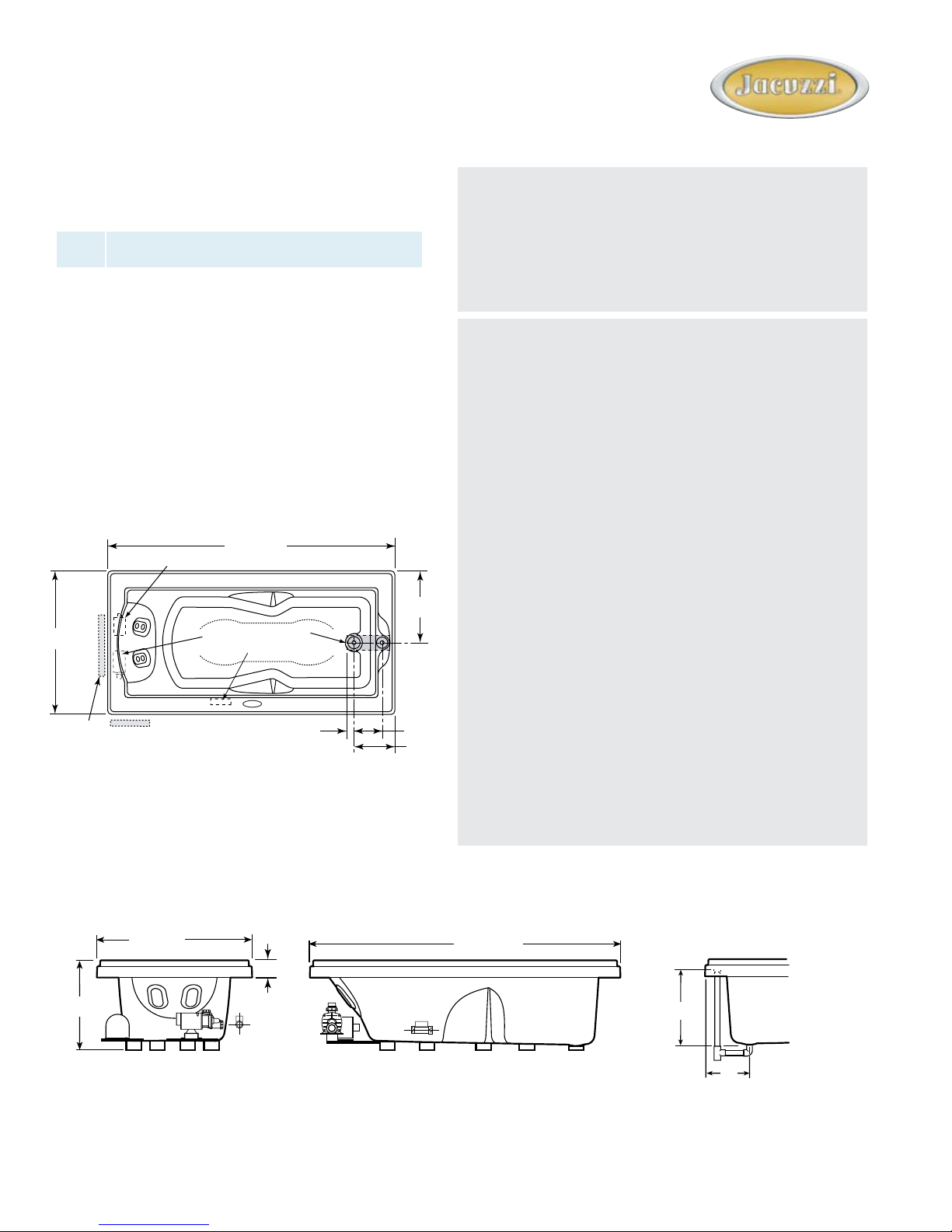

Opt. Service Access

17-11/16''

2'' 7''

10-1/4''

12'' x 4"*

Heater

70-11/16''

35-3/8'' Motor

12" H x 24" L

Service Access

Blower

Technical Speciﬁcations

DIMENSIONS

70-11/16" L x 35-3/8" W x 24” H

(1795 mm) L x (899 mm) W x (610 mm) H

DRAIN/OVERFLOW

A: 17” (432 mm) B: 10-1/4” (260 mm)

CUTOUT

Template provided. PN: DD42000

OPTIONAL DIY (DO-IT-YOURSELF) FRAME

Drawing provided. PN: DE54000

(Drawing comes with tub. Additional copies can be requested.)

TOTAL WEIGHT

1145 lb. (519 kg) / 63.7 lb/ft2(311 kg/m2)

OPERATING GALLONAGE

82 U.S. Gal. (37 Liters)

PRODUCT WEIGHT

165 lb. (75 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120VAC, 20AMP, 60 Hz.

Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

HEATER (STANDARD)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR75000 10/07

Fuzion™7236

SALON™SPA UNDERMOUNT

with CHROMATHERAPY

FE05 Fuzion™ 7236 Salon™ Spa, Undermount

with Chromatherapy — Right Hand

• Right Hand Drain Locations

• Overﬂow ﬁtting comes with tub

• Accessories / Hardware:

TheraPro™ Jet Rings Kit: #D095

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

DRAIN/OVERFLOW

SIDE VIEWEND VIEW

(Motor)

(Inlet Heater)

24"

(

102 mm

)

(Blower)

70-11/16"

35-3/8"

Product Shown: Fuzion™ 7236 Salon™ Spa Undermount

with Chromatherapy, Right Hand Model: FE05

* Measurements inside unit represent cutout in ﬂoor to

allow for drain/overﬂow.

Minimum Service Access dimensions given.
