Jacuzzi JPDS Auto Descaler
How the Unit Works
Once the unit has been installed correctly on the pool circulation system, the Jacuzzi
JPDS Auto Descaler will pass a radio signal into the water. This causes the calcium
ions to precipitate in suspension in the water, instead of on the surface of the pool.
Existing scale will be removed over the course of a few weeks, and any staining will
disappear with it. Some silica scale may reappear, though considerably less than
before.
NOTE: Silica scale which has been leached from behind the tiles will not necessarily
be reduced.
Installation Tips
Follow these three essential points for proper installation:
1. Wires must be tight on the PVC pipe and secured at both ends by the provided UV
rated plastic zip ties.
TIP: Vibrations from the pump may cause the wires to come loose. Check the wires
occasionally to retighten.
2. Keep the Descaler control box close to the pipe so you have the maximum
amount of wire available to wrap round the pipe.
TIP: Secure the box directly to the PVC pipe or simply let it hang just below from the
aerials.
3. Install the auto Descaler on a horizontal pipe on the discharge side of the pump,
preferably immediately after it and before the filter.
This product is intended for use on plastic PVC pipe up to 2.5” diameter on
recirculating systems for swimming pools. The Jacuzzi JPDS is fully waterproof and
can be exposed to rain and harsh weather.
The antennas and power supply are directly wired into the control box and cannot
be removed from the unit. The circuit board is fully encapsulated in epoxy resin.
Enclosed you will find a plastic sheath which can be heat-shrunk onto the power
supply connection.
IMPORTANT: The power supply transformer is rated for internal use only
and cannot get wet. Protect this transformer as you would any electrical plug.
Install Location
The Jacuzzi JPDS Auto Descaler should be installed downstream of the pool pump
on a horizontal pipe and before the filter. It requires less than 5 inches of straight
pipe for the wires to be installed. The pipe should be at low level so that is always
full of water. If there is more than one pump servicing a separate pool of water
feature, then each pumped line should be treated downstream of the pump for best
results. This unit will operate on any type of pipe material, including corrugated
and plastic up to 2.5” diameter.
Securing the Antennas

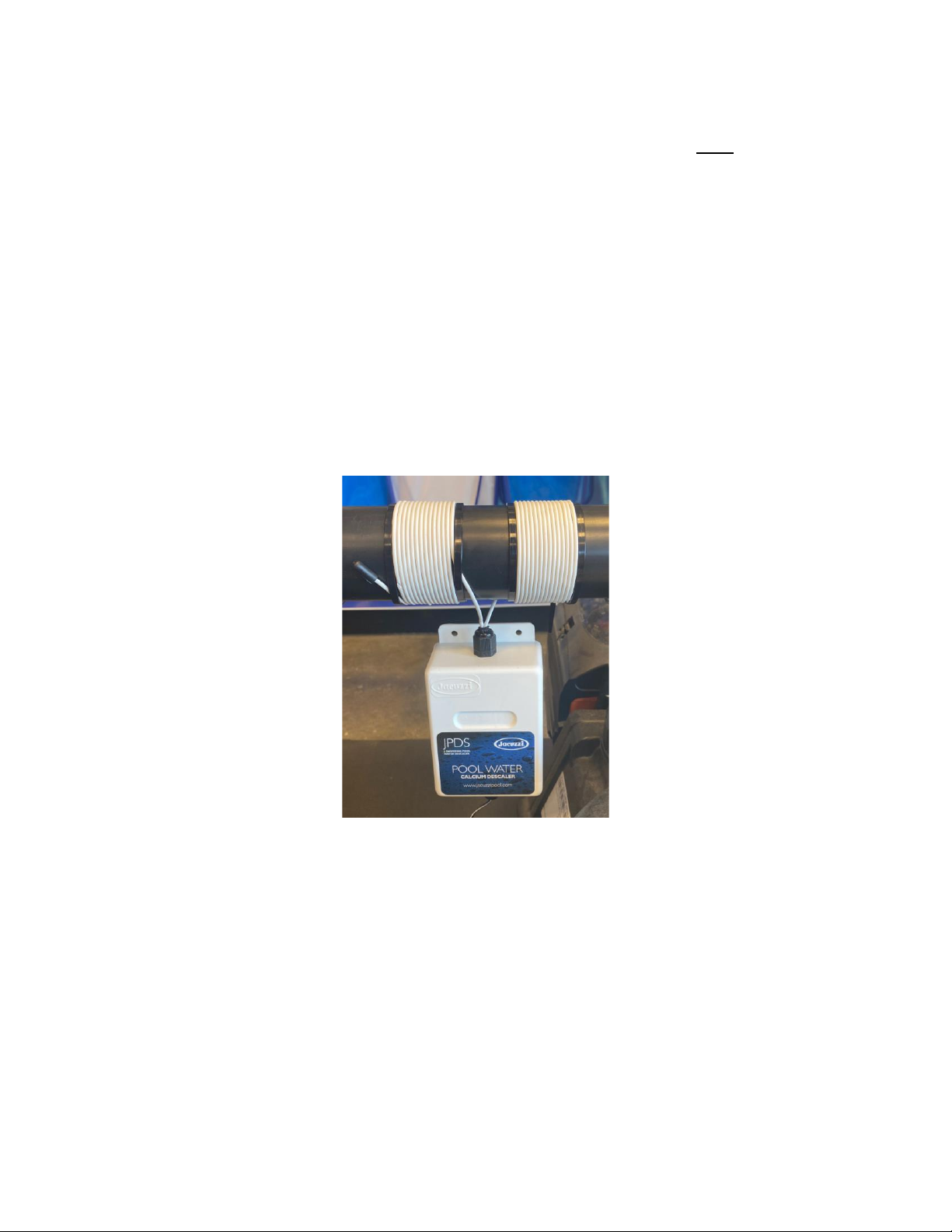

This is what it should look like after installation. Note that the left hand wire goes
under the plastic tie and over the top of the pipe with a second plastic tie securing
the end. The right hand wire goes under the pipe and under the plastic tie and winds
in the opposite direction.
TIP: It is easier to start by placing a plastic zip tie loosely around the pipe. Feed the
end of the antenna wire through the zip tie and secure so the least amount of
antenna remains between the zip tie and the unit. The shorter the length the more
available to wrap around the pipe and the better the Jacuzzi JPDS will work.
TIP: Vibrations from the pump may loosen the wires. Check occasionally to
retighten.
Power Supply
The Jacuzzi JPDS requires a standard 120V outlet for the transformer.
TIP: To reach a suitable outlet, it may be necessary to extend the low voltage 9V AC
power cable. Additional cable may be sliced in between the transformer and its
plug.
A waterproof seal should be made over the connections. Satisfactory tests have
been conducted on a cable extension of 500 yards. The low voltage power supply is
9V AC, so there is no need to be concerned about the polarity of the wires.
TIP: To protect the plug/socket from dew and rain, use the supplied heat shrink
tube. Slide the heat shrink sleeve over the plug, connect to the socket, and use a hair
dryer to shrink into place.
Plug/Transformer Unit
Plug in the transformer and switch on the power supply. The LED light will flash,
indicating that the unit is powered up and that the program is sequencing through
the range of frequencies.
General Care
The Jacuzzi JPDS will substantially reduce the amount of calcium scale deposits that
occur around the waterline of pools. By removing the scale from the tiles or liner,
any staining that is retained by the scale will also disappear.
Silica Scale
Calcium and silica scale look very similar and are often confused with one another.
TIP: To identify the scale type, test with acid such as vinegar or muriatic acid.
Calcium scale will bubble and will disappear. Silica will not react.
Jacuzzi JPDS will NOT remove silica scale and will not be effective on scale around
the grout lines of tiles. High levels of silica are found in a few ground water supplies
and are not a common issue in most areas of the USA.
Maintenance & Trouble Shooting
Jacuzzi JPDS does not require regular maintenance or servicing. Simply check the
LED light is flashing and monitor the security of the wires on the piping for optimal
performance.
TIP: Should the Jacuzzi JPDS stop working check the power supply to the
transformer by plugging another appliance or lamp to the outlet. If the transformer
is cold it has failed. Contact our Support Team for a replacement.
If the unit continues to fail or if you are unhappy with the unit, please contact us
At 702-304-2170.
Please do not remove the unit prior to contacting Support. Often any issue can
be resolved via phone or email.
100 Day Money Back Guarantee: If, for any reason, you are dissatisfied with your
Jacuzzi JPDS, you may return it at any time during the first 100 days for a full refund.
Simply bring in your receipt, with your full name and address, to the location from
which you purchased the unit for a refund.
8 Year Manufacturer’s Warranty: Aqua-Rex LLC guarantees its products to be
free from defects in material and/or workmanship for a period of Eight (8) Years
from the original date of purchase. Defective units will be replaced during this
period. The unit should be returned to the store properly boxed, with the
invoice/receipt included.
Aqua-Rex LLC
3301 Spring Mountain Rd, Ste 18
Las Vegas NV 89102
702-304-2170 –sales@ aqua-rex.com
Jacuzzi Support
844-615-8994 –questions@jacuzzipool.com
