WHIRLPOOL BATH

MODEL NUMBER:

EE10

EXTERIOR DIMENSIONS:

60" long x 42" wide x

26" high

INTERIOR DIMENSIONS:

38½" long x 23½" wide

# OF JETS/TYPE OF JETS:

4 PowerPro®Jets

4 AccuPro™ Neck Jets

2 AccuPro™ Foot Jets

OPERATING GALLONS:

80 gallons

In Italy, it means beautiful view. To you, a wonderful place to regain relaxed,

revitalized perspective.

WHIRLPOOL BATH FEATURES:

• 4 fully adjustable PowerPro®jets

• 4 AccuPro™ spinning neck jets

• 2 directionally adjustable AccuPro™ foot jets

• Sculpted armrest and contoured backrest

• Multi-speed motor

• Chromatherapy™ lighting system capable of 256 colors

• Wave Pulse™ system

• All-in-one electronic control panel

• Water-level sensor

• PrO3

™ Ozone Sanitation System standard

Bellavista™5 |WHIRLPOOL BATH

Detail:

The Bellavista™ whirlpool bath’s perfectly placed PowerPro®and AccuPro™ jets work in

concert with a deeply contoured backrest to offer the ultimate in hydrotherapy.

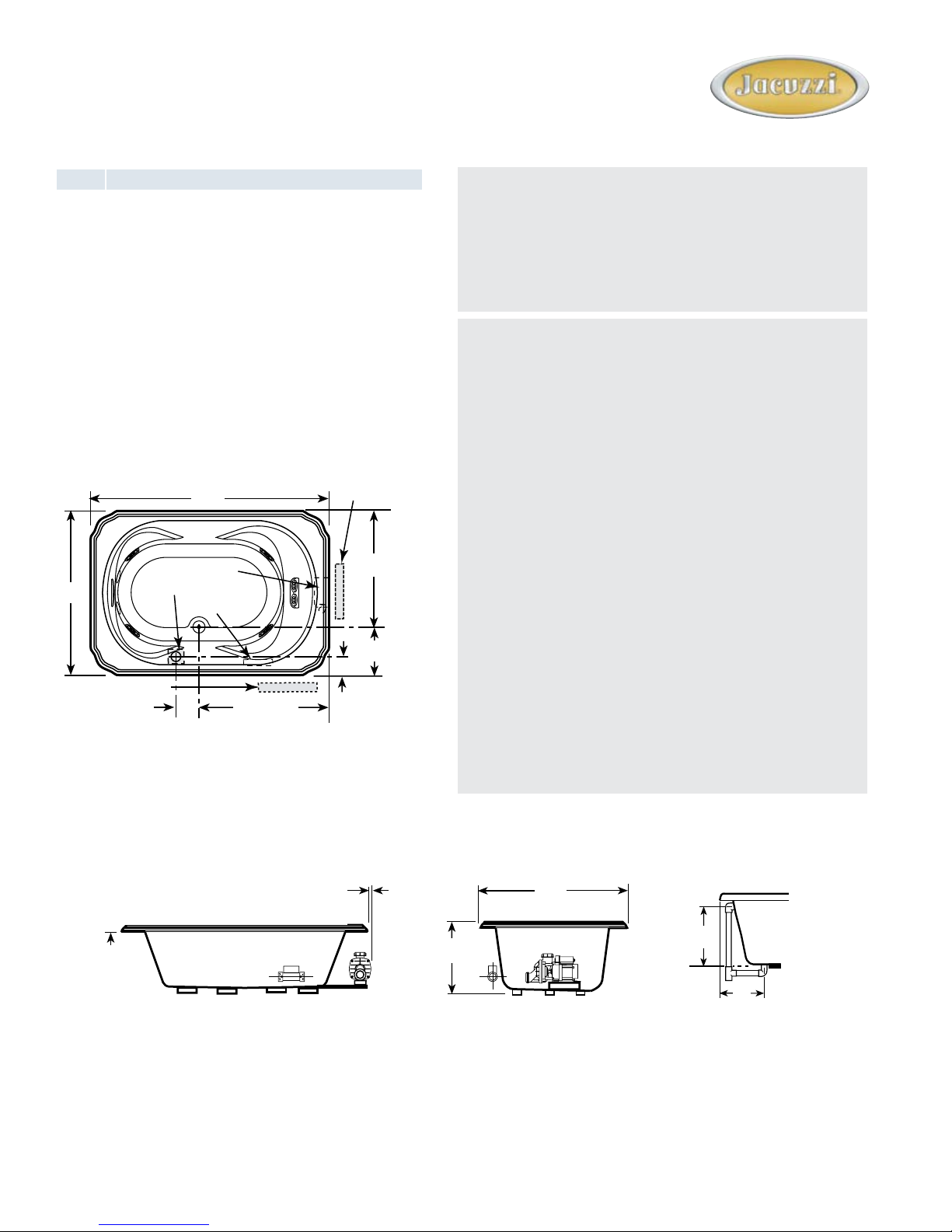

Bellavista™5

WHIRLPOOL BATH

Technical Speciﬁcations

DIMENSIONS

60” L x 42” W x 26” H

(1524 mm) L x (1067 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 20” (508 mm) B: 11-3/4” (298 mm)

CUTOUT

Template Provided P/N P187000

TOTAL WEIGHT

1026 lb (465 kg) / 59 lb/sq. ft. (288 kg/m2)

OPERATING GALLONAGE

80 U.S. Gal. (303 Liters)

PRODUCT WEIGHT

160 lb (50 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS — Model EE15 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

HEATER (STANDARD) — Model EE15 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR18000 10/07

EE10

Bellavista™ 5 Whirlpool Bath, Right Hand

• Center Drain Location

• Accessories / Hardware:

PowerPro™ Jet Rings: #M952

AccuPro™ Neck Jet Rings Kit: #P556 (3 Required)

Oval Trim Kit: #N557

Rotary Drain Kit, 26” Cable: #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

7" 32-1/2"

11-3/4"

30-1/8"

42"

60"

4" x 4"*

Motor

Heater

12" H x 18" L

Service Access

Opt. Service Access

END VIEW

SIDE VIEW

L W

(Heater)

(Motor)

(51 mm)

MAX. 1/2"**

DRAIN/OVERFLOW

Product Shown: Bellavista™ 5 Whirlpool

Bath Right Hand Shown, Model: EE10

* Measurements inside unit represent cutout

in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
