QUICK START GUIDE

Ransomes HM600 Ride on Flail Mower

STARTING THE ENGINE

SEAT ADJUSTMENT

CONTROLS

DRIVING

MOWING

VISUAL DISPLAY

Refer To The Safety, Operation And Maintenance Manual For Full Operating Instructions.

685428-GB (rev.0)

RJL 100 July 2018

QUICK START GUIDE

en-2

Ransomes Jacobsen Limited reserves the right to make design changes without obligation to

make these changes on units previously sold and the information contained in this manual is

subject to change without notice.

QUICK START GUIDE

en-3

BEFORE YOU OPERATE FOR THE FIRST

TIME

• Check and adjust tyre pressure, if

necessary, see Safety, Operation and

Maintenance manual.

• If necessary, add diesel fuel to tank.

• Check engine oil and if necessary fill.

• Check the radiator coolant and fill if

necessary (Water with 50% anti-

freeze).

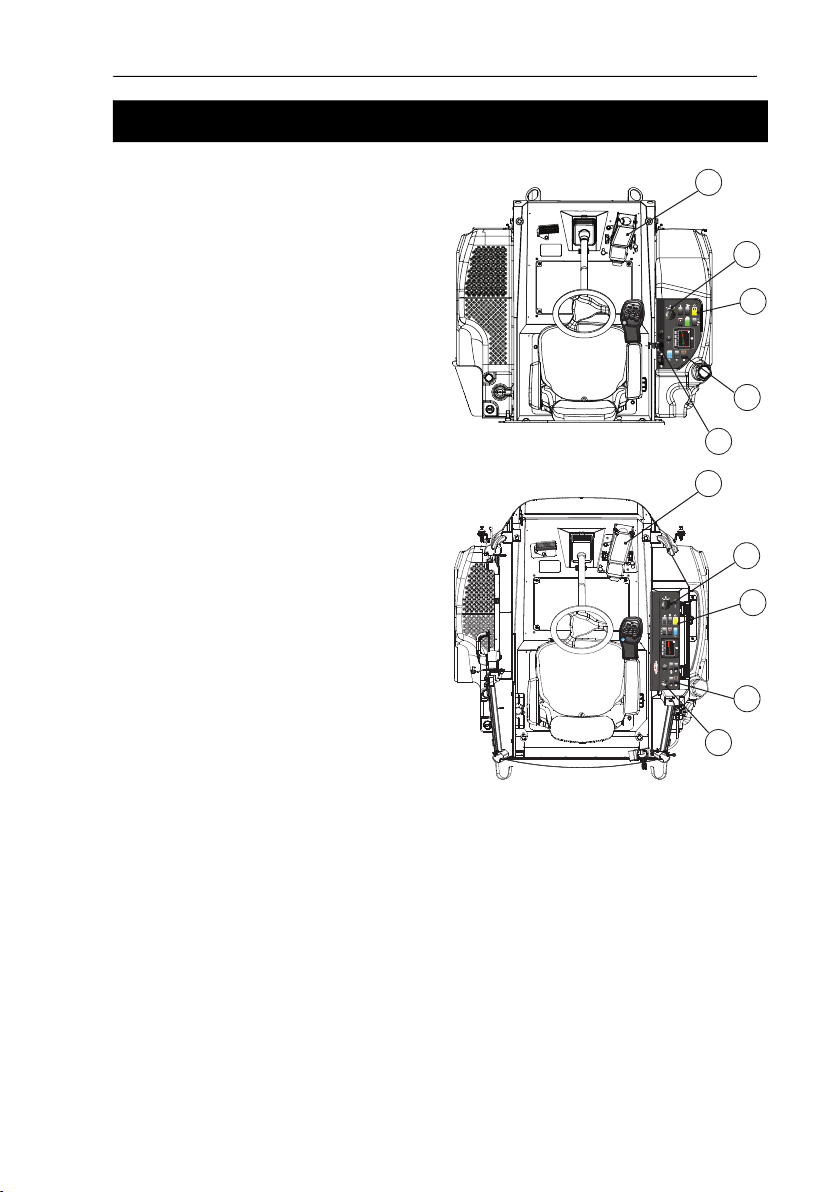

HOW TO START THE ENGINE

The following procedure is for cold engines.

1. Make sure the forward / reverse pedal

(A) is in the neutral position. The cutter

switch (B) is off and the throttle (C) is in

the centre position.

2. Turn the ignition switch (D) to the right

and hold until the engine starts

(approximately 5-10 seconds.)

3. The glow plugs operate automatically.

The time taken for the engine to start,

depends on the temperature of the

coolant

4. When the engine starts, release the key

immediately. The key returns to the

RUN position.

5. If the engine does not start, return the

key to the OFF position and try again.

NOTES

• If the engine does not start after two

tries, wait 20 seconds and try again.

• The starter motor must not be run

continuously for longer than 30 seconds

or the starter motor can fail.

• If the red LED’s on the display flash

when you start one of the safety

interlock switches was not set correctly.

HOW TO STOP THE ENGINE

1. Disengage drive to the cutting units with

the cutter switch (B).

2. Return the forward / reverse pedal (A) to

the neutral position.

3. Set the parking brake by pressing the

parking brake switch (E).

4. Move the throttle control lever to the

SLOW position.

5. Turn the ignition key (D) to the OFF

position.

STARTING THE ENGINE

12V

10A

1234.51234.5

1234.5

12V

10A

1234.51234.5

12V12V

12V

10A

QUICK START GUIDE

en-4

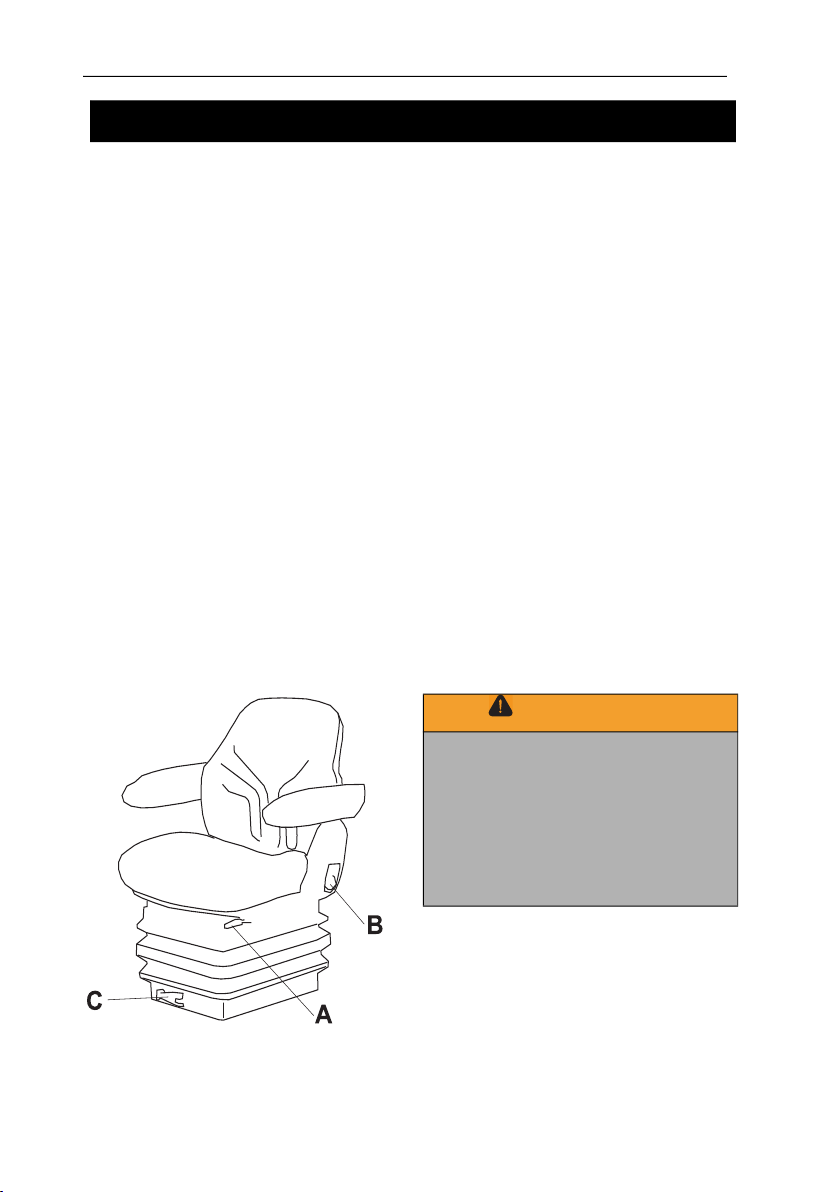

SEAT (GRAMMER MSG85)

Adjustments to the seat can be made for leg

reach, backrest angle and operator weight to

give a good position to operate the machine.

A. FORWARD AND BACKWARD

ADJUSTMENT

To Adjust

The position of the adjusting lever (A) is on

the right hand side of the seat below the seat

cushion. When moved up, the seat may be

moved backward and forward. When, in the

correct position release the lever into one of

the preset positions.

B. BACKREST ADJUSTMENT

To Adjust

The position of the release lever (B) is on the

left hand side of the seat. While, sitting on

the seat pull the release lever up to release

the backrest. (The backrest is spring loaded

to fold forward to the seat Cushion.) Move

back to get the correct position.

Release the lever to engage in one of the

preset positions.

C. WEIGHT ADJUSTMENT

To Adjust

The position of the operator weight adjust

lever (C) is on the front of the seat. To

change the operator weight setting pull the

lever out. When sitting on the seat rotate the

lever until your weight (kg) is shown in the

window.

D.HEIGHT ADJUSTMENT

To adjust

The height of the seat is adjusted by holding

the edge of the seat cushion, pushing your

weight down and lifting. There are three

preset positions. When the highest has been

achieved the seat returns to its lowest

position.

NOTES

The seat is fitted with a microswitch to

sense the operator in the seat.

Wear the seat belt when a ROPS frame or

ROPS cab are installed.

WARNING

Operator weight adjustment must

be set to ensure the OPC

operates correctly. The parking

brake may automatically be

applied if this operation is not

carried out correctly.

SEAT ADJUSTMENT

QUICK START GUIDE

en-5

STEERING TILT CONTROL

When the operators seat is in the correct

position to operate the traction pedal

comfortably. Push the small foot pedal (A) at

the base of the steering column. Tilt the

column backward or forward to the correct

position. Release the small foot pedal to lock

the steering column in position.

STEERING WHEEL ADJUSTMENT

QUICK START GUIDE

en-6

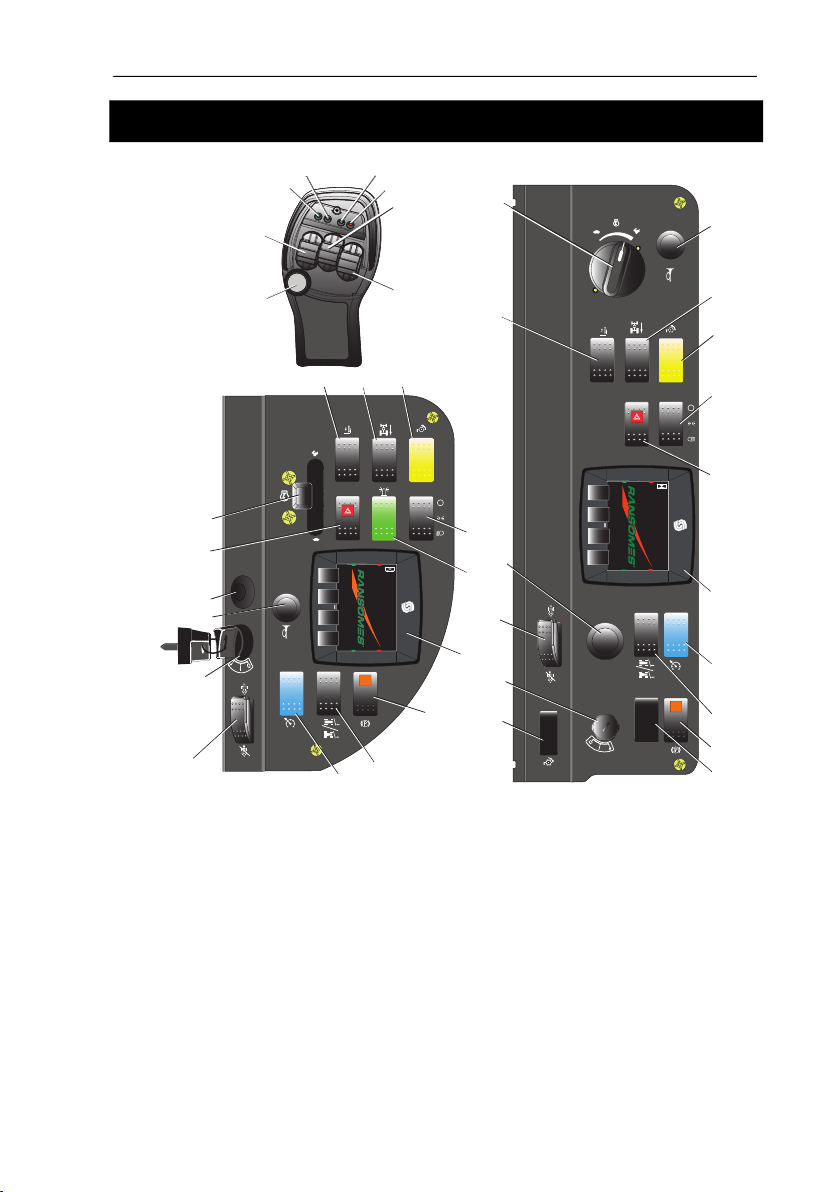

CONTROLS

A. Starter key switch.

B. Throttle control.

C. Parking brake switch.

D. Transport lock switch.

E. Cutter switch.

F. 4WD in reverse direction switch.

G. Cruise control switch.

H. Blank on this model

J. DPF Switch

K. Slew control switch (Optional).

L. Road Light switch (Optional).

M. Hazard switch (Optional)

N. Beacon switch (Optional).

P. Right hand unit lift/lower switch.

Q. Centre unit lift/lower switch.

R. Left hand unit lift/lower switch.

S. Cutting unit engaged LCD.

T. Right hand cutting unit in cutting

position LCD.

W. Centre cutting unit in cutting position

LCD.

X. Left hand cutting unit in cutting

position LCD.

Y. Weight transfer button.

Z Visual display.

5 .6

5.5

1234.51234.51234.5

12V

10A

1234.51234.5

12V12V

5.6

5.5

12V

10A

QUICK START GUIDE

en-7

CONTROLS

1234.51234.5

12V

6.6

6.5

12V

10A

5 .6

5.5

1234.5

12V

10A

A. Starter key switch.

B. Throttle control.

C. Parking brake switch.

D. Transport lock switch.

E. Cutter switch.

F. 4WD in reverse direction switch.

G. Cruise control switch.

H. Blank on this model

J. DPF Switch

K. Slew control switch (Optional).

L. Road light switch (Optional).

M. Hazard switch (Optional)

N. Beacon switch (Optional).

P. Right hand unit lift/lower switch.

Q. Centre unit lift/lower switch.

R. Left hand unit lift/lower switch.

S. Cutting unit engaged LCD.

T. Right hand cutting unit in cutting

position LCD.

W. Centre cutting unit in cutting position

LCD.

X. Left hand cutting unit in cutting

position LCD.

Y. Weight transfer button.

Z Visual display.

QUICK START GUIDE

en-8

CONTROLS

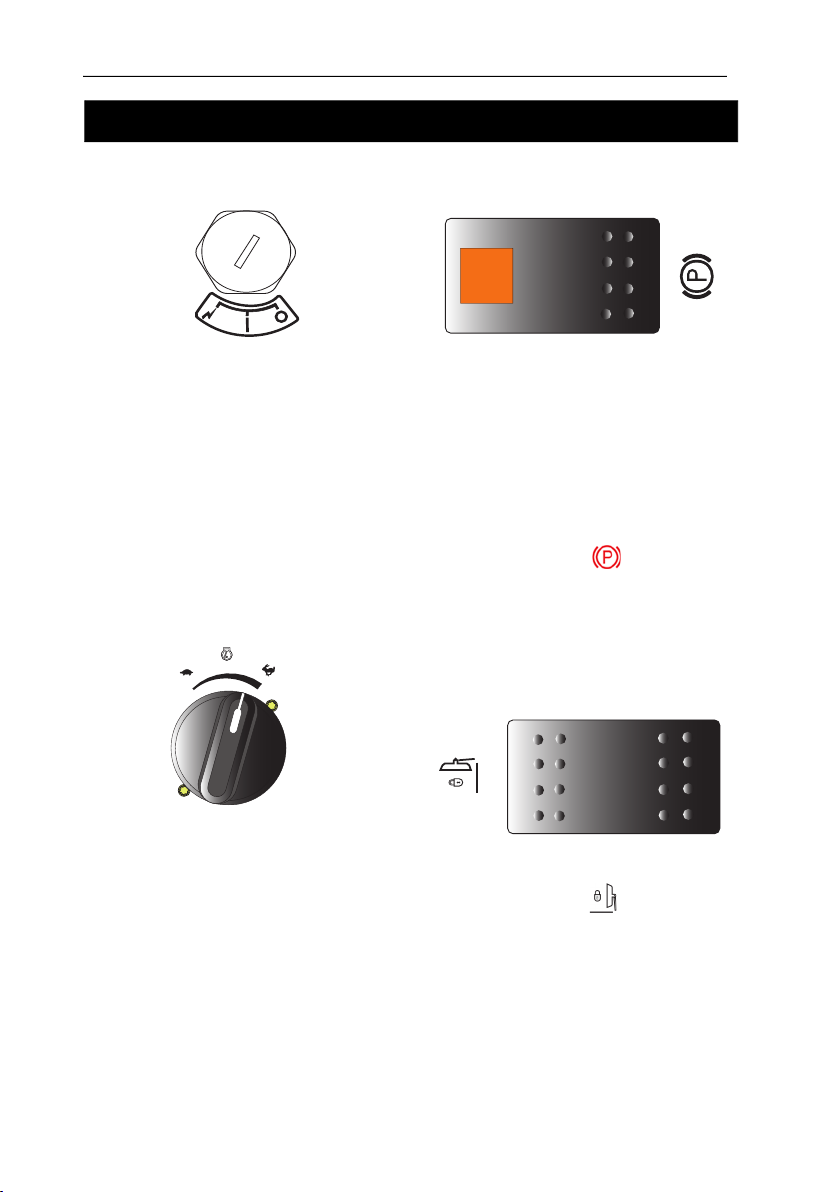

STARTER KEY SWITCH

Turn the starter key to the right to start the

engine. Release the key to return

automatically to the 'on' position for normal

operation.

NOTE: Before the engine starts, the glow

plugs automatically preheat. The visual

display shows the glow plug symbol and

counter to indicate that the automatic

preheat is in operation.

THROTTLE CONTROL ROTARY

Rotate the control to the right to increase the

engine speed and toward the left to

decrease the engine speed.

NOTE: Operate the engine at full speed

PARKING BRAKE SWITCH

Move the orange button back and press the

switch to engage the parking brake.

When the engine is stopped, the parking

brake is applied.

To release the parking brake, press the

opposite end of the switch.

The parking brake icon is displayed on

the visual display screen when engaged.

DO NOT apply the brake while the

machine is in motion.

TRANSPORT LOCK SWITCH

Engages the wing unit locks for transport

The wing unit lock icon is displayed on

the visual display screen when engaged.

QUICK START GUIDE

en-9

CONTROLS

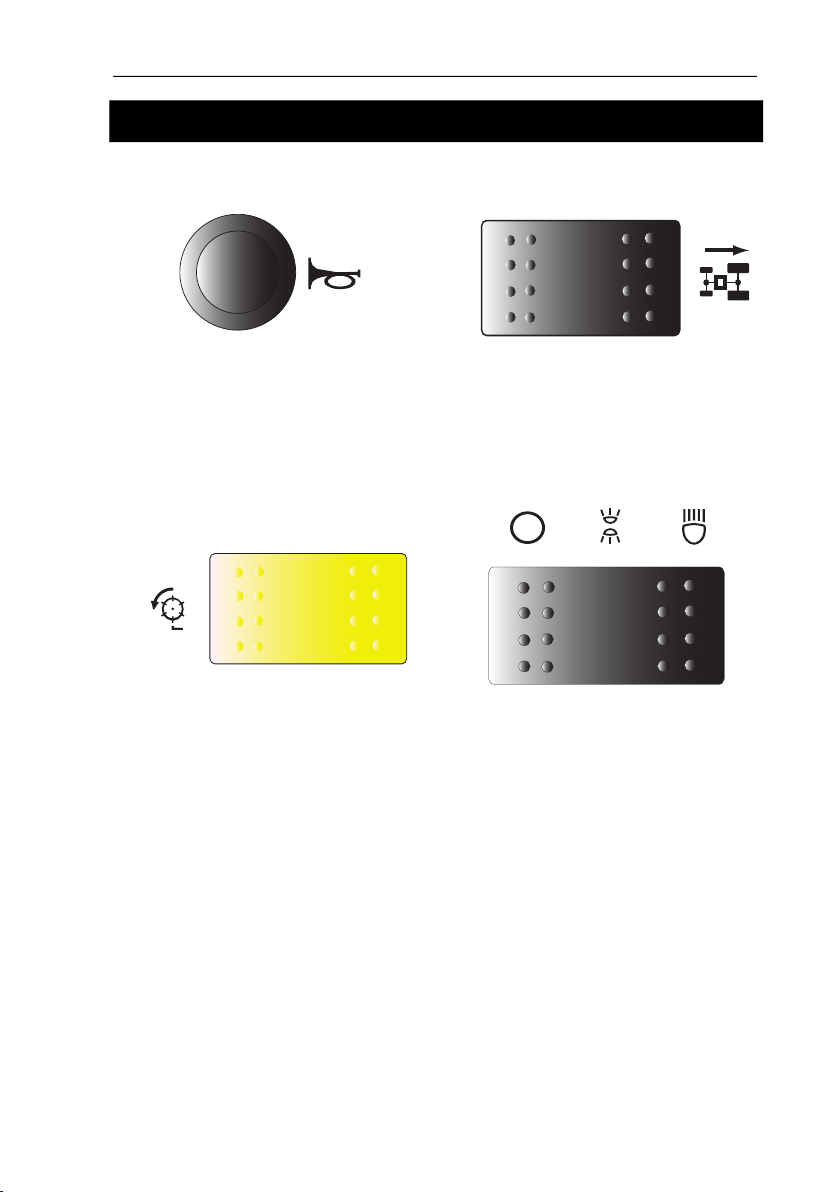

HORN BUTTON

For machines without the lighting kit.

The horn button (A) is on the control panel. If

the lighting kit is fitted, the horn is found on

the end of the indicator stalk.

CUTTER SWITCH

This switch engages the cutter blade

rotation.

To cut grass, push the front of the switch and

move the joysticks forward to lower the

decks. When engaged the yellow LED on the

pod is illuminated.

To stop the blade, push the rear of the rocker

switch.

When lifted out of work or the operator

leaves the seat, blade rotation is stopped.

4 WHEEL DRIVE IN REVERSE SWITCH

Engages the four wheel drive while the

vehicle is in reverse. The switch must be

held to engage.

LIGHT SWITCH (OPTIONAL)

Allows manual operation of the road lights.

Position 1. OFF

Position 2. Side / Marker Lights

Position 3. Main Beam.

Note: Position 3 - Will not activate with

the ignition turned OFF.

QUICK START GUIDE

en-10

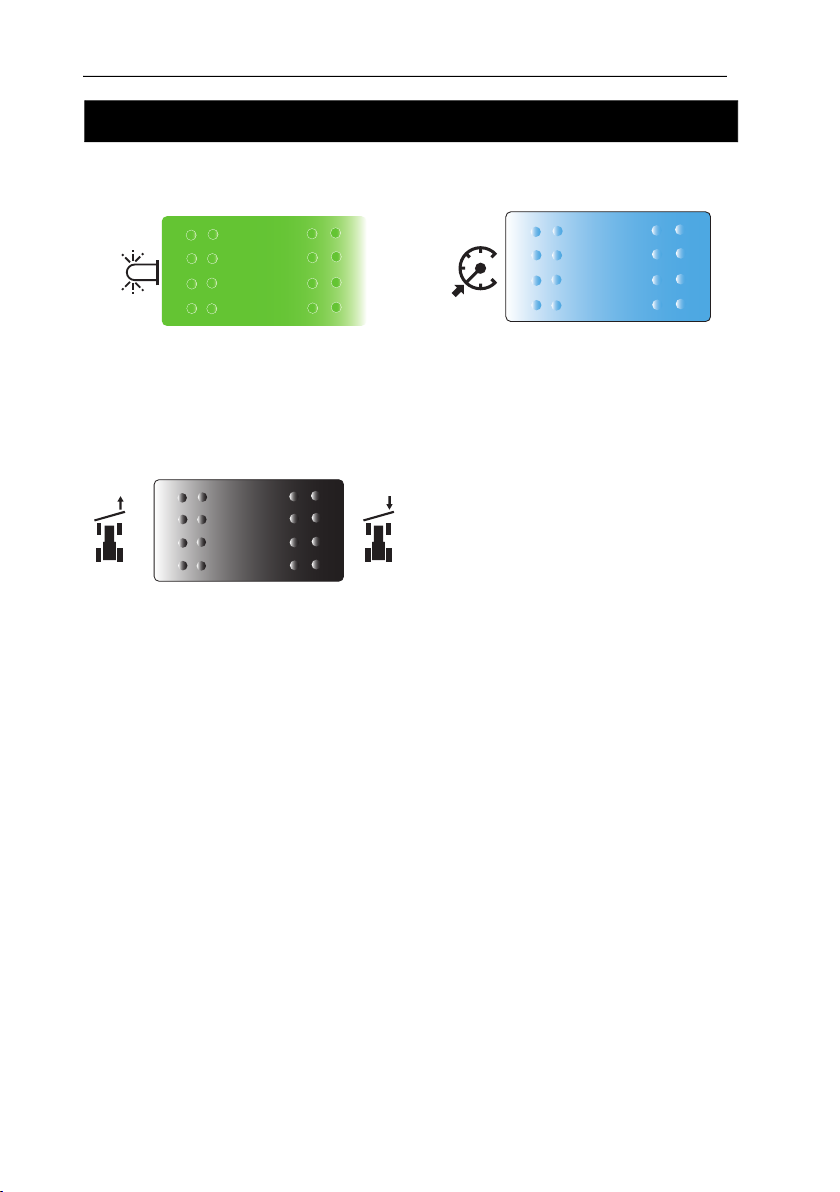

BEACON SWITCH (OPTIONAL)

Operates the vehicles rotating beacon

AUXILLARY HYDRAULIC SERVICES KIT

SWITCH (OPTIONAL)

This switch sets the rotary brush or snow

blade to a right side or a left side forward

position.

Push the top of the rocker switch to set a

right side forward position.

Push the bottom of the rocker switch to set a

left side forward position.

CRUISE CONTROL

Used to engage the cruise function when the

cutters are engaged.

Automatic mode should be selected to

enable cruise control.

To engage cruise control:

Push the rocker switch to engage the cruise

function.

To disengage cruise control

Push the rocker switch to disengage the

cruise function.

Note. Operation of the transmission

pedal, applying the parking brake and

reactivation of the cruise control switch

will deactivate the cruise control.

CONTROLS

Table des matières

Autres manuels Jacobsen Tondeuse à gazon

Jacobsen

Jacobsen PGM 22 InCommand Manuel utilisateur

Jacobsen

Jacobsen HR 5111 Manuel utilisateur

Jacobsen

Jacobsen 32251 Manuel utilisateur

Jacobsen

Jacobsen LF 550 Mode d’emploi

Jacobsen

Jacobsen 67978 - LF 550 Mode d’emploi

Jacobsen

Jacobsen AR-522 jossa ROPS Mode d’emploi

Jacobsen

Jacobsen F305 Manuel utilisateur

Jacobsen

Jacobsen HR 5111 Manuel utilisateur

Jacobsen

Jacobsen LF 550 Manuel utilisateur

Jacobsen

Jacobsen Tri King 67069 Manuel utilisateur

Jacobsen

Jacobsen LF 4677 Turbo 67963 Mode d’emploi

Jacobsen

Jacobsen PGM 22 Manuel utilisateur

Jacobsen

Jacobsen Super LF 1880 Fairway 67955 Manuel utilisateur

Jacobsen

Jacobsen 67069 Manuel utilisateur

Jacobsen

Jacobsen ransomes hr3806 Manuel utilisateur

Jacobsen

Jacobsen Greens King 500A Series Manuel utilisateur

Jacobsen

Jacobsen Greens King V Plus Manuel utilisateur

Jacobsen

Jacobsen 67971 - LF 3400 Manuel utilisateur

Jacobsen

Jacobsen 67945 - LF 3400 Manuel utilisateur

Jacobsen

Jacobsen Greens King IV Plus Manuel utilisateur

Jacobsen

Jacobsen Greens King IV 62302 Manuel utilisateur

Jacobsen

Jacobsen 70528 Manuel utilisateur

Jacobsen

Jacobsen AR-522 jossa ROPS Mode d’emploi

Jacobsen

Jacobsen 67945 - LF 3400 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
