OPERATOR'S MANUAL

42" ROTARY

MOWER

MODELS: AGT42D

UT36037

..JACOBSEN

HOMELITE

AWARNING IFINCORRECTLY USEDTHISMACHINECANCAUSE SEVERE INJURY. THOSE WHOUSE AND

MAINTAIN THE MACHINE SHOULD BETRAINED INITS PROPER USE, WARNED OFITS DANGERS,

AND SHOULD READTHE ENTIRE MANUALBEFORE ATTEMPTING TO SET UP, OPERATE,ADJUST

OR SERVICE THE MACHINE.

PART NO. JA-99211-0

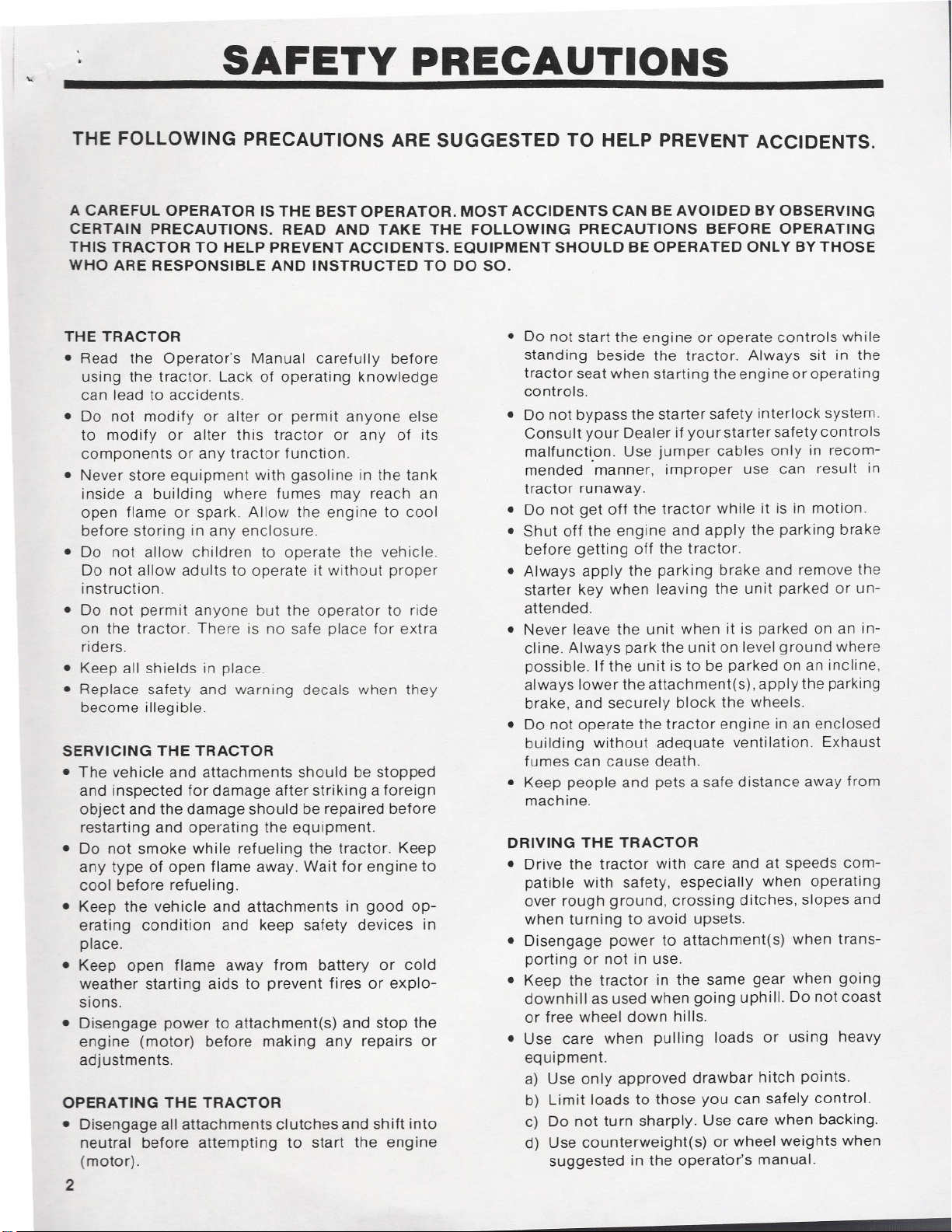

SAFETY PRECAUTIONS

THE FOLLOWINGPRECAUTIONS ARE SUGGESTED TO HELP PREVENTACCIDENTS.

A CAREFUL OPERATOR ISTHE BEST OPERATOR. MOST ACCIDENTS CAN BEAVOIDED BYOBSERVING

CERTAIN PRECAUTIONS. READANDTAKE THE FOLLOWING PRECAUTIONS BEFORE OPERATING

THIS TRACTOR TO HELP PREVENTACCIDENTS. EQUIPMENT SHOULD BEOPERATED ONLY BYTHOSE

WHO ARE RESPONSIBLE AND INSTRUCTED TO DOSO.

THE TRACTOR

.Read the Operator's Manual carefully before

using the tractor. Lack of operating knowledge

can lead to accidents.

.Do not modify or alter or permit anyone else

to modify or alter this tractor or any of its

components or any tractor function.

.Never store equipment with gasoline inthe tank

inside a building where fumes may reach an

open flame or spark. Allow the engine to cool

before storing in any enclosure.

.Do not allow children to operate the vehicle.

Do not allow adults to operate it without proper

instruction.

.Do not permit anyone but the operator to ride

on the tractor. There isno safe place for extra

riders.

.Keep all shields in place.

.Replace safety and warning decals when they

become illegible.

SERVICING THE TRACTOR

.The vehicle and attachments should bestopped

and inspected for damageafter striking aforeign

object andthe damage should berepaired before

restarting and operating theequipment.

.Do not smoke while refueling thetractor. Keep

any type of open flame away. Wait for engine to

cool before refueling.

.Keep thevehicle and attachments ingood op-

erating condition and keep safety devices in

place.

.Keep open flame away from battery or cold

weather starting aidsto prevent fires or explo-

sions.

.Disengage power to attachment(s) andstop the

engine (motor) before making any repairs or

adjustments.

OPERATING THE TRACTOR

.Disengage all attachments clutches and shift into

neutral before attempting to start the engine

(motor).

2

.Do not start the engine or operate controls while

standing beside the tractor. Always sit in the

tractor seat when starting the engine or operating

controls.

.Do not bypass the starter safety interlock system.

Consult your Dealer if your starter safety controls

malfuncti.on. Use jumper cables only in recom-

mended manner, improper use can result in

tractor runaway.

.Do not get off the tractor while it is in motion.

.Shut off the engine and apply the parking brake

before getting off the tractor.

.Always apply the parking brake and remove the

starter key when leaving the unit parked or un-

attended.

.Never leave the unit when it is parked onan in-

cline. Always park theunit on level ground where

possible. If the unit is to beparked on an incline,

always lower the attachment(s), apply theparking

brake, and securely block the wheels.

.Do not operate the tractor engine in anenclosed

building without adequate ventilation. Exhaust

fumes can cause death.

.Keep people and pets a safe distance away from

machine.

DRIVING THE TRACTOR

.Drive thetractor with care andat speeds com-

patible with safety, especially when operating

over rough ground, crossing ditches, slopes and

whenturning toavoid upsets.

.Disengage power to attachment(s) when trans-

porting or not in use.

.Keep thetractor in the samegear when going

downhill asusedwhen going uphill. Donot coast

or free wheel down hills.

.Use care when pulling loads or using heavy

equipment.

a) Useonly approved drawbar hitch points.

b) Limit loadsto those you cansafely control.

c) Do not turn sharply. Usecare when backing.

d) Use counterweight(s) or wheel weights when

suggested inthe operator's manual.

.Watch out for traffic when crossing or near

roadways.

.Itis recommended that this machine notbeused

on public roads. However, if riding on public

roads is unavoidable you must comply to equip-

ment requirements per SAEJ137b and/or ASAE

S279.4 lighting and marking standard. These

standards require vehicles be equipped with

two(2) headlights, one(1) red taillight, two(2)

amber flashing warning lights and a SMVemblem

for operation onpublic roads.

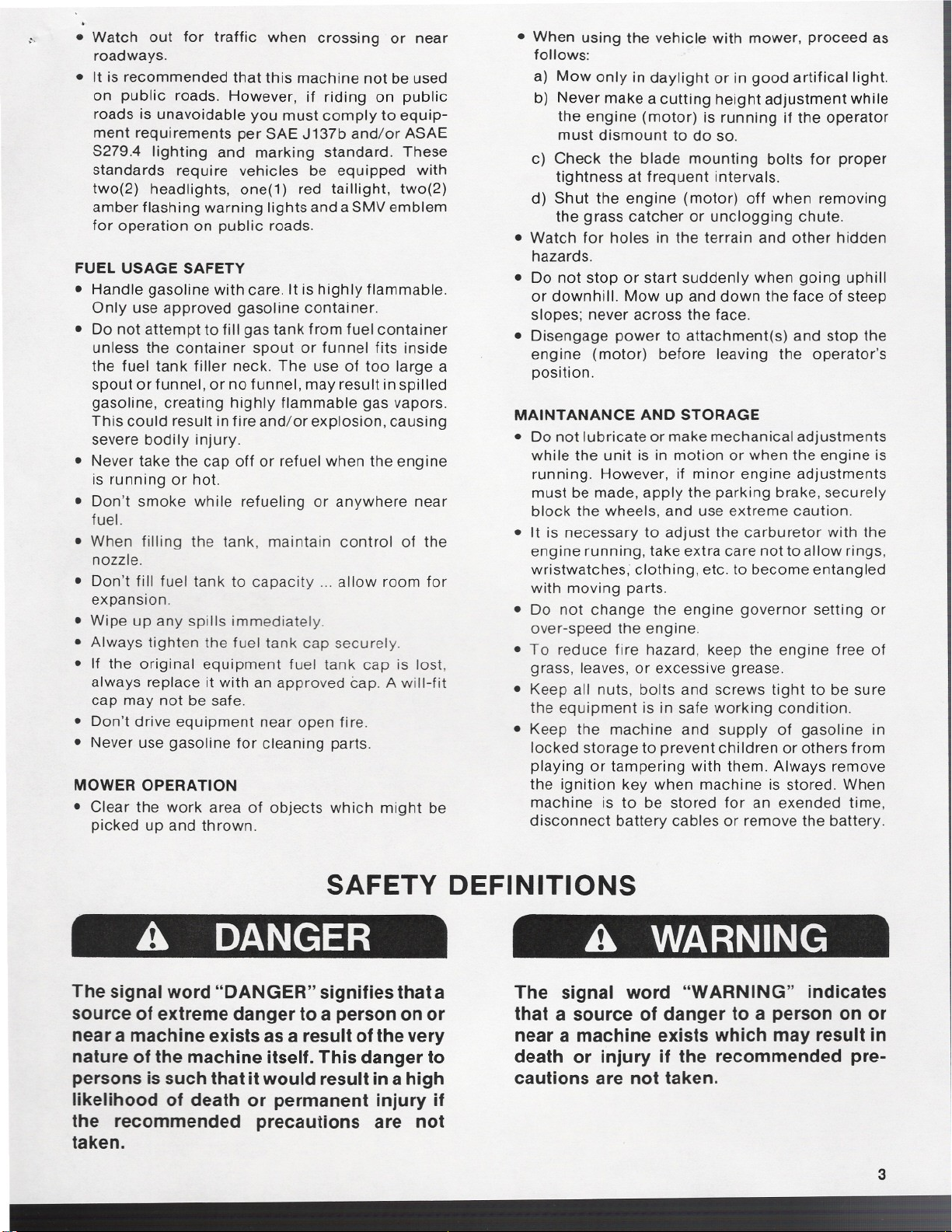

FUEL USAGE SAFETY

.Handle gasoline withcare. Itis highly flammable.

Only useapproved gasoline container.

.Do notattempt to fillgas tank from fuel container

unless the container spout or funnel fits inside

the fuel tank filler neck. The use of too largea

spout or funnel, or no funnel, may result inspilled

gasoline, creating highlyflammable gas vapors.

This could result infire and/or explosion, causing

severe bodily injury.

.Never take the cap offor refuel when the engine

isrunning or hot.

.Don't smoke while refueling or anywhere near

fuel.

.When filling the tank, maintain control of the

nozzle.

.Don't fill fuel tank to capacity... allowroom for

expansion.

.Wipeup any spills immediately.

.Alwaystighten the fuel tank cap securely.

.If the original equipment fuel tank cap islost,

always replace itwithan approved cap. Awill-fit

cap may not be safe.

.Don't drive equipment near open fire.

.Neveruse gasoline for cleaning parts.

MOWER OPERATION

.Clear the work area of objects which might be

picked upand thrown.

.When using the vehicle withmower, proceed as

follows:

a) Mowonly in daylight or ingood artificallight.

b) Never makea cutting height adjustment while

the engine (motor) is running ifthe operator

must dismount to doso.

c) Check the blade mounting bolts for proper

tightness at frequent intervals.

d) Shut the engine (motor) off when removing

the grass catcher or unclogging chute.

.Watch for holes inthe terrain and other hidden

hazards.

.Do not stop or start suddenly whengoing uphill

or downhill. Mowup and down the face ofsteep

slopes; never across the face.

.Disengage power to attachment(s) and stopthe

engine (motor) before leaving the operator's

position.

MAINTANANCEAND STORAGE

.Donot lubricate ormake mechanical adjustments

while the unit is inmotion or when the engine is

running. However, if minor engine adjustments

must be made, apply the parking brake, securely

block the wheels, and use extreme caution.

.Itis necessary to adjust the carburetor with the

engine running, take extra care notto allowrings,

wristwatches; clothing, etc. to become entangled

with moving parts.

.Do not change the engine governor setting or

over-speed the engine.

.To reduce fire hazard, keepthe engine free of

grass, leaves, or excessive grease.

.Keep all nuts, boltsand screws tight tobe sure

the equipment isinsafe working condition.

.Keep the machine and supply of gasoline in

locked storage toprevent children or others from

playing or tampering withthem. Always remove

the ignition key when machine is stored. When

machine isto be stored for an exended time,

disconnect battery cables orremove the battery.

SAFETY DEFINITIONS

A DANGER

The signal word "DANGER"signifies thata

source of extreme danger to a person onor

near amachine exists as a result of the very

nature ofthe machine itself.This danger to

persons issuch that itwould result in a high

likelihood of death or permanent injury if

the recommended precautions are not

taken.

A WARNING

The signal word "WARNING" indicates

that a source ofdanger to a person on or

near a machine exists which mayresult in

death or injury ifthe recommended pre-

cautions are not taken.

3

I

I ~ CONTENTS

SAFETY PRECAUTIONS. .. . .. .. .. . .. . .. .. . .. .. .. .. . .. .. . .. . .. . .. . .. .. . .. .. .. .. .. . . .2-3

SAFETY DEFINITIONS. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. . .. .. .. . .. .. .. .. . .. .. .. . .. . .. . .. .3

HOW TO ORDER REPAIR PARTS. .. .. . .. .. .. . .. .. .. . .. . .. .. . .. . .. .. . .. .. .. . .. . . .. .. . .4

SET-UP INSTRUCTIONS. .. . .. .. . .. .. . .. .. . .. .. .. . .. .. . .. .. . .. .. .. .. .. . .. .. .. . .. .. .. .5

OPERATING CONTROLS. .. . .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. . .. .. .. .. .. . .. .. .. . .. . . .5-6

OPERATION 6-7

MAINTENANCE .8-10

STORAGE. .. . .. . .. .. .. .. .. . .. . .. .. . .. .. .. .. . .. . .. .. . .. .. . .. .. .. .. .. .. . .. . .. .. .. . .. 11

LUBRICATION RECORDS 11

ADJUSTMENT RECORDS. . .. . .. .. .. . .. . .. .. .. . .. .. .. . .. . .. . .. . .. .. . .. .. .. . .. . .. . .. 11

HOWTO ORDER REPAIRPARTS

This manual isan operating and service guide forthe

operator. We recommend that you read it carefully

before operating your mower and that you followthe

simple adjustments and maintenance listed. Wedo not

recommend that you make major repairs beyond

necessary adjustments andsimple parts replacements

required to keepyour unit in good operating condition.

For assistance ingetting the most out ofyour unit, and

for overhaul, winter or summer storage, tuneup, and

repair service, we recommend your Authorized Service

Dealer, who isprepared to help you. To eliminate error

and speed delivery:

1. Write your NAME and ADDRESS on your order

plainly.

2. Explain WHEREand HOWto make shipment.

4

3. Give PRODUCT NUMBER, NAME and SERIAL

NUMBER that is stamped on the NAMEPLATE or

SERIAL PLATEof your product.

4. Order by QUANTITYDESIRED,the PART NUMBER,

and the DESCRIPTION OF PART.

5. Send yourorder to orvisit your nearest AUTHORIZED

SERVICE DEALER.

6. INSPECTALLSHIPMENTS ON RECEIPT. If any parts

are damaged ormissing, file a claim withthe carrier

before accepting.

7. Do not return material toyour nearest AUTHORIZED

SERVICE DEALER without aletter of explanation.

Makea list ofall returned parts, show yourname and

address, and include it with the shipment.

TRANSPORTATIONCHARGES MUST BE PREPAID.

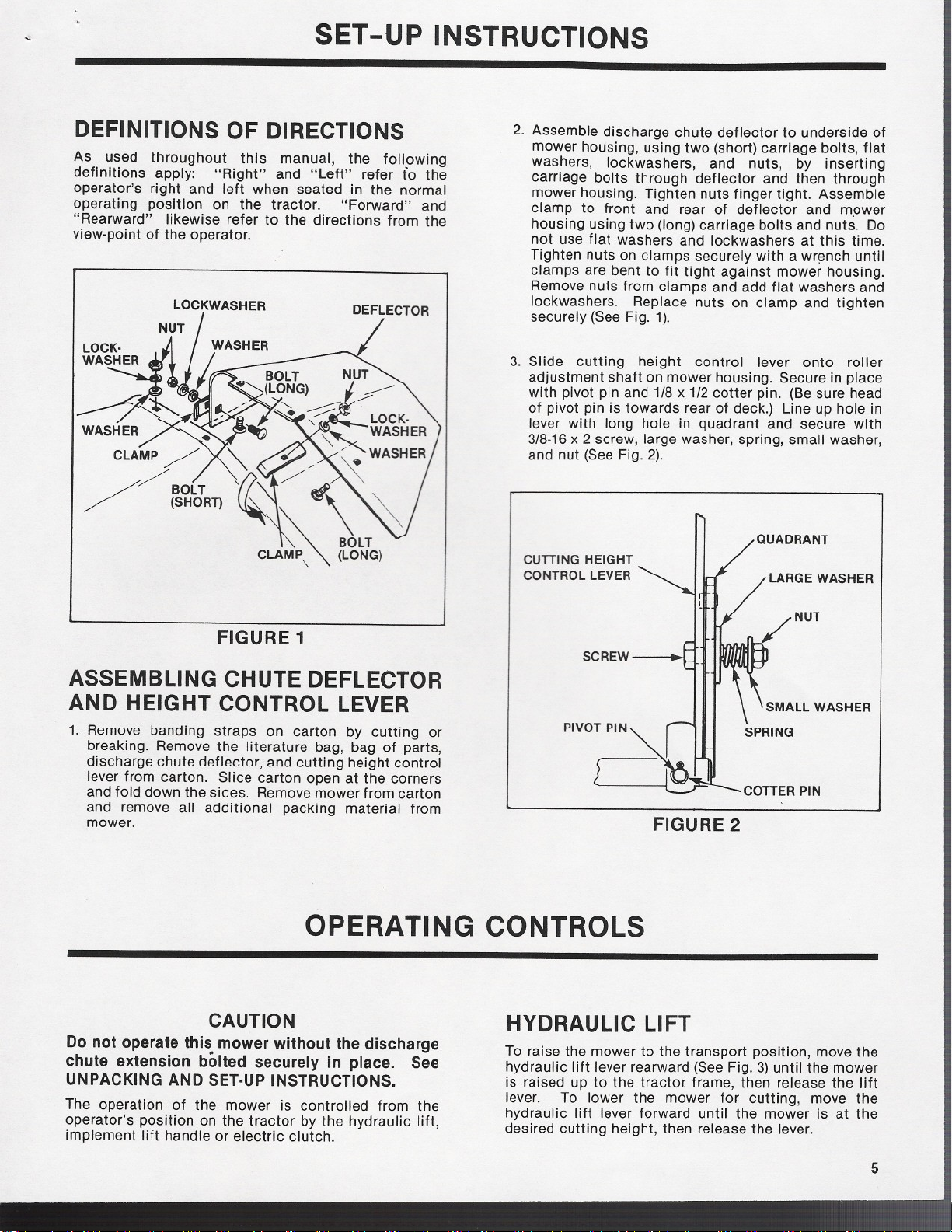

SET-UP INSTRUCTIONS

DEFINITIONS OF DIRECTIONS

As used throughout this manual, the following

definitions apply: "Right" and "Left" refer fo the

operator's right and left when seated in the normal

operating position on the tractor. "Forward" and

"Rearward" likewise refer to the directions from the

view-point of the operator.

DEFLECTOR

FIGURE1

ASSEMBLING CHUTE DEFLECTOR

AND HEIGHT CONTROL LEVER

1. Remove banding straps on carton by cutting or

breaking. Removethe literature bag, bag of parts,

discharge chute deflector, and cutting height control

lever from carton. Slice carton open at the corners

andfold down the sides. Remove mower from carton

and remove all additional packing material from

mower.

2. Assemble discharge chute deflector tounderside of

mower housing, using two (short) carriage bolts, flat

washers, lockwashers, and nuts, by inserting

carriage bolts through deflector andthen through

mower housing. Tighten nuts finger tight. Assemble

clamp to front and rear of deflector and m.ower

housing using two (long)carriage bolts andnuts. Do

not use flat washers and lockwashers at this time.

Tighten nuts onclamps securely with awr~nch until

clamps are bent to fit tight against mower housing.

Remove nuts from clamps and addflat washers and

lockwashers. Replace nuts on clamp and tighten

securely (See Fig. 1).

3. Slide cutting height control lever onto roller

adjustment shaft onmower housing. Secure inplace

with pivot pin and 1/8 x 1/2 cotter pin. (Besure head

of pivot pin is towards rear of deck.) Line uphole in

lever with long hole in quadrant and secure with

3/8-16 x 2 screw, large washer, spring, small washer,

and nut (See Fig. 2).

CUTTING HEIGHT

CONTROL LEVER

NUT

SCREW

COTTER PIN

FIGURE2

OPERATING CONTROLS

CAUTION

Donot operate this mowerwithout the discharge

chute extension bolted securely inplace. See

UNPACKING AND SET.UP INSTRUCTIONS.

The operation of the mower is controlled from the

operator's position onthe tractor bythehydraulic lift,

implement lift handleor electric clutch.

HYDRAULIC LIFT

To raise themower to the transport position, move the

hydraulic lift lever rearward (SeeFig. 3) until the mower

is raised upto the tractor. frame, then releasethe lift

lever. To lower the mower for cutting, move the

hydraulic lift lever forward until the mower is at the

desired cutting height, then releasethe lever.

5

FIGURE3

IMPLEMENT LIFT HANDLE

The mower is raised or lowered manually by the

implement Ii.ft handle. Moving thelift handle rearward

as far aspossible and locking the handle inthe nearest

notch inthe quadrant (See Fig. 4) places the mower in

the transport position. Moving the handle forward

lowers the mower to the cutting positions.

ELECTRIC CLUTCH

The electric clutch engages anddisengages the engine

power for driving the mower and is controlled by a

special switch (See Fig. 3or 5).

1.1/2" (3.81em)

rPIN

~GRIP

LIFT HANDLE

4-1/2" (11.43 em)

(TRANSPORT)

FIGURE4

ELECTRIC

CLUTCHSWITCH

IGNITION SWITCH

FIGURE5

OPERATION

CUTTER BAR

Before each use of the mower, examine the cutter bar to

make sure it is in good operating condition. Lay the

machine onits side and check asfollows:

A WARNING

To avoid possible serious bodily

injury completely detach the mower

from the tractor before doing any

maintenance onthe mower.

1. Thecutter bar should follow along a straight line and

should not be bent. The bar can be checkedwitha

straightedge.

6

2. If the cutter baris bent asmay happen if it strikes a

curb, survey stake or other object, it should be

replaced as it may be damaged. Thedamage might

be a microscopic crackwhichcould grow, allowing a

piece of the barto break off and bethrown out from

under the mower, causing serious bodily injury (See

"B", Fig. 6).

3. Examine theends of the cutter barandthe transition

between the turned upair vanes andthe flat part on

the side awayfrom thegrass. When cutting grass in

dry or sandy soil, abrasive dust of sand particles can

wear away the metal connecting thevanesand the

flat part (See "A", Fig. 6). If aslot forms ina bar as

shown in "B", Fig. 6,the bar should be replaced.

4. If the wear is allowed totake place for along time,

the slot will grow, permitting apiece of the vane to

break off the bar and be thrown from the mower,

causing possible serious bodily injury.

NEW CUTTER BAR

EARLY WEAR

DANGEROUS WEAR

FIGURE6

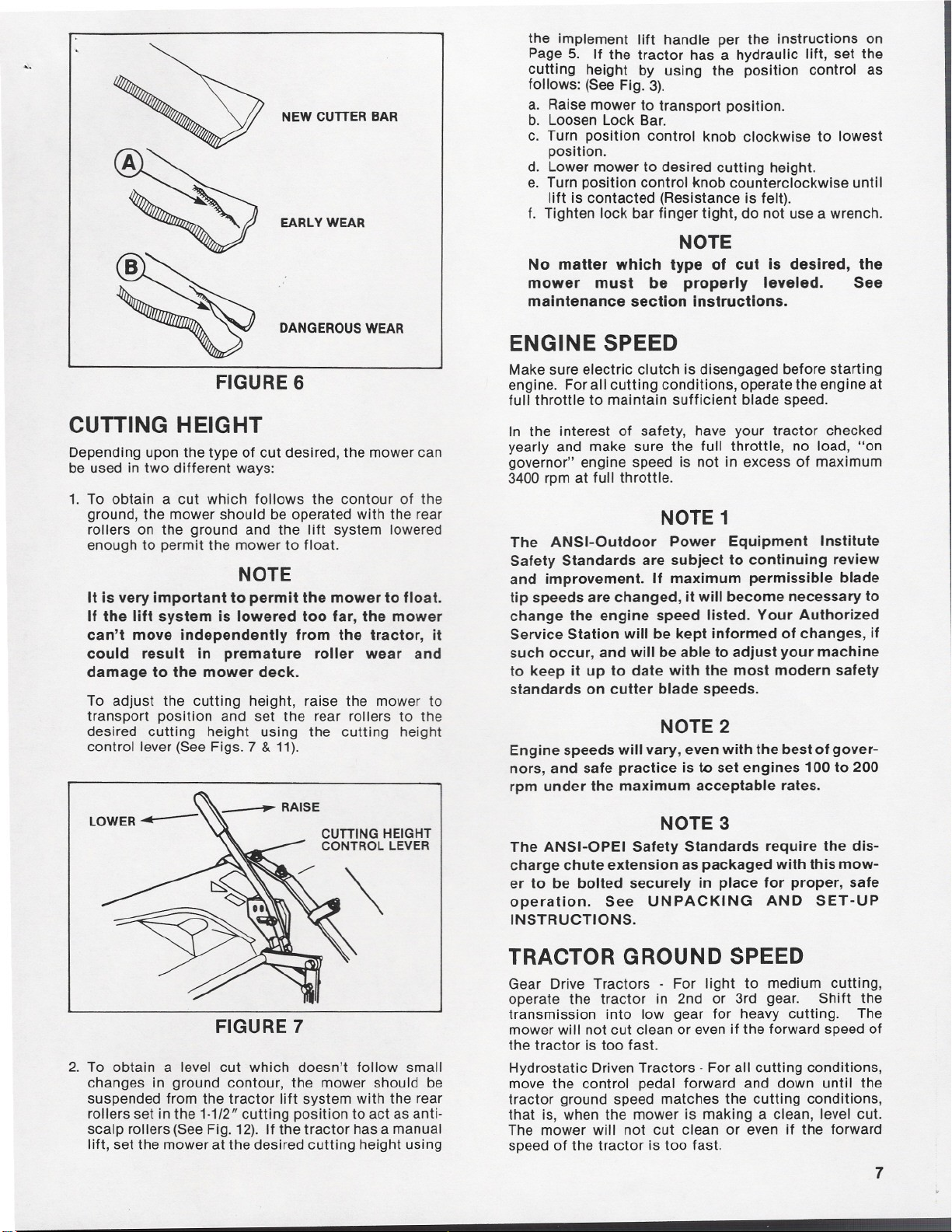

CUTTING HEIGHT

Depending upon thetype of cut desired, the mower can

be used intwo different ways:

1. To obtain acut which follows the contour of the

ground, the mower should beoperated with the rear

rollers onthe ground and the lift system lowered

enough to permit the mower to float.

NOTE

It isvery important to permit the mower to float.

If the lift system islowered too far, the mower

can't move independently from thetractor, it

could result in premature roller wear and

damage tothe mower deck.

To adjust the cutting height, raise the mower to

transport position and set the rearrollers to the

desired cutting height using the cutting height

control lever(SeeFigs. 7 & 11).

~ RAISE

LOWER .. CUTTING HEIGHT

CONTROL LEVER

FIGURE7

2. To obtain alevel cut which doesn't follow small

changes in ground contour, the mower should be

suspended from thetractor lift system with therear

rollers set in the 1.1/2" cutting position to act as anti-

scalp rollers (See Fig. 12). If the tractor has a manual

lift, set the mower atthe desired cutting height using

the implement lift handle perthe Instructions on

Page 5. If the tractor has a hydraulic lift, set the

cutting height by using the position control as

follows: (See Fig. 3).

a. Raise mowerto transport position.

b. LoosenLock Bar.

c. Turn position control knobclockwise to lowest

position.

d. Lowermowerto desired cutting height.

e. Turn position control knob counterclockwise until

lift is contacted (Resistanceis felt).

f. Tighten lock barfinger tight, do not use a wrench.

NOTE

No matter which type of cut Is desired, the

mower must be properly leveled. See

maintenance section Instructions.

ENGINE SPEED

Make sure electric clutch is disengaged before starting

engine. For all cutting conditions, operate theengine at

full throttle to maintain sufficient blade speed.

In the interest of safety, have your tractor checked

yearly and make sure the full throttle, no load, "on

governor" engine speed Isnot in excess of maximum

3400 rpm at full throttle.

NOTE1

The ANSI-Outdoor Power Equipment Institute

Safety Standards aresubject to continuing review

and improvement. If maximum permissible blade

tip speeds arechanged, it will becomenecessary to

change theengine speed listed. Your Authorized

Service Station will be kept informed of changes, If

such occur, and will beable to adjust your machine

to keep it up to datewith themost modern safety

standards on cutter blade speeds.

NOTE2

Engine speeds will vary, evenwith the best ofgover-

nors, and safe practice isto setengines 100to 200

rpm under the maximum acceptable rates.

NOTE3

The ANSI-OPEl Safety Standards require thedis-

charge chute extension aspackaged with this mow-

er to be bolted securely inplace for proper, safe

operation. See UNPACKING AND SET-UP

INSTRUCTIONS.

TRACTOR GROUND SPEED

Gear Drive Tractors -For light to medium cutting,

operate the tractor in 2nd or 3rd gear. Shift the

transmission into low gear for heavy cutting. The

mower will not cut clean oreven if the forward speedof

the tractor istoo fast.

Hydrostatic Driven Tractors -For all cutting conditions,

move the control pedal forward and down until the

tractor groundspeed matches the cutting conditions,

that is, when the mower is making aclean, level cut.

The mower will not cut clean or even if the forward

speed of the tractor istoo fast.

7

MAINTENANCE

FIGURE8

CUTTER DRIVE BELT

REPLACEMENT

1. Detachthe mower from the tractor.

2. Remove screws and lockwashers from around the

belt cover and carefully remove it from the mower

(See Fig. 8).

3. With apair of pliers, grip the endof the tension

spring and remove it from the slot in the mower

housing (See Fig. 9).

4. Removethe worn belt and replace it with anew one.

5. Hook theendof the tension spring inthe slot.

6. Replace the cover and fasten it securely with the

screws and lockwashers previously removed.

IDLER PULLEY

FIGURE9

CUTTER BAR

Cutter Bar Removal -This operation must be performed

with the mower detached from the tractor. Turn the

mower over on its back and remove thescrew and

lockwasher at the center of each cutter bar.

When sharpening the cutter bar, do not follow the

original angle of grind as shown in "A" (See Fig. 10).

Instead, grind new cutting edges onthe diagonal as

shown in "8". Make sure that each cutting edge

8

receives anequal amount of grinding to prevent having

an unbalanced bar which will cause excessive

vibrations at high speeds and maydamage the mower.

A WARNING

Incorrect resharpening ofthe cutter

bar as illustrated in"A", Fig. 10,may

result in serious bodily injuryshould

the sudden impact ofthe bar anda

foreign object occur during operation

causing apossible brokenblade tip

to be discharged from under the

mower.

~A - ~DO NOT RESHARPEN

G-un___n...J TO THISPATTERN

ORIGIN;: ~~~E-7...J 1/2" (1.27CM) MAXIMUM

REMOVAL DURING

RESHARPENING

B

REQUIREDSHARPENING PATTERN

FIGURE 10

ADJUSTING REAR ROLLER

HEIGHT

There are five cutting heights on the control quadrant.

The cutting heights are shown inFigure 11. Move the

cutting height control leverto the position desired.

NOTE

Cutting heights are measured withthe rearrollers

setting onthe ground, and theimplement lift lever

set in the corresponding position on the liftquadrant

or the next lower position for2" (5.08em) and 3"

(7.62 em) cutting position (see Figure11).

MOWER LEVELING ADJUSTMENT

The mower is pre-set at the factory and under normal

conditions will never need adjusting. However, the

mower should be checked periodically and if necessary

adjusted as follows:

1. Side to Side: If one side of the mower is lower than

the other, remove the rearhanger bracket onthe low

side of the mower and reassemble it in adifferent set

.of holesto makeit shorter and raisethe lowside of

the mower.

2. Blade Tilt: Position cutter blade parallel to tractor

centerline (Foreand Aft). Check that the front tip of

the blades are .125to .375 below rear tip. If the

mower needs to be adjusted, remove both rear

hanger brackets and reassemble them in different

sets of holes as necessary to get the proper

adjustment. Move both rear brackets the same

amount.

LOAD

FIGURE 11

ATTACHING MOWER TOTRACTOR

On models with implement handle, proceed as follows:

1. Be sure that engine is off. Set parking brake.

2. Pull implement lift handle back andlock it in the last

notch of quadrant toraise the hitch assembly.

3. Set rear rollers inthe load position.

4. Slide the mower under the tractor (See Fig. 12).

5. Position the mower under the tractor as far to the

rear as possible.

6. Pushthe implement lift leverforward to lower the lift

linkage.

-I

LEFT 51DE

t~FRONT

TRACTOR CENTERLINE

J.I

RIGHT SIDE

MOWER

FIGURE 12

7. Push down the lift linkage manually, thenslide the

mower forward, making surethe front and rearhitch

brackets areinside the mower lift arms. Lift mower

with implement lift handle to lockfront hitch latch in

place onthe front hanger bar.

On models with hydraulic lift lever orelectric lift switch,

proceed as follows:

1. Set parking brake.

2. Turn on switch with key and start engine. Pull

hydraulic lift lever back or press electric lift switch

uptoraise the hitch assembly. Shut engine off. BE

SURE ENGINE ISSHUT OFF BEFORE PERFORMING

STEPS NO.3, 4, and 5.

3. Set rearrollers in "load" position.

4. Slide the mowerunder the tractor (See Fig. 12).

Position the unit underthe tractor asfar to the rear

as possible.

5. Start the engine and movethe hydraulic lift lever

forward orpress electric lift switch down tolower the

lift linkage. Shut engine off. BESUREENGINE IS

SHUT OFF BEFORE PERFORMING STEPNO.6.

6. Manually pushdown lift linkage. Slide themower

forward, making sure the front and rear hitch

brackets areinside the mower lift arms. Start engine

and move hydraulic lift lever back or press electric

lift switch upto lift mower slightly andengage the

front hitch latch onthe front hanger bar. lower the

unit tothe load position, then shut engine off. BE

SURETHE ENGINE ISSHUT OFF BEFORE MAKING

BELT INSTAllATION OR ADJUSTMENT.

BELT INSTAllATION AND

ADJUSTMENT

IMPORTANT

The following instructions must be followedeach

time anew belt isinstalled on your mower, or the

mower is reinstalled on your tractor. You should

also check forproper adjustment during theseason

of usage. The end result will be good performance

and extended belt life.

1. Attach the drive belt, slipping it over the attachment

pulley, through the belt guide, over the two smaller

idler pulleys, and the larger of the two engine drive

pulleys, asshown in Figure 13. Makesure that the

belt is not twisted more than required for proper

function (1/2 Turn).

2. Start theengine and raise themower to the highest

position. BESURETHE ENGINE ISSHUT OFF

BEFORE PERFORMING STEPS3, 4, and 5.

3. Grasp the two belt sections that extend from the

attachment pulley tothetractor idlers, and squeeze

together. At the same time observe the spring onthe

spring-loaded idler (right side of tractor). Asthe belt

section6 are manually squeezed together, the spring

should begin to compress. There should be a

minimum of 1/8" (3.17mm) spring movement before

9

.the spring is completely (solid) compressed. If the

'811owable inside movement between the totaLspring

coils is 118"(3.17 mm) or less, the spring should be

adjusted by turning the nut on the rodextending

through the spring. The nut should be turned back,

allowing the spring to beextended.

4. After adjusting the nut, recheck the spring, making

sure that there is 1/8" (3.17mm)or more spring travel

before the spring is completely compressed. The

mower must be in the highest position for this

adjustment.

5. It is important tocheck thebelt occasionally to make

sure that it has not become too loose. Belts may

stretch or wear. If the belt h~s become loose, the

tension can beincreased byadjusting the nut on the

spring rod. The spring should becompressed. Refer

to step 3andcheck to make sure the spring is not

compressed too far.

FAILURE TO FOLLOW THESE INSTRUCTIONS IN

THEIR PROPERSEQUENCE MAY RESULT IN SHORT

BELT LIFE.

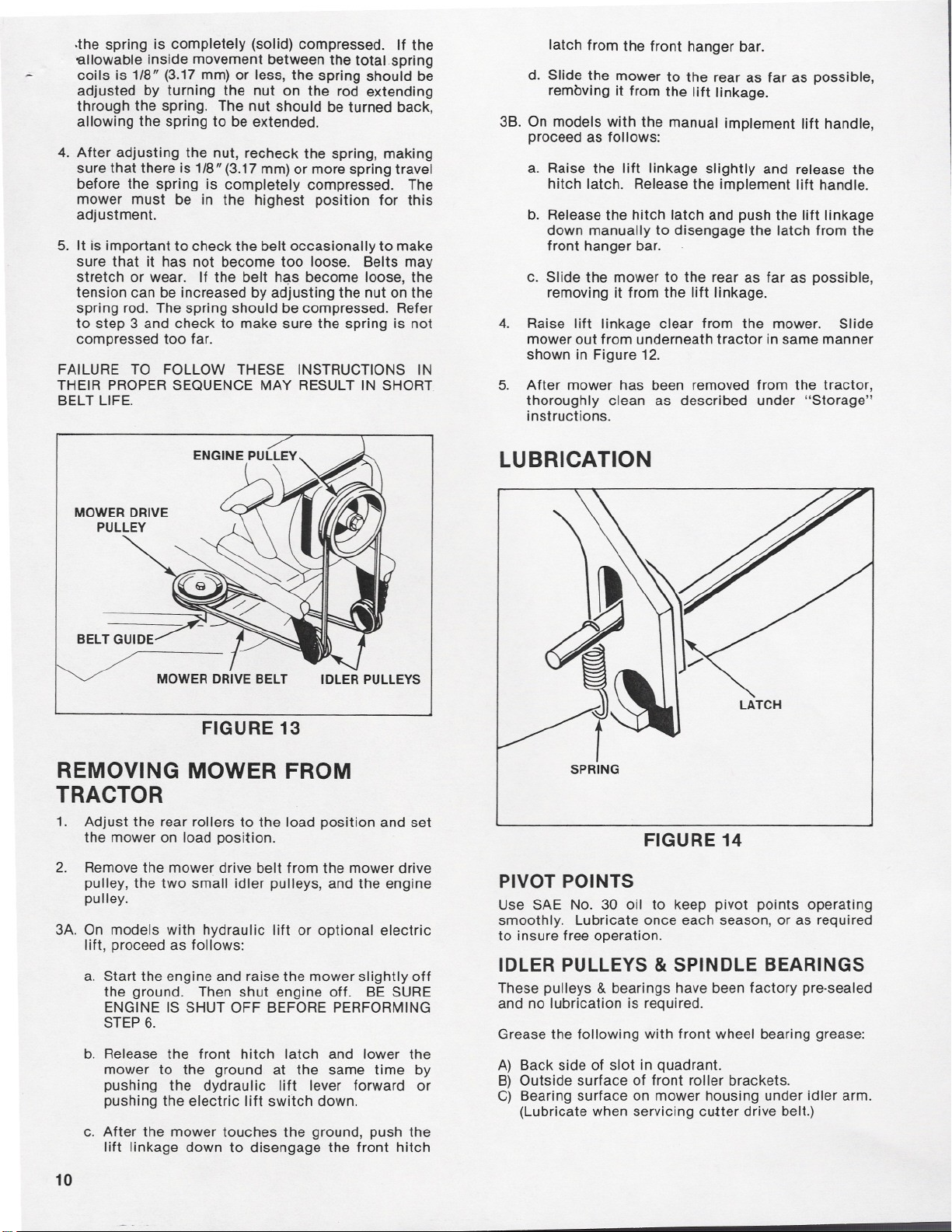

BELT GUIDE

I~RIVEBELT IDLER PULLEYS

FIGURE 13

REMOVING MOWER FROM

TRACTOR

1. Adjust the rear rollers to the load position and set

the mower on load position.

2. Removethe mower drive belt from the mower drive

pulley, the two small idler pulleys, andthe engine

pulley.

3A. On models with hydraulic lift or optional electric

lift, proceed as follows:

a. Start theengine andraise the mower slightly off

the ground. Then shut engine off. BE SURE

ENGINE IS SHUT OFF BEFORE PERFORMING

STEP 6.

b. Release the front hitch latch and lower the

mower to the ground at the same time by

pushing the dydraulic lift lever forward or

pushing the electric lift switch down.

c. After the mower touches the ground, push the

lift linkage down todisengage the front hitch

10

latch fromthefront hanger bar.

d. Slide the mower to the rear as far as possible,

rembving it from the lift linkage.

3B. On models with the manual implement lift handle,

proceed as follows:

a. Raise the lift linkage slightly andrelease the

hitch latch. Releasethe implement lift handle.

b. Releasethe hitch latch andpush the lift linkage

down manually todisengage the latch from the

front hanger bar. .

4.

c. Slide the mower to the rear as far as possible,

removing it from the lift linkage.

Raise lift linkage clear from the mower. Slide

mower out from underneath tractor insame manner

shown in Figure 12.

5. After mower has been removed fromthe tractor,

thoroughly clean as described under "Storage"

instructions.

LUBRICATION

SPRING

FIGURE 14

PIVOT POINTS

Use SAE No. 30 oil to keep pivot points operating

smoothly. Lubricate once eachseason, or as required

to insure free operation.

IDLER PULLEYS & SPINDLE BEARINGS

These pulleys &bearings have beenfactory pre-sealed

and no lubrication is required.

Grease the following with front wheel bearing grease:

A) Backside of slot in quadrant.

B) Outside surface of front roller brackets.

C) Bearing surface onmower housing under idler arm.

(Lubricate when servicing cutter drive belt.)
