OWNER’S MANUAL:

Model # JGSBSEAR Searing Burner Station

JACKSON GRILLS INC.

#106-2480 Mt. Lehman Rd.

Abbotsford, BC V4X 2N3

TEL: 1(888) 287-3333

FAX: 1(877) 855-5373

SUPPORT: [email protected]

WEB SITE:www.jacksongrills.com

FOR OUTDOOR USE ONLY

!WARNING!

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from

appliance and immediately call your gas

supplier & fire department.

!WARNING!

1. Do not store or use gasoline or other

flammable liquids in the vicinity of this

appliance.

2. Do not store disconnected propane

tanks in the vicinity of this appliance.

TABLE OF CONTENTS

Certification & Testing: 2

Safety Warnings: 3

Package Contents Checklist: 3

Searing Side Burner Part Number List: 4

Installation Instructions: (Cart Version) 4-5

Installation Instructions: (Built In Version) 6-7

Leak Testing: 7

Lighting Instructions: 7

Natural Gas Conversion: 8

Warranty: 8

CERTIFICATION & TESTING

This side burner has been tested by Labtest Certification (LC) and has been tested to ANSI Z21.58a-1198 & CGA

16a-M98, and Certified for Canada and the USA.

NOTE: The use and installation of this product must conform to local codes. In the absence of local codes, use the

National Fuel and Gas Code, ANSI A223.1, Storage and Handling of Liquefied Petroleum Gasses, NFPA / ANSI 58.

!SAFETY WARNINGS!

SAFETY FIRST:

Please read and understand all warnings and precautions prior to operating your Side Burner.

1 This accessory is for outside use only, and shall not be used in any building, garage, enclosed area or

vehicle.

2 This Side Burner is set up from the factory for use with Propane Gas (LP). (Propane Cylinder /Tank not

included)

3 Do not use gasoline, alcohol or other volatiles for lighting purposes.

4 The Propane (LP) gas supply cylinder must be constructed and marked in accordance with the

specifications for propane gas cylinders of the US Department of transport (DOT) CFR 49 or the National

Standards of Canada, CAN/CSA B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous

Goods.

5 Do not alter this accessory in any manner.

6 Do not touch any metal surfaces on this side burner until it has completely cooled to avoid burns, unless

wearing protective gear. (Pot holders, gloves, BBQ mittens, etc.)

7 It is essential to keep the valve compartment, burners, and circulating air passages clean and free of

obstructions and debris. Inspect the grill before each use.

8 Do not store any spare propane cylinders within 10 feet of this Side Burner.

9 Please note that propane (LP) is explosive under pressure, heavier than air, and settles and pools in low

areas, which can create an explosion hazard.

10 Caution: contact with propane gas can cause freeze

burns to your skin.

11 Dented and rusted propane cylinders may be

hazardous and should be checked by a propane

gas supplier, before use.

PACKAGE CONTENTS CHECKLIST:

The following parts are included in this side burner package:

1 x Searing Burner Body with Lid (attached)

1 x Stainless Steel Flex Hose

1 x Stainless Steel Cook Grid

1 x Cook Grid Support

1 x Natural Gas Orifice (for Natural Gas Conversion)

1 x Owner’s Manual

!WARNING!

Failure to follow all manufacturer’s

instructions could result in serious

bodily injury and/or property damage.

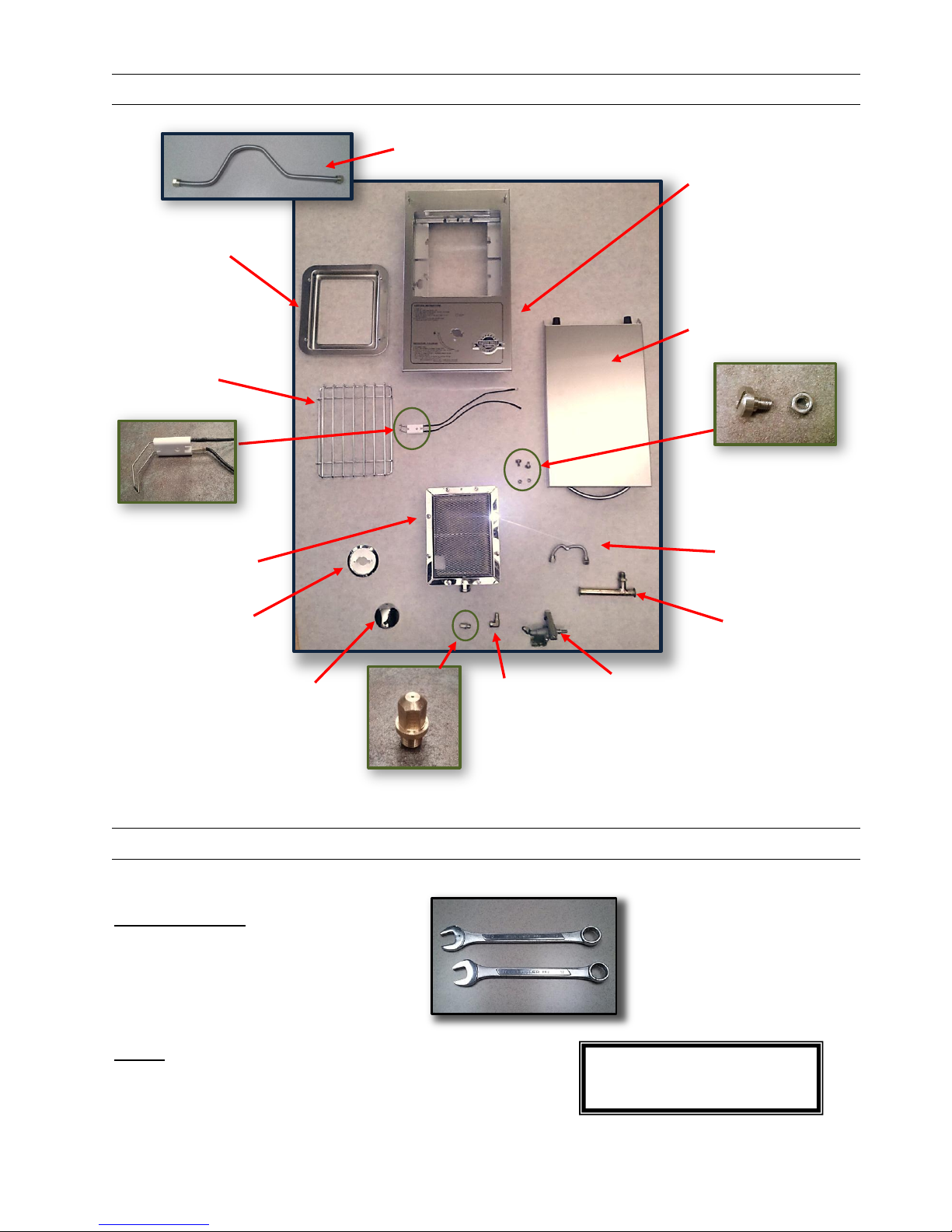

SIDE BURNER PART NUMBER LIST:

CART MODEL INSTALLATION:

TOOLS REQUIRED:

1 X 17mm wrench

1 X 19mm wrench

STEP 1

Remove the cutting board from the right hand side shelf

(The side burner can be installed only on the right hand side

of the unit, as it will interfere with the rotisserie otherwise.)

!WARNING!

SHUT OFF FUEL before installing

this side burner assembly.

Lid With Handle: JH-000

Flex fuel Line; JF-8

Side Burner Body:

call dealer

Manifold: JF-80

Gas Valve: JF-02

Orifice: JF-001 NAT

JF-003 LP

Shoulder Bolt: JH-001

Elbow: JF-004

Knob: JK-14

Grid Support: JG-22

Cook Grid: JG-18

Bezel: JK-15

Burner: JB-14

Electrode: JF-21

Main Fuel Line: JF-83

Bend formed rails down

slightly (if necessary)

Figure 1

Figure 2

Figure 4

Figure 3a

Figure 3b

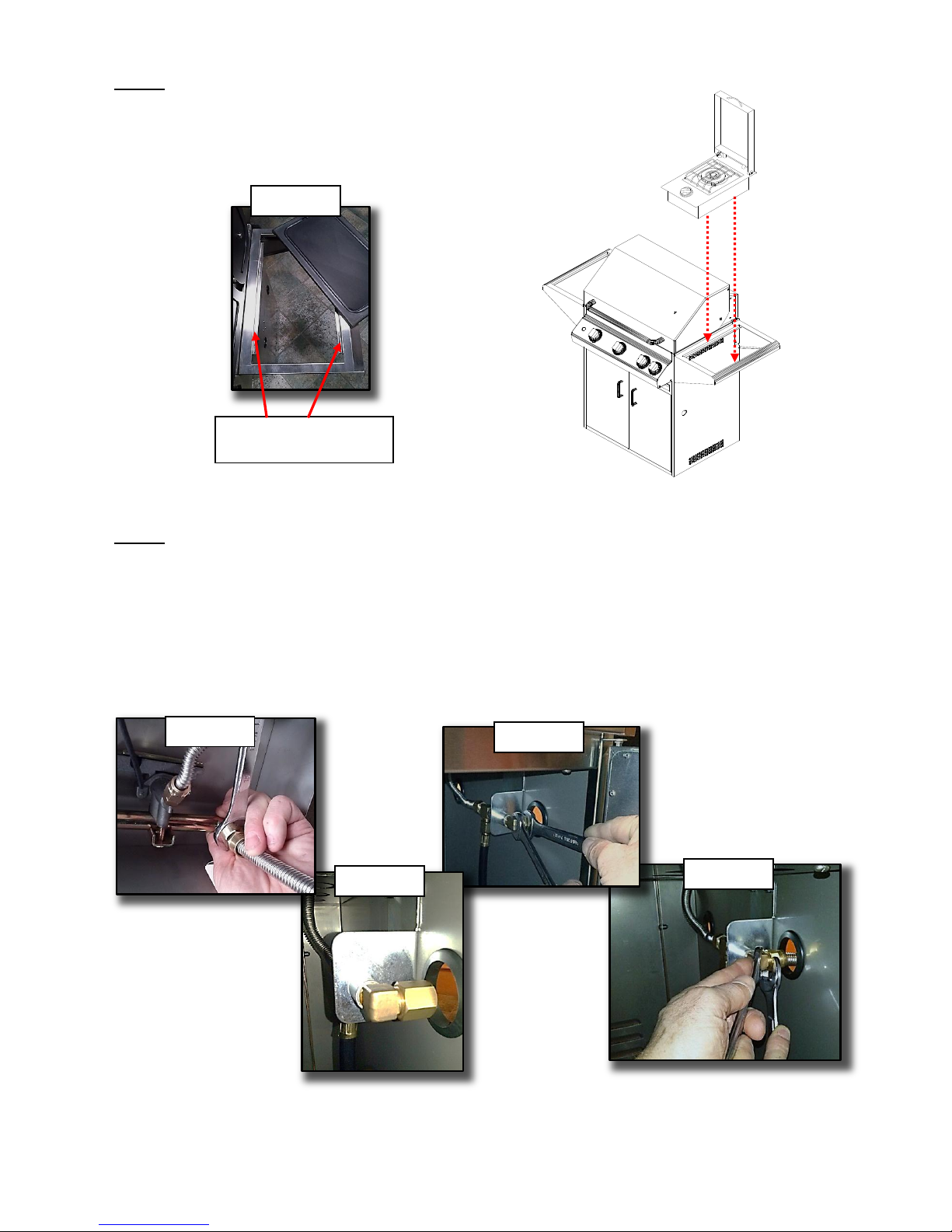

STEP 2

Drop the Searing Side Burner assembly onto the rails that formerly supported the

Cutting Board. This may be a tight fit; if so, please bend the rails down slightly using

a pair of pliers as needed (Fig. 1). This adjustment will allow the side burner to

drop into place.

STEP 3

Install the included Main Flex Fuel Line onto the 3/8” flared connection on the Searing burner gas manifold (Fig. 2).

(NOTE: Sealant is NOT required). Next, insert the Main Flex Fuel Line through the hole in right pedestal wall of your

Jackson Grill. Note that the hole should be factory equipped with a grommet to protect the fuel line.

Remove the Brass Cap at the fuel manifold on your Jackson cart style grill (Fig.3a, 3b), then connect the Main Flex

Fuel Line as shown (Fig. 4).

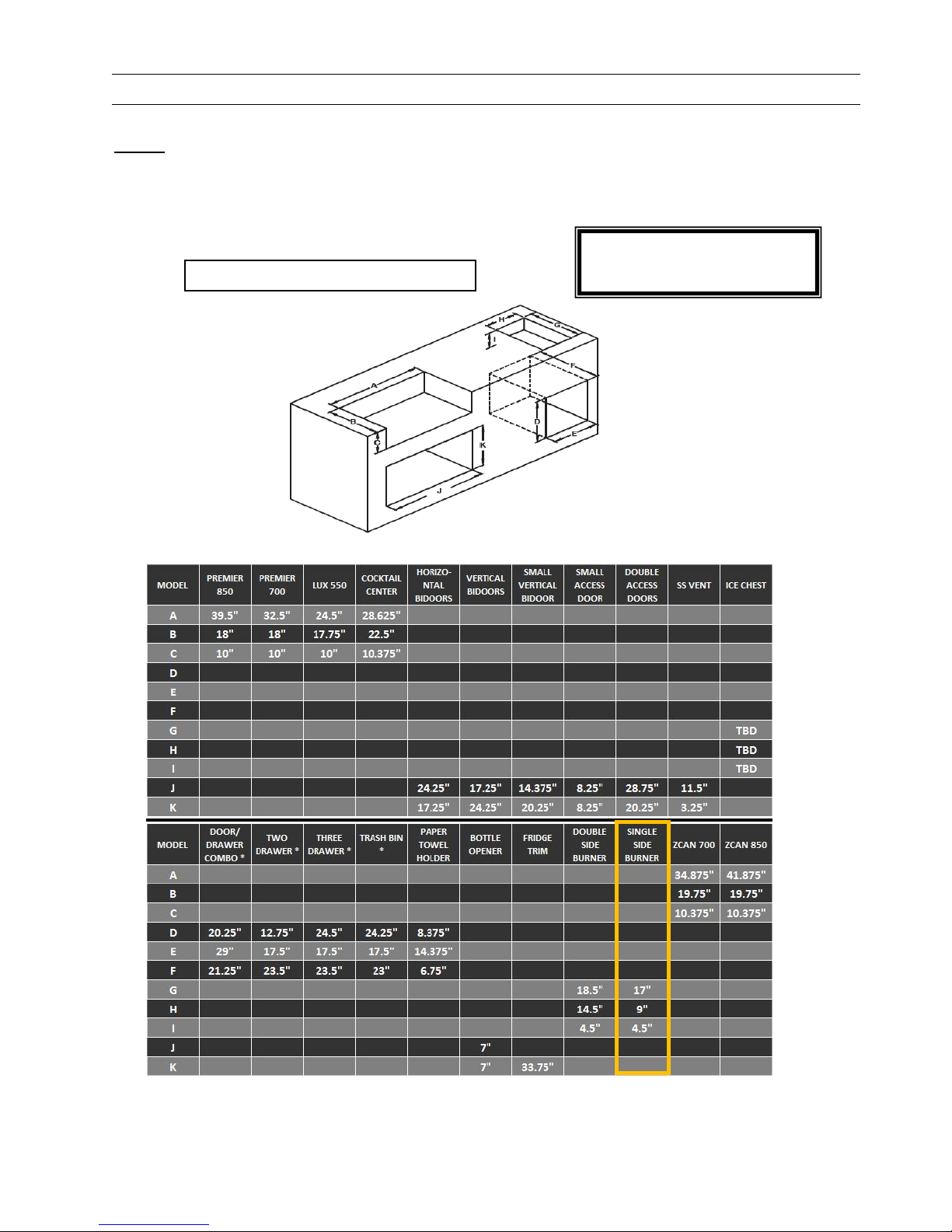

Figure 6: Built In Cut-Out Dimensions**

INSTALLATION INTO BUILT-IN CABINET:

STEP 1

Cut/fabricate a hole in the cabinet to size as shown in Figure 6; ‘Cut Out Dimensions’ (High Lighted in Yellow).

These dimensions are the actual cut out dimensions for the built in units in non-combustible applications.

!WARNING!

SHUT OFF FUEL before installing

this side burner assembly.

Rev Feb 2012

Figure 6

STEP 2

Install the Main Flex Fuel Line onto the 3/8” flared connection on the

Searing Side Burner manifold (Fig. 2 above). (Sealant not required).

PROPANE GRILLS: The inlet fuel line from the Propane Tank MUST

Not Exceed 11” Water Column. If in doubt, please contact a

professional Gas Fitter to check inlet pressure to your Grill.

NATURAL GAS GRILLS: The fuel line which delivers Natural Gas

from your home to the grill, must not exceed 4.5” Water Column.

(Also see Gas Conversion’. PP.7)

STEP 3

Drop Searing Side Burner into cabinet, and while doing so, route the Main Flex Fuel Line under your Jackson Built In

Grill.

STEP 4

Remove brass cap from Fuel Inlet Manifold under the built in grill (Fig. 3a pp.5). Connect Searing Burner Main Flex

Line to the built In grill manifold (Fig. 4 pp.5). Before using your grill, perform a thorough leak test as per the following

section.

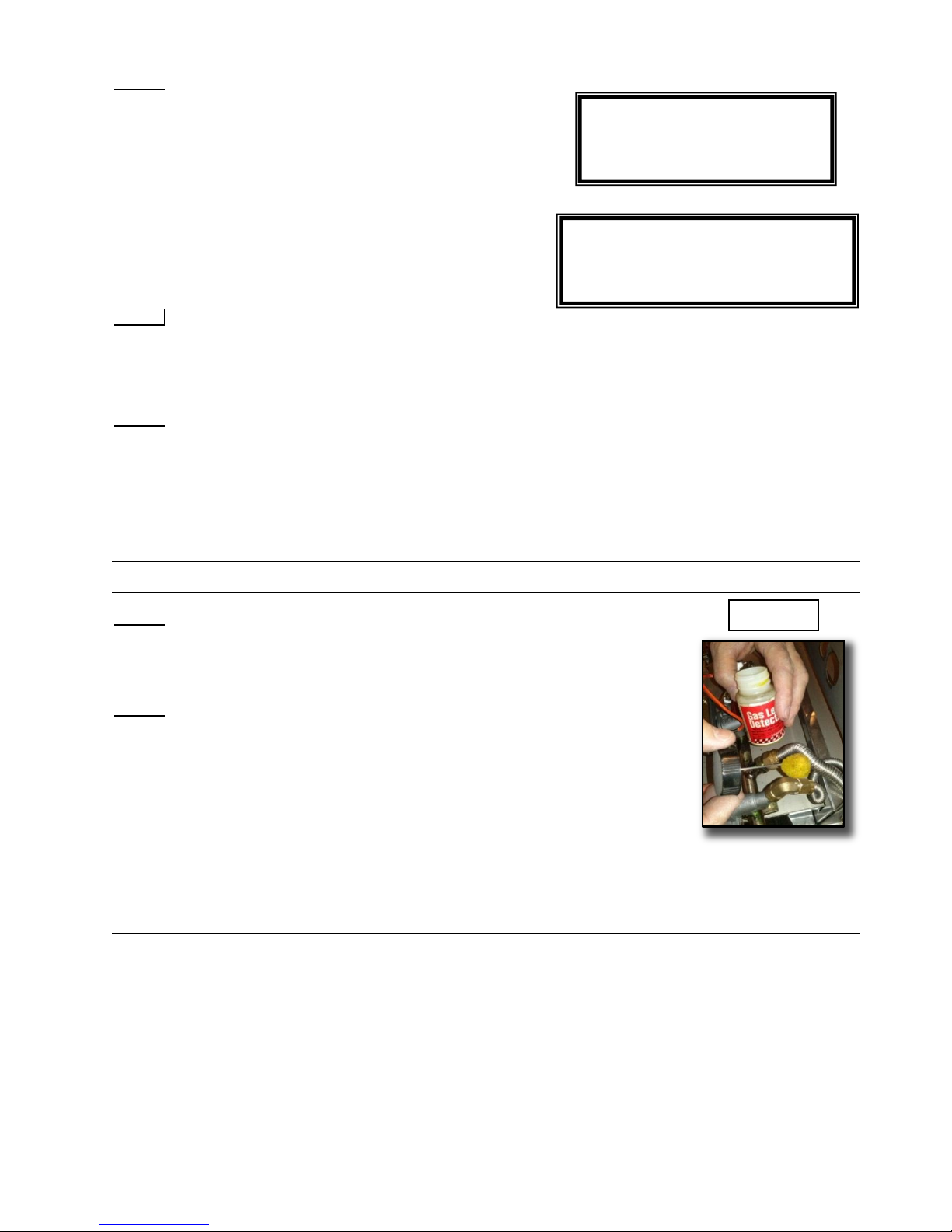

LEAK TESTING:

STEP 1

Turn on Gas. (Do NOT turn on any burners).

STEP 2

Mix a solution of liquid dish soap and water (or use profession leak detector liquid).

Spray or brush thoroughly on all fuel line connections (Fig. 6). If soap bubbles are

generated at any connection, tighten the fitting and re-test. If a leak is detected

that cannot be repaired, immediately turn off the gas and contact your dealer for

further assistance.

LIGHTING INSTRUCTIONS

1. Turn the main gas supply ON.

2. Depress the side burner control knob down slightly and turn SLOWLY counter clock wise until the ‘click’ of

the igniter is heard. (This side burner has a built in ignition system).

3. If the side burner does NOT light, turn the control knob to the OFF position and try again.

4. Once the burner has lit, turn the control knob counter clock wise to the desired heat level.

To turn the unit off, turn the gas control clockwise to the OFF position.

TECH TIP

It is recommend that a Certified Gas

Fitter be used to install fuel lines

and other fuel related components.

!WARNING!

Check fuel pressure before operating your

Grill & Side burner. Over pressure could

cause injury and property damage,

Figure 7

Figure 8

NATURAL GAS CONVERSION

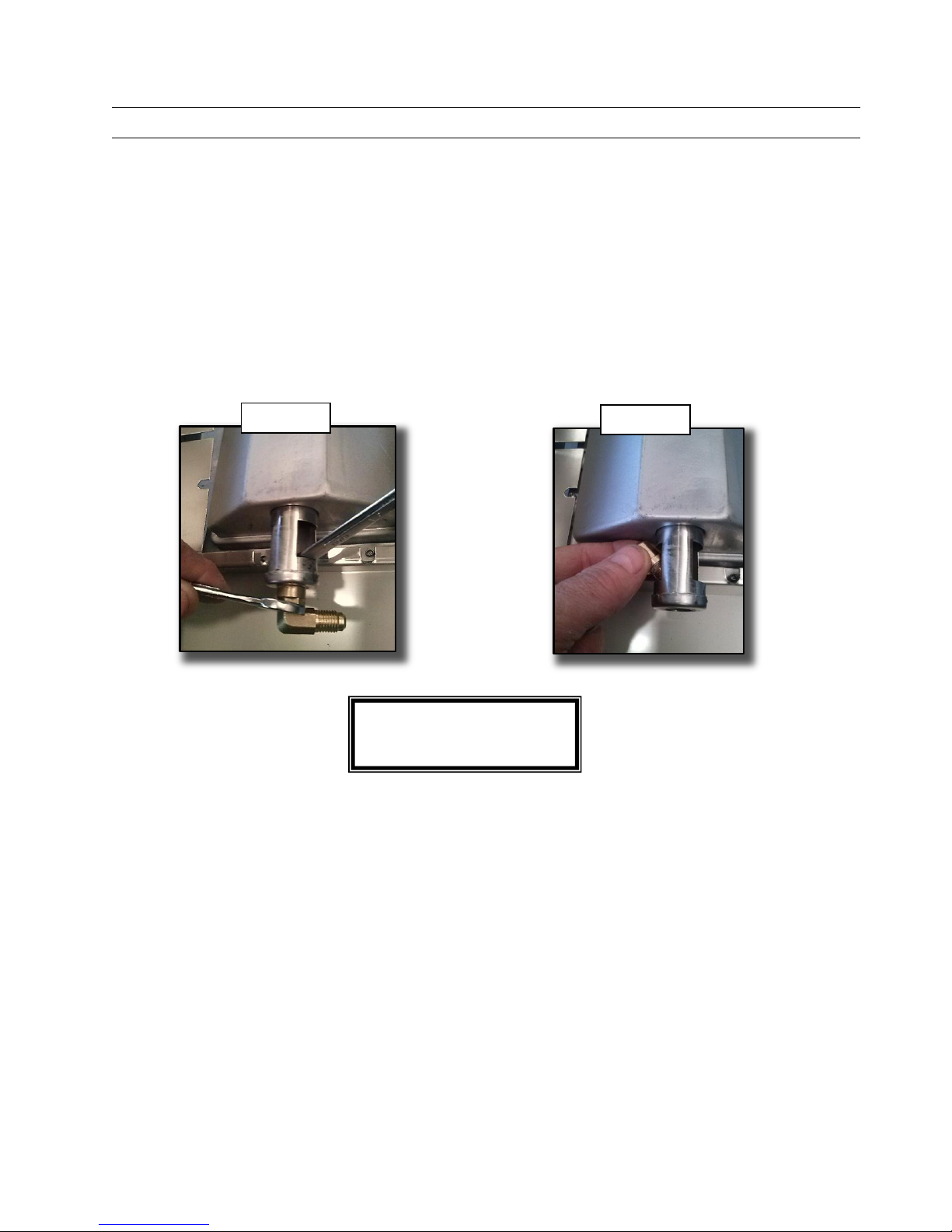

1. Remove the Cook Grid and Cook Grid Support, then turn the Searing Side Burner upside down.

2. Using a 10mm and 12mm wrench, remove the Propane Orifice (Fig. 7).

3. Lightly coat threads of the Natural Gas Orifice with Gas Teflon Tape or Gas Fitting Pipe Dope.

4. Install Natural Gas Orifice in the Brass Elbow, at the Searing Burner (Fig. 8). Tighten as required.

5. After Natural Gas had been connected to the built-in grill, turn gas on and check all gas connections, per

‘Leak Testing’ (previous page).

TECH TIP

Do NOT over tighten the orifice,

as the threads may break off.

Limited Warranty:

MODEL: JGSBSEAR Searing Side Burner

Jackson Grills Inc. warrants the materials and workmanship in this accessory to be free of defects for two years from

the date of purchase.

Limited Warranty Subject to the following Conditions & Limitations:

(NOTE: Shipping and Labor Charges are NOT covered)

Jackson Grills Inc. warrants its products to the

original purchaser only (NO EXCEPTIONS).

The bill of sale (proof of purchase) and serial

number will be required in order to claim

warranty from your authorized dealer.

This factory warranty is non-transferable and

may not be extended under any circumstances.

This Limited Warranty does not cover any

damage caused by misuse, lack of maintenance,

hostile environments, accident, alterations,

abuse or neglect, including scratches, dents,

corrosion, or discoloring by heat (all stainless

steel will discolor),and abrasive or chemical

damage resulting from use of harsh cleaners.

Should deterioration occur to the point of

non-performance within the duration of the

warranted coverage, a replacement will be

provided in the first year only. This warranty

extends to the repair or replacement of

warranted parts that are defective in materials

or workmanship provided that the product has

been operated in accordance with the operation

instructions and under normal conditions.

After the first year Jackson Grills Inc. reserves

the right to fully disengage all obligations with

respect to this Limited Warranty by refunding

the original warranted purchaser the original

wholesale price of the warranted parts.

Genuine Jackson parts must always be used;

use of parts supplied by other manufacturers

will nullify the warranty.

The installation must be done in accordance

with the installation procedures described in

the included owner’s manual.

Jackson Grills Inc. or its parties will not be

responsible for the installation, labor or any

other costs or expenses related to the refitting

of the warranted part, and such expenses are

not covered by this warranty.

Notwithstanding any provision contained in

this Limited Warranty, Jackson Grills Inc.

responsibility under this warranty is defined as

above and it shall not in any event extend to

any incidental, consequential, or indirect

damages.

Jackson Grills Inc. neither assumes, nor

authorizes any third party to assume, on its

behalf, any other liabilities with respect to the

sale of this product.

Jackson Grills Inc. reserves the right to inspect

any parts prior to approving warranty claim.

Jackson Grills or its representatives shall not

be liable for ANY shipping charges, labor

charges or duties.

Table des matières

Autres manuels Jackson Grills Gril

Jackson Grills

Jackson Grills JPG850BI-2 Manuel utilisateur

Jackson Grills

Jackson Grills LUX700 Manuel utilisateur

Jackson Grills

Jackson Grills Premier JPG700 series Manuel utilisateur

Jackson Grills

Jackson Grills Premier 700 Manuel utilisateur

Jackson Grills

Jackson Grills 700 Series Manuel utilisateur

Jackson Grills

Jackson Grills PREMIER700-BI Manuel utilisateur

Jackson Grills

Jackson Grills LUX Series Manuel utilisateur

Jackson Grills

Jackson Grills Keystone Black JKS400BLK-LP Manuel utilisateur

Jackson Grills

Jackson Grills JLS400-NG Manuel utilisateur

Jackson Grills

Jackson Grills Keystone Series Manuel utilisateur

Jackson Grills

Jackson Grills Premier JPG700 series Manuel utilisateur

Jackson Grills

Jackson Grills JLS550BI-LP Manuel utilisateur

Jackson Grills

Jackson Grills JLS400-LP Lux Manuel utilisateur

Jackson Grills

Jackson Grills Classic PG-50403SRL Mode d’emploi

Jackson Grills

Jackson Grills Versa 100 JPG100-PKG1 Manuel utilisateur

Jackson Grills

Jackson Grills LUX550 Manuel utilisateur

Jackson Grills

Jackson Grills JLS700BI Manuel utilisateur

Jackson Grills

Jackson Grills Classic PG-50403SRL Manuel utilisateur

Jackson Grills

Jackson Grills LUX400 Manuel utilisateur

Jackson Grills

Jackson Grills JLS400 Lux Manuel utilisateur

Jackson Grills

Jackson Grills JPG75 Versa Manuel utilisateur

Jackson Grills

Jackson Grills Versa 100 Manuel utilisateur

Jackson Grills

Jackson Grills JLS700-LP Lux Manuel utilisateur

Jackson Grills

Jackson Grills 700 Series Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
