ASSEMBLY, USE AND CARE MANUAL

MODEL NO: JENC-LP

MODEL NAME: Jackson Grills Encore

FOR OUTDOOR

USE ONLY

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

WARNING

1. Do not store or use gasoline or other

flammable liquids or vapors in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of this

or any other appliance.

Messages to Our Users -----------------2 Installer Final Check List-------------------14

Important ----------------------------------- 4 Grill Lighting Instructions-------------------14

Installation Safety Precautions---------5 Operation Instructions-----------------------16

Exploded View & Parts List-------------6 Care & Maintenance-------------------------18

Assembly Instructions--------------------8 Trouble Shooting-----------------------------19

Gas Connections--------------------------9 Grilling Tips-------------------------------------20

Natural Gas Conversion----------------11 Limited Warranty -----------------------------21

Leaking Test-------------------------------13

Thank you for purchasing your new Jackson Grill. We hope you will have great enjoyment

in using our fine product.

Do not attempt to assemble and use this grill unless you read this entire manual thoroughly.

Keep the manual in a handy place as it has answers for questions that may occur in your

future use. Please record the serial number of your grill in your owner’s manual.

Any questions please feel free to contact our service center or your local dealer; please

refer to this Model No. JENC-LP (Encore). Thank you.

VERY IMPORTANT: ANY PROBLEMS, PLEASE CONTACT OUR SERVICE CENTER AT

888-287-3333.

NOTE: THIS APPLIANCE IS NOT INTENDED TO INSTALL IN OR ON RECREATIONAL

VEHICLES OR BOATS.

THIS APPLIANCE IS FOR OUTDOOR USE ONLY.

DEAR INSTALLER / ASSEMBLER: PLEASE LEAVE THIS MANUAL WITH THE

CONSUMER.

DEAR CONSUMER: PLEASE KEEP THIS MANUAL FOR FUTURE USE.

！！！ WARNING！！！

Failure to follow all manufacturers’ instructions could result in serious

bodily injury and/or property damage.

！！！ CAUTION！！！

Some parts of this grill may have sharp edges—especially as mentioned

in this manual! Wear suitable protective gloves if necessary.

MESSAGE TO OUR USERS

TABLE OF CONTENTS

A special message to our customers:

Thank you for choosing the Jackson Grill for your new gas grill. This appliance is

designed with quality components and we are confident that it will provide you with years of

excellent operation. Please take the time to read the whole manual and familiarize

yourself with all of the features of the Jackson Grill. This manual also contains important

safety information and operation instructions. Ensure that this manual remains handy to

the barbeque for quick reference. If you need to obtain replacement parts for your

Jackson Grill, contact your local dealer.

NOTE: It is normal for stainless steel surfaces to discolor due to high heat given off from

the barbeque burners.

Please take the time to fill out and return the Ownership and Registration Card below. It

can be mailed to:

Jackson Grills Inc.

106-2480 Mt. Lehman Road, Abbotsford, BC

V4X 2N3

Or Fax: 1(877)855-5373

Please complete and return within 10 days. Thank you.

Mr. Mrs. Ms.Miss

First Name:

Initial:

Last Name:

Street:

Apt. #:

City:

State/Province:

Zip/Postal:

Phone:

Email:

Date of Purchase:

Dealer:

Model:

Serial #:

Comments:

Thank you for taking the time to fill out this Ownership and Registration Card

The symbols and boxes shown below explain what each symbol means.

Read and follow every message found in this manual.

!!! DANGER !!!

DANGER: Indicates an imminently hazardous situation which will result in death or

serious bodily injury if not followed.

!!! WARNING !!!

WARNING: Warning of the possibility of serious bodily injury if the instructions are

not followed strictly. Be sure to always read and follow all of the instructions.

!!! CAUTION !!!

CAUTION: Indicates a potentially hazardous situation, which may result in minor or

moderate bodily injury if not followed.

！！！ WARNING！！！

FOR YOUR SAFETY

1. Shut off the gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your gas supplier or your fire

department.

！！！ WARNING！！！

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

2. An L.P. cylinder not connected for use shall not be stored in the

vicinity of this or any other appliance.

IMPORTANT

!!!WARNING!!!

Do not try to install this appliance without reading the “INSTALLATION

SAFETY PRECAUTIONS” section of this manual.

1. This grill is designed to use L.P. gas only. Only use this grill with L.P. gas and the

regulator assembly supplied by the manufacturer. This grill is supplied with a Natural

Gas Conversion Kit. When converting to Natural Gas, a qualified Gas installer should

perform all gas conversions. See conversion section of this manual.

2. The installation of this appliance must conform with local codes or, in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-B149.2

Propane Installation Code.

3. The L.P. tank used must conform with the specification for L.P.-gas cylinders of the

U.S. Department of Transportation (DOT) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of

Dangerous Goods.

4. The motor must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990, or

the Canadian Electrical Code, CSA C22.1. Keep the power cord of the motor away

from the hot surfaces of the grill while in use. Remove and store the motor in a dry

place when not in use.

5. This grill is safety certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious body injury or property loss.

INSTALLATION SAFETY PRECAUTIONS

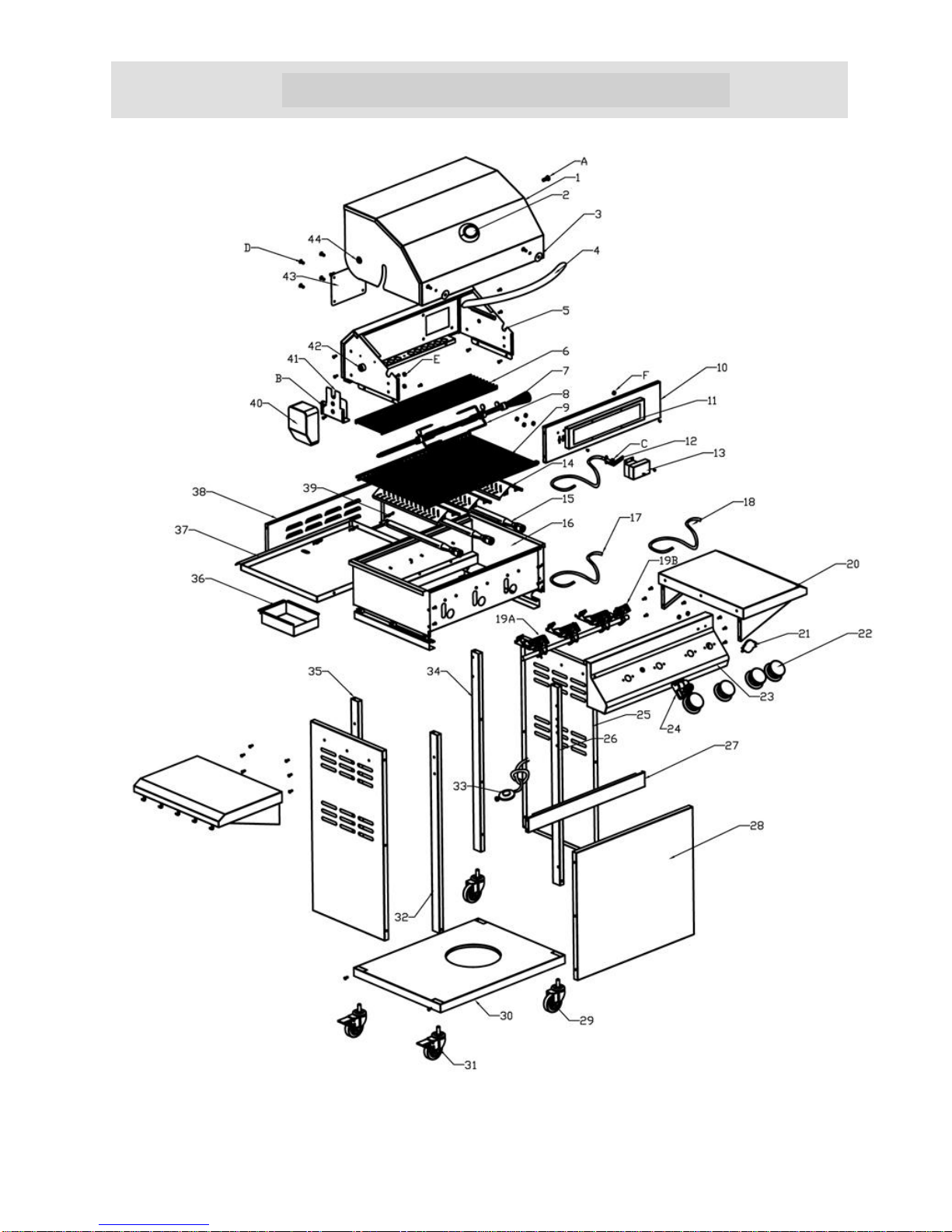

EXPLODED VIEW & PARTS LIST

** Part number format for ordering replacement parts is as follows: JENC-REF#

Example: JENC-02 : Thermometer

REF#

DESCRIPTION

Q’TY

REF#

DESCRIPTION

Q’TY

Hood

Control Panel

Thermometer

Rear Burner Ignition Module

Red Insulator

Pedestal Side

Hood Handle

Pedestal Corner Bracket –front right

Inner Hood

Pedestal Front Support

Warming Rack

Pedestal Front

Rotisserie Handle

Swivel Casters

Rotisserie Rod/Forks

Pedestal Base

Cooking Grids

Locking Swivel Casters

Rear Burner Mount

Pedestal Corner Bracket –front left

Rear Burner Cell

Propane Hose

Rear Burner Electrode

Pedestal Corner Bracket –rear right

Rear Burner Electrode Cover

Pedestal Corner Bracket –rear left

Flame Diffusers

Grease Cup

Main Burners

Grease Pan

Firebox

Outer Hood Liner

S/S Flex Hose off manifold

Burner Cotter Pin

S/S Flex Hose for rear burner

Rotisserie Motor

19A

Gas Valve, Main Burners

Rotisserie Motor Bracket

19B

Gas Valve, Rear Burner

Hood Spacer

Side Shelf

Inner Hood Cover

Logo Badge

Hood Washer

Control Knobs

EXPLODED VIEW & PARTS LIST

Please ensure the proper tools are used for ease of installation.

Please remove all components from the packaging and inspect all components to ensure there is no

damage to any components in the packaging. Please remove all packaging from all components of the

gas grill before operating.

Tool Required for Assembly:

1. #2 Phillips screwdriver.

Side Shelf Installation:

1. Carefully remove the side shelves from the packaging.

2. Each side shelf is secured in place using 7 Phillips screws. DO NOT tighten screws until all 7 are

installed and the side shelf is lined up correctly.

Rotisserie Kit Installation (IF PURCHASED):

1. Carefully remove the rotisserie kit parts from the packaging.

2. Install the motor mounting bracket supplied to the left hand side of the inner hood.

3. Install the motor on the motor bracket.

4. Place the forks and counter balance on the rotisserie rod in the desired location.

5. Place the rotisserie rod into the motor. Slide the rotisserie rod bushing over the opposite end of the

rod and drop into the cut out provided in the inner hood side. Tighten the thumb-screw provided with

the rotisserie rod bushing.

6. When in use, spin the rod with your desired food until the weight of the food is at the bottom. Install

the counter balance straight up to effectively balance the rotisserie system.

Flame Diffusers, Cooking Grids Installation:

1. Remove the flame diffusers form the packaging. Please ensure that all protective plastic has been

ASSEMBLY INSTRUCTIONS

removed from these parts. These flame diffusers should be placed on the pins provided on the

firebox front and rear. Ensure that all of the flame diffusers have been installed correctly on the pins

provided or the unit will not work correctly.

2. Once the flame diffusers have been installed, the cooking grids can be installed into the grill. Place

the cooking grills on the upper ledge of the firebox.

3. Remove warming rack from packaging and install above cooking grids on the 2 brackets on the

inner hood.

ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED WITH THIS GRILL.

REPLACEMENT PRESSURE REGULATORS AND HOSE ASSEMBLIES MUST BE

THOSE SPECIFIED BY THE MANUFACTURER.

This is a L.P. (Liquefied Petroleum Gas) configured grill. Do not attempt to use a natural gas supply

unless the grill has been reconfigured for natural gas use.

The installation of this appliance must conform with local codes or, in the absence of local codes, with

the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-B149.2 Propane Installation Code.

L.P. tank Requirements:

The L.P. tank used with your grill must meet the following requirements:

1. Measurement: 12’’(30.5cm) (Diameter) X 18’’ (45.7cm) (Tall)

2. Maximum Capacity: 20lbs. (9Kg)

3. Constructed and marked in accordance with the specification for L.P.-gas cylinders of the U.S.

Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,

Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. See L.P. tank collar

for marking.

4. Be arranged for vapor withdrawal.

5. Has a collar to protect the tank valve.

6. No dents or rust.Adented or rusty L.P. tank may be hazardous.

L.P. tank valve used must meet the following requirements:

1. Have type I outlet compatible with regulator provided.

2. Have safety relief valve.

3. UL listed Overfill Protection Device (OPD), This OPD safety feature is identified by a unique

triangular hand wheel. Only use tanks equipped with this type of valve. (as the figure shown

below)

For your safety:

Ensure that the black plastic grommets of the regulator provided are in place and that the hose does not

come into contact with the heat shield or the grill head.

Connect the regulator to the L.P. tank:

VERY IMPORTANT:

a. THE REGULATOR SHALL INCORPORATE IN SUCH A LOCATION THAT IT WILL NOT ATTAIN A

TEMPERATURE ABOVE 140℉（60℃）.

b. THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR OVERPRESSURE

DEVICE.

c. THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO CONNECT THE TYPE I

CONNECTION OF THE TANK VALVE PERANSIZ21.81.

GAS CONNECTION

1. Make sure tank valve is in its full off position (turn clockwise to stop).

2. Check tank valve to assure it has proper external male threads (type I connection perANSIZ21.81).

3. Make sure all burner knobs are in their off position.

4. Remove the protective cap from L.P. tank valve,Always use cap and strap supplied with valve.

5. Inspect valve connection port and regulator assembly. Look for any damage or debris. Remove any

debris. Inspect hose for damage. Never attempt to use damaged or plugged equipment. Contact

your local L.P. gas dealer for repair.

6. When connecting the regulator assembly to the valve, hand tighten nut clockwise to a positive stop.

Do not use a wrench to tighten. Use of a wrench may damage quick coupling nut and result in a

hazardous condition. (as the figure shown below)

7. Open tank valve fully (counterclockwise). Use a soapy water solution to check all connections for

leaks before attempting to light grill. If a leak is found, turn tank valve off and do not use grill until a

local L.P. gas dealer can make repairs.

OPD HAND WHEEL

OPEN

！！！ WARNING！！！

1. Never insert any foreign objects into the valve outlet. It may damage the valve and

cause leaks. Leaking gas may result in fire, explosion, heavy bodily injury, or

even death.

2. Do not connect this grill to the self-contained L.P. gas system of a motor home or

camper trailer.

3. Do not use the grill until leak tested.

4. Stop and call the fire department if any leaks are detected.

5. If you cannot stop a gas leak, close the L.P. tank valve IMMEDIATELY, call L.P.

supplier or the fire department.

！！！ DANGER！！！

1. NEVER store a spare L.P. tank under or near grill or in an enclosed area.

2. NEVER fill the tank beyond 80% full. An overfilled spare L.P. tank is dangerous

because surplus gas may leak from safety relief valve. The safety relief valve on a

L.P. tank could activate to release gas and cause a fire.

3. The spare L.P. tank must have safety caps installed on the L.P. tank outlet.

4. If any gas leaks are found on the spare L.P. tank, immediately go away from it and

call the fire department.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jackson Grills Gril

Jackson Grills

Jackson Grills Classic PG-50403SRL Manuel utilisateur

Jackson Grills

Jackson Grills 700 Series Manuel utilisateur

Jackson Grills

Jackson Grills JLS400 Lux Manuel utilisateur

Jackson Grills

Jackson Grills JLS550BI-LP Manuel utilisateur

Jackson Grills

Jackson Grills JG3 Manuel utilisateur

Jackson Grills

Jackson Grills Versa 100 Manuel utilisateur

Jackson Grills

Jackson Grills LUX550 Manuel utilisateur

Jackson Grills

Jackson Grills JLS400-LP Lux Manuel utilisateur

Jackson Grills

Jackson Grills JLS700BI Manuel utilisateur

Jackson Grills

Jackson Grills JPG75 Versa Manuel utilisateur

Jackson Grills

Jackson Grills LS700BI-LP Manuel utilisateur

Jackson Grills

Jackson Grills JLS700-LP Lux Manuel utilisateur

Jackson Grills

Jackson Grills Keystone Series Manuel utilisateur

Jackson Grills

Jackson Grills 700 Series Manuel utilisateur

Jackson Grills

Jackson Grills Classic PG-50403SRL Mode d’emploi

Jackson Grills

Jackson Grills Versa 100 JPG100-PKG1 Manuel utilisateur

Jackson Grills

Jackson Grills JSS850BI-LP Manuel utilisateur

Jackson Grills

Jackson Grills JPG850BI-2 Manuel utilisateur

Jackson Grills

Jackson Grills Keystone Black JKS400BLK-LP Manuel utilisateur

Jackson Grills

Jackson Grills PREMIER 850BI-2 Manuel utilisateur

Jackson Grills

Jackson Grills LUX400 Manuel utilisateur

Jackson Grills

Jackson Grills JLS400-NG Manuel utilisateur

Jackson Grills

Jackson Grills Premier JPG700 series Manuel utilisateur

Jackson Grills

Jackson Grills LUX Built In Series Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
