J-Tech Digital JTD-1263 Manuel utilisateur

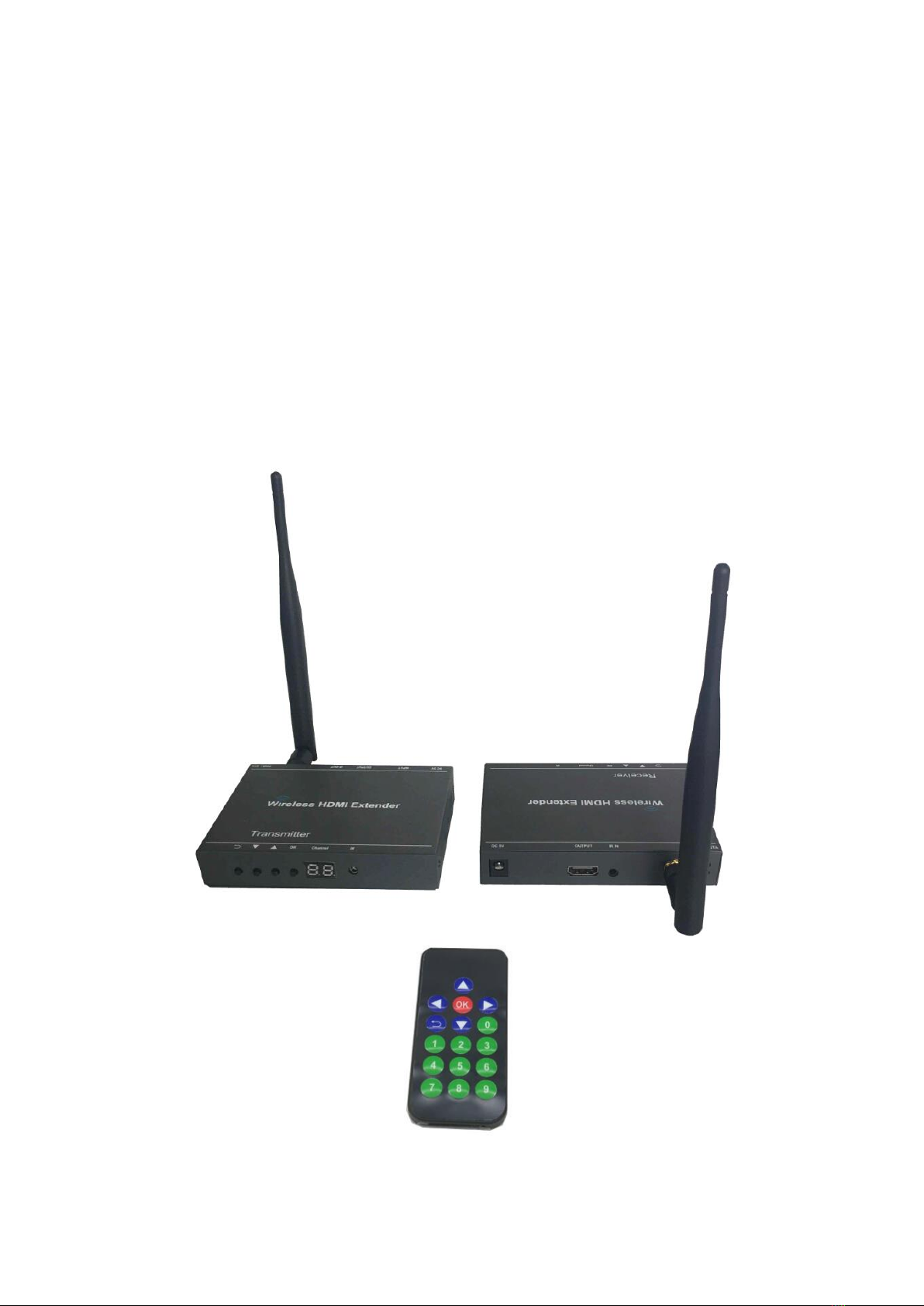

HDMI Wireless Extender

Model Number: JTD-1263

USER MANUAL

1. Description

This Wireless HD Video Solution enables wireless transmission of video/audio

from any HDMI video source , such as PC/HDTV to display devices that includes

HDTV/HD Monitor over the 5.8GHz band, with very low latency.

It does not require any special configuration of software driver

installation-simply connect the transmitter to the HDMI output of the video source

and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation

makes it the ultimate solution for the most demanding indoor/outdoor professional

environments.

This Wireless HD Video Transmission Solution is widely applicable to family

entertainments, office presentation, lecture, education, medical treatment, party,

conference etc.

2. Features

Support HD devices with HDMI input/output, include Blu-ray player, DVD

player, PC, laptop, HDTV etc.

Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz,

720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz

Support wideband infrared (20KHz-60KHz)remote control function to

control source device content from long distance.

Transmitter have one local HDMI output.

Support many to many : 2 pcs TX, 2 pcs RX,could use the channel to

change the different signal source.

Effective Range: 50meters in 5.8G, could Pass through 1 wall between

the two rooms.

Support remote controller to select the signal source.

No cable between sender (TX) and receiver (RX)

Easy and clean installation

Plug & Play –full hardware design, no software is required

Note:

Transmission distance will be different due to the environment

Wall, brick or glass will shorten the signal cover range or cause big signal loss

3. Specifications

Parameter

Description

Video

Standard Protocol

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

480i@60Hz, 480P@60Hz, 576i@50Hz,

576P@50Hz,720P@50/60Hz,

1080i@50/60Hz, 1080P@50/60Hz

Connector

HDMI-A

Impedance

100Ω

Compress Formats

H.264

Interface

3.5mm earphone hole

Signal direction

Unidirectional

IR frequency

20kHz-60kHz

WIFI

Frequency

5.8GHz

Transmission distance

50M/164FT -- 200m/656ft

Wireless Standard

RX- 802.11AC; TX-802.11N on 5.8Ghz,

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 8W

Temperature

Operating: -5℃~ +70℃a

Humidity

Operating: 5% ~ 90%

Dimension

119*82*23mm

The warranty

1 year warranty

4. Panel

Transmitter:

Receiver:

Port name

Description

HDMI IN/OUT

HDMI signal input/output

IR IN/OUT

IR signal input/output

DC 5V

Power adapter socket

Channel

Display 5.8G frequency band “50”-”59”

Back Down UP OK Key

Adjust 5.8GHz channel.

LED indicator

Description

STATUS

Video signal connection indicator (LED on is working ;LED

twinkling is on connection .

POWER

System power indicator

1.Back: return the last step.

2.Down: Press “Down”key , the number display on “Channel”will be down ,for example “5.8 “to

“5.7”

3. Up: press “Up”key ,the number display on “Channel”will be up ,for example “5.7”to “5.8”

4. OK : after changed the channel ,need to press “OK ”key .if not ,after 3 seconds ,will back to last

channel .

5. Channel: display the channel number . for example

5G : 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9

5. Installation

1、Connect an HDMI cable between the HDMI input port of transmitter and the

HDMI output port of the video source,

2、Connect the HDMI output port of receiver to the display device with HDMI cable,

3、Connect the provided DC/5V 2A power supplies to the power socket of the

transmitter and the receiver, while the “STA”LED is lighting ,system is working .

4、IR function---connect the IR TX cable to the HDMI transmitter, connect IR RX cable

to the HDMI receiver, and the IR TX must face to the controlled device.

5、Propose to adjust the WIFI frequency band on “53”,”STA”twinkling ,system

running.

6. Package list

HDMI transmitter ……………………….……. 1 pcs

HDMI receiver …………………….……………. 1 pcs

Antenna ............................................................... 2 pcs

Power adapter 5V2A ………………………….....2 pcs

IR TX/RX Cable ……………..………………….. 1 set

User manual …………………………………..…1 pcs

7. Diagram
