IWave FIP-2405 Manuel utilisateur

www.iwavecomms.com

1st

FIP-2405 User Manual

TX RX

Contents

I. Disclaimer ................................................................................................................................................................ 2nd

II. Precautions for integration .................................................................................................................................... 2nd

III. List of in-box items ................................................................................................................................................. 4th

IV. Interface Definition ................................................................................................................................................ 4th

4.1. RF Interface .................................................................................................................................................. 4th

4.2. Ethernet Port ................................................................................................................................................5th

4.3. Power Input Interface .................................................................................................................................. 5th

4.4. Serial Port: : H 1.0mm 5P .............................................................................................................................5th

V. Operating Instructions & Steps ............................................................................................................................... 5th

5.1. Make TX and RX and accessories ready.......................................................................................................5th

5.2. Connection ................................................................................................................................................... 6th

5.3. Power on ...................................................................................................................................................... 6th

5.4. Definition of indicators ................................................................................................................................ 6th

5.5. Start completed ............................................................................................................................................7th

VI. Antenna Installation ...............................................................................................................................................7th

6.1. Multi-rotor UAV............................................................................................................................................7th

6.2. Fixed Wing UAV............................................................................................................................................8th

VII. Software Operation .............................................................................................................................................. 8th

www.iwavecomms.com

2nd

I. Disclaimer

IWAVE is the registered trademark of IWAVE COMMUNICATIONS CO., LIMITED. All product names

and brands in this manual are trademarks or registered trademarks of the Company. IWAVE

COMMUNICATIONS CO., LIMITED reserves all copyrights of the product and the manual. All the

information must not be copied or reproduced in any form without permission of IWAVE. There may

be semantic differences between disclaimers of different languages. The Chinese version shall

prevail in Chinese mainland, while the English version shall prevail in other regions. Thank you for

purchasing IWAVE FIP-2405. Please use FIP-2405 according to local radio regulations. Before using,

please carefully read this disclaimer. Once the product is used, all the contents of the disclaimer will

be regarded recognized and accepted. Please install and operate the product in strictly accordance

with the requirements of this manual. IWAVE COMMUNICATIONS CO., LIMITED and its affiliates will

not assume any legal responsibility for results or losses caused by improper use, installation,

assembly and modification (including the use of non-specified IWAVE parts and accessories, such as

the radio power amplifier, antenna and SMA extension cord).

II. Precautions for integration

1) Be sure to use the parts provided by IWAVE.

2) Before powering on please make sure the antenna are in good connection and not install or

remove the antennas with power on.

3) Given that the carbon fiber body and metal load may have shielding effects on antenna signals,

they should not be installed between the antenna and ground terminal. Keep the antenna on

board free from winding or blocking by obstacles. The antenna end should be vertically

downward without bending to prevent shortening communication distance and failure

communication.

4) Antennas on board should be kept away from other radio antennas to avoid electromagnetic

noise and interference. We recommend to make full use of data and video transmitting

function of FIP-2405 to minimize the radio devices quantity on board.

5) Do not disassemble or modify IWAVE FIP-2405. Any problem occur during installation, contact

IWAVE or IWAVE local branch office.

6) Keep appropriate distances between different electronic devices during installation to minimize

the electromagnetic interference.

7) Before using, please make sure all cables are in good connection and all components can work

www.iwavecomms.com

3rd

properly.

8) After starting the product, the self-test indicators of FIP-2405 will continuously blink for 30s and

then keep bright. Only after the video from the camera shown on the display, then you can

confirm that the device work properly now.

9) Check the surrounding environment to ensure there is no other 2.4GHz devices to cause

interference.

10) If you use the Futaba remote controller, the controller should be adjusted into the French

mode.

11) Adjust the Futaba controller into French mode as following steps:

[LINKAGE MENU]→FRQUENCY→ RTN b→ [AREA]→[FRANCE]

Or connect FIP-2405 S1 serial port with trainer interface on back side of Futaba by TTL cable. And

set the Futaba RF as OFF. Through the S1 port uplink the PPM/SBUS signal.

12) Before using, please check the power of RX and TX. If the receiver power off, transmitter on

board will lose connection.

13) Adjusting RX antenna inclination can improve the signal strength and image quality.

14) The camera should be fully charged to ensure normal video output.

15) FIP-2405 support video and duplex data communication. If the video stuck or stopped for more

than 10s. It means the radio signal is weakened or the radio channel is narrowed. In this case,

the aircraft need to fly back to short the distance between TX and RX. Otherwise the TX will

lose connection.

16) Please use good electromagnetic shielding accessories(such as HD displays, Network cables,

etc.)

Notes: Improper operation of FIP-2405 may cause personal injury or damage to properties. Please

pay high attention to operation safety.

www.iwavecomms.com

4th

III. List of in-box items

On board x1

Ground terminal x1

On board antenna x1

Ground antenna x1

DC to DC power cable x2

Network cable x4

Serial port cable x1 (Length: 20cm)

Serial port cable x1 (Length: 1500cm)

USB cable of serial port 2 x1

SMA Cable(Copper wire tinned shield semi-soft line) x1

IV. Interface Definition

4.1. RF Interface

RF: Standard SMA to connect with antenna or feeder cable

www.iwavecomms.com

5th

4.2. Ethernet Port

ETH: EZH 4P 1.5mm

4.3. Power Input Interface

DC: 3.5×1.35(Male) to 5.5×2.1(Female)

4.4. Serial Port: : H 1.0mm 5P

V. Operating Instructions & Steps

5.1. Make TX and RX and accessories ready.

Besides the whole equipment we supply, you also need to make sure the IP Camera, display and power ready

before operating.

ETH Signal Definition

TX+

RX+

SH 5P NO.

Definition

TXD

RXD

3.3V

GND

No Definition

www.iwavecomms.com

6th

5.2. Connection

Make the power cable, Ethernet cable, serial port

cable and antenna in good connection.

(the serial port cable is for data links)

5.3. Power on

After checking all the connections are in good

condition, turn on the the video source, LCD

display, transmitter and receiver. The indicators

will bright and the whole system starts work.

5.4. Definition of indicators

When the device begin to normally start work, all

indicators status is described as follow:

1) After powering on, light 1,2,3 turn green, light

www.iwavecomms.com

7th

6 turns blue and light 8 turns red.

2) After 1 second, light 1(Green), 2(Green), 3(Green) and 6(Blue) start to blink. Light 5 (Green) and 8(Red)

will keep constant light.

3) After the starting completed. Light 1(Green), 2(Green), 3(Green), 4(Red), 6(blue) and 8(Red) will keep

constant bright. By the way, when you use the the ETH1, 7 (Green) will blink frequently.

5.5. Start completed

The default IP address of the transmitter is 192.168.55.1 and the receiver is 192.168.55.2. You can match the IP

camera with the devices, then you can see the video in the screen which is transferred from the IP camera.

Remark: In UAV application, please make the connection successfully and the video show on ground station

smoothly then fly the UAV. About how to install the antenna on UAV please refer the following description.

VI. Antenna Installation

6.1. Multi-rotor UAV

1) Using SMA metal shielded semi-flexible blue feeder cable provided by IWAVE to connect the TX

SMA port with antenna.

2) The antenna needs to be mounted vertically

downwards.

3) The best installation location is UAV ground bracket.

With antenna inside, the bracket can only use

fiberglass material.

4) If the ground bracket is automatically retracted, the

antenna can be installed in the lower part of the

aircraft.

5) If the antenna is intercepted by the camera or pod or

the loudspeaker, the video on RX will appear image

stuck or mosaic.

SMA Feeder Cable

www.iwavecomms.com

8th

6.2. Fixed Wing UAV

1) Using SMA metal shielded semi-flexible blue feeder cable provided by IWAVE to connect the TX

SMA port with antenna.

2) The antenna needs to be mounted vertically downwards.

3) The best installation position is center of UAV tail, prominent outside the body and vertical

downward.

4) The second optional mounting position is located below the wing and body joints, vertical

down, as far as possible away from the wing but near the machine abdomen, protruding below

the abdomen level.

VII. Software Operation

Notes：As for one pair of our devices, their parameters should be consistent, which means when

www.iwavecomms.com

9th

you

change one of them, you have to change another one, or they will lose connection.

There are two ways to modify the parameters.

1) Connect Transmitter or Receiver to PC one by one then change the parameters.

2) when Tx and Rx are working and the communication between them is successful, you can

remotely change one’s parameters which is not connected to the PC through another one which is

connected to PC.

If you find the devices cannot connect with PC, first you can wait for a moment so that the device

can finish running, then try again. Secondly, check whether the distance between transmitter and

receiver is too close, Change their position and connect again. If not these reason, change another

Ethernet cable.

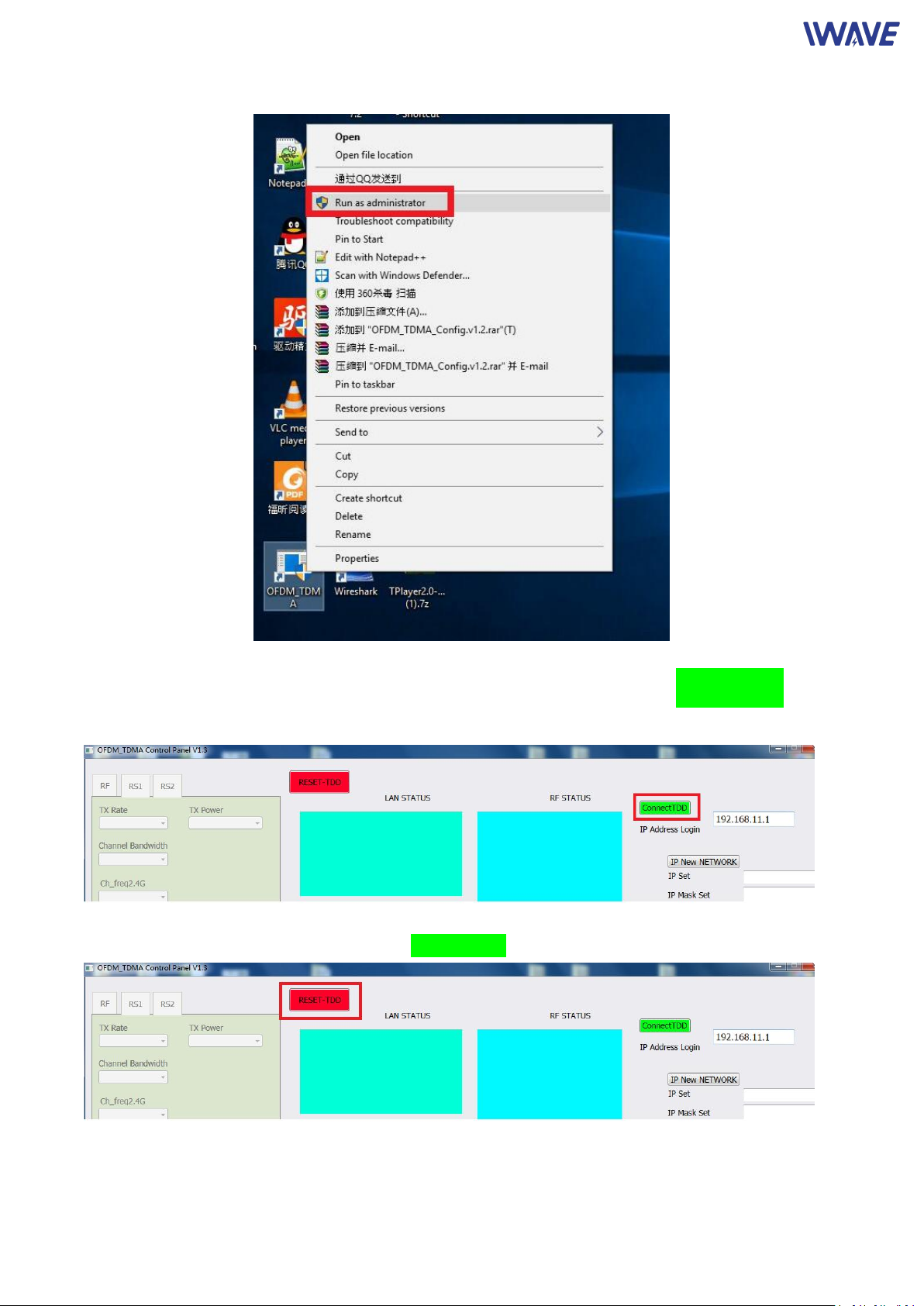

1. Start Connecting OFDM equipment

1) Right-click the icon to choose “Run as administer” .

STEP 2

Communication

STEP 1

STEP 2

www.iwavecomms.com

10th

3) Enter the IP address（Tx IP: 192.168.11.1 ; Rx IP: 192.168.11.2)，Next click Connect TDD button.

If you want to Restart OFDM software, click Restart-TDD button.
