IRZ MC55iT Manuel utilisateur

iRZ MC55iT

GPRS class 10

GSM modem

USER MANUAL

GSM modem iRZ MC55iT

User Manual

Contents

1. Safety Requirements ............................................................................................................................................ 3

2. General Information ............................................................................................................................................. 4

2.1. Purpose of the Device ......................................................................................................................................... 4

3.1. Configuration.............................................................................................................................................. 4

3.2. Parameters .................................................................................................................................................. 4

3.3. Exterior Appearance.................................................................................................................................... 6

3.4. Interfaces .................................................................................................................................................... 7

3.5. Modem Status Indication........................................................................................................................... 10

3. Connection and Setting Up................................................................................................................................. 11

3.1. Connection................................................................................................................................................ 11

3.2. Control, Restarting and Power Off............................................................................................................. 11

GSM modem iRZ MC55iT

User Manual

1. Safety Requirements

Restrictions for the usage of the device in the vicinity of other electronic devices:

·turn off the modem in hospitals or in the vicinity of medical equipment (e.g.

cardiostimulators, hearing aids). It can cause interference for medical equipment;

·turn off the modem in aircrafts. Take measures against accidental activation;

·turn off the modem in the vicinity of gas-filling stations, chemical enterprises, blasting

work places. It can cause interference to technical devices;

·at a short range the modem may cause harmful interference to TV and radio receivers.

Prevent the modem from dust and moisture.

Improper use deprives you of all warranty claims.

GSM modem iRZ MC55iT

User Manual

2. General Information

2.1. Purpose of the Device

The modem iRZ MC55iT is a structurally accomplished GSM modem designed for reception

and transmission of data, text messages and telecopies. It is excellently adjusted both for mobile

Internet Access and for industrial applications — telemetry, wireless data collection from sensors,

remote surveillance, monitoring and signaling.

The modem is assembled based on the GSM module MC55i Cinterion. The control is performed

by means of standard AT commands. The modem is equipped with light-emitting diodes (LEDs)

enabling to monitor the status of connection.

3.1. Configuration

Complete set of the GSM modem IRZ MC55iT:

·modem iRZ MC55iT,

·label,

·factory box.

3.2. Parameters

Basic parameters:

·frequency ranges: GSM 850/900/1800/1900 mHz;

·power output:

o2W (class 4 for EGSM900),

o1W (class 1 for GSM1800),

·GPRS class 10;

·TCP/IP suit available through AT commands;

·MC class B;

·CSD up to 14.4 kbps;

·USSD;

·SMS;

·voice transmission;

·fax group 3: class 1.

Electric power supply:

·power supply voltage from 9 to 25 V;

·absorbed current not more than:

owith power supply voltage +12 V – 200mA;

owith power supply voltage +24 V – 100mA.

GSM modem iRZ MC55iT

User Manual

Physical parameters:

·size not more than 69х74х33 mm,

·weight not more than 100 g.,

·operating-temperature range from -20°Сto +65°С,

·storage temperature range from -40°Сto +85°С.

Interfaces:

·connector RJ11 for power supply connection,

·connector RJ11 for audio interface connection,

·connector DB9 for connection of the data cable RS-232,

·connector FME for GSM antenna connection.

GSM modem iRZ MC55iT

User Manual

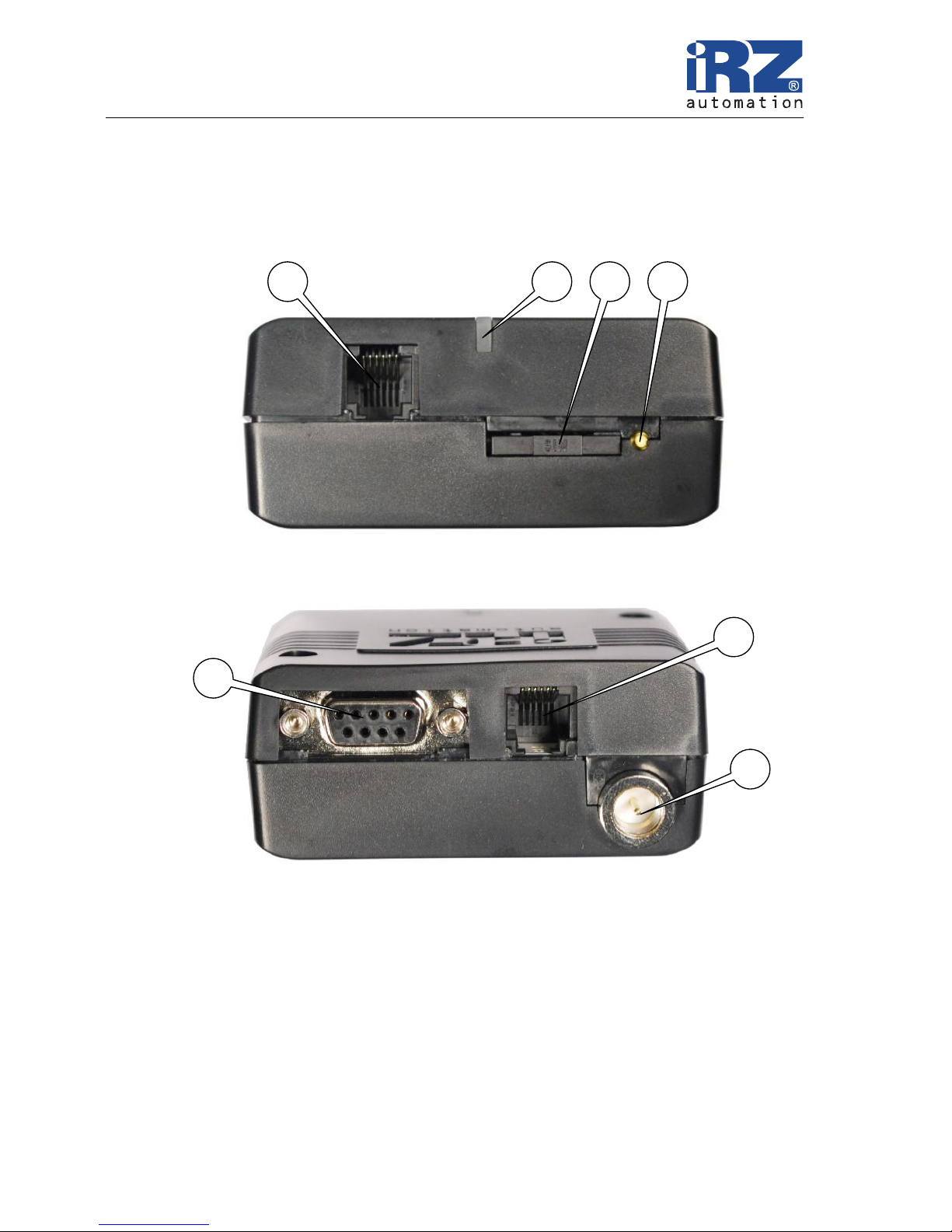

3.3. Exterior Appearance

The modem MC55iT is a compact device completed in a plastic housing. The external

appearance is represented on Fig.2.4.1 and Fig.2.4.2.

Fig.2.4.1 Front view.

Fig.2.4.2 Back view.

On the figures the digits signify the following:

1. connector RJ11 for audio interface connection,

2. network LED indicator,

3. SIM card tray,

4. SIM card tray extracting button,

5. connector DB9 for connection of the data cable RS232,

6. connector RJ11 for power supply connection

7. connector FME for GSM antenna connection.

GSM modem iRZ MC55iT

User Manual

3.4. Interfaces

3.5.1. Connector DB9 (RS232)

The connector is used for connection to the control device, exchange protocol RS232.

Fig.2.5.1 Connector DB9

Table 2.5.1 Purpose of the connector pins.

Pin Signal Direction Purpose

DCD

Modem

Availability of carrier wave

2RXD Modem-PC Data reception

TXD

Modem

Data transmission

4DTR PC-Modem Availability of data receiver

5GND general System housing

6DSR Modem-PC Readiness of data

7RTS PC-Modem Request for transmission

8CTS Modem-PC Availability of transmission

9RI Modem-PC Call signal

GSM modem iRZ MC55iT

User Manual

3.5.2. Power supply connector RJ11

The connector is used for connection of electric power supply.

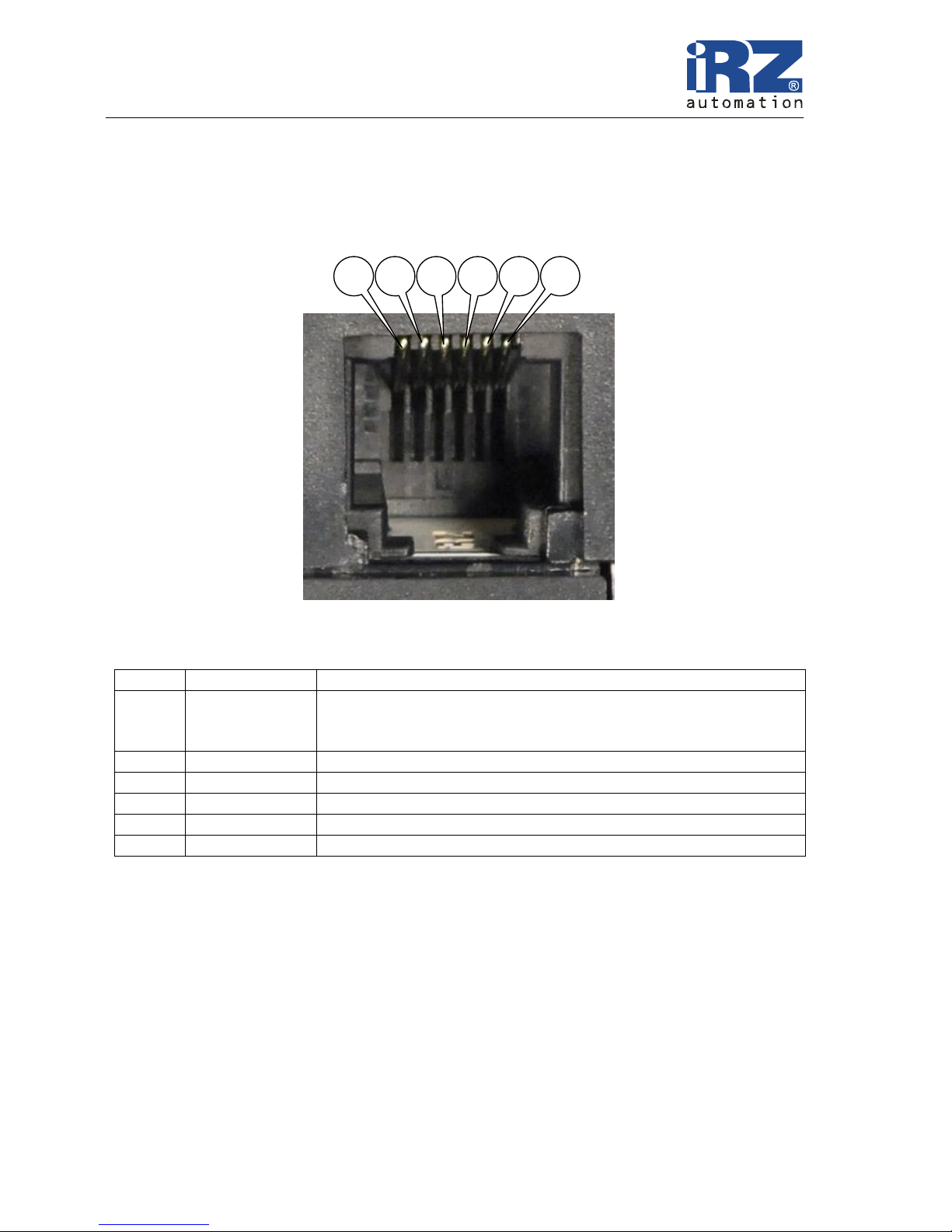

Fig.2.5.2 Connector RJ11

Table 2.5.2 Purpose of power supply connector pins.

Contact Signal Purpose

1+ 12V Positive pole of DC supply voltage. Protected with a fuse and the

protection circuit against voltage-surge (with voltage infeed rate

more than 30V) and incorrect polarity.

2not used

3 not used

4 not used

5 not used

6GND System housing

GSM modem iRZ MC55iT

User Manual

3.5.3. Audio Interface Connector RJ11

Fig.2.5.3 Connector RJ11

Table 2.5.2 Purpose of the power supply connector pins.

Contact Signal Purpose

1not used

2MICP microphone input and microfone power supply not inverse

3SPKP phone output not inverse

4SPKN phone output inverse

5MICN phone input inverse

6not used

GSM modem iRZ MC55iT

User Manual

3.5. Modem Status Indication

LED indication is provided in the modem for connection status indication.

Table 2.6.1 Connection status indication

Indication mode Operation mode

Turned off Modem is turned off or there is an emergency situation

600 ms on / 600 ms

off

Modem is not registered in the network

75 ms on / 3 s off Modem is registered in the network

75 ms on / 75 ms off /

75 ms on / 3 s off

GPRS connection is installed

500 ms on / 50 ms off Data transmission is underway
