IQRF GW-USB-13-868 Manuel utilisateur

GW-USB-13-XXX

IQRF USB / OLED Gateway

User's Guide

• GW-USB-13-868

• GW-USB-13-916

GW-USB-13-XXX

Description

GW-USB-13 is an IQRF gateway with USB connectivity and

OLED display. It is a part of the IQRF platform intended as

an interface between USB and an IQRF network or a

portable interface between a human and an IQRF network.

It allows to visualise and setup parameters in given

application. GW-USB-13 is a generic equipment, i.e. the

hardware is fixed and the user can realize specific

functionality by software only. Applications should be

developed using the DK-GW-USB-13-xxx development kit.

Applications

• Home automation

• Portable controller

• Diagnostic tool

• Portable service tool for IQRF network management

Key features

• OLED display 1“, 96 x 64 pixels, white

• 8b microcontroller

• USB v2.0 interface

• EEPROM memory

• 3 pushbuttons

• Piezo buzzer

• IQRF transceiver modulewith on-board antenna

• Backup accumulator

• Very low power consumption in Sleep mode

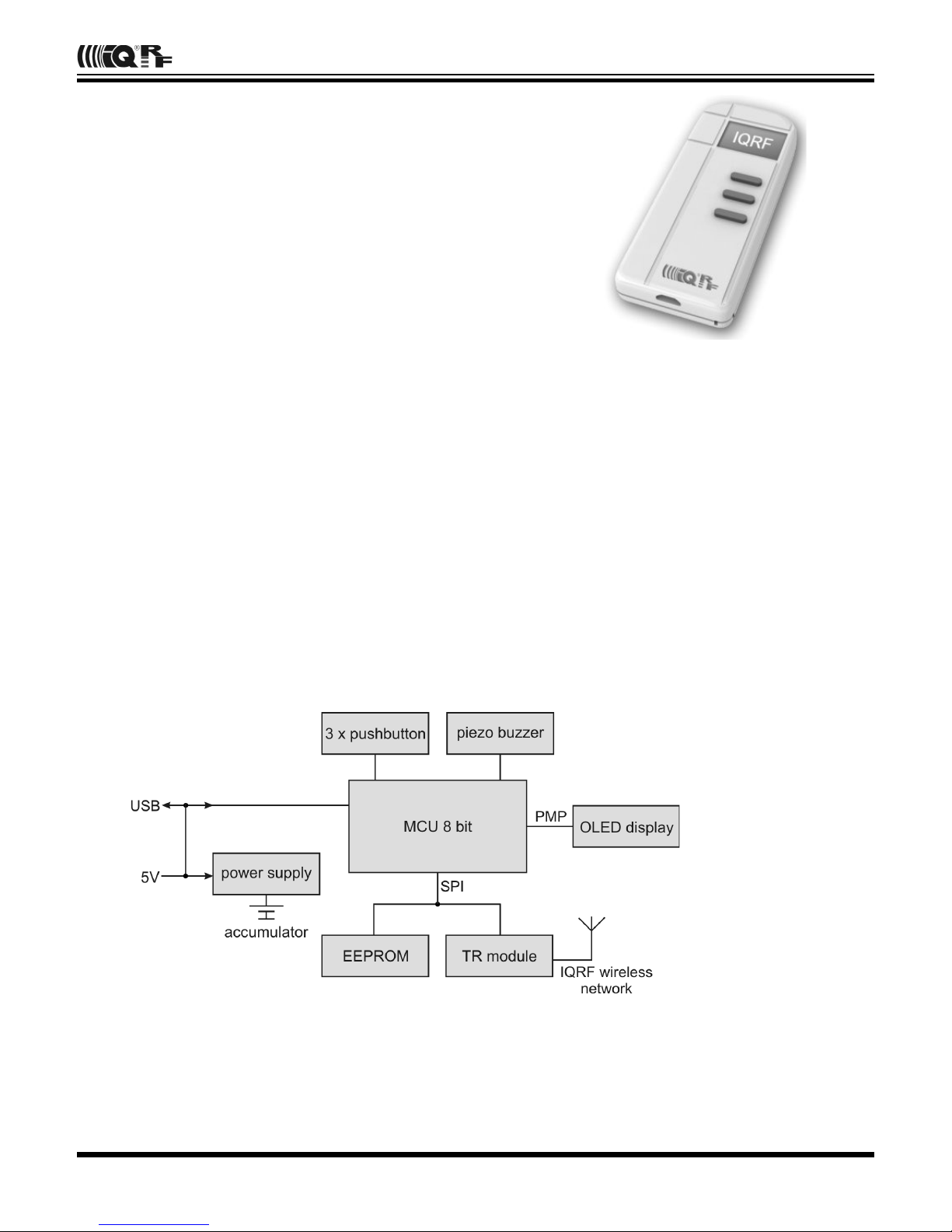

Block schematics

GW-USB-13-XXX

Electrical specifications (typical values unless otherwise stated)

Power supply 5.0 ± 0.35 V DC

Accumulator Li-Pol 3.7V, 400mAh

Display OLED 1“, 96 x 64 pixels, white

USB V2.0 Compliant SIE

Supply current

operational 25 mA 1

standby 11 µA 2

accumulator charging 85 mA

Temperature range 0 °C to +70 °C

Frequency range 868 MHz or 916 MHz (according to the TR module)

RF output power 1.3 mW

Supported TR modules TR-868-31BA or TR-916-31BA

Antenna PCB on TR module board

Dimensions 93 mm x 42 mm x 14 mm

Weight 42 g 3

Note 1: This current is increased due to charging in case of external supply (depended on the accumulator state).

Note 2: All peripherals shut down.

Note 3: Including accumulator and TR module.

Absolute maximum ratings

Stresses above those values may cause permanent damage to the device. Exposure to maximum rating conditions

for extended periods may affect device reliability.

Supply voltage (VCC) 5.5 V

Storage temperature -40 °C to +85 °C

GW-USB-13-XXX

Hardware

GW-USB-13 is a generic equipment, i.e. the hardware is fixed and the user can realize specific functionality by

software only. For detailed information refer to DK-GW-USB-13-xxx User's guide.

Power supply

GW-USB-13 is intended to be supplied via micro USB connector, either from PC or from the adapter. The

accumulator serves as a backup for external power source and should be charged from it.

Sleep mode

It is possible to switch off all functions and peripherals for current consumption minimizing, especially in idle or while

supplied from the accumulator. Refer to User's guide of given GW application for Sleep mode control. GW power is

not switched off, the Sleep mode is used instead of this.

PROM memory

Capacity: 64 kb, serial interface SPI (shared with the TR module), 1 000 000 erase/write cycles (typ.).

Pushbuttons

Functionality of all three pushbuttons is fully under software control.

Beeper

The functionality is fully under software control.

TR module

The TR-xxx-31BA wireless IQRF transceiver module in SIM card format.

Antenna

GW uses the built-in PCB antenna on TR-xxx-31BA module board.

Case

The plastic case is limited to a very few number of open/close cycles only.

Software

GW functionality depends on user specific application.

Pack list

•GW-USB-13-xxx, in Sleep mode

•TR module in requested frequency band, with E07-SPI example programmed, inserted in SIM connector

•Accumulator (soldered)

•Micro USB cable

Ordering codes:

•GW-USB-13-868 Gateway GW-USB-13, 868 MHz

•GW-USB-13-916 Gateway GW-USB-13, 916 MHz

•DK-GW-USB-13-868 Developemnt kit for GW-USB-13-868

•DK-GW-USB-13-916 Developemnt kit for GW-USB-13-916

Document history

•090514 First release

•090626 Just visual aspects improved

•090825 Development kit renamed to DK-GW-USB-13-xxx.

GW-USB-13-XXX

Sales and Service

Corporate office

MICRORISC s.r.o., Delnicka 222, 506 01 Jicin, Czech Republic, EU

Tel: +420 493 538 125, Fax: +420 493 538 126, www.microrisc.com

Partners and distribution

Please visit www.iqrf.org/partners

Quality management

ISO 9001 : 2000 certified

Complies with TSI directives N 30279 V.1.2.1:99, TS 30683:97, TSI N 301489-1:00,

TSI N 300220-1:00, TSI N 300390-2V.1.1.1:00

Complies with FCC directives FCC CFR, Title 47, Part 15, Section 15.209, FCC CFR, Title 47, Part 15, Section 15.249

Complies with Directive 2002/95/ C (RoHS)

Trademarks

The IQRF name and logo are registered trademarks of MICRORISC s.r.o.

PIC, SPI, Microchip, RFM and all other trademarks mentioned herein are property of their respective owners.

Legal

All information contained in this publication is intended through suggestion only and may be superseded by updates

without prior notice. No representation or warranty is given and no liability is assumed by MICRORISC s.r.o. with respect to

the accuracy or use of such information.

Without written permission it is not allowed to copy or reproduce this information, even partially.

No licenses are conveyed, implicitly or otherwise, under any intellectual property rights.

The IQRF products utilize several patents (CZ, U, US)

On-line support: http://iq-esupport.com
