ION Road Warrior Manuel utilisateur

Confidential ION Audio Service Manual

ION Audio

Road Warrior

[iPA27]

Service Manual

v1.0

2016.09.19

The information in this document contains privileged and confidential information. It is intended

only for the use of those authorized by ION Audio. If you are not the authorized, intended

recipient, you are hereby notified that any review, dissemination, distribution or duplication of

this document is strictly prohibited. If you are not authorized, please contact ION Audio and

destroy all copies of this document. You may contact ION Audio at suppo[email protected].

ATTENTION!

This document contains sensitive proprietary

information.

All recipients must have a current non-disclosure

agreement on file with ION Audio.

Do not make illegal copies of this document.

Confidential ION Audio Service Manual

Preface

This document is intended to assist the service technician in the operation, maintenance and

repair of the ION Audio device. Together with the User Reference Manual, this document

provides a complete description of the functionality and serviceability of the Device. Any

comments or suggestions you may have pertaining to the document are welcome and

encouraged.

Read This!

In addition to any purchase price that ION Audio may charge as consideration for ION Audio

selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service

and repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized

Service Center, ION Audio sells or transfers the Manual to you on the following terms and

conditions:

Only Service Centers authorized by ION Audio in writing are authorized to perform service and

repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not

authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual

is used to perform, any service or repairs on any ION Audio product or part thereof, any

and all warranties of ION Audio as to that product and any service contract with ION Audio

for that product shall be voided and shall no longer apply for such product, even if your

services or repairs were done in accordance with the Manual.

All service or repairs done by you or with reference to the Manual shall be solely your

responsibility, and ION Audio shall have no liability for any such repairs or service work. All such

service or repairs are performed at the sole risk of the person performing the service or

repairs. You agree that all such work will be performed in a competent, professional and safe

manner at all times and to indemnify and fully hold ION Audio and its successors and assigns

harmless in the event of any failure to so perform.

Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of

resale or other transfer.

As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the

Manual, and you agree not to copy the Manual without the written authorization of ION Audio.

ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual,

or any new or superseding version thereof.

ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to

you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts

supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third

parties or (ii) to any third parties for any purpose.

You shall not make any warranties or guarantees with respect to the products of ION Audio or

the use thereof on behalf of ION Audio or in your own name.

The foregoing describes the entire understanding related to sale or transfer of the Manual to you,

and no other terms shall apply unless in a writing signed by an authorized representative of ION

Audio.

All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual

Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE

THIS PRODUCT TO WATER OR MOISTURE.

The arrowhead symbol on a lightning flash inside a triangle is

intended to alert the user to the presence of uninsulated

“dangerous voltage” within the enclosed product which may be of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point inside a triangle is intended to alert the user

to the presence of important operating, maintenance and servicing

instructions in the literature which accompanies the product.

REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION

AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.

PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO

COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR

SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR

MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.

ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION

AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF

THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT

ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.

Regarding the Power Supply Fuse

Caution: The product under service may employ the use of a

replaceable fuse. Danger of fire or electrocution if fuse is incorrectly

replaced. Replace with only the same type or equivalent type

recommended by the equipment manufacturer.

Regarding the Internal Battery

Caution: The product under service may employ the use of a

internal battery. Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instruction.

Confidential ION Audio Service Manual

Safety Instructions

Carefully read the applicable items of the operating instructions and these safety suggestions

before using this product. Use extra care to follow the warnings written on the product itself and

in the operating instructions. Keep the operating instructions and safety suggestions for

reference in the future.

1. Power Source. The product should only be connected to a power supply which is

described either in the operating instructions or in markings on the product.

2. Power Cord Protection. AC power supply cords should be placed such that no one is likely

to step on the cords and such that nothing will be placed on or against them.

3. Periods of Non-use. If the product is not used for any significant period of time, the

product’s AC power supply cord should be unplugged from the AC outlet.

4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into

any openings of the product.

5. Water or Moisture. The product should not be used near any water or in moisture.

6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators

or other heat producing equipment.

7. Ventilation. When installing the product, make sure that the product has adequate

ventilation. Improperly ventilating the product may cause overheating, which may damage

the product.

8. Mounting. The product should only be used with a rack which the manufacturer

recommends. The combination of the product and rack should be moved carefully. Quick

movements, excessive force or uneven surfaces may overturn the combination which may

damage the product and rack combination.

9. Cleaning. The product should only be cleaned as the manufacturer recommends.

10. Service. The user should only attempt the limited service or upkeep specifically described in

the operating instructions for the user. For any other service required, the product should be

taken to an authorized service center as described in the operating instructions.

11. Damage to the Product. Qualified service personnel should service the unit in certain

situations including without limitation when:

a. Liquid has spilled or objects have fallen into the product,

b. The product is exposed to water or excessive moisture,

c. The AC power supply plug or cord is damaged,

d. The product shows an inappropriate change in performance or does not operate

normally, or

e. The enclosure of the product has been damaged.

Part Number Part Name Description

IPA27(NEW) ASSY IPA27(NEW) ASSY

56130222 faceplate DN-MC2316,SECC,T=1.5mm, 877C,for EU shipment,V1.1

56130223 faceplate DN-MC2316,SECC,T=1.5mm, 877C, for US shipment,V1.1

10420025 shielding cover DN-ME6014,SECC,T=1mm, V1.0

10420028 shielding cover DN-ME6017,(3),SECC,T=1mm, V1.0

12030031 rock switch AN-S331,RF-1003-BB4,BBG8E2L1T

20320027 top handle DN-PE2027,(2),ABS,80%, ROSH,V1.0

20670024 button DN-PC67017,silicon,V1.0

30050006 mica plate 13*18*0.1mm

40010038 power socket AN-J0138,DB-14-F,3P,with fuse

54020108 top cover DN-PC2102,ABS,UL94V-2, 877C,V1.1

60100020 antenna rubber,2.4G,2DBi,black,ROHS,L=30MM

CR010821 IPA29 LED IPA29 LED ASSY

CR010893 IPA29 LCD&KEY IPA29 LCD&KEY ASSY

CR010895 IPA29 INPUT IPA29 INPUT ASSY

CR010900 IPA27(NEW) TOP IPA27(NEW) TOP ASSY

CR010902 IPA27(NEW) AC&POWER IPA27(NEW) AC&POWER ASSY

CR010904 IPA27(NEW) REAR IPA27(NEW) REAR ASSY

CR010906 IPA27(NEW) crossover IPA27(NEW) crossover ASSY

CR010931 IPA27(NEW) NEW AC IPA27(NEW) NEW AC ASSY

DR001694 IPA29 tweeter IPA29 tweeter ASSY

DR001723 IPA29 FM antenna IPA29 FM antenna ASSY

IPA27(NEW) package IPA27(NEW) package ASSY

10250273 support DN-MB5156,(3),SECC,T=1mm, V1.0

10410172 woofer grill DN-ME5127,woofer grill,SPCC,T=0.8mm, ROHS,V1.0

16150068 12V power cable AN-W1554,16#,L=3m,BK,STYLE 1185

20150120 woofer frame DN-PT1070, ABS,80%, MT11020,V1.0

20160024 bass port DN-PT2018,ABS,80%,DH-1250, V1.0

20300111 feet IPA27,rubber,V1.0

20320026 side handle DN-PE2026,ABS,(1),black,80%

20650023 side cover AN-PECO21,ABS,80%,UL94-V0, MT11020,V1.0

21010524 wood cabinet DN-X10205,MDF,T=12mm,black PVC vinyl, CARB,V1.2

22011014 manaul IPA27,English user manual,V1.5

22011016 manual ION, safety and warranty manual,V15.0

22050006 drier 50g,DMT,SGS

23031322 master carton A=A,T=6mm,789*348*444mm, V1.0

23090580 giftbox 300g+B3+A3,T=6mm,770*329*420mm ,V1.0

54110029 lens DN-PL1104,PC,transparent, silkscreen black,V1.0

60190154 battery AN-E1909,PL7-12,12VDC,7Ah

80150049 10" woofer AN-LF39,80W,4ohm,99-08-Y138HS-06

16070013 main power cord AN-W915,3C,18#,SVT,1830mm,EU version

16070017 main power cord AN-W920,3C,1.0mm2,H05VV-F,1830mm,UK version

16070050 main power cord AN-W953,3G,0.75mm2,H05VV-F,1830mm,French version

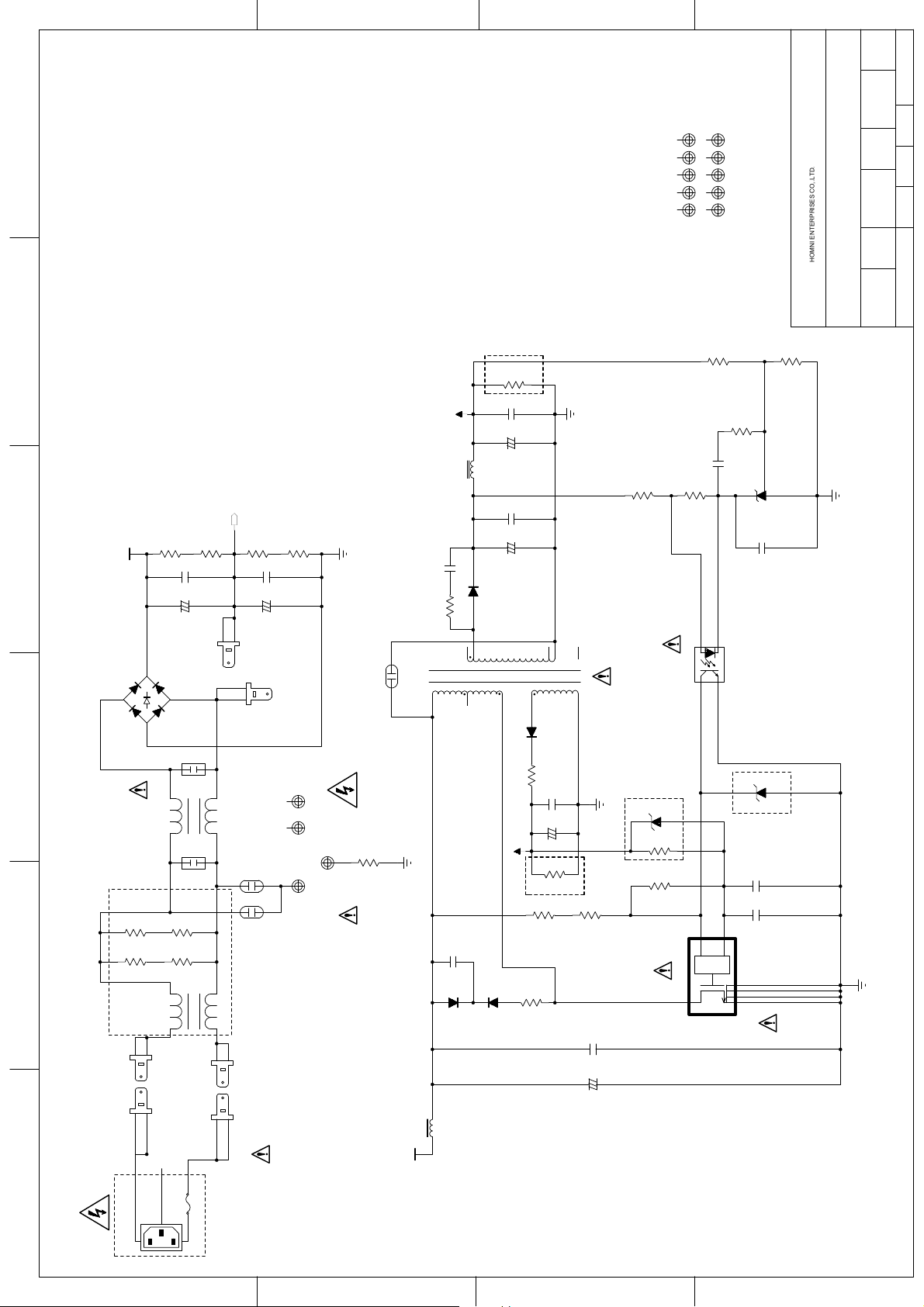

REV: V4.4 SHEET: 1 OF 10

Eric.ZX

HOMNI ENTERPRISES CO,.LTD.

6 5 43 2 1

DRAWN: DATED: DATED:CHECKED: APPROVED: DATED:

TITLE:

COMPANY:

SIZE:A2DWG NO: PT-X-XXXXX-XX SCALE:

IPA27-AC_STB

AC_POWER PCB

T6.3AL/250V~

replace fuse as mark.

2: To reduce the risk of fire,must

CAUTION

reduce the risk of electric shock.

1: High voltage section,carefully to

100~120V~/50~60Hz 300W FUSE:T6.3AL/250V~

ADD

认证要求 v4.4

认证要求 V4.4

C412

0.01uF

D402

P6KE200

EN/UV

BP/M

U401

TNY290

L404

4.7uH

TR401

D404

MURA220T3

R417

10R

C426 1nF

+C418

470uF

25V

+C417

100uF

25V

D409

ES1D

R426 2.2R

+C411

100uF

35V

R401

10K

C409

0.1uF

+C410

2.2uF/400V

C408

10uF

C427

0.1uF

C428

0.1uF

C437

0.1uF

C442

0.1uF/500V

R403

R404

Z401

R402

L402

U402

EL817SI

2A 3

REF

U404

TL431ACM3

R413

39K

R414

10K

C43247nF

R406

100R

R418

3.3K

R405

C433

1uF

P404

P403

C405

0.47uF

275V

C413

2.2nF

400V

C404

0.47uF

275V

D401

GBU606

+C401

470uF

200V

R440

470K

R438

470K

+C402

470uF

200V

C452

0.1uF

C451

0.1uF

L401

R439

470K

R437

470K

P401

P402

G401 G402

G403

D413

MURA160T3

R429

22R

G404

R445

R446

G2 G3 G4 G5 G6

G7 G8 G9 G10 G11

C457

222

C458

222

Z403

24V

R447

1.6M

R448

1.6M

R449

1.6M

R450

1.6M

R451

L410

HGND

HVDD

+12V_STB

HGND

HVDD

TR-CENT

+12V_AC

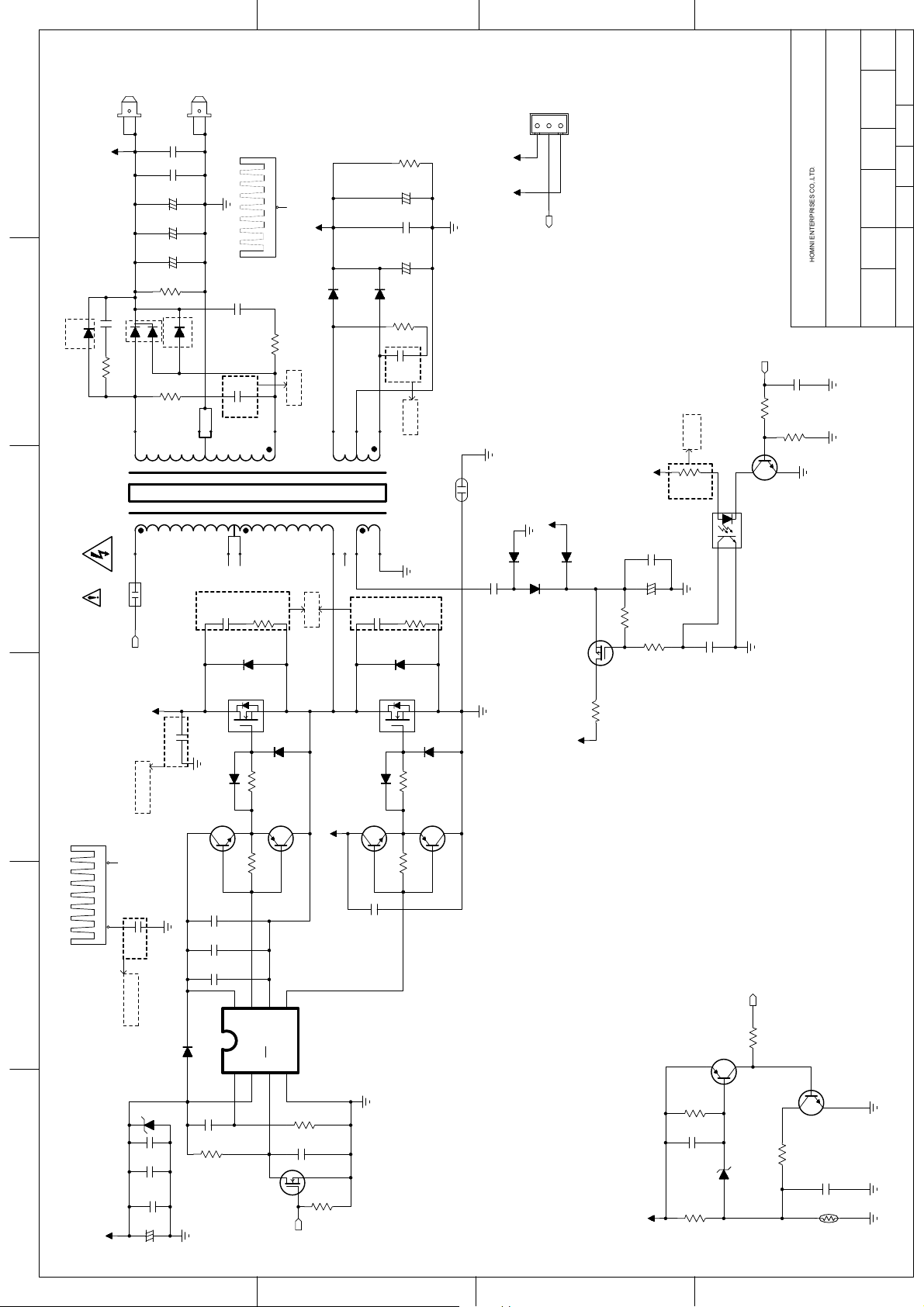

REV:V4.7 SHEET: 2 OF 10SCALE:DWG NO: PT-X-XXXXX-XX SIZE:A2

COMPANY:

TITLE:

DATED:APPROVED:CHECKED: DATED:DATED:DRAWN:

123456

HOMNI ENTERPRISES CO,.LTD.

Eric.ZX

IPA27-AC_POWER

AC_POWER PCB

+30V8A

V4.2

非常用规格变更

认证

降低功耗

V4.7

HEAT SINK

H401

C450

102/1KV

J3-A

Q403

FDPF18N50

Q404

FDPF18N50

C449102/1KV

D416

1N4148WS

D407

1N4148WS

D415

MURA160T3

D408

MURA160T3

R430

C447

R424

C435

NC 7

T401-A

D406

ES1D

D405

ES1D

+C416

470uF

50V

C431

10uF

50V

D403

MBR20200CTG

C429

470P

R415

100R

+C420

1000uF

50V

+C421

120uF

50V

C423

10uF

50V

C424

10uF

50V

R416

47R

C430

470P

1RCT

2VDD

3DT/SD

4GND 5

U405

FAN7387MX

C436

680pF

R425

6.8K

C403

47uF C444

0.1uF

Q413

STS3401

R43510K

R434

R408 10K

R409

47K

Q412

MMBT4401

Q411

MMBT4403

R431 49.9R

Q410

MMBT4401

Q409

MMBT4403

R420 49.9R

C415

0.1uF

J5-A

J6-A

C407

1.0uF600V

C440

1uF

D417

MURA160T3

C446

0.1uF

R433 10R

R423 10R

Z402

13V

C441

0.1uF

C438

0.1uF

RTH401

100K

C425

0.1uF

R410

17.4K

Q407

DTC114EKA

R411 27.4K

Q406

MMBT4403

R412

10K

ZD401

5V6 1/2W

R419 10K

U403

EL817SI

D411

T401-B

+C419

330uF

35V

C414

2.2nF

400V

D414

FB120,3A,1206

R407

Q405

MMBT4401

C406

100uF

35V

C448

0.1uF

R43647R

HEAT SINK

H402

R427

100K

D412

C439

50V

C445

2.2uF

C434

0.1uF

C443

10uF

Q408

2N7002

R421

10K

C422

0.1uF

R441

15K

R442

15K

+C453

120uF

50V

R443 47R

C455 470pF

R444 47R

C454

470pF

C456

1uF

R422

24V/SOD323

R432

24V/SOD323

D418

P6KE200

D419

P6KE200

HGND

HVDD

HGND

+18V_AC

+30V_DC

HGND

TR-CENT

POWER_ON

HGND

+12V_ACP

+18V_AC+12V_STB

POWER_ON

+12V_ACP

HGND

+12V_AC

HGND

+12V_STB

HGND

HGND HGND HGND

OCT_PRO

ERIC.ZX

DWG NO:

HOMNI ENTERPRISES CO,.LTD.

6 5 43 2 1

DRAWN: DATED: DATED:CHECKED: APPROVED: DATED:

TITLE:

COMPANY:

SIZE:A2SCALE: REV: SHEET: OF

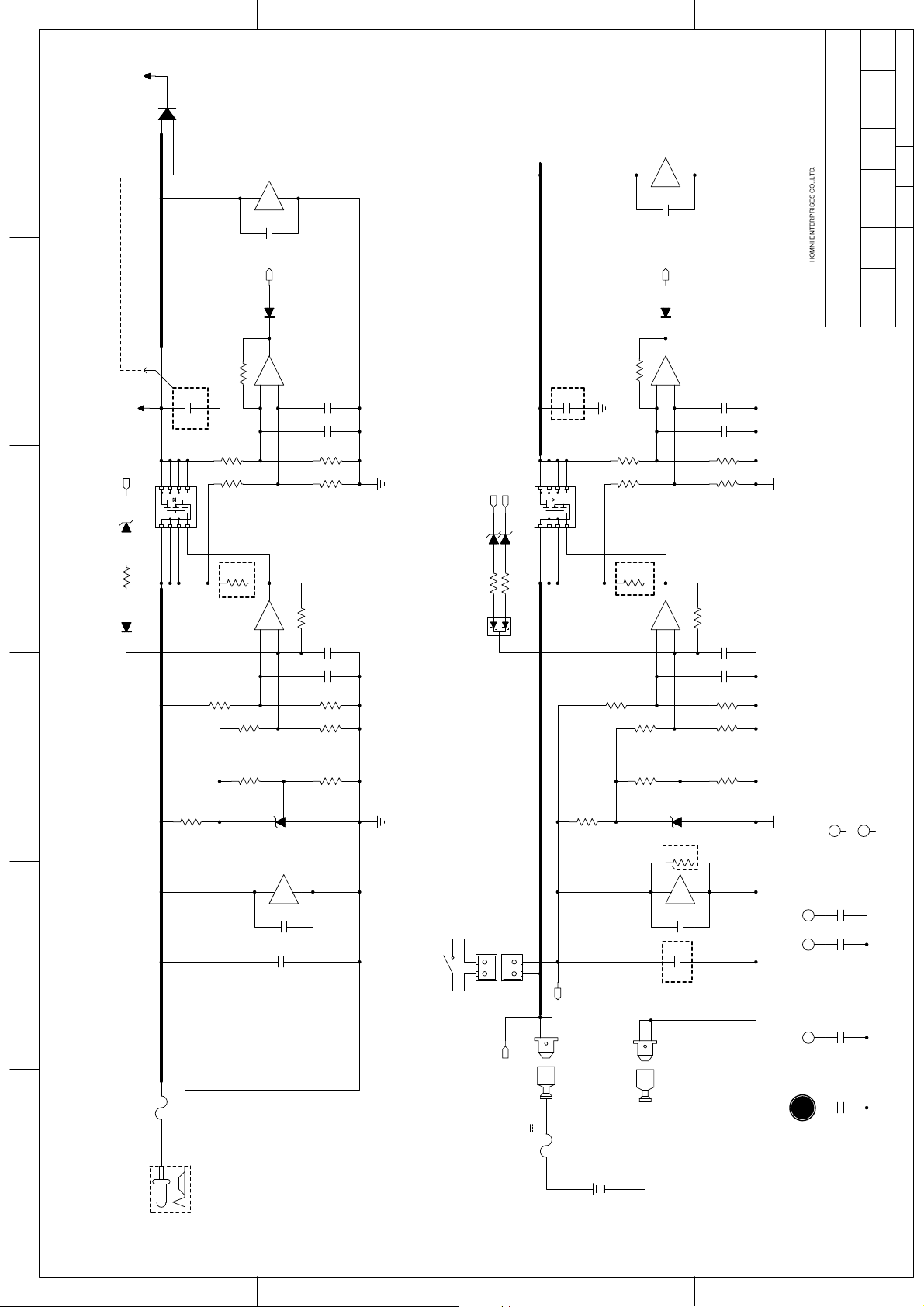

IPA27-BAT&DC12V

REAR PCB 4.4 3 10

DC13.5V IN

6.125V

OFF<11.5V

SWITCH

V4.2

以下B点改善状态为：充电时，开关电源，开关会停止工作

U21

DTQ6311

R166 2M

B+

B-

U24

LM4041DIM7-ADJ

C147

1uF

16V

R142

10K

R143

100K

1%,0603

C116

1uF

16V

C154

0.47uF

25V

R157

137K

1%,0603

R162

243K

1%,0603

R161

100K

1%,0603

R159

200K

1%,0603

R160

49.9K

1%,0603

R158

16.9K

C155

0.1uF

25V

5VDD

2VEE

U23-B

J14A

BATTERY

12V7A

CP3

CP4

25AL/32V

SW1-A

U23-A

TS391

C214

1uF

16V

T10AL/250V~

U27

DTQ6311

R144 4.7M

U28

LM4041DIM7-ADJ

R149

10K

R154

100K

1%,0603

C225

1uF

16V

C226

0.47uF

25V

R207

169K

1%,0603

R208

243K

1%,0603

R209

100K

1%,0603

R210

200K

1%,0603

R211

49.9K

1%,0603

R212

16.9K

C227

0.1uF

25V

5VDD

2VEE

U29-B

JK4

U29-A

TS391

C193

4.7uF

16V

C194

1uF

16V

BAV70

R94 10K

R177 10K

R178 10K

Z2 5.6V

5.6V

C204

1uF

25V

C205

1uF

25V

Z4 5.6V

R54 4.7M

R256

107K

1%,0603

C256

0.1uF

25V

C257

0.1uF

25V

R257

100K

1%,0603

R258

100K

1%,0603

R259

100K

1%,0603

4+1

U14-A

TS391

R260 4.7M

R261

107K

1%,0603

C258

0.1uF

25V

C259

0.1uF

25V

R262

100K

1%,0603

R263

100K

1%,0603

R264

100K

1%,0603

4+1

U15-A

TS391

C260

0.1uF

25V

5VDD

2VEE

U14-B

C261

0.1uF

25V

5VDD

2VEE

U15-B

D22

1N4148WS

D23

1N4148WS

D20

1N4148WS

R275

30K

C201

1uF

25V

C202

1uF

25V

BATT_12V

CHARGE

+12V_STB

DC12V

OCP_DC

ERIC.ZX

DWG NO:

HOMNI ENTERPRISES CO,.LTD.

6 5 43 2 1

DRAWN: DATED: DATED:CHECKED: APPROVED: DATED:

TITLE:

COMPANY:

SIZE:A2SCALE: REV: SHEET: OF

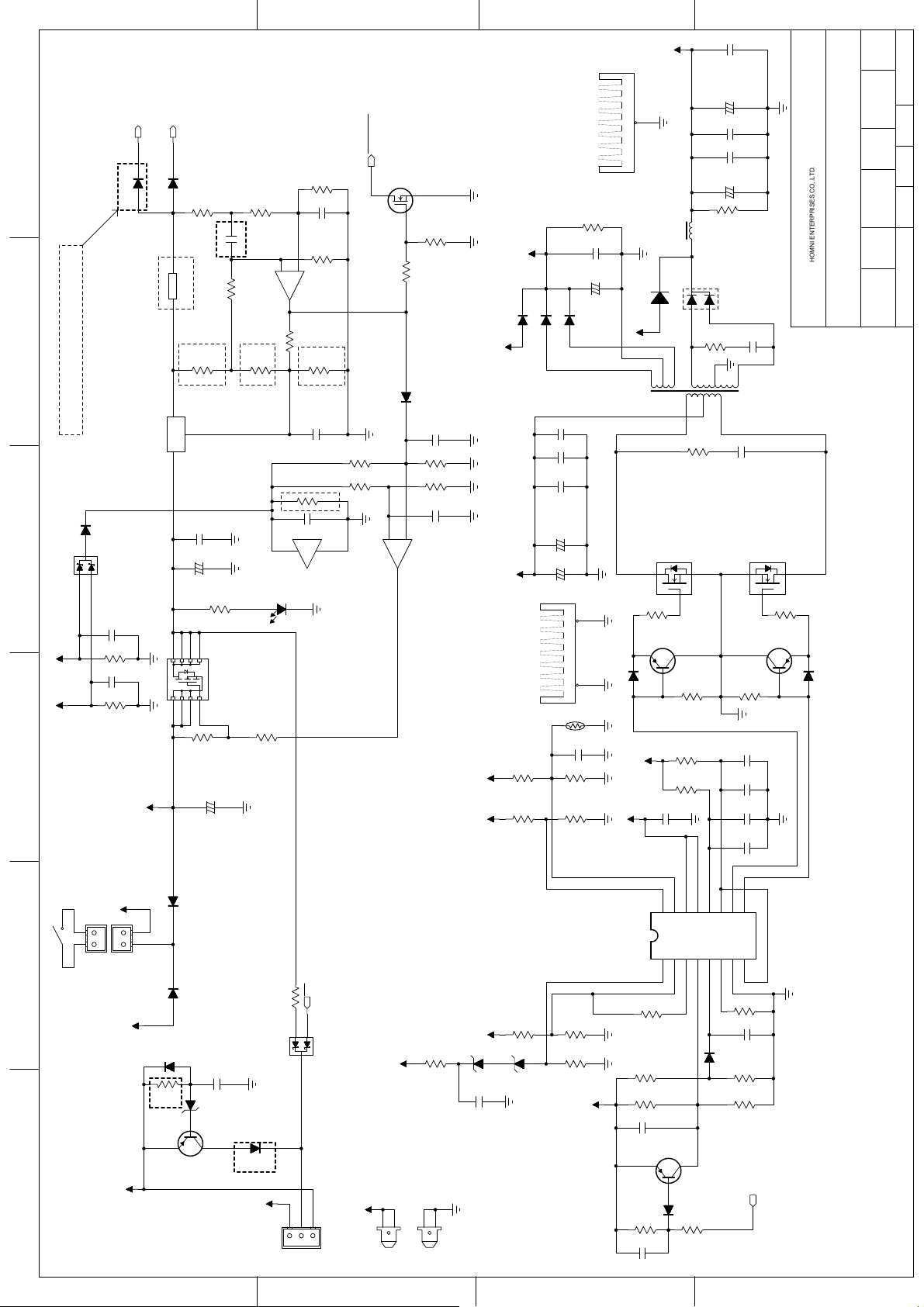

IPA27-POWER_CONVERTER

REAR PCB

SWITCH

4.4 4 10

14.8V 14.6V

(ON=13V,OFF=0V)

V4.2

以下B点改善状态为：充电时，开关电源，开关会停止工作

认证要求 V4.4

J3-B

SW1-B

J16-A

1U11-A

LM393DT/ST

VCC

VEE

U11-C

LM393DT/ST

3IN

ADJ

OUT

U13

LM317TG/ON

D11

1N5822

C137

0.1uF

50V

R138 10K

1%,0603

R136 15K

1%,0603

R82

3.3KΩ

1%,0603

R155

100Ω

1%,0603

R156

200Ω

1%,0603

R133

24.9K

1%,0603

C49

4.7uF

16V

R139

24.9K

1%,0603

C115 1uF

25V

J5-B

C50

10uF

16V

C47

1uF

16V

R173

470K

R227

300K

MUR1520

U22

CEM4435

+C195

47uF

35V

R124

20K

R184

4.7K

C198

4.7uF

16V

R185 470K

R135

470K

7U11-B

LM393DT/ST

2N7002

1IN+

2IN-

3COMP

4DTC

5CT

6RT

7GND

8C1 9

VCC

O_SEL

REF

2IN-

2IN+

U12

TL494CDR

C191

4.7uF

16V

C206

1nF

25V

R132

16.9K

R148

47K

R164

C207

4.7uF

16V

C208

1uF

16V

R183

10R

C211

4.7uF

16V

R213

10R

MMBT5087

Q14

MMBT4403

R239

10K

R240

47K

C213

4.7uF

16V

1N4148WS

R236

470R

Q15

STP65NF06

Q17

STP65NF06

Q19

MMBT5087

1N4148WS

R241

470R

R242

10R

R244

10R

C219

0.1uF

25V

C220

0.1uF

25V

R246

47K

R247

10K

R252

10K

R253

100R

C222

1nF

50V

D13

MBR20200

+C246

3300uF

16V

+C247

3300uF

16V

+C250

1000uF

50V/LowESR

R255

100R

C253

1nF

C254

0.1uF

50V

D18

MURA220T3

D21

MURA220T3

+C269

1000uF

50V/LowESR

C255

2.2uF

50V

C285

0.1uF

50V

C248

4.7uF

16V

C249

0.1uF

16V

C244

4.7uF

16V

+C286

1000uF

35V/LowESR

+C287

470uF

35V/LowESR

C288

0.1uF

50V

R126

20K

R140

10K

RTH1

100K

HEAT SINK

C196

1uF

16V

R216

47K

R237

20K

R269

10K

J16-B

D41

MURA220T3

J6-B

R283 10K

D43

MURA220T3

TR3

HEAT SINK

R137

2.4Ω/5W

R125

470K

R134

C73

0.1uF

25V

D10

1N4148WS

D28

MURA220T3

D42

BAV70

D17

BAV70

R298

3.37K

R299

1.5K

D32

1N4148WS

R163

47K

R248

47K

C336

4.7uF

16V

C37

4.7uF

16V

R296

10K

1%,0603

R297

49.9K

1%,0603

1N4148WS

R167

20K

ALED9

LED

RED

L42

C51

50V

D12

1N4148WS

MMBT4403

R276

330K

C200

10uF

16V

5.6V

D14

1N4148WS

R272

15K

R273

20K

R277

D24

1N4148WS

R176 10K

D16

1N4148WS

CHARGE

CHARGE_ON

PG PGPG

REF_5V

BATT_12V

REF_5V

BATT_12V

DC12V+12V_STB

REF_5V

+30V_AC

PVDD

+18V

OCP_DC

REF_5V

PGPG PG PGPG

REF_5V

PVDD

+18VPRE

+12V_STB

+18V_AC

STB

+30V_AC

+12V_STB

PG PG

+18V_AC

PG PG

DWG NO:

HOMNI ENTERPRISES CO,.LTD.

6 5 43 2 1

DRAWN: DATED: DATED:CHECKED: APPROVED: DATED:

TITLE:

COMPANY:

SIZE:A2SCALE:

Eric.ZX

REV: SHEET: OF

避免功放高频自激

ROUT+

LOUT+

LOUT-

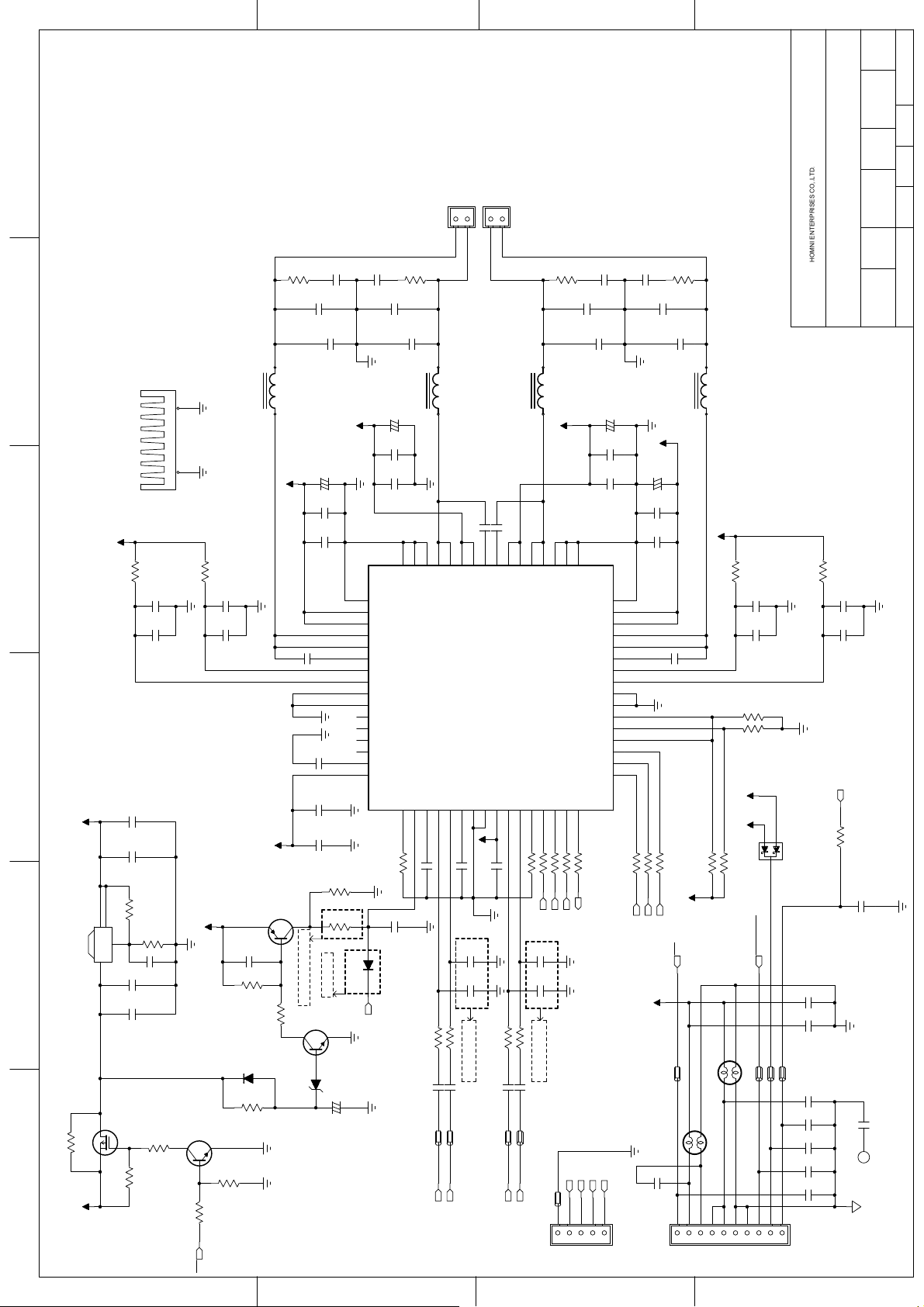

IPA27-AMP

REAR PCB 4.4 5 10

ROUT-

V4.2 V4.2

V4.2

功放保护有时不会恢复

开机冲击声

R46

20K

MMBT4403

R27

47K

R32

47K

R48

150K

D15

1N4148

J9-A

HEAT SINK

HT1

J8-A

+C32

47uF

25V

R17

3.3R

C11

33nF

50V

10nF

50V

10uH/10A

0.68uF

C10

1nF

50V

C1233nF

50V

C15

1nF

50V

R19

3.3R

C16

10nF

50V

C17

1nF

50V

C2633nF

50V

C41

33nF

50V

C43

1nF

50V

R24

3.3R

C53

10nF

50V

C54

0.68uF

C55

0.68uF

C58

1nF

50V

R33

3.3R

C61

10nF

50V

C64

1nF

50V

C65

0.1uF

25V

C67

4.7uF

16V

R34 3.3R

C68

4.7uF

16V

C69

0.1uF

25V

R45 3.3R

C70

330pF

25V

C76

0.1uF

25V

C80

4.7uF

16V

R52 22K

C81 4.7nF

25V

R55 100R

R72 100R

C82 1nF

25V

C85 0.1uF

25V

R73 100R

R76 100R

R88 10K

C88

100pF

25V

C105

470pF

25V

R89 NC

C1081uF

16V

10uH/10A

C111

2.2uF

50V

C112

2.2uF

50V

+C114

1000uF

50V/LowESR

C117

1nF

50V

C119

2.2uF

50V

+C120

1000uF

50V/LowESR

+C123

1000uF

50V/LowESR

C124

1nF

50V

C130

2.2uF

50V

+C132

1000uF

50V/LowESR

C1361uF

16V

1OC_ADJ

2/RESET

3C_STARTUP

4INPUT_A

5INPUT_B

6VI_CM

7GND

8AGND

9VREG

10 INPUT_C

11 INPUT_D

12 FREQ_ADJ

13 OSC_IO+

14 OSC_IO-

15 /SD

16 /OTW1

17 /OTW2

18 /CLIP

19 READY

20 M1

21 M2

22 M3

23 GND

24 GND

25 GVDD_C

26 GVDD_D

27 BST_D

28 OUT_D

29 OUT_D

30 PVDD_D

31 PVDD_D

32 GND_D

GND_D

GND_C

OUT_C

PVDD_C

BST_C

BST_B

PVDD_B

OUT_B

GND_B

GND_A

PVDD_A

OUT_A

BST_A

GVDD_A

GVDD_B

GND

PSU_REF

VDD

TAS5613

C140

0.1uF

25V

C141

4.7uF

16V

R106 3.3R

C142

4.7uF

16V

C143

0.1uF

25V

R109 3.3R

Q20

STS3401

Q21

MMBT4401

R265 47K

R266

10K

R267NC

R268

10K

C197

4.7uF

16V

C252

0.1uF

25V

C262

0.1uF

25V

C263

10uF

50V

C1381uF

16V

C1391uF

16V

C89

470pF

25V

C103

470pF

25V

C106

470pF

25V R78 NC

R81 100R

R90 NC

R91 NC

R102 NC

R103 NC

R104 NC

R105 100R

R107

100R

R108

R110

47K

C264

1uF

16V

L9 721@200M

L12

721@200M

L13

721@200M

L15

721@200M

L16

721@200M

C279

1nF

50V

C209

1nF

50V

C265

1nF

50V

C266

1nF

50V

C267

1nF

50V

C268

1nF

50V

C278

1nF

50V

C280

1nF

50V

L7 721@200M

L11 721@200M

L33 721@200M

Q30

MMBT4401

R129

10K

J10-A

L31

2x10UH

L32

2x10UH

D19

BAV70

ADJ/GND

OUT

3IN 4

U31

LM317EMP

R131 249R

R326

2.05k

C162

1uF

16V

R214 100R

5.6V

C337

0.1uF

50V

L17 721@200M

J18-B

C203

0.1uF

25V

D27

1N4148WS

VREG

PGPG

PRE_L-

PRE_L+

PRE_R-

PRE_R+

+18VPRE

CHARGE_ON

STB

VREG

PVDD

+12VDD

VREG

/OTW1

/SD

OSC_IO-

OSC_IO+

/OTW2

/CLIP

READY

PG PG

PRE_L+

PRE_L-

PRE_R+

PRE_R-

/SD

STB

+12VDD

+18VPRE

+12V_STBBATT_12V

DGND

DC12V

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ION Intervenants

ION

ION POWER GLOW 300 Manuel utilisateur

ION

ION Explorer Bluetooth 2014 Manuel utilisateur

ION

ION Meeting Mate Manuel utilisateur

ION

ION SPORT XL iPA103A Manuel utilisateur

ION

ION SPORT iPA84A Manuel utilisateur

ION

ION Game Day Lights Manuel utilisateur

ION

ION Clipster Manuel utilisateur

ION

ION Block Rocker XL Manuel utilisateur

ION

ION PARTY ROCKER Manuel utilisateur

ION

ION PA System Port Campus Manuel utilisateur

ION

ION Acadia Manuel utilisateur

ION

ION party starter Manuel utilisateur

ION

ION Block Rocker Bluetooth M5 Manuel utilisateur

ION

ION TAILGATER BLUETOOTH Manuel utilisateur

ION

ION ISP75A Manuel utilisateur

ION

ION Block Rocker iPA76A Manuel utilisateur

ION

ION Tiki Sounds Manuel utilisateur

ION

ION Block Rocker Max iPA76C2 Manuel utilisateur

ION

ION Spectraboom Manuel utilisateur

ION

ION Glow Rocker Manuel utilisateur

ION

ION Sport iPA129 Manuel utilisateur

ION

ION Party Rocker Plus Manuel utilisateur

ION

ION Slam Jam Manuel utilisateur

ION

ION Trailblazer Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
