Confidential ION Audio Service Manual

ION Audio

Party Rocker Max

[iPA73P]

Service Manual

v1.0

2017-11-01

The information in this document contains privileged and confidential information. It is

intended only for the use of those authorized by ION Audio. If you are not the authorized,

intended recipient, you are hereby notified that any review, dissemination, distribution or

duplication of this document is strictly prohibited. If you are not authorized, please

contact ION Audio and destroy all copies of this document. You may contact ION Audio

at [email protected].

ATTENTION!

This document contains sensitive proprietary information.

All recipients must have a current non-disclosure agreement

on file with ION Audio.

Do not make illegal copies of this document.

Confidential ION Audio Service Manual

Preface

This document is intended to assist the service technician in the operation, maintenance and

repair of the ION Audio device. Together with the User Reference Manual, this document provides

a complete description of the functionality and serviceability of the Device. Any comments or

suggestions you may have pertaining to the document are welcome and encouraged.

Read This!

In addition to any purchase price that ION Audio may charge as consideration for ION Audio

selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service and

repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized Service

Center, ION Audio sells or transfers the Manual to you on the following terms and conditions:

Only Service Centers authorized by ION Audio in writing are authorized to perform service and

repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not

authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual is used

to perform, any service or repairs on any ION Audio product or part thereof, any and all warranties

of ION Audio as to that product and any service contract with ION Audio for that product shall be

voided and shall no longer apply for such product, even if your services or repairs were done in

accordance with the Manual.

All service or repairs done by you or with reference to the Manual shall be solely your responsibility,

and ION Audio shall have no liability for any such repairs or service work. All such service or repairs

are performed at the sole risk of the person performing the service or repairs. You agree that all

such work will be performed in a competent, professional and safe manner at all times and to

indemnify and fully hold ION Audio and its successors and assigns harmless in the event of any

failure to so perform.

Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of

resale or other transfer.

As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the

Manual, and you agree not to copy the Manual without the written authorization of ION Audio.

ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual, or

any new or superseding version thereof.

ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in

its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by

ION Audio to you (i) to repair or be used in products manufactured for or by third parties or (ii) to

any third parties for any purpose.

You shall not make any warranties or guarantees with respect to the products of ION Audio or the

use thereof on behalf of ION Audio or in your own name.

The foregoing describes the entire understanding related to sale or transfer of the Manual to you,

and no other terms shall apply unless in a writing signed by an authorized representative of ION

Audio.

All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual

Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO

WATER OR MOISTURE.

The arrowhead symbol on a lightning flash inside a triangle is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the

enclosed product which may be of sufficient magnitude to constitute a risk

of electric shock to persons.

The exclamation point inside a triangle is intended to alert the user to the

presence of important operating, maintenance and servicing instructions in

the literature which accompanies the product.

REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE

CENTER WILL VOID THE ION AUDIO WARRANTY.

PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY

ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF

REPAIR SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.

ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE

CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND ION AUDIO SHALL HAVE

NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.

Regarding the Power Supply Fuse

Caution: The product under service may employ the use of a

replaceable fuse. Danger of fire or electrocution if fuse is

incorrectly replaced. Replace with only the same type or

equivalent type recommended by the equipment manufacturer.

Regarding the Internal Battery

Caution: The product under service may employ the use of a

internal battery. Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instruction.

Confidential ION Audio Service Manual

Safety Instructions

Carefully read the applicable items of the operating instructions and these safety suggestions

before using this product. Use extra care to follow the warnings written on the product itself and in

the operating instructions. Keep the operating instructions and safety suggestions for reference in

the future.

1. Power Source. The product should only be connected to a power supply which is described

either in the operating instructions or in markings on the product.

2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to

step on the cords and such that nothing will be placed on or against them.

3. Periods of Non-use. If the product is not used for any significant period of time, the product’s

AC power supply cord should be unplugged from the AC outlet.

4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any

openings of the product.

5. Water or Moisture. The product should not be used near any water or in moisture.

6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or

other heat producing equipment.

7. Ventilation. When installing the product, make sure that the product has adequate ventilation.

Improperly ventilating the product may cause overheating, which may damage the product.

8. Mounting. The product should only be used with a rack which the manufacturer recommends.

The combination of the product and rack should be moved carefully. Quick movements,

excessive force or uneven surfaces may overturn the combination which may damage the

product and rack combination.

9. Cleaning. The product should only be cleaned as the manufacturer recommends.

10. Service. The user should only attempt the limited service or upkeep specifically described in

the operating instructions for the user. For any other service required, the product should be

taken to an authorized service center as described in the operating instructions.

11. Damage to the Product. Qualified service personnel should service the unit in certain situations

including without limitation when:

a. Liquid has spilled or objects have fallen into the product,

b. The product is exposed to water or excessive moisture,

c. The AC power supply plug or cord is damaged,

d. The product shows an inappropriate change in performance or does not operate

normally, or

e. The enclosure of the product has been damaged.

Bill of Materials (BOM)

Code Name Spec Qty

10080239 heater sink DN-MH0160,V1.0 1

10530036 iron prop DN-MB6036 3

10530091 iron prop DN-MB6084,ROHS,V1.0 1

12030044 rocker switch AN-S343,RS601D,6A/250V 1

13110033 switch power AN-T90034,100-240VAC,50/60Hz,16.5VDC,4.1A 1

16041066 plug line AN-W4627,2P,18#,UL1007,230mm 1

16041067 plug line AN-W4628,3P,26#,UL1007,230mm 1

16041068 plug line AN-W4629,2P,18#,UL1007,300mm 1

16041069 plug line AN-W4630,2P,22#,UL1617,150mm 1

16041071 plug line AN-W4632,18#,UL1015,350mm 3

16060086 ground line AN-W684,18#,UL1015,230mm 1

16080032 FFC connect line AN-WA30,P1.0,FFC,8P,420mm,44/88 1

19020021 fuse 218,1.6A/250V,Φ5*20mm 1

20020166 top panel DN-PC2115,ABS,UL94V-0,blk,MT11020,V1.0 1

20110149 lens DN-PL1117,PC+silicon,V1.0 1

20210156 knob DN-PN2115,ABS,80%,blk,11010,ROHS,V1.0 3

20320025 handle DN-PE2025,ABS,80%,UL94V-0,blk,MT11020,ROHS,V1.0 2

20360099 plastic sheet DN-PE6054,ABS,80%,UL94V-0,blk,ROHS,V1.0 2

20410123 buttons DN-PEB078,ABS,80,blk, MT11010,V1.0 2

20440026 spacer PC19-5,Φ6.5*6.95mm 8

20460013 fixed button KY-CLT-2 1

30060489 foam EVA1030,blk,5*300*2mm,V1.0 3

30090009 beam line 2.5*120mm,blk 6

30150163 grill cloth 329*304*0.3mm,V1.0 1

30160009 rubber feet T=2mm,V1.0 1

40010038 power socket AN-J0138,DB-14-F,3P 1

54020124 top panel DN-PC2115,ABS,UL94V-0,blk,V1.0 1

60100017 antenna 2.4G,2DBi,blk,ROHS 1

60110050 fans AN-E1149,DFS602012L,12V,L=260mm,P=2.5mm 1

70010048 whole teeth screw AN-C10048,M3*6mm,D5.5mm 6

70010111 whole teeth screw Φ3*10mm,D5.5mm 10

70010337 whole teeth screw Φ2.6*8mm,D4.5mm 8

70010488 whole teeth screw Φ3*20mm,D6.3mm 1

70010602 whole teeth screw AN-C10602,Φ3*32mm,D5.5mm 4

70010848 whole teeth screw Φ3.5*15mm,D7mm 4

CR011089 RoHS:IPA82 LED03 IPA82 LED03 ASSY 1

CR011091 RoHS:IPA82 LED01 IPA82 LED01 ASSY 1

CR011093 RoHS:IPA82 LED02 IPA82 LED02 ASSY 1

CR011126 RoHS:IPA73P AMP IPA73P AMP ASSY 1

CR011128 RoHS:IPA73P MAIN IPA73P MAIN ASSY 1

CR011130 RoHS:IPA73P PARTY LED IPA73P PARTY LED ASSY 1

CR011131 RoHS:IPA73P MOTOR IPA73P MOTOR ASSY 1

10330032 spring DN-MP3026,V1.0 4

10410171 grill DN-ME5126,SPCC,T=0.8mm,V1.0 1

10520106 trundly JD180D 2

10550008 block DN-SE009,SPCC,T=1mm,V1.0 2

16040929 plug line AN-W4489,2P,18#,UL1015,L=450mm 1

16040961 plug line AN-W4521,1P,18#,UL1015,750mm 1

16041070 plug line AN-W4631,18#,UL1015,750mm 1

16141043 electronic line 1P,22#,UL1007,L=350mm,blk 1

16141044 electronic line 1P,22#,UL1007,L=350mm,brown 1

16150041 3.5 plug line AN-W1540,UL2547,26#,610mm 1

17050074 non-polarized electrolytic capacitor 6.8uF/50V,±10%,-40/+85℃,Φ6*17mm 1

20110156 lens DN-PL1124,V1.0 1

20290042 stand DN-PB0032,ABS(UL94HB),ROHS,V1.1 1

20290068 stand DN-PB0065,(2),ABS,80%,UL94V-2,blk,ROHS,V1.0 1

20290079 stand DN-PB0064,(1),PC,80%,UL94V-2,blk,ROHS,V1.1 1

20300115 foot pad TPU,80%,blk,hardness70°,ROHS,V1.0 2

20310041 rubber corner DN-PE1025,TPU,90%,blk,hardness 90A,ROHS,V1.0 8

20630126 dome IPA73P,PC,UL94-V2,V1.0 1

20660042 mound layer DN-PC6038,(1),ABS,80%,V1.1 1

20660043 mound layer DN-PC6037,(2),ABS,80%,V1.1 1

20660044 mound layer DN-PC6036,(3),ABS,80%,V1.1 1

21010558 wood carton DN-X10235,MDF,T=9MM,CARB,V1.0 1

22011016 manual ION,safety manual,V15.0 1

22011095 manual IPA73P,english manual,V1.0 1

22050006 drying agent 50g,DMT,SGS 1

23010020 packing bag PE,120*280*0.06mm 1

23010295 packing bag PE,160*260*0.025mm 1

23010356 packing bag PE,(290+390)*750*0.1mm 1

23020298 styrofoam IPA73P,top,EPS,V1.0 1

23020299 styrofoam IPA73P,bottom,EPS,V1.0 1

23031447 outer carton IPA73P,A=B,T=6mm,479*327*604mm,V1.0 1

23070029 pearl foam LGA8,500*350*2mm,V1.0 2

23090662 giftbox 300G+C3+C3,T=6mm,465*313*580mm,V1.0 1

23100092 internal box 250g+CE,270*65*60mm.V1.0 1

24100054 magnet ring V180177T 1

30060078 faom 4.5*1000*1.0mm,EVAE1030 3

30060079 faom 50*150*5mm 6

30060095 faom 10*1000*1mm,EVA1030 3

30060116 faom 4.5*2360*4.2mm,EVAE1030 1

30060423 faom EVA1030,blk,288.5*6*1mm,T=1mm,V1.0 1

30060424 faom EVA1030,blk,(2),315*6*1mm,V1.0 2

30090002 beam line 2.5*80mm,blk 4

30150142 draw bar 295*88mm,V1.0 1

30150162 double faced adhesive tape 3M(9495),V1.0 1

30160013 rubber pad T=2mm,Φ4*Φ12mm,V1.0 4

60090030 MIC AN-E0926,PM-353 silkscreen ION,ROHS 1

60190172 battery AN-E1920,RT1290,12VDC,9Ah 1

60230005 motor AN-E2305,28BYJ48-031,12VDC 1

70010054 whole teeth screw Φ3*6mm 8

70010088 whole teeth screw Φ3*8mm 1

70010151 whole teeth screw Φ3*15mm 16

70010236 whole teeth screw Φ4*16mm 8

70010237 whole teeth screw M4*16mm 4

70010300 whole teeth screw AN-C10300,M5*25mm 4

70010678 whole teeth screw Φ3*13mm 5

70010691 whole teeth screw M4*26mm 6

70010771 whole teeth screw Φ2.5*8 4

70010806 whole teeth screw M2.5*15mm 1

70010848 whole teeth screw Φ3.5*15mm 24

70010855 whole teeth screw Φ4*25mm 2

70070014 hex nut Φ6*M3*2.5mm 2

70090009 gasket AN-C90009,Ф5.6*Ф3.2*0.8mm 1

70090106 gasket inernalΦ6*outsideΦ13.5*height5mm 4

80130048 8"woofer AN-LD42,2Ω,50W 1

80320006 3"tweeter 2Ω,10W 1

90021447 tracking no. IPA73P,64*13mm,V1.0 4

90080001 destination label GA0/GA1/GA2 3

90220078 special label ALESIS,30*30mm,PANTONE 361C,V1.0 1

90220502 special label IPA27,46*8mm,V1.1 1

90220563 special label IPA73P,38*26mm,V1.0 2

90250038 CARB label ION,78*23mm,V1.0 1

90270012 date label 13*6mm,V1.1 1

GR000719 RoHS:IPA73P packing option IPA73P packing option ASSY 1

16070013 power line AN-W915,3C,18#,SVT,1830mm,blk 1

16070017 power line AN-W920,3C,1.0mm2,H05VV-F,1830mm,blk 1

16070050 power line AN-W953,3G,0.75mm2,H05VV-F,1830mm,blk 1

22150001 service card ION,V1.1 1

90041578 bar code label IPA73P,76*50mm,V1.0 1

90200056 mark label BLACK&361C,Φ30mm,V1.0 1

90200071 mark label green cirlle label 1

MIC

Master VOLUME

STEREO

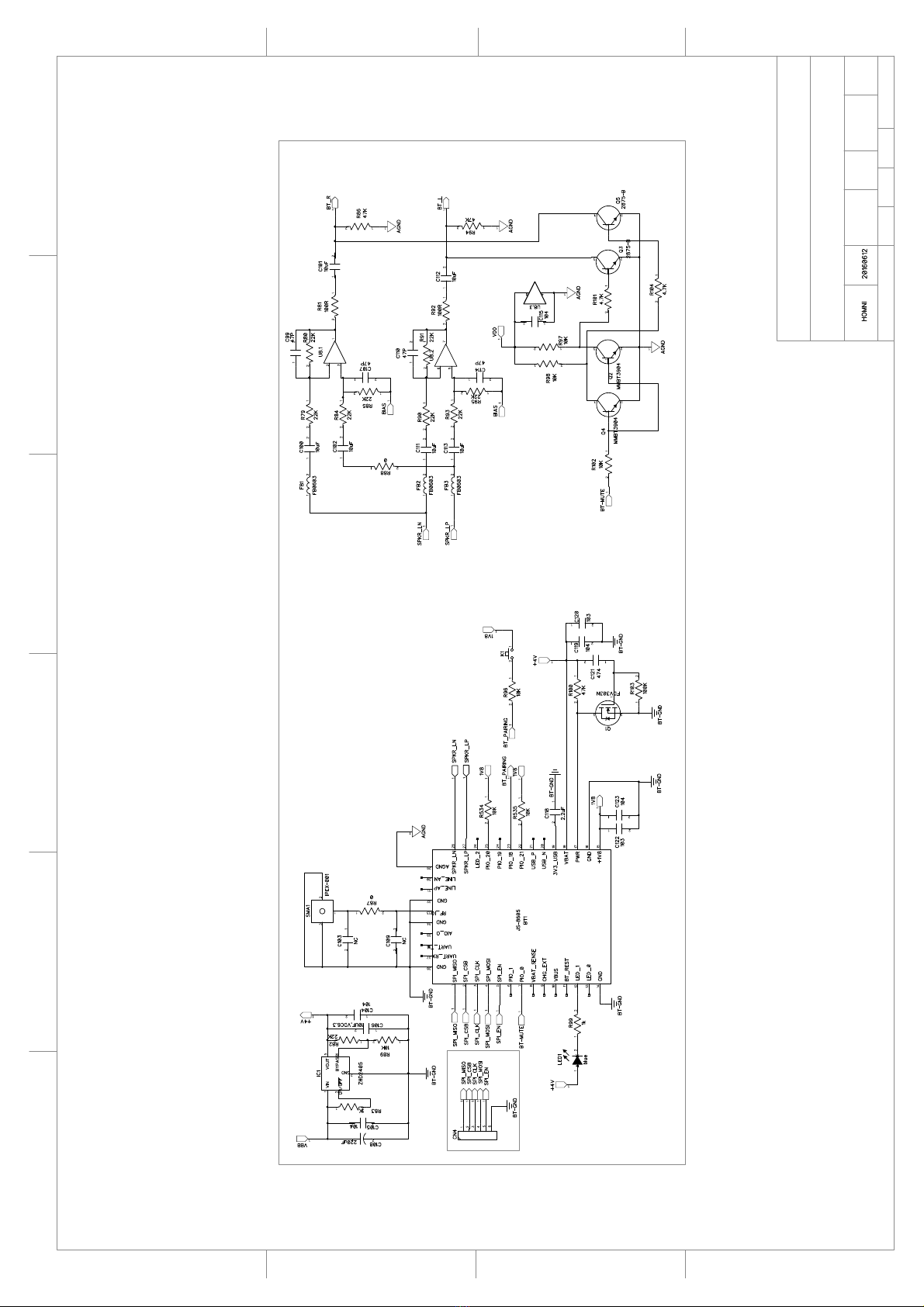

IPA73P PRE

REV:1.0 SHEET: 1 OF 5SCALE:DWG NO: PT-X-XXXXX-XX SIZE:A2

COMPANY:

TITLE:

DATED:APPROVED:CHECKED: DATED:DATED:DRAWN:

123456

MIC

AUX IN

MIC VOLUME

ECHO VOLUME

SPI

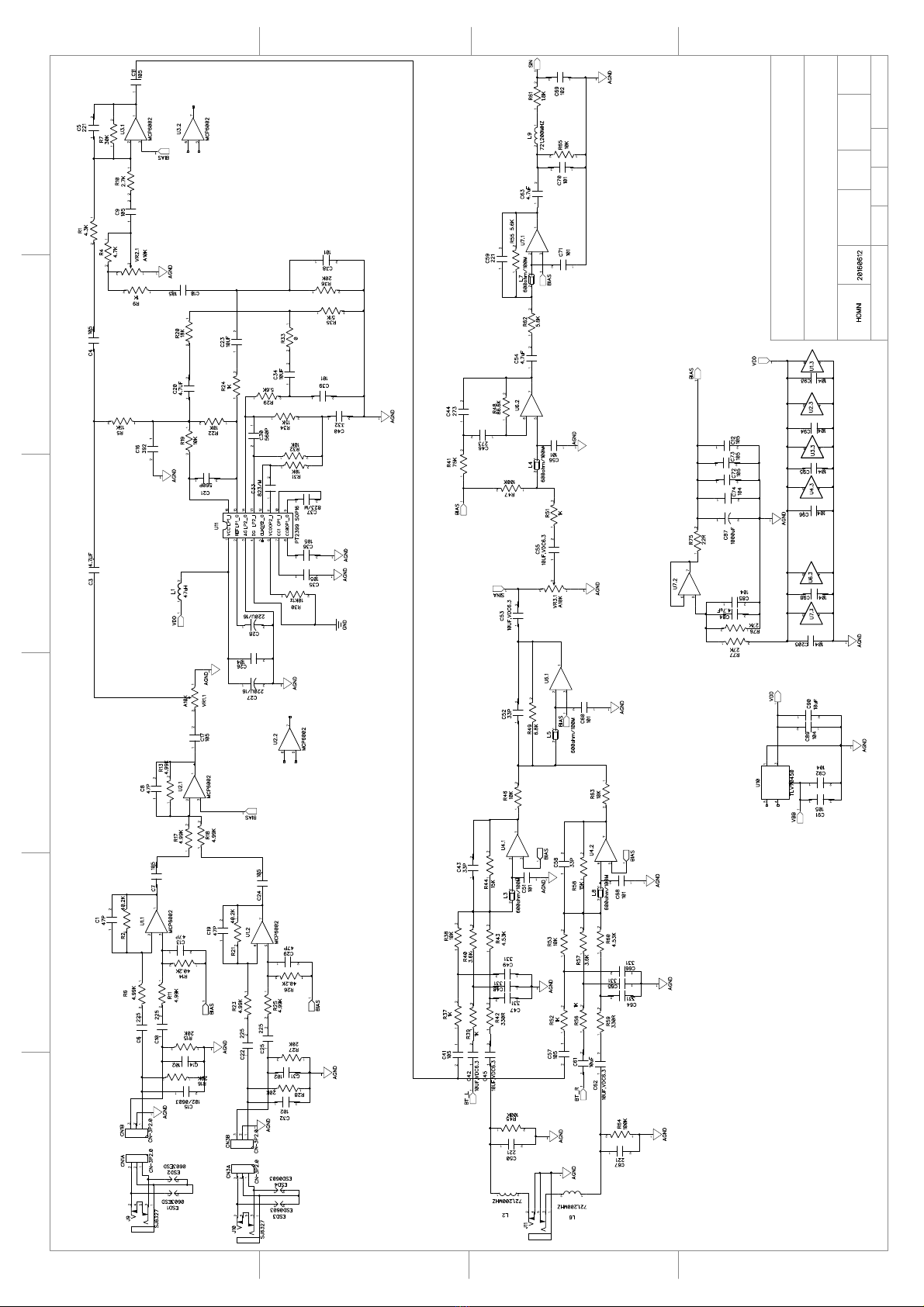

IPA73P BT

REV:1.0 SHEET: 2 OF 5SCALE:DWG NO: PT-X-XXXXX-XX SIZE:A2

COMPANY:

TITLE:

DATED:APPROVED:CHECKED: DATED:DATED:DRAWN:

123456

FROM SWITCH POWER

SPEAKER OUT

2 OHM 100W

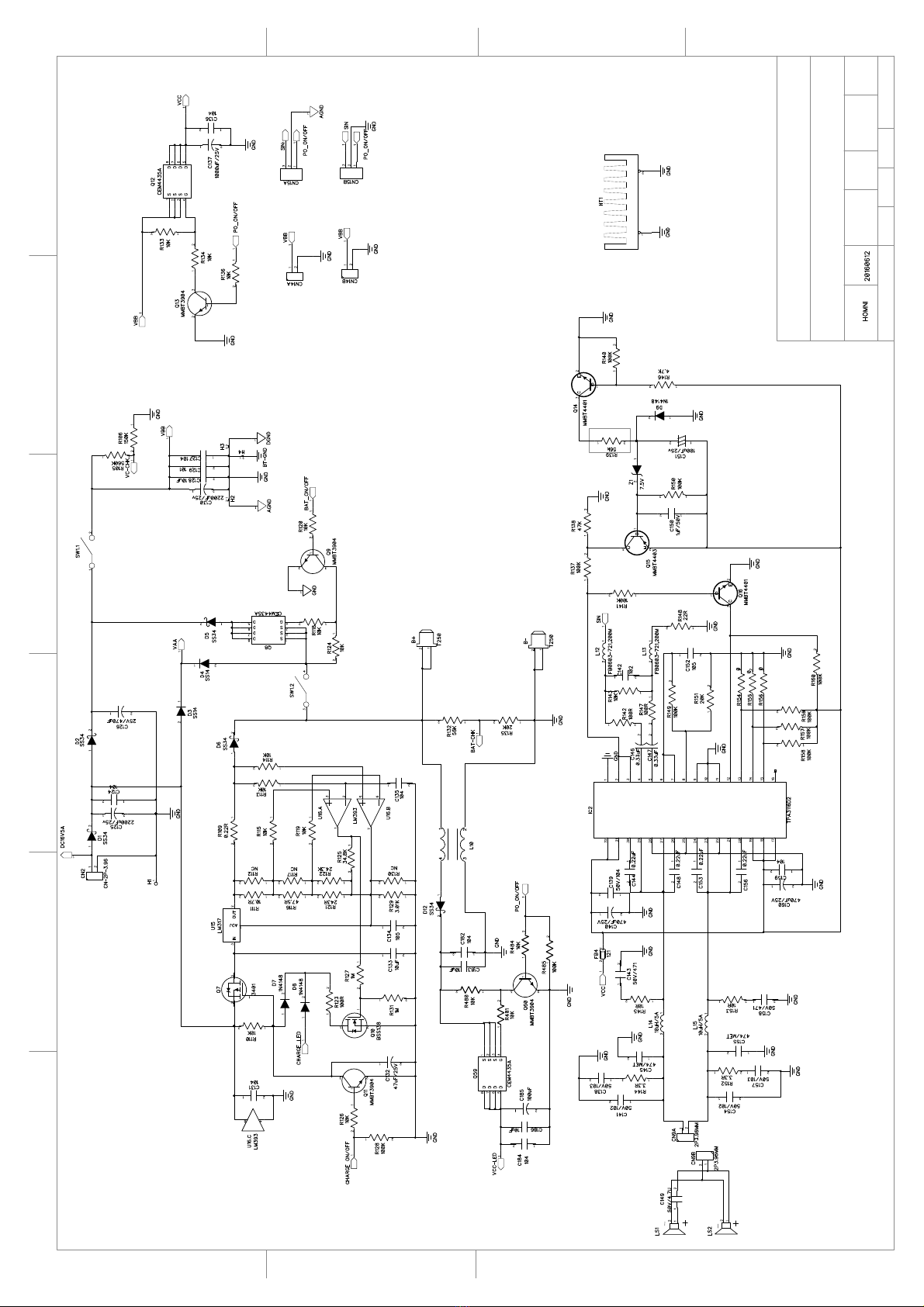

IPA73P CHARGE/AMP

6 5 4 3 2 1

DRAWN: DATED: DATED:CHECKED: APPROVED: DATED:

TITLE:

COMPANY:

SIZE:A2DWG NO: PT-X-XXXXX-XX SCALE: SHEET: 3 OF 5REV:1.0

SPEAKER OUT

2 OHM 100W

HEAT SINK

MODSEL

SDZ

FAUL TZ

INPR

INNR

PLIMIT

GVDD

GAIN/SLV

GND

INPL

INNL

MUTE

AM2

AM1

AM0

SYNCAVCC

PVCC

BSNL

OUTNL

GND

OUTPL

BSPL

GND

BSNR

OUTNR

GND

OUTPR

BSPR

PVCC

Autres manuels pour PARTY ROCKER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ION Intervenants

ION

ION BLOCK ROCKER FLASH Manuel utilisateur

ION

ION Total PA Pro Manuel utilisateur

ION

ION Adventurer ADVENTURERXUS Manuel utilisateur

ION

ION ISP16 Manuel utilisateur

ION

ION Party On Manuel utilisateur

ION

ION WATER ROCKER Manuel utilisateur

ION

ION Cornerstone Manuel utilisateur

ION

ION Block Party Ultra Manuel utilisateur

ION

ION Block Rocker iPA76A Manuel utilisateur

ION

ION Glow Rocker Manuel utilisateur

ION

ION Total PA Live Manuel utilisateur

ION

ION CENTER STAGE Manuel utilisateur

ION

ION Pickup Manuel utilisateur

ION

ION Luxe LP Manuel utilisateur

ION

ION patio mate Manuel utilisateur

ION

ION Party Bot Micro Manuel utilisateur

ION

ION Meeting Mate Manuel utilisateur

ION

ION ISP25 Manuel utilisateur

ION

ION Solar Sounds Manuel utilisateur

ION

ION Party Splash Manuel utilisateur

ION

ION Solar rocker Mode d’emploi

ION

ION Total PA Max Manuel utilisateur

ION

ION EXPLORER IPA76S Manuel utilisateur

ION

ION Party Rocker Go Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
