IOGear M1063 Manuel utilisateur

GUW2015V

PART NO. M1063

Installation

Installation Guide

Wireless USB to VGA Adapter

Table of Contents

System Requirements 4

Important Information 5

Package Contents 6

Device Overview 7

Wireless USB VGA Software Installation 9

Cable Association with the Wireless USB

Enabled PC

Connecting Wireless USB VGA Adapter 16

Wireless USB VGA Display Settings 19

Wireless USB VGA Adapter in wired mode 24

Frequently Asked Questions 25

Technical Specications 26

Limited Warranty 28

Federal Communications Commission

(FCC) Statement

Contact 30

System Requirements

- Microsoft Windows®XP 32-bit (Service Pack 2)

- Microsoft Windows®Vista®32/64-bit

- Minimum CPU requirement: 2GHz (single core), memory: 1GB*

- Wireless USB enabled PC (embedded or via Wireless USB Host Adapter)

- USB 2.0 Compliant hardware and system

- Display with VGA port (VGA cable not included)

* In order to support 720p video, minimum system requirements CPU: 2GHz (single core), RAM: 1GB.

While playing 720p video, the system should not be doing other CPU/memory/storage consuming jobs.

Important Information

Before you get started, please NOTE:

Do not place Wireless USB devices under direct sunlight or near high heat emitting devices;

Do not place Wireless USB devices near water or wet surfaces to avoid electric hazards;

Do not place Wireless USB devices on any moving or unstable surfaces.

Package Contents

1 x Wireless USB to VGA Adapter (for Monitor/TV/Projector)

1 x USB 2.0 A to mini-B Cable (3 ft.)

1 x Velcro fabric hook-and-loop fastener

1 x Power Adapter (full range)

1 x Quick Start Guide

1 x Registration / Warranty Card

1 x Installation CD (with User Manual)

132

4 5 6 7 8

Wireless VGA Adapter

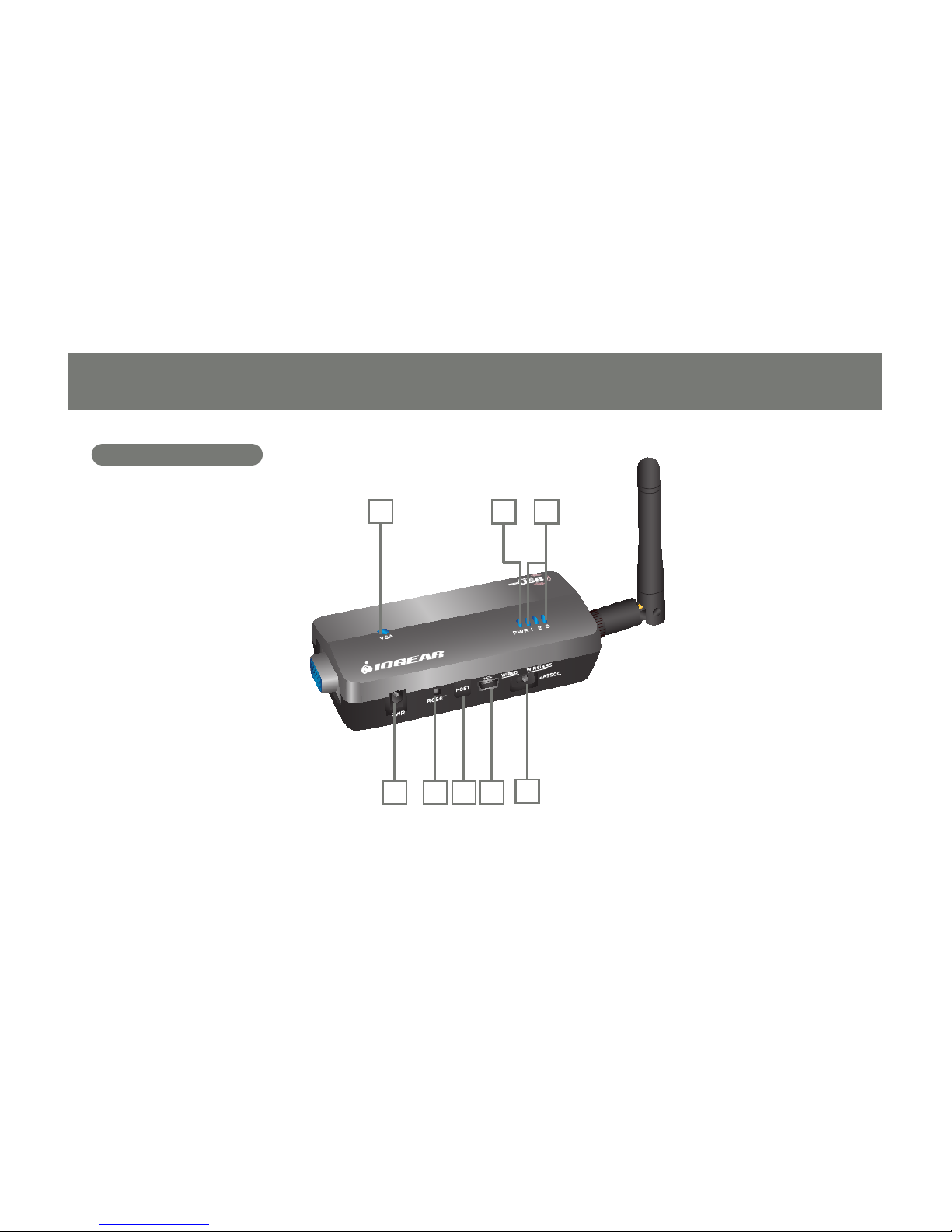

Device Overview

1. VGA : VGA Activity Indicator

LED is solid when display cable is connected

LED is blinking when data is being transferredb.

2. PWR: Power Indicator

LED is solid when power is applied

3. 1 – 2 – 3: Status Indicator

Single* solid light: device is wirelessly connected to

the selected Wireless USB Host Adapter

Single* slowly blinking light: device is searching for

a Wireless USB Host Adapter

Single* quickly blinking light: device is trying to

connect to a Wireless USB Host Adapter

Rapidly scrolling lights: device is used in wired mode

Three Simultaneous Blinking Lights: Cablee.

Association Mode

* Only one light at a time. The position of the light indicates

which Wireless USB Host Adapter the device is trying to

communicate with.

Wireless VGA Adapter

Wireless VGA Adapter 4. PWR plug

Power adapter socketa.

5. RESET

Association history can be erased by pressing and

holding this button for 10 seconds

6. HOST

This button is used to select a different Wireless

USB Host Adapter

7. USB connector

In wireless mode, this connector is used for cable

association

In wired mode, this connector is used for wired

operation

8. WIRED/WIRELESS switch

Choose from wired or wireless mode by using this

switch

Wireless USB VGA Software Installation

Please always check www.iogear.com for latest drivers.

IMPORTANT NOTE:

If installing on Windows XP, Service Pack 2 (SP2) is required, verify that this has been installed on your PC

before installing the Wireless USB VGA Adapter software.

Before installing the GUW2015V

software, please make sure that the

Wireless USB VGA Adapter is not

connected to the computer, and the

Wireless USB VGA Adapter is not

powered.

Step 1 – Insert installation CD into drive

on your computer.

Step 2 - Select “Software Installation”

from the menu.

Step 3 – Choose installation method.

The next screen will let you choose whether you want to install the latest software from the IOGEAR

website or if you want to install the software directly from the installation CD.
