IOGear M1161 Manuel utilisateur

Installation

Installation Guide

Universal Wireless-n Adapter

GWU627

PART NO. M1161

3

Table of Contents

Package Contents 4

System Requirements 5

Product Overview 6

Installation 8

Installation without WPS - Windows XP 10

Installation without WPS - Windows Vista 16

Installation without WPS - Windows 7 24

Installation without WPS - Mac 32

Manual Set Up 37

Firmware Upgrade 41

Federal Communications Commission

(FCC) Statement

46

CE Compliance 47

SJ/T 11364-2006 48

Limited Warranty 49

Contact 50

4

Package Contents

1x GWU627 client adapter•

1x USB power cable•

1x Ethernet cable•

1x Power adapter with USB port•

1x User Manual•

1x Warranty Card•

5

System Requirements

Operating System•

Windows XP, Windows Vista, Windows 7-

Mac OS X v10.4 and above-

Wireless network with WPS setup•

Wireless network without WPS setup and computer•

6

Product Overview

1. Ethernet Port The Ethernet port allows a LAN connection through Cat 5 cables.

Supports auto-sensing at 10/100M speed, half/ full duplex.

2. Mini USB Power The Mini USB cable provides power.

3. WPS Button Push and hold the WPS button for 5~10 seconds to enable the

WPS feature.

4. Reset Button Push and hold the reset button for 5~10 seconds to reset the adapt-

er to factory default settings.

1 2

3 4

7

1. Power LED On - The WLAN Broadband Router is powered on.

Off - The WLAN Broadband Router is powered off.

2. WLAN LED Flashing - WLAN is transmitting or receiving data.

Off - WLAN is off

3. WPS LED Flashing - The WPS feature is enables and in use.

Off - The WPS feature is not in use.

4. LAN LED Flashing - Data is transmitting or receiving on the LAN interface.

On - Port linked.

Off – No link.

LED Indicator State Description

1 2 3 4

8

Installation

Wireless Setup with WPS

Step 1: Power on your Universal WiFi Adapter using either of these methods:

•Connectthemini-USBcabletoadevicethatprovidesTypeAUSBconnection.Makesurethatthedevice

where you connect the USB cable is powered on.

•ConnecttheWiFiadaptertoanelectricaloutletwiththeincludedpoweradapter.

Note: It will take about 50 seconds to complete the boot-up sequence. When complete, PWR (power) LED

will be active, and the WLAN Activity LED will be blinking to show the WLAN interface is enabled.

Step 2: Use the included RJ-45 Ethernet cable to connect the WiFi adapter with your device such as

Blu-ray player, HDTV, or game console.

Step 3: Refer to your wireless router’s user manual to enable the WPS function, then press “WPS” button

on the top of WiFi adapter.

Your installation is complete. If asked for the type of connection, make sure “WIRED” is selected on your

device.

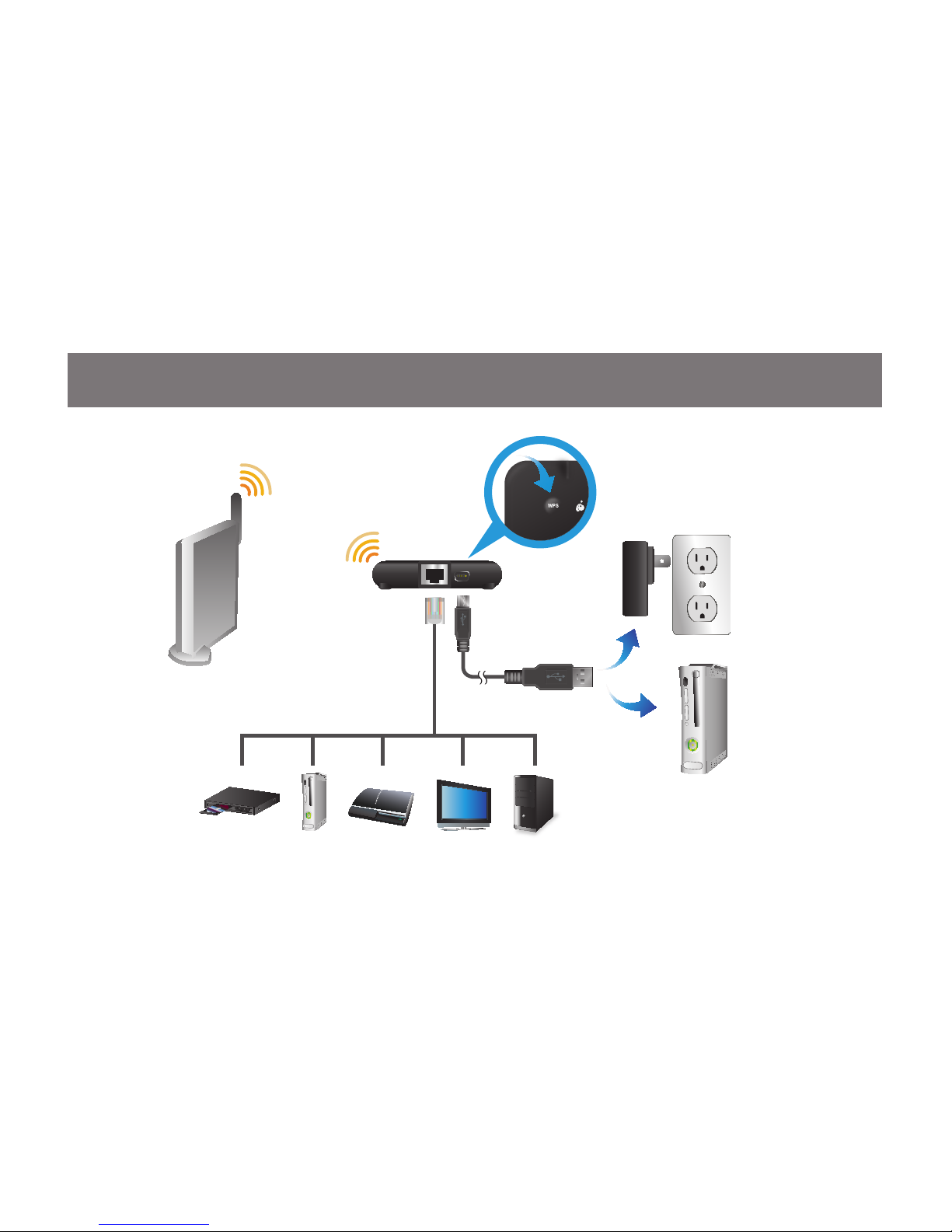

9

or

orororor

Step 1

Step 3

Step 2

10

Installation without WPS - Windows XP

Step 1: Turn off your computer’s wireless

connection (if applicable) and disconnect the

Ethernet cable currently connect to your computer

(if applicable).

Step 2: Use both the included RJ-45 Ethernet

cable and the USB cable to connect the WiFi

adapter with your computer.

Step 3: Set your computer with a static IP address.

a. Right click on “My Network Places” and select

“Properties”.
