User Manual
Wireless Mobile and PC to TV
GWAVR
PART NO. M1228
www.iogear.com
©2013 IOGEAR. All Rights Reserved. PKG-M1228
IOGEAR, the IOGEAR logo, are trademarks or registered trademarks of IOGEAR. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other brand and product names are
trademarks or registered trademarks of their respective holders. IOGEAR makes no warranty of any kind with regards to the information presented in this document. All information furnished here is for
informational purposes only and is subject to change without notice. IOGEAR assumes no responsibility for any inaccuracies or errors that may appear in this document.
3
Table of Contents
Introduction 4
Package Contents 5
System Requirements 5
Overview 6
Hardware Installation 7
Connect with Intel WiDi 11
Connect with Miracast 12
Connect with non-Miracast device (iOS/all other Android based) 16
Advance Settings 19
Specication 23
Federal Communication Commission Statement (FCC) Statement 24
Limited Warranty 25
4
Introduction
IOGEAR's GWAVR allows you to enjoy all of your personal and online content wirelessly on your big screen HDTV. Using your
smart phone, tablet or WiDi notebook you can sit back and experience your favorite movies, videos, photos, online shows and
more in full HD on your HDTV with great image, clarity and sound. In today's lifestyle of mobility and wireless, the GWAVR is the
next step in connectivity for your wireless Audio / Video entertainment.
Supports the latest WiFi technology:
•Wi-Fi Miracast - Also known as "Screen Mirroring" for Samsung devices*
Streaming Screen Capture from Wi-Fi Miracast compatible device (such as smartphone / tablet / notebook)
•Intel WiDi
Streaming Screen Capture from Intel WiDi notebook
•Works with non-Miracast Devices
Using the Free App "iMediaShare Personal" you can stream your personal photos, videos, music and more wirelessly to
your HDTV.
Note: You can also use the Free App “Flipps” to stream online videos and live content.
*Miracast / Screen Mirroring devices:
- Samsung has introduced Screen Mirroring (based on Miracast), which is incorporated into most of Samsung’s high-end
smart mobile devices including the GALAXY S III, GALAXY S IV, GALAXY Note 10.1, and GALAXY Note II
- New LG Optimus G
- New HTC One
- Google Nexus 4
- Sony Xperia T
Note:ForalistofknownMiracast-certieddevices,pleasevisit:http://www.wi-.org/wi--certied-miracast%E2%84%A2
5
Package Contents
PC / Intel® WiDi Technology:
– Intel WiDi compatible laptop with 3rd Gen Intel Core i3/i5/i7 2.0 GHz processor (CPU) and
above, and Intel WiDi Technology (Version 3.5 and higher)
– 2GB of system memory (RAM) - 3GB (RAM) recommended
– Microsoft Windows® 7 and Windows® 8.x
Wi-Fi CERTIFIED Miracast™:
– Wi-FiMiracastenabledmobiledevices-SamsungAllShareCertiedDevices
– Non-CertiedDevicesmayusetheiMediaSharePersonalfreeApp(IOS/Android)
TV:
– Flat-panel (LCD / Plasma / DLP) TV display or Projector with HDMI or DVI port (DVI
adapter not included)
– TV or audio system with HDMI
System Requirements
1 x Wireless A / V Receiver
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty/Registration Card
6
Overview
1. Power LED
This LED is lit blue when the power adapter is plugged into the USB Micro-B Port.
2. USB Type – A
This port is reserved for service and future upgrades.
3. Mode Button
Press this button twice to go from WiDi/Miracast and AirFun modes.
4. HDMI Type-A Port (Display)
Connect the HD display to this port to display an image.
5. USB Micro-B Port (Power)
Connect the power adapter to this port to supply power to the device.
Micro USB HDTV
Mode
1
2
3
4
5
7
Hardware Installation
Step 1
Connect the Power Adapter to the GWAVR’s Micro-B Port.
MicroUSBHDTV
Mode
USB
Cable Power
Adapter
HDMI Cable
Step 2
Connect the display to the GWAVR’s HDMI port using an HDMI cable.
8
Contect with Intel WiDi
Step 1
Turn on your HDTV and select the correct input source. Plug GWAVR's power adapter into the power outlet and it
will boot up in the Intel WiDi/Miracast mode and your TV will show “Ready for Connection.”
9
Step 2
With your laptop, launch the Intel WiDi software from your desktop or under the Programs menu.
10
Step 3

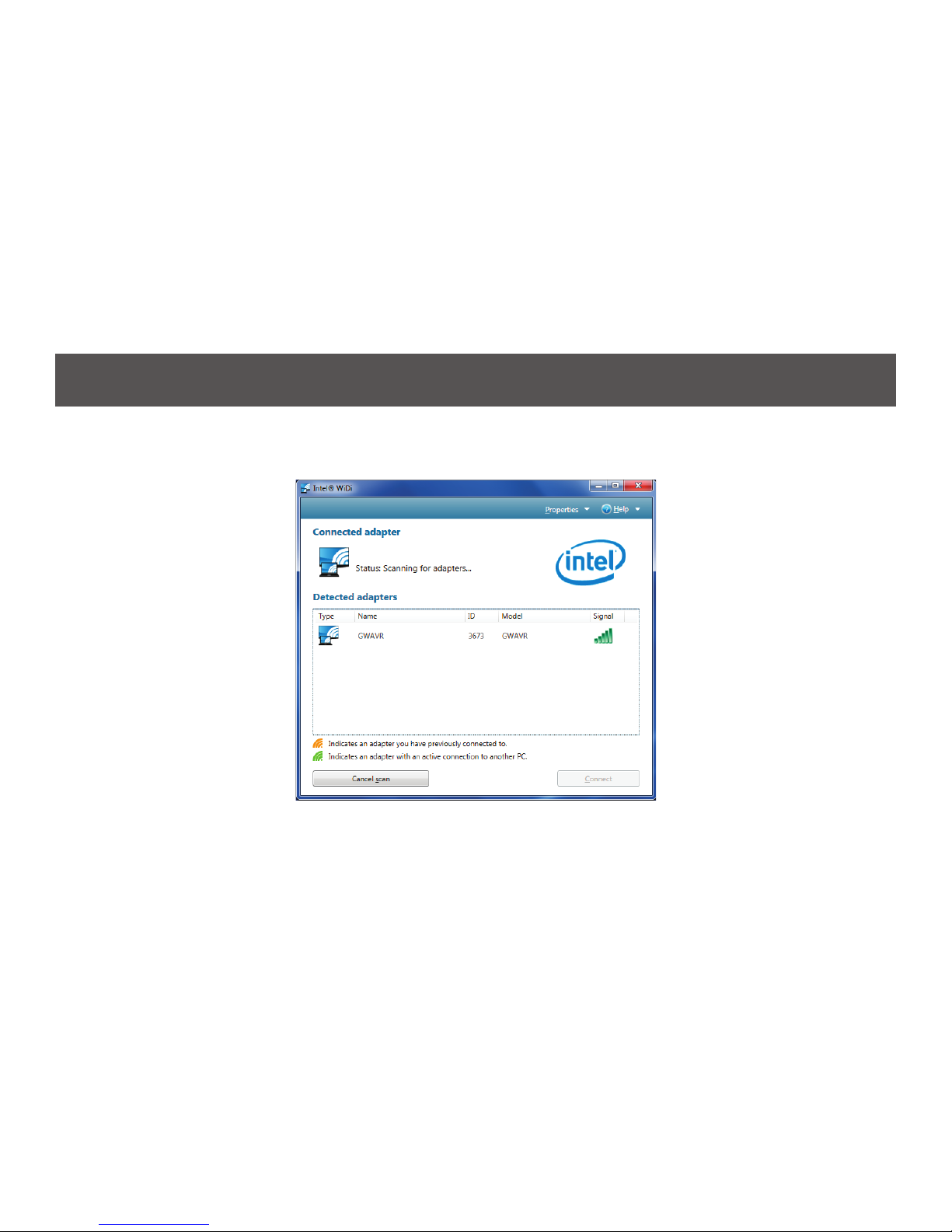

Use the Intel WiDi application to locate and connect to the GWAVR.
*To update to latest Intel WiDi version, please visit:
http://www.intel.com/support/wireless/wtech/iwd/sb/CS-031109.htm
