Interlogix TruVision 70 Manuel utilisateur

TruVision NVR 70 User

Manual

P/N 1073062-EN • REV A • ISS 15JUL15

2015 United Technologies Corporation.

Interlogix is part of UTC Building & Industrial Systems, a unit of

United

Technologies Corporation

Trademarks and patents

Trade names used in this document may be trademarks or registered trademarks of

the manufacturers or vendors of the respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

FCC compliance

Class A:

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated i

n a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

ccordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment

in a residential area is likely to cause

harmful interference in which case the user will be required to correct the

interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES

-003.

Cet appareil mumérique de la cla

sse A est conforme à la norme NMB-003 du

Canada.

ACMA compliance

Notice!

This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take adequate

measures.

Certification

N4131

EU directives

2004/108/EC (EMC directive)

: Hereby, UTC Fire & Security declares that this

device is in compliance or with the essential requirements and other relevant

provisions of Directive 2004/108/EC

2012/19/EU (WEEE directive):

Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated collect

ion points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive):

This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery

information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury

(Hg). For proper recycling, return the battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Contact information

For contact information

, see www.interlogix.com or www.utcfssecurityproducts.eu

TruVision NVR 70 User Manual 1

Content

Important information 4

Chapter 1 Product introduction 5

Product overview 5

Default settings to access the device 5

Chapter 2 Physical installation 7

Installation environment 7

Unpacking the recorder and its accessories 7

Back panel description 8

HDD slots 9

Rack mounting 9

Chapter 3 Getting started 10

Power on the recorder 10

The startup wizard 10

Chapter 4 Operating instructions 15

Control the recorder 15

Front panel description 15

Access the web browser 16

Web browser interface 17

Chapter 5 Live view 19

Web browser live view 19

Custom views 21

Digital zoom 22

Control a PTZ dome camera 22

Chapter 6 Playback functionality 26

Overview of the playback view 26

The playback control toolbar 27

Display order of cameras on screen 29

Play back a recording 29

Synchronize play back across cameras 30

Playback speed 30

Digital zoom in playback 31

Capture snapshots 31

Create bookmarks 31

Chapter 7 Searching files 33

Advanced search video menu 33

Search for motion events in playback 34

Search and play back recordings by time and video type 35

Search and play back recordings by event 36

2 TruVision NVR 70 User Manual

Search bookmarked recordings 38

Search snapshots 38

Search event logs 38

Chapter 8 Archiving files 42

Overview of archiving 42

Manually archive files 42

Automatically archive files 43

Archive video clips 43

Export video recordings via TruVision Navigator 43

Using TruVision Player 44

Watermarking 45

Chapter 9 Web browser configuration 46

Windows operating system 46

Access the web browser 47

Configure the recorder via the browser 47

Chapter 10 Camera setup 50

IP camera status 50

Import and export IP camera configuration settings 52

Camera recording settings 52

Camera OSD 54

Motion detection 55

Privacy mask 56

Camera tamper 57

Text overlay 58

V-stream encoding 59

Video analytics 59

Chapter 11 Network settings 61

Network settings 61

PPPoE settings 64

DDNS settings 64

NTP server settings 66

Email settings 66

Configure an FTP server to store snapshots 67

SNMP settings 68

Using a network storage system 68

UPnP settings 69

HTTPS settings 69

Network statistics 71

Chapter 12 Recording 72

Recording schedule 72

Auto archiving 74

Manual recording 76

Hot spare 76

TruVision NVR 70 User Manual 3

Chapter 13 Alarm and event setup 78

Set up alarm inputs 78

Set up alarm outputs 79

Manual trigger 80

Buzzer settings 80

Alarm notification 81

Detect video loss 82

Alarm host setup 83

Chapter 14 Device management 84

Time and date settings 84

General recorder settings 85

Configuration files 87

Upgrade system firmware 88

Holiday schedules 88

Text insertion 89

Chapter 15 Storage management 91

HDD information 91

Add a network storage system 92

Install HDDs 93

Storage mode 94

S.M.A.R.T. settings 96

RAID settings 97

Chapter 16 User management 100

Add a new user 100

Customize a user’s access privileges 101

Delete a user 102

Modify a user 103

Change the Admin password 103

Chapter 17 System information 104

View system information 104

Appendix A Specifications 108

Appendix B Port forwarding information 110

Seeking further assistance 110

Appendix C TruVision Mac Safari Browser Plug-in v1.0 112

Overview 112

Plug-in installation 112

Appendix D Default menu settings 115

Index 126

4 TruVision NVR 70 User Manual

Important information

Advisory messages

Advisory messages alert you to conditions or practices that can cause unwanted results. The

advisory messages used in this document are shown and described below.

WARNING: Warning messages advise you of hazards that could result in injury or loss of life.

They tell you which actions to take or to avoid in order to prevent the injury or loss of life.

Caution: Caution messages advise you of possible equipment damage. They tell you which

actions to take or to avoid in order to prevent damage.

Note: Note messages advise you of the possible loss of time or effort. They describe how to

avoid the loss. Notes are also used to point out important information that you should read.

TruVision NVR 70 User Manual

Chapter 1

Product introduction

Product overview

This recorder is a high performance network video recorder that can store, search, export and

manage video from up to 400 Mbps of incoming camera bandwidth, or up to 128 IP cameras.

There are many redundancy features to ensure system stability failure such as RAID, hot spare

mode, network redundancy, and redundant power supplies. It provides integration with the UTC

portfolio of security solutions and offers a seamless product experience within the TruVision

brand.

The recorder can fully integrate with the license-free TruVision Navigator software, which is

ideal for most commercial applications. It features an easy-to-use and intuitive web browser

interface that enables remote configuration and secure viewing, searching, and playing back of

video.

Default settings to access the device

Default user names and passwords

See Table 1 on page 6 for the list of default user names and passwords. Go to Chapter 16

“User management” on page 100 for further information.

6 TruVision NVR 70 User Manual

Table 1: Default user names and passwords

User

Description

Administrator

There can only be one administrator.

The user name is “admin”. The name cannot be modified.

The default password is 1234.

Operator

The default user name is “operator”.

The default password is 2222.

Guest

The default user name is “guest”.

The default password is 3333.

Note: The default passwords should be changed for security reasons.

Default network settings

The network settings are:

• IP address - 192.168.1.82

• Subnet mask - 255.255.255.0

• Gateway address - 192.168.1.1

• Ports:

When using the browser:

RTSP port: 554

HTTP port: 80

When using TruNav:

RTSP port: 554

Server/Client software port: 8000

Go to “Web browser” on page 46 for further information.

TruVision NVR 70 User Manual

Chapter 2

Physical installation

This section describes how to install the recorder.

Installation environment

When installing your product, consider these factors:

• Ventilation

• Temperature

• Humidity

• Chassis load

Ventilation: Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions. Ensure that the location planned for the installation of the unit is

well ventilated.

Temperature: Consider the unit’s operating temperature (-10 to +55 ºC, 14 to 131 °F) and

noncondensing humidity specifications (10 to 90%) before choosing an installation location.

Extremes of heat or cold beyond the specified operating temperature limits may reduce the life

expectancy of the recorder. Do not install the unit on top of other hot equipment. Leave 44 mm

(1.75 in.) of space between rack-mounted NVR units.

Humidity:Do not use the unit near water. Moisture can damage the internal components. To

reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

Chassis: Equipment weighing less than 15.9 kg (35 lb.) may be placed on top of the unit.

Unpacking the recorder and its accessories

When you receive the product, check the package and contents for damage, and verify that all

items are included. There is an item list included in the package. If any of the items are

damaged or missing, please contact your local supplier.

Items shipped with the product include:

1BChapter 2: Physical installation

8 TruVision NVR 70 User Manual

• AC power cords

• Recorder

• Hard drive kits

• CD with software and manuals

• TruVision NVR 70 Quick Start Guide

• TruVision NVR 70 User Manual (on CD)

• TruVision Recorder Operator Guide (on CD)

Back panel description

The figure below shows the back panel connections and describes each connector on a typical

TVN 70 network video recorder. Details may vary for specific models.

Before powering up the recorder, connect a main monitor for basic operation. Once all required

connections are done, enter the relevant data in the setup wizard (see page 10).

Note: For every hardwired alarm input, connect one wire to the input connection with the alarm

number label and one wire to a Ground connection (labeled G).

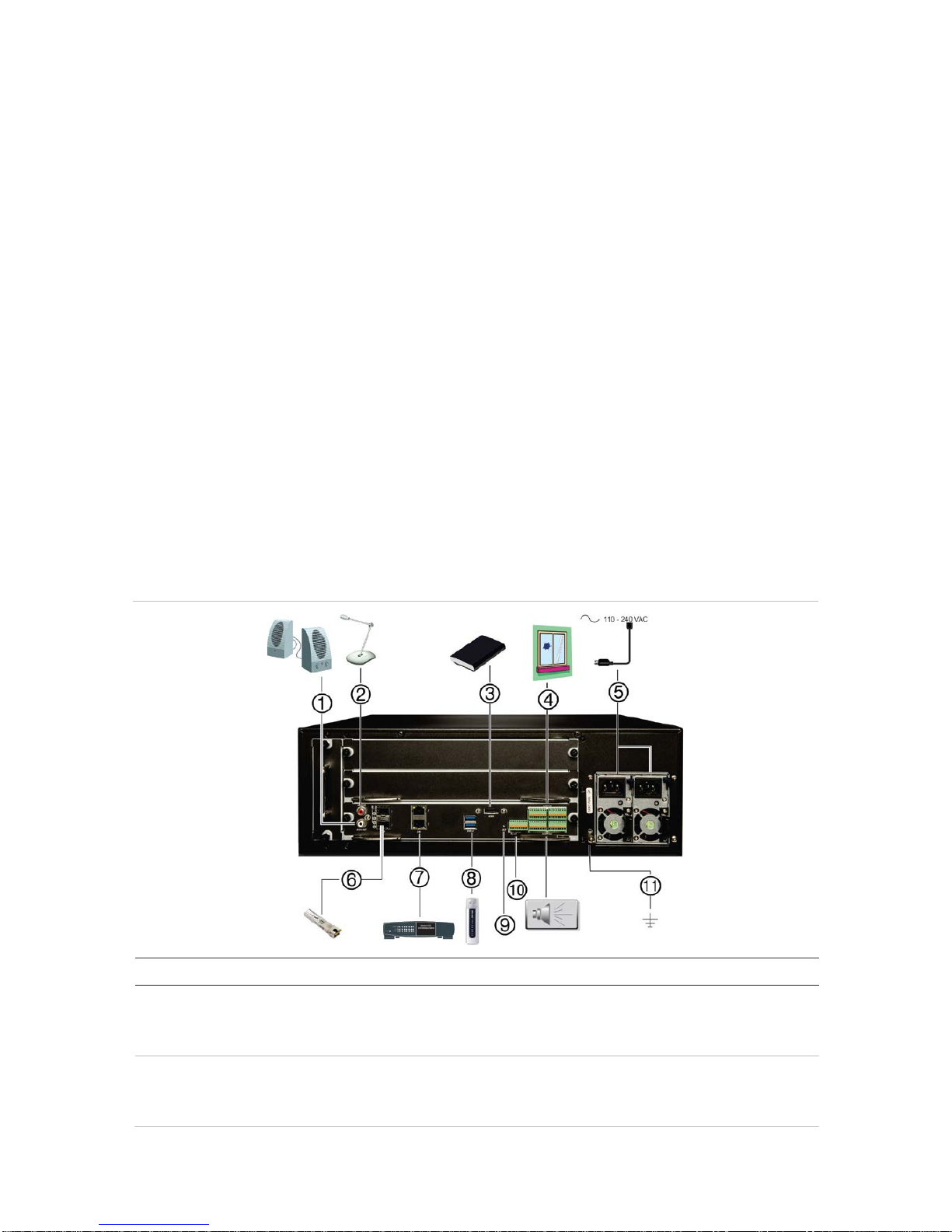

Figure 1: TVN 70 back panel connections

Description Use Specification

. One audio output Connect to speakers for audio output. RCA jack, 315mV, 600 ohms.

Unbalanced.

Line-level audio requires amplification.

. One audio input Connect a microphone for bi-directional

audio (not recorded) RCA jack, 315 mV, 40 kohms.

Unbalanced.

Line-level audio requires amplification.

Table des matières

Autres manuels Interlogix DVR

Interlogix

Interlogix truVision 11c Series Manuel utilisateur

Interlogix

Interlogix TruVision TVR-1116D-2T Manuel utilisateur

Interlogix

Interlogix TruVision DVR 42 Manuel utilisateur

Interlogix

Interlogix TruVision DVR 12 Manuel utilisateur

Interlogix

Interlogix TruVision NVR 21 Manuel utilisateur

Interlogix

Interlogix TruVision NVR 50 Manuel utilisateur

Interlogix

Interlogix TruVision DVR 40 Manuel utilisateur

Interlogix

Interlogix TruVision DVR 41 Manuel utilisateur

Interlogix

Interlogix TruVision NVR 21 Manuel utilisateur

Interlogix

Interlogix TruVision SVR Manuel utilisateur

Interlogix

Interlogix TVR 60 series Manuel utilisateur

Interlogix

Interlogix TVR 12HD Manuel utilisateur

Interlogix

Interlogix TruVision NVR 20 Manuel utilisateur

Interlogix

Interlogix TruVision DVR 44HD Manuel utilisateur

Interlogix

Interlogix TruVision DVR 15HD Manuel utilisateur

Interlogix

Interlogix truVision DVR 31 Manuel utilisateur

Interlogix

Interlogix TVR 45HD Manuel utilisateur

Interlogix

Interlogix TruVision NVR 22 Manuel utilisateur

Interlogix

Interlogix TVR 15HD Manuel utilisateur

Interlogix

Interlogix TruVision DVR 12HD Manuel utilisateur

Interlogix

Interlogix TruVision DVR 42 Manuel utilisateur

Interlogix

Interlogix TVN 11 Manuel utilisateur

Interlogix

Interlogix TruVision DVR 30 Manuel utilisateur

Interlogix

Interlogix TruVision NVR 71 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
