Intelix TDPB-2V1AD Manuel utilisateur

USER MANUAL

MODEL:

TDPB-2V1AD

Dual square table box with HDMI, VGA,

3.5mm audio, and RJ45 inputs

TDPB-2V1AD – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Products 3

3Overview 4

4Defining the TDPB-2V1AD 6

4.1 The TDPB-2V1AD Connecting Surface Unit 8

4.2 Power Socket Options 9

5Installing the TDPB-2V1AD 10

5.1 Cutting an Opening 10

5.2 Installing the Power Socket 11

5.3 Inserting the TDPB-2V1AD through the Cut-Out Opening 13

5.4 Connecting the Cables 13

6Technical Specifications 14

Figures

Figure1:TDPB-2V1ADDualsquaretableboxwithHDMI,VGA,3.5mmaudio,andRJ45inputs 4

Figure 2: Defining the Parts of the TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm audio,

andRJ45inputs 6

Figure3:TDPB-2V1ADDualsquaretableboxwithHDMI,VGA,3.5mmaudio,andRJ45inputsSideView

Figure4:TDPB-2V1ADConnectingSurface 8

Figure5:CutoutDimensions 11

Figure6:TDPB-2V1ADUniversalPowerSocketHousing 11

Figure7:Powersocketinstalled 12

TDPB-2V1AD - Introduction

1Introduction

Congratulations on purchasing the TDPB-2V1AD Dual square table box

with HDMI, VGA, 3.5mm audio, and RJ45 inputs, which is ideal for

boardrooms, conference and training rooms!

Your TDPB-2V1AD is available in two models: in black (model TDPB-

2V1AD-B) and in aluminum (model TDPB-2V1AD-A).

TDPB-2V1AD - Getting Started

2Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend high-

performance, high-resolution cables) to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight

coils

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality

Position your TDPB-2V1AD away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not place heavy objects on top of the TDPB-2V1AD.

TDPB-2V1AD - Getting Started

2.2 Recycling Products

The Waste Electrical and Electronic Equipment (WEEE) Directive

2002/96/EC aims to reduce the amount of WEEE sent for disposal to

landfill or incineration by requiring it to be collected and recycled. To

comply with the WEEE Directive, we have made arrangements with the

European Advanced Recycling Network (EARN) and will cover any costs

of treatment, recycling and recovery of waste Electronics branded

equipment on arrival at the EARN facility.

TDPB-2V1AD - Overview

3Overview

The TDPB-2V1AD is a furniture-mounted pop-up connection bus that

includes two identical pop-up connecting surfaces facing opposite

sides. The TDPB-2V1AD is easily installed into a table or podium top.

Each of the pop-up interfaces enables you to connect any equipment to

systems installed in a room, and includes the following pass-through

connectors:

1 PC on a 15-pin HD connector

1 HDMI connector

1 stereo audio on a 3.5mm connector

1 Ethernet RJ-45 connector

When not in use, you can independently lower each of the interfaces

flush into the table. The example in Figure 1 shows the TDPB-2V1AD in

a table or podium top with a universal power socket.

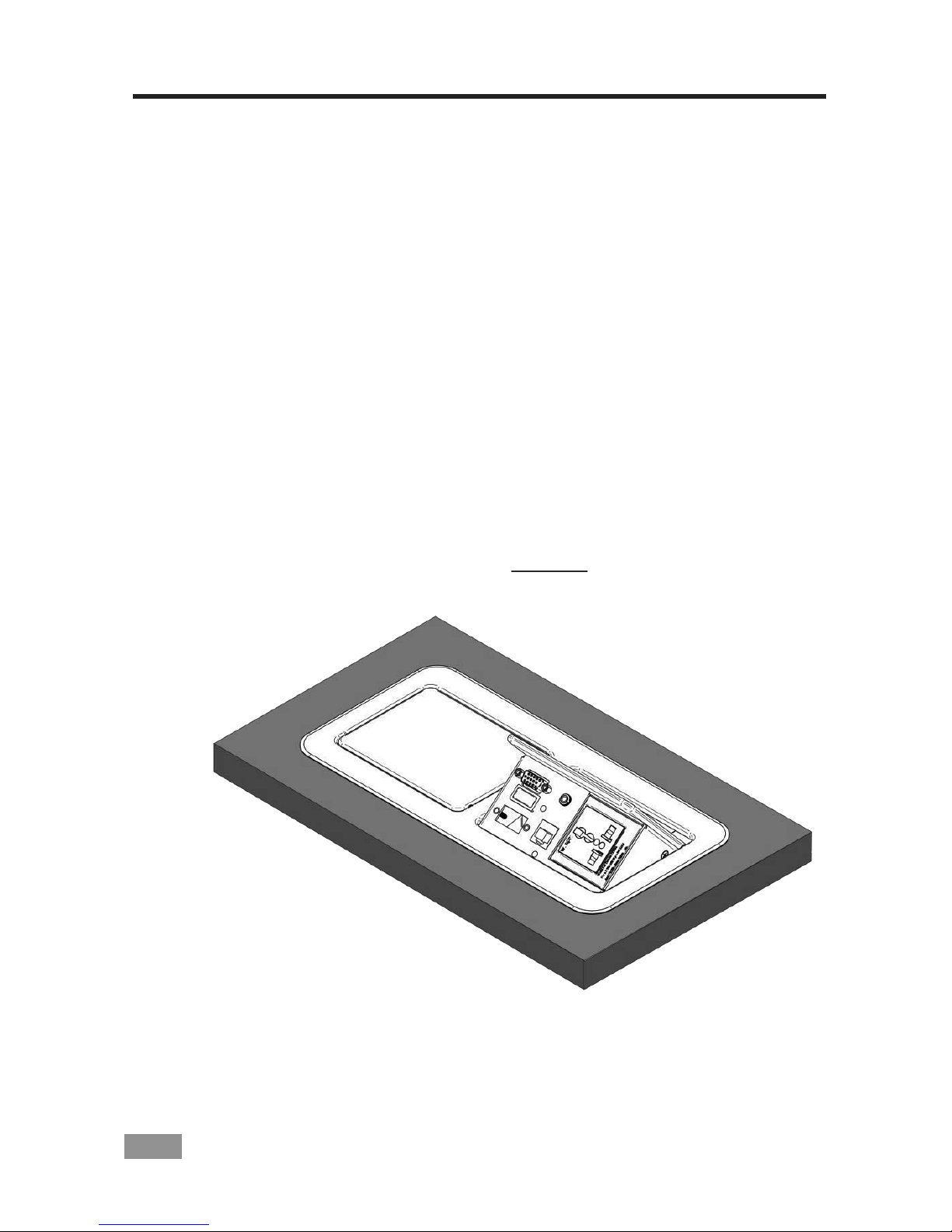

Figure 1: TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm audio, and RJ45

inputs

TDPB-2V1AD - Overview

In addition, the TDPB-2V1AD is:

Easily opened and closed by pressing down gently on the lid due to its tilting

angular construction, pneumatic lift and mechanical latching mechanism. It

can be raised (when in use) or lowered (when not in use)

TDPB-2V1AD - Defining the TDPB-2V1AD

4Defining the TDPB-2V1AD

Figure 2 and Figure 3 define the TDPB-2V1AD.

Note that both pop-up units are identical so Figure 2 and

Figure 3, as well as the following tables apply to each one

of them separately.

Figure 2: Defining the Parts of the TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm

audio, and RJ45 inputs

Feature

Function

Black anodized or brushed

anodized aluminum semi-

automatic lids

A cover for each connecting surface, leaving the table surface

neat and tidy

Connecting Surface

See Section 4.1

Outer Rim

Fits over the table surface

Power Connector Lock

Secures the power cable so it does not accidently disconnect

when opening the lid

Mounting Clamp Plates

For holding the clamps

TDPB-2V1AD - Defining the TDPB-2V1AD

Feature

Function

Mounting Clamp Slits

Insert the mounting clamps to the slits when installing the

TDPB-2V1AD

Mounting Clamps (2)

Place in the clamp slits after inserting the enclosure into the

table –for securing the unit to the table surface

Mounting Butterfly Nuts (2)

Tighten to secure the unit to the table surface

Locking Butterfly Nuts (2)

Tighten to lock the mounting butterfly screw

Mounting Screws (2)

For securing the TDPB-2V1AD to the table

Rubber Protectors (2)

To ensure soft tightening to the table underside

Figure 3: TDPB-2V1AD Dual square table box with HDMI, VGA, 3.5mm audio, and RJ45 inputs Side

View

Feature

Function

Power Socket Opening

Screw Holes (4)

For installing/replacing the power socket

Pneumatic Piston

Enables automatic lifting and smooth closing of the lid

Mini Latch

Enables the closing and opening of the lid by slightly pressing it
