Intel® Desktop Board

DP67DE

Specification Update

December 2011

Part Number: G24290-003

The Intel®Desktop Board DP67DE may contain design defects or errors known as errata, which may cause the product to deviate

from published specifications. Current characterized errata are documented in this Specification Update.

2 Intel Desktop Board DP67DE Specification Update

Revision History

Revision Revision History Date

-001 This document is the first Specification Update for the Intel®Desktop

Board DP67DE January 2011

-002 Update to the General Information Section April 2011

-003 PCI cards December 2011

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT

INTENDED FOR USE IN MEDICAL, LIFE SAVING, LIFE SUSTAINING APPLICATIONS.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”

or “undefined”. Intel reserves these for future definition and shall have no responsibility whatsoever for

conflicts or incompatibilities arising from future changes to them.

The Intel®Desktop Board DP67DE may contain design defects or errors known as errata which may cause

the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your

product order.

Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

Intel Desktop Board DP67DE Specification Update 3

Contents

Specification Update for the Intel®Desktop Board DP67DE......4

Terminology ............................................................................................ 5

General Information .................................................................................5

Summary of Changes ............................................................................... 6

Errata.....................................................................................................6

4 Intel Desktop Board DP67DE Specification Update

Specification Update for the

Intel®Desktop Board DP67DE

This document is an update to the specifications contained in the Intel®Desktop Board

DP67DE Technical Product Specification (Order Number: G14698). It is intended for

hardware system manufacturers and software developers of applications, operating

systems, or tools. It will contain Specification Changes, Errata, Specification

Clarifications, and Documentation Changes.

Refer to the 2nd Generation Intel®Core™ Processor Family Specification Update

(Order Number: 457991) for specification updates concerning the 2nd Generation

Intel®Core™ Processor Family that may apply to the desktop board DP67DE. Unless

otherwise noted in this document, it should be assumed that any Processor errata for a

given stepping are applicable to the Altered Assembly (AA) revision(s) associated with

that stepping.

Refer to the Intel®6 Series Chipset and Intel®C200 Series Chipset Specification

Update (Order Number: 440377) for specification updates concerning the Intel®P67

Express Chipset that may apply to the desktop board DP67DE. Unless otherwise noted

in this document, it should be assumed that any Platform Controller Hub errata for a

given stepping are applicable to the Altered Assembly (AA) revision(s) associated with

that stepping.

Intel Desktop Board DP67DE Specification Update 5

Terminology

Specification Changes are modifications to the current published specifications.

These changes will be incorporated in the next release of the specifications.

Errata are design defects or errors. Characterized errata may cause the desktop

board behavior to deviate from published specifications. Hardware and software

designed to be used with any given Altered Assembly (AA) and BIOS revision level

must assume that all errata documented for that AA and BIOS revision level are

present on all desktop boards.

Specification Clarifications describe a specification in greater detail or further

highlight a specification’s impact to a complex design situation. These clarifications

will be incorporated in the next release of the specifications.

Documentation Changes include typos, errors, or omissions from the current

published specifications. These changes will be incorporated in the next release of the

specifications.

General Information

Basic Desktop Board DP67DE Identification Information

AA Revision BIOS Revision Notes

G10217-203 BAP6710H.86A.0031 1,2

G10217-204 BAP6710H.86A.0031 1,2

G10217-300 BAP6710H.86A.0055 1,2

G10217-301 BAP6710H.86A.0055 1,2

G10217-302 BAP6710H.86A.0055 1,2

G10217-303 BAP6710H.86A.0070 1,2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The Intel®82P67 PCH Express Chipset used on this AA revision consists of the following component:

Device Stepping S-Spec Numbers

82P67 Platform Controller

Hub (PCH) B2 SLH84

82P67 Platform Controller

Hub (PCH) B3 SLJ4C

6 Intel Desktop Board DP67DE Specification Update

Summary of Changes

The following table indicates the Specification Changes, Errata, Specification

Clarifications, or Documentation Changes that apply to the Intel®Desktop Board

DP67DE. Intel intends to fix some of the errata in a future revision of the desktop

board, and to account for the other outstanding issues through documentation or

specification changes as noted.

The following notations are used in the table:

Doc: Document change or update that will be implemented.

Plan Fix: This erratum may be fixed in a future revision of the desktop board, driver, or BIOS.

Fixed: This erratum has been previously fixed.

No Fix: There are no plans to fix this erratum.

Shaded: This erratum is either new or modified from the previous version of the document.

No. Plans Errata

1 Plan Fix PCI cards

Errata

1. PCI cards that utilize a PCI Express* to PCI bridge component may

not work with Intel®Desktop Boards based on the Intel®6 Series

Chipset.

Problem: Intel®Desktop Boards DP67DE, DP67BA, DZ68DB, DH67BL, DH67GD,

DH67CL, DH61SA, DH61CR, DH61BE, and DH61WW do not support PCI add

in cards that utilize a PCI Express to PCI bridge component. A resource

conflict between the affected board and the PCI Express to PCI bridge

component included in some PCI card designs (usually video cards, and

digital video capture cards) results in the PCI card not being recognized by

BIOS and not functioning.

Implication: PCI cards utilizing a PCI Express to PCI bridge chip will not be recognized or

function when plugged into any PCI slot on the affected Intel Desktop

boards.

PCI cards that do not include a PCI Express to PCI bridge chip will operate

normally.

Workaround: None.

Status: This problem may be fixed on future releases of these Intel Desktop Board

products.

Autres manuels pour DP67DE

Table des matières

Autres manuels Intel Carte mère

Intel

Intel DG31PR - Desktop Board Classic Series... Manuel technique

Intel

Intel DP67BG Manuel utilisateur

Intel

Intel D845GBV Manuel technique

Intel

Intel H67 Manuel utilisateur

Intel

Intel BOXD2700MUD Manuel utilisateur

Intel

Intel DP55KG - Desktop Board Extreme Series... Guide de référence

Intel

Intel DH61AG Manuel utilisateur

Intel

Intel DZ77GA-70K Manuel utilisateur

Intel

Intel DP55WB - Media Series P55 micro-ATX Core i7 i5 LGA1156 Desktop... Manuel utilisateur

Intel

Intel DP67DE Manuel utilisateur

Intel

Intel DB43LD Manuel utilisateur

Intel

Intel D845EBG2 - Desktop Board Motherboard Manuel utilisateur

Intel

Intel S2600KPFR Instructions d'installation

Intel

Intel BOXD945PSNLK Manuel utilisateur

Intel

Intel BOXDB43LD - B43 Chipset Executive Series Manuel utilisateur

Intel

Intel EMB-H61A Manuel utilisateur

Intel

Intel D865PERL Manuel utilisateur

Intel

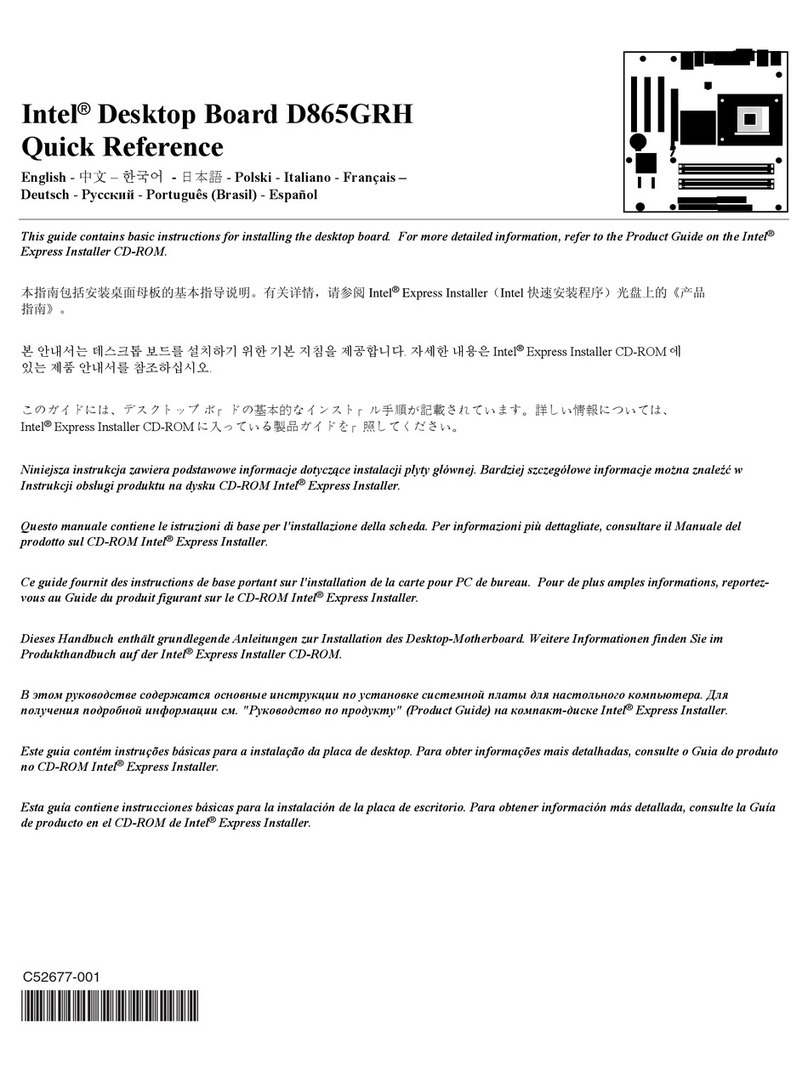

Intel D865GRH Manuel utilisateur
