Intel® Desktop Board

DP43BFL

Specification Update

December 2010

Order Number: E92424-005US

The Intel®Desktop Board DP43BFL may contain design defects or errors known as errata, which may cause the product to deviate

from published specifications. Current characterized errata are documented in this Specification Update.

2 Intel Desktop Board DP43BFL Specification Update

Revision History

Revision Revision History Date

-001 This document is the first Specification Update for the Intel®Desktop

Board DP43BFL April 2010

-002 Updated the Specification Changes section May 2010

-003 Updated the General Information section July 2010

-004 Updated the Specification Changes section Ausust 2010

-005 Updated the General Information Section December 2010

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT

INTENDED FOR USE IN MEDICAL, LIFE SAVING, LIFE SUSTAINING APPLICATIONS.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”

or “undefined”. Intel reserves these for future definition and shall have no responsibility whatsoever for

conflicts or incompatibilities arising from future changes to them.

The Intel®Desktop Board DP43BFL may contain design defects or errors known as errata which may cause

the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your

product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel

literature, may be obtained from:

Intel Corporation

P.O. Box 5937

Denver, CO 80217-9808

or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777,

Germany 44-0-1793-421-333, other Countries 708-296-9333

Intel, the Intel logo, Pentium, Core, and Celeron are registered trademarks of Intel Corporation in the U.S.

and other countries.

* Other names and brands may be claimed as the property of others.

Intel Desktop Board DP43BFL Specification Update 3

Contents

Specfication Update for the Intel®Desktop Board DP43BFL

Terminology ............................................................................................ 5

General Information .................................................................................5

Summary of Changes ............................................................................... 6

4 Intel Desktop Board DP43BFL Specification Update

Specfication Update for the

Intel®Desktop Board DP43BFL

This document is an update to the specifications contained in the Intel®Desktop Board

DP43BFL Technical Product Specification (Order Number: E90027). It is intended for

hardware system manufacturers and software developers of applications, operating

systems, or tools. It will contain Specification Changes, Errata, Specification

Clarifications, and Documentation Changes.

For specification updates concerning the Intel processor that apply to this desktop

board, refer to the following:

•Intel®Core™2 Quad Processor Q9000 Series Specification Update (Order Number:

318727)

•Intel®Core™2 Quad Desktop Processor Q6600 Specification Update (Order

Number: 315593)

•Intel®Core™2 Duo Processor E8000 and E7000 Series Specification Update (Order

Number: 318733)

•Intel®Core™2 Duo Desktop Processor E6000ΔSequence Specification Update

(Order Number: 313279)

•Intel®Pentium®Dual-Core Desktop Processor E2000ΔSequence on 65nm Update

(Order Number: 316982)

•Intel®Celeron®Processor 400ΔSequence on 65 nm Process Specification Update

(Order Number: 316964)

Unless otherwise noted in this document, it should be assumed that any processor

errata for a given stepping are applicable to the Altered Assembly (AA) revision(s)

associated with that stepping.

Refer to the Intel®4 Series Express Chipset Family Specification Update (Order

Number 319971) for specification updates concerning the 82P43 MCH Controller and

that may apply to the desktop board DP43BFL. Unless otherwise noted in this

document, it should be assumed that any MCH errata for a given stepping are

applicable to the Altered Assembly (AA) revision(s) associated with that stepping.

Refer to the Intel®I/O Controller Hub10 (ICH10) Family Specification Update (Order

Number 319974) for specification updates concerning the 82801JIB I/O Controller Hub

and that may apply to the desktop board DP43BFL. Unless otherwise noted in this

document, it should be assumed that any ICH10 errata for a given stepping are

applicable to the Altered Assembly (AA) revision(s) associated with that stepping.

Intel Desktop Board DP43BFL Specification Update 5

Terminology

Specification Changes are modifications to the current published specifications.

These changes will be incorporated in the next release of the specifications.

Errata are design defects or errors. Characterized errata may cause the desktop

board behavior to deviate from published specifications. Hardware and software

designed to be used with any given Altered Assembly (AA) and BIOS revision level

must assume that all errata documented for that AA and BIOS revision level are

present on all desktop boards.

Specification Clarifications describe a specification in greater detail or further

highlight a specification’s impact to a complex design situation. These clarifications

will be incorporated in the next release of the specifications.

Documentation Changes include typos, errors, or omissions from the current

published specifications. These changes will be incorporated in the next release of the

specifications.

General Information

Basic Desktop Board DP43BFL Identification Information

AA Revision BIOS Revision Notes

E80808-301 RKG4310H.86A.0070 1,2

E80808-302 RKG4310H.86A.0079 1,2

E80808-303 RKG4310H.86A.0082 1,2

E80808-304 RKG4310H.86A.0085 1,2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The 4 Series Chipset kit used on this AA revision consists of two components as follows:

Device Stepping S-Spec Numbers

P43 MCH A2 SLB89

ICH10 AA3 SLB8R

6 Intel Desktop Board DP43BFL Specification Update

Summary of Changes

The following table indicates the Specification Changes, Errata, Specification

Clarifications, or Documentation Changes that apply to the Intel®Desktop Board

DP43BFL. Intel intends to fix some of the errata in a future revision of the desktop

board, and to account for the other outstanding issues through documentation or

specification changes as noted.

The following notations are used in the table:

Doc: Document change or update that will be implemented.

Plan Fix: This erratum may be fixed in a future revision of the desktop board, driver, or BIOS.

Fixed: This erratum has been previously fixed.

No Fix: There are no plans to fix this erratum.

Shaded: This erratum is either new or modified from the previous version of the document.

No. Plans Specification Changes

1 Doc Updated Section 2.7 Reliability to include new MTBF calculations.

2 Doc Updated Section 1.5 Memory to correct memory voltage.

No. Plans Errata

There are no characterized erratum for this product

Specification Changes

The Specification Changes listed in this section apply to the Intel®Desktop Board

DP43BFL Technical Product Specification (Order Number E90027).

1. Updated Section 2.7 Reliability to include new MTBF calculations.

2.7 Reliability

The Mean Time Between Failures (MTBF) prediction is calculated using component and

subassembly random failure rates. The calculation is based on the Telcordia SR-332,

Method I Case 1 50% electrical stress, 55 ºC ambient. The MTBF prediction is used to

estimate repair rates and spare parts requirements.

The MTBF data is calculated from predicted data at 55 ºC. The Intel Desktop Board

DP43BFL MTBF is 260,139.86 hours.

Intel Desktop Board DP43BFL Specification Update 7

2. Updated Section 1.5 Memory to correct memory voltage.

1.5 System Memory

The board has four DIMM sockets and supports the following memory features:

•1.5 V DDR3 800 MHz, DDR3 1066 MHz, and DDR3 1333 (OC) MHz SDRAM DIMMs

•Two independent memory channels with interleaved mode support

•Unbuffered, single-sided or double-sided DIMMs with the following restriction:

Double-sided DIMMs with x16 organization are not supported.

•8 GB maximum total system memory (with 2 Gb memory technology). Refer to

Section 2.1.1 on page 37 for information on the total amount of addressable

memory.

•Minimum total system memory: 512 MB

•Non-ECC DIMMs

•Serial Presence Detect

8 Intel Desktop Board DP43BFL Specification Update

Autres manuels pour DP43BF

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Carte mère

Intel

Intel WX58BP - Workstation Board Motherboard Manuel utilisateur

Intel

Intel BLKDG41KR Manuel utilisateur

Intel

Intel D865PERL Manuel utilisateur

Intel

Intel DZ68AF Manuel utilisateur

Intel

Intel DB65AL Manuel utilisateur

Intel

Intel D945GRW - Desktop Board Motherboard Manuel utilisateur

Intel

Intel BLKDG41RQ - Bulk Single Uatx G41 Exp Chip Manuel utilisateur

Intel

Intel D925XHY Manuel utilisateur

Intel

Intel D955XBK Manuel utilisateur

Intel

Intel 945GC Manuel utilisateur

Intel

Intel Desktop Board D915PCM Manuel utilisateur

Intel

Intel DP67DE Manuel utilisateur

Intel

Intel D955XBK Manuel utilisateur

Intel

Intel BLKDG45FC Guide de configuration

Intel

Intel DQ965WC Manuel utilisateur

Intel

Intel D946GZTS - Desktop Board Motherboard Manuel utilisateur

Intel

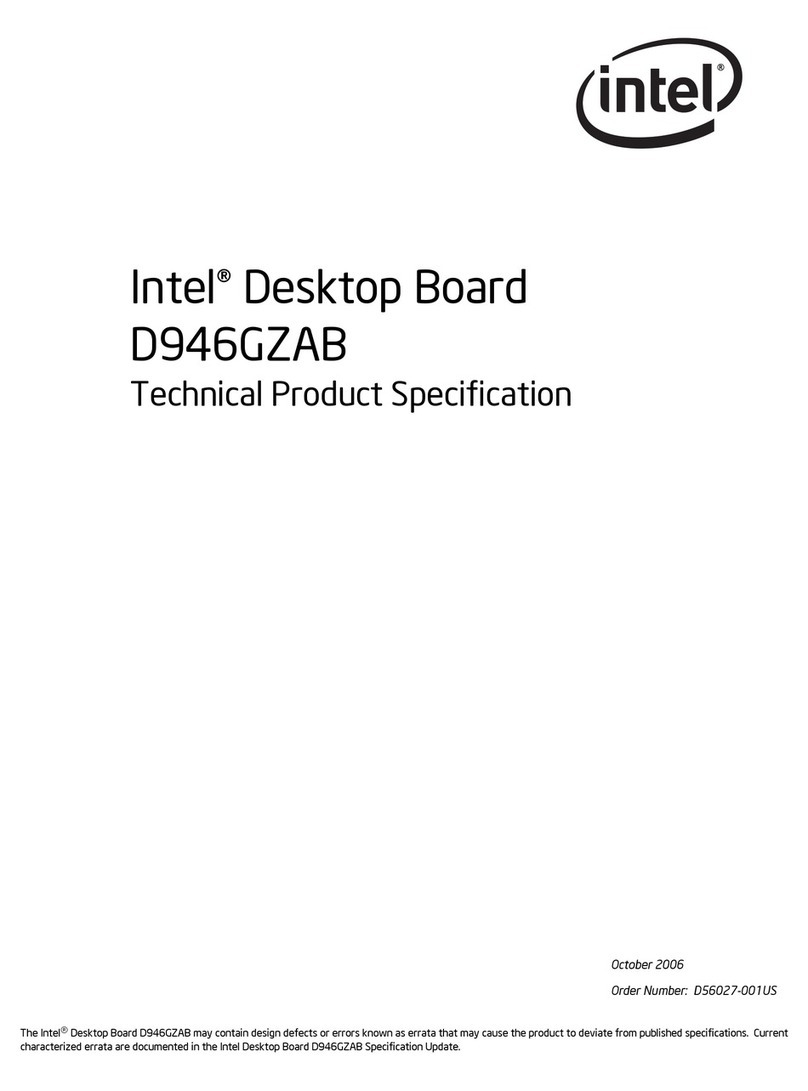

Intel BLKD946GZABL Guide de configuration
