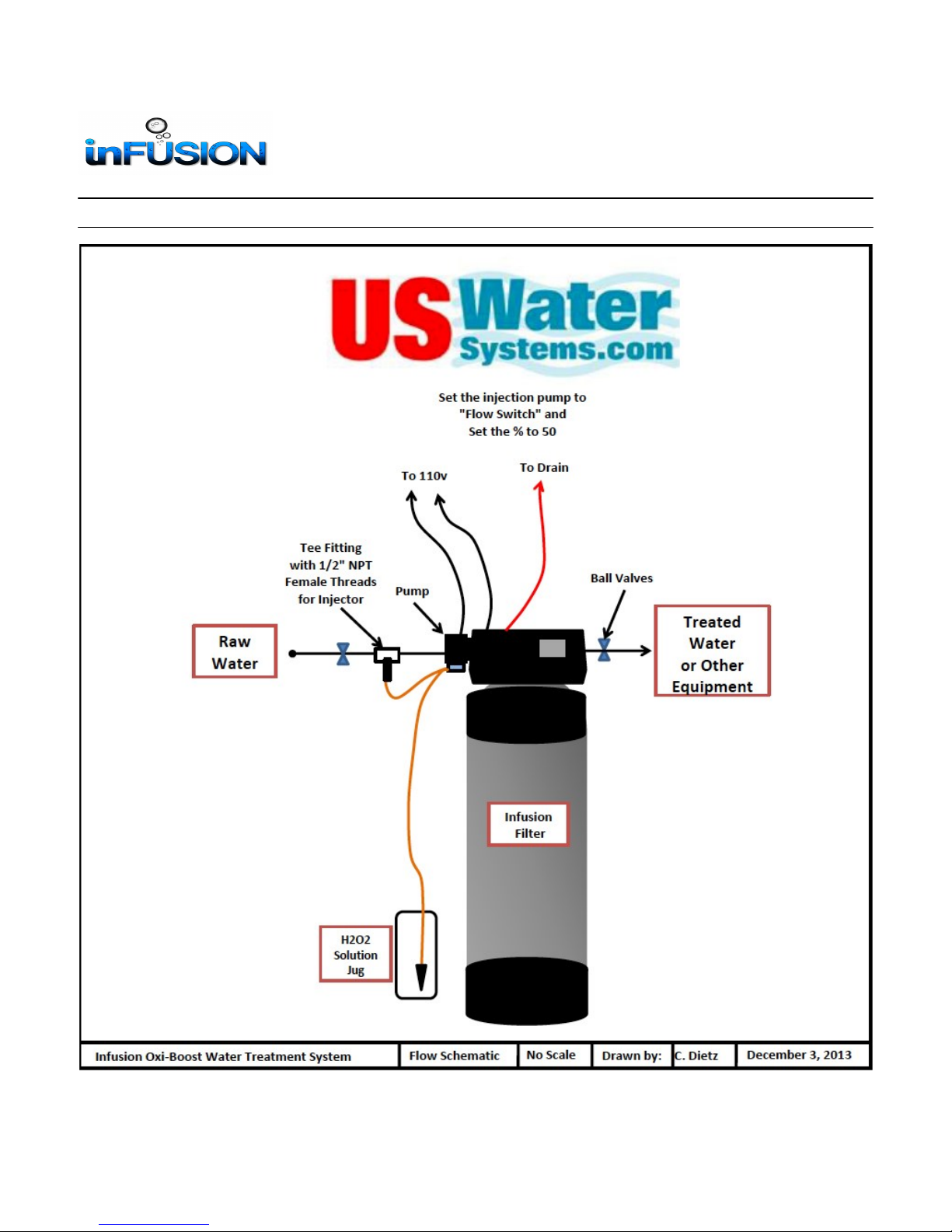

Infusion Tank Installation Instructions
WATER PRESSURE: A minimum of 20 pounds of water pressure is required for regeneration valve to oper-
ate effectively.
ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Note: Other
voltages are available. Please make sure your voltage supply is compatible with your unit before in-
stallation.
EXISTING PLUMBING: Condition of existing plumbing should be free from lime and iron buildup. Piping
that is built up heavily with lime and/or iron should be replaced.
LOCATION OF INFUSION TANK AND DRAIN: The Infusion tank should be located close to a drain to pre-
vent air breaks and back flow.

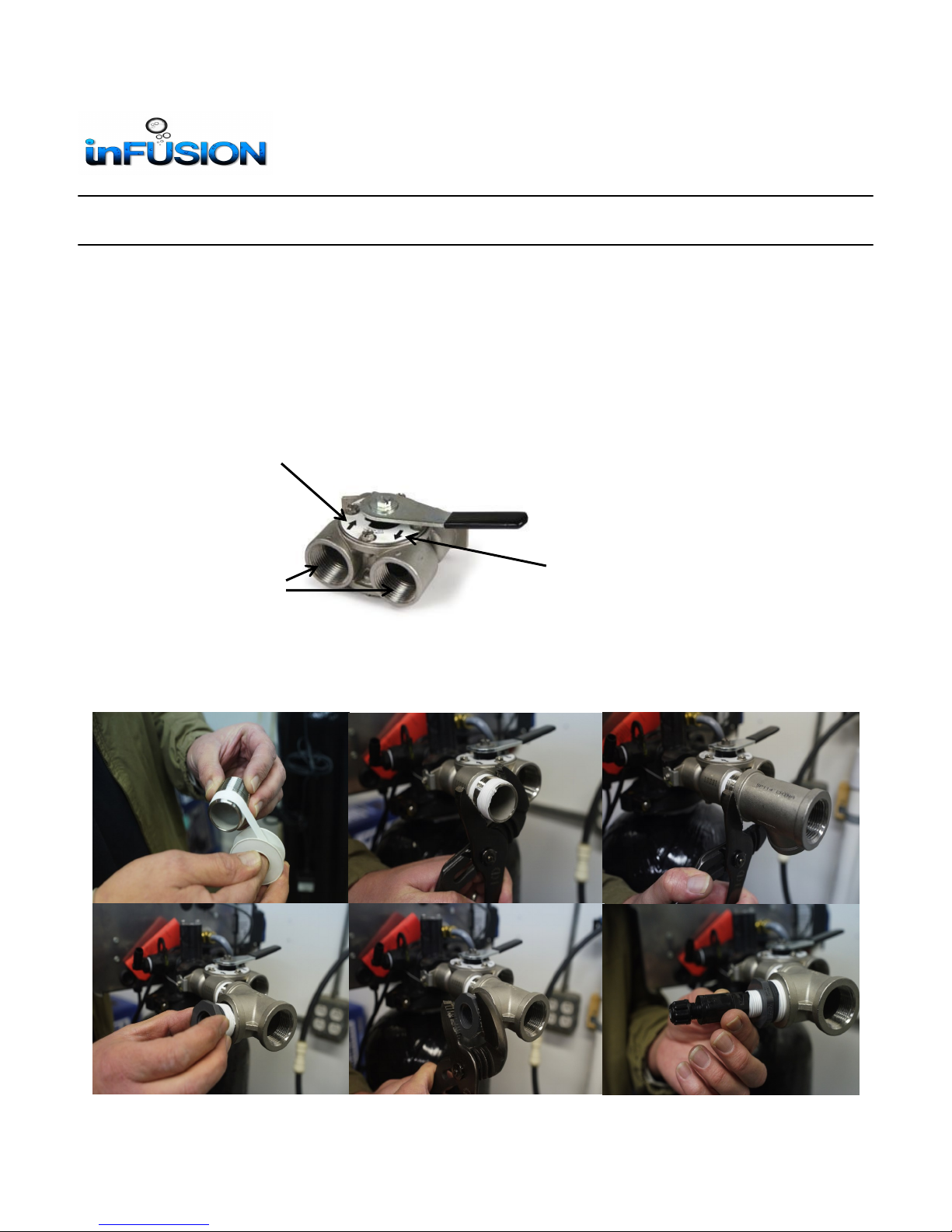

BY-PASS VALVES: Always provide for the installation of a by-pass valve if unit is not equipped with one.
CAUTION: Water pressure is not to exceed 80 psi, water temperature is not to exceed 110°F (43°C), and the
unit cannot be subjected to freezing conditions.

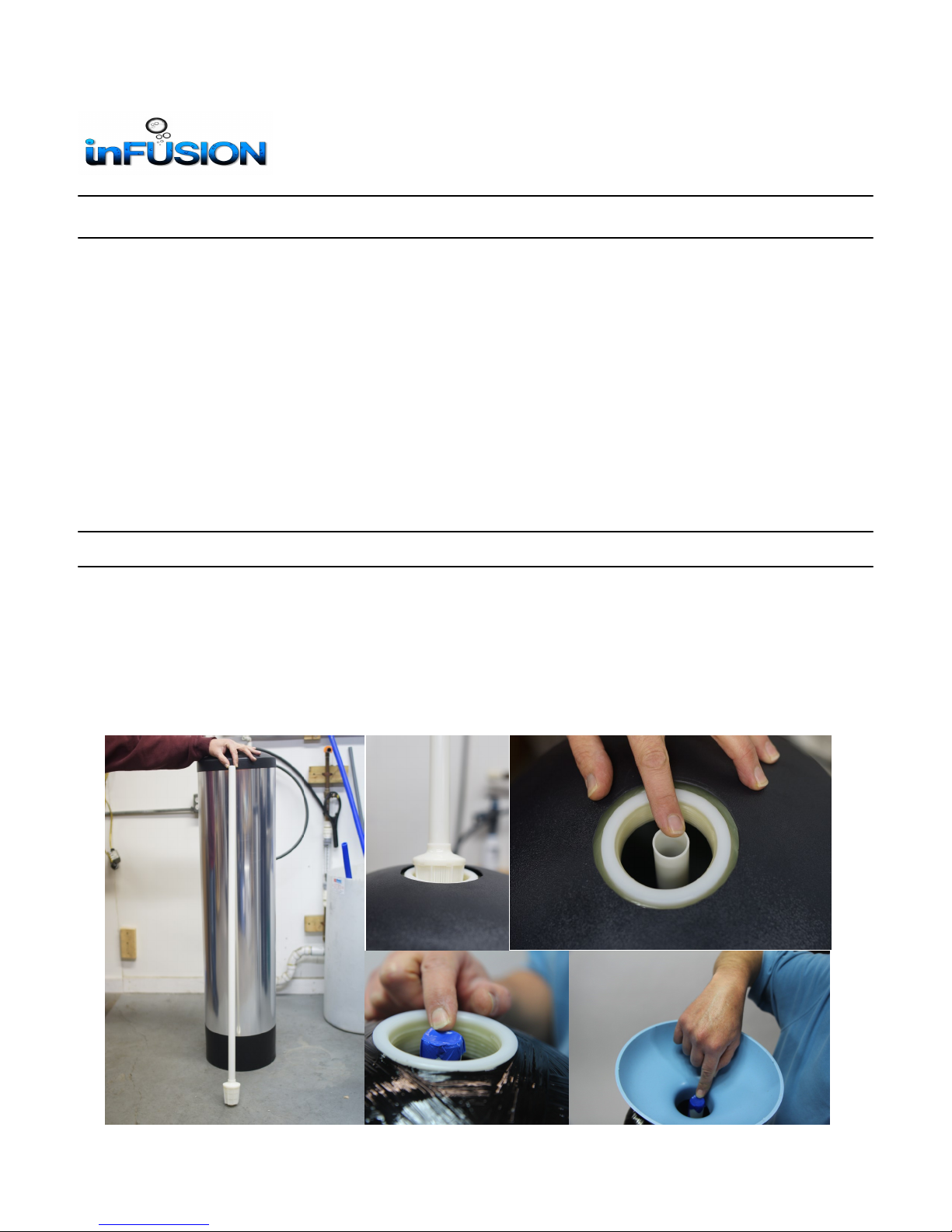

Media Installation

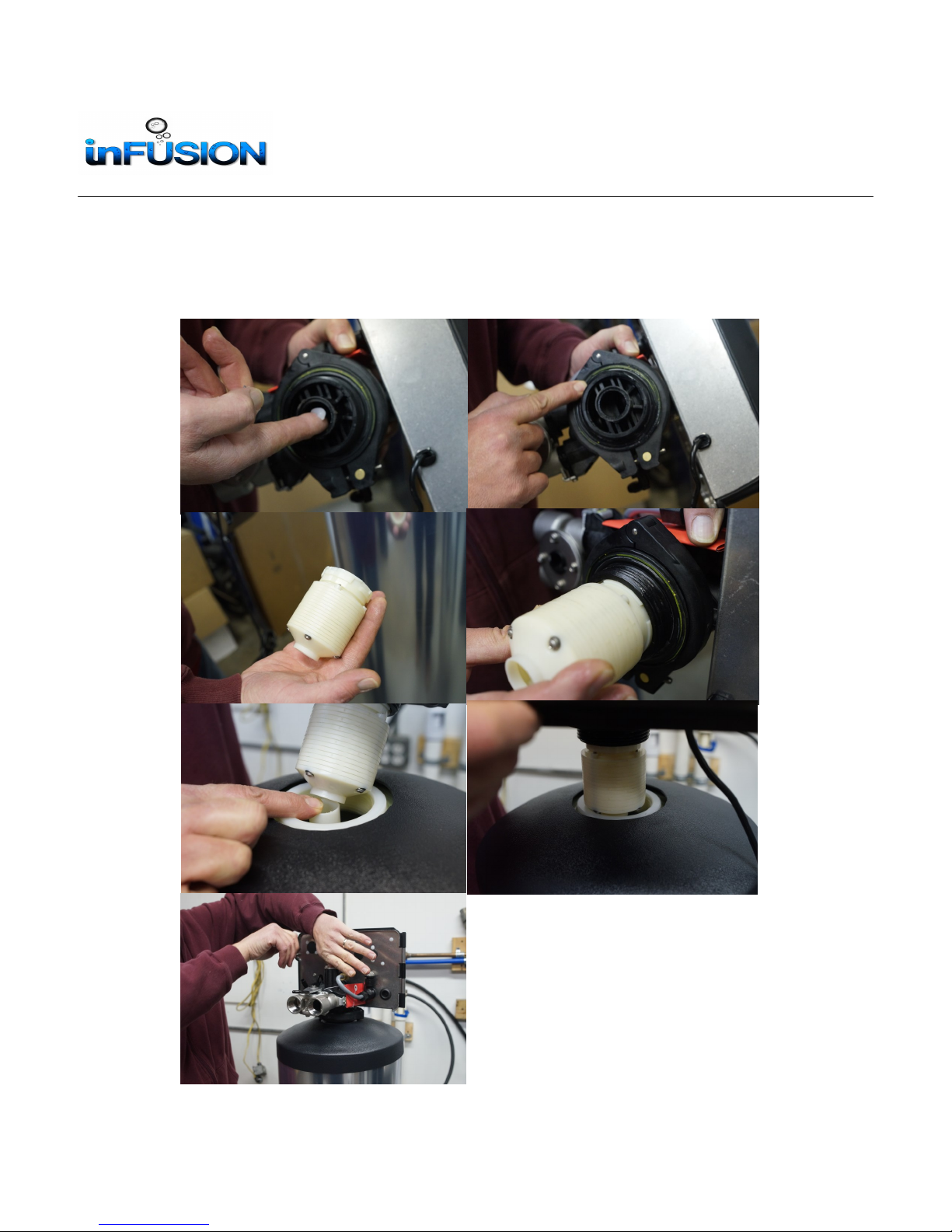

1. Use a piece of duct tape to cover the top of the distributor tube. Be sure the distributor tube is cen-
tered in the tank. Install the supplied funnel and pour the gravel in the tank. If you purchased multi-
ple systems, there will be several boxes. Each system and the boxes associated with the system will
be marked with the respective system’s part number. Match the part numbers on the boxes to be
sure you have the correct components and media for each system. Pour the gravel in the tank first
then pour in all the carbon that was shipped.
