InFocus ScreenPlay 7205 Manuel utilisateur

User’s Guide

InFocus Corporation

In the Americas:

27700B SW Parkway Avenue

Wilsonville, Oregon 97070-9215

1-800-294-6400 •503-685-8888

Fax: 503-685-8887

http://www.infocus.com

[ English • Français • Deutsch • Español • Italiano • Norsk ]

User’s Guide ScreenPlay 7205

In Europe:

InFocus International B.V.

Strawinskylaan 585

1077 XX Amsterdam

The Netherlands

Phone: +31 20 579 2000

Fax: +31 20 579 2999

In Asia:

238A Thomson Road

#18-01/04 Novena Square

Singapore 307684

Telephone: (65) 6334-9005

Fax: (65) 6333-4525

ScreenPlay 7205 ScreenPlay 7205

SP7200_UG.qxd 12/16/03 9:33 AM Page 1

ENGLISH

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conform to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

February, 2004

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Digital Light Processing is a trademark or reg-

istered trademark of Texas Instruments. Faroudja, DCDi, and TrueLife are trade-

marks or registered trademarks of Faroudja. InFocus and ScreenPlay are trademarks

or registered trademarks of InFocus Corporation.

Ver. 12-01

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by InFocus Corporation can void

the user's authority to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, NOM, IRAM, GOST, C-tick

Other specific Country Approvals may apply. Please see product certification label.

InFocus reserves the right to alter product offerings and specifications at any time

without notice.

Table of Contents

Introduction 4

Positioning the projector 6

Video connections 7

Connecting a video device 8

Displaying a video image 9

Connecting a computer 11

Shutting down the projector 12

Troubleshooting your setup 12

Using the keypad buttons 20

Using the remote control 21

Optimizing video images 22

Customizing the projector 22

Using the menus 23

Picture menu 24

Settings menu 29

Maintenance 31

Cleaning the lens 31

Replacing the projection lamp 32

Appendix 34

Red LED behavior and projector errors 34

Projected image size 34

Source compatibility 35

Projector dimensions for ceiling mount installations 36

RS-232 terminal specifications 37

For complete details on connecting and operating the projector, refer to this

User’s Guide. Electronic versions of this User’s Guide in multiple languages

are available on our website at www.infocushome.com/service.

The website also has technical specifications (an interactive image size cal-

culator, laptop activation commands, connector pin outs, a glossary, the

product data sheet), a web store to buy accessories, and a page for online

registration.

Important Operating Considerations

• Place the projector in a horizontal position no greater than 15 degrees

off axis. See “Positioning the projector” on page 6.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this manual for proper startup and shutdown procedures.

• In the unlikely event of the lamp rupturing, discard any edible items

placed in the surrounding area and thoroughly clean the area along all

sides of the projector. Wash hands after cleaning the area and handling

the ruptured lamp. This product has a lamp which contains a very

small amount of mercury. Dispose of it as required by local, state or

federal ordinances and regulations. For more information see

www.eiae.org.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the warranty section at

the end of this User's Guide.

2 ft (.6m) 2 ft (.6m)

2 ft (.6m)

o not p

ace o

ects

n t

e areas a

ong t

e s

e an

n t

ront o

e pro

ector

5 ft (1.5m)

Do not place objects or people in the 2 foot (.6m) area along the front of the projector.

For ceiling mount applications, this area should be 5 feet (1.5m).

Introduction

Congratulations and thank you for your excellent choice of a superior digi-

tal image projection device. Your new ScreenPlay™ 7205 projector from

InFocus®is specifically designed for home cinema applications. The

ScreenPlay 7205 sets the standard for high-definition digital perfection, fea-

turing true High Definition 1280x720 resolution using the latest DLP™ tech-

nology and new DCDi video processing from Faroudja™. Calibrated to D65

color mastering standards, the ScreenPlay 7205 reproduces colors and

details the way the director intended. Whether you are watching movies or

High Definition broadcasts or playing the latest video game, you will enjoy

breathtaking image quality.

The focus ring is threaded, similar to a camera lens, for adding external

optical filters to customize your viewing experience. The thread is made to

accommodate some standard 72mm SLR-type filters.

Product specifications

To read the latest specifications on your digital image projector, be sure to

visit our website, as specifications are subject to change. Web address infor-

mation is located on the inside back cover of this User’s Guide.

Accessories

The standard accessories that came with your projector can be found on the

included packing list. Optional accessories are listed in the Accessories cata-

log that came with the projector and can also found on our website. See the

inside back cover for the Web address.

Online Registration

announcements, and registration incentives. See the inside back cover for

the Web address.

Projector components and features

keypad

zoom

threaded

elevator foot release

remote

control

receiver (IR)

air intake

vent

focus

ring

I/O panel

leveling

foot

exhaust

heat vent

remote control

receiver (IR)

Connector Panel

The projector provides eight discreet video connectors:

• two red-green-blue RCA (SD/ED/HD component)

•twoS-video

•onecompositeRCA

• one M1-DA (HD, RGBHV, HD component, DVI, and computer)

• one VESA (HD, RGBHV, HD component, and computer)

• one D5 (SD/ED/HD component, RGB SCART)

It also has a mini-jack input for a Niles or Xantech-compatible IR repeater

and an RS-232 connector for serial control. The Command Line Interface

(CLI) specifications and commands are listed in the Appendix starting on

page 37.

Two 3.5mm mini-jack triggers provide 12 volt current. Trigger 1 provides a

constant output while the projector is on. For example, if you connect your

projection screen to Trigger 1, when you turn on the projector the screen will

move down; when you turn the projector off, the screen will return to the

storage position. Trigger 2 provides a 4:3 aspect trigger. When you select 4:3

in the Aspect Ratio menu or from the Resize button on the remote, a 12v

signal will be sent after a five second delay. Use this trigger for screens with

4:3 aspect curtains. When you switch back to 16:9 format, the curtains open

to reveal the entire screen.

For details on each connector type and their inputs, see page 35.

IR in

Pr Pr

Pb Pb

serial control

M1-DA vesa trigger 1

trigger 2

component

s-video

video

component

lock

remote control

receiver (IR)

power

connector

s-video video

component

video

video/computer

1 & 2

serial

connector

video

IR input

12v triggers

3.5mm mono plug for

+12v

ground

to screen relay (see screen manufacturer

for details)

12 volt current

connection

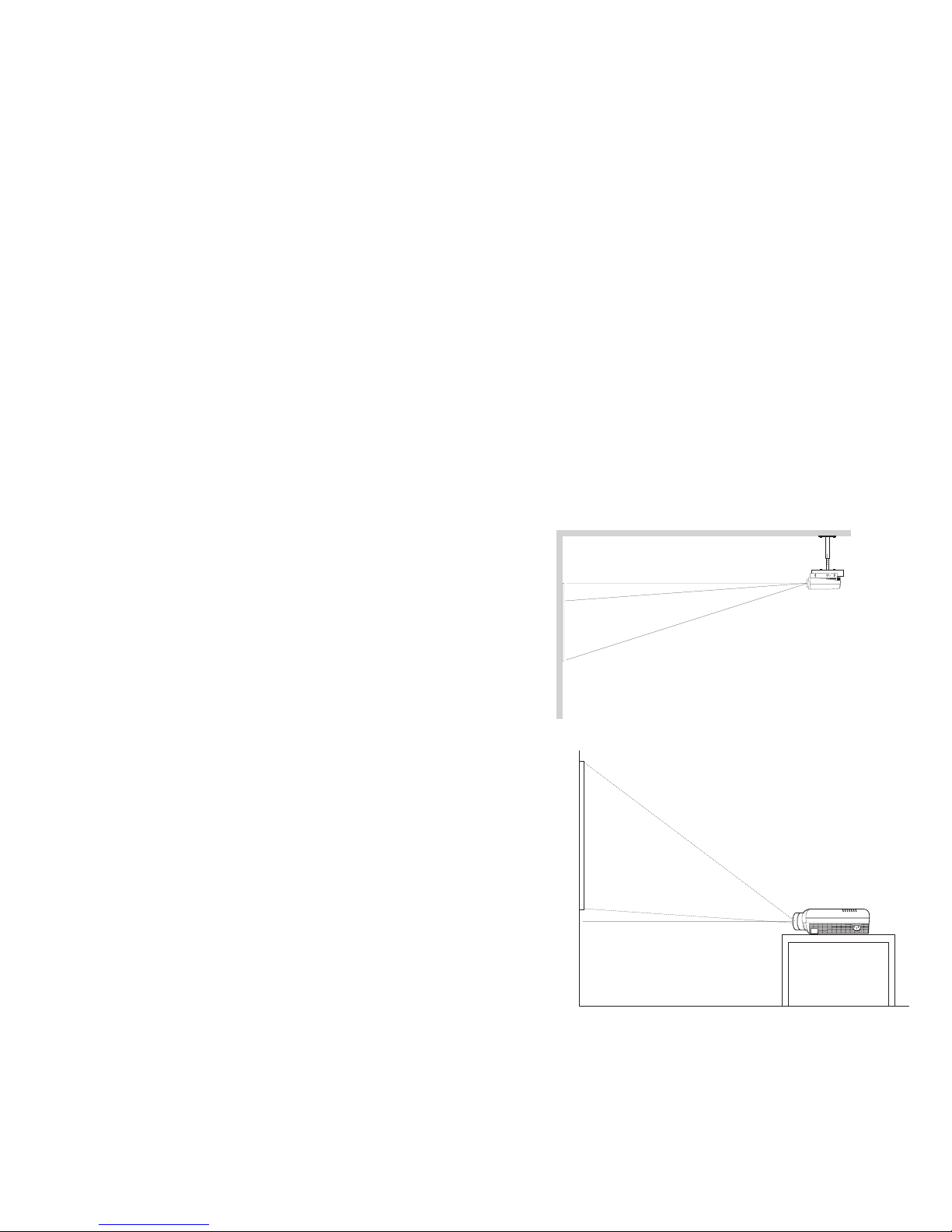

Positioning the projector

There are a number of factors to consider when determining where to set up

the projector, including the size and shape of your screen, the location of

your power outlets, and the distance between the projector and the rest of

your equipment. Here are some general guidelines.

1Position the projector on a flat surface at a right angle to the screen.

The projector must be within 10 feet (3 m) of your power source. To

ensure adequate cable access, place the projector at least 6 inches

(0.15m) from a wall or other objects. Place the projector at least 5.6 feet

(1.7 m) from the projection screen.

If you install the projector on the ceiling, refer to the installation guide

that comes with the Ceiling Mount Kit for more information. To turn

the image upside down, see page 29. InFocus recommends use of an

authorized InFocus ceiling mount. The Ceiling Mount Kit is sold sepa-

rately.

2Position the projector the desired distance from the screen.

The distance from the lens of the projector to the screen, the zoom set-

ting, and the video format determine the size of the projected image.

For more information about projected image sizes, see page 34.

The image exits the projector at a given angle. This image offset is 116%.

This means that if you have an image 10’ high, the bottom of the image will

be 1.6’ above the center of the lens.

Go to www.infocushome.com/support for a complete image size calcula-

tor.

lens center

bottom of image

1.6’ above lens

10’ high


Video connections

You can connect VCRs, DVD players, camcorders, digital cameras, video

games, HDTV receivers, and TV tuners to the projector. (You cannot directly

connect the coaxial cable that enters your house from a cable or satellite

company; the signal must pass through a tuner first. Examples of tuners are

digital cable boxes, VCRs, digital video recorders, and satellite TV boxes.

Basically, any device that can change channels is considered a tuner.) Audio

must be provided by your own speakers, as the projector has no separate

audio controls. If there is more than one output, select the highest quality

one. DVI, Component video and RGB (M1, HD15) have the best quality, fol-

lowed by S-video, and then composite video.

For a complete list of compatible sources, see page 35 of the Appendix.

Table 1: Video connections

Input signal Connector

Connector label

on projector

Standard Broadcast TV (not

HDTV), via cable, digital

cable, satellite TV, DirectTV

Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

HDTV Component video

VESA

DVI

Component 3, 6

VESA 2

M1-DA 1

DVD Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

VCR Composite video

S-video

Component video

Video 7

S-video 4, 5

Component 3, 6

Video Camera Composite video

S-video

Video 7

S-video 4, 5

Video Game VESA

Composite video

S-video

Component video

VESA 2

Video 7

S-video 4, 5

Component 3, 6

Table 1: Video connections

IR in

Pr Pr

Pb Pb

serial control

M1-DA vesa trigger 1

trigger 2

component

s-video

video

component

s-video video

component

video

M1-DA VESA

Connecting a video device

If your video device has more than one output, select the highest quality

one. DVI video has the best quality, followed by Component video, S-video,

and then composite video.

If the video device uses component cable connectors, plug the cable’s green

connectors into the green component-out connector on the video device and

into the green component connector (labeled “Y”) on the projector. Plug the

component cable’s blue connectors into the blue component-out connector

on the video device and into the blue component connector (labeled “Pb”)

on the projector. Plug the component cable’s red connectors into the red

component-out connector on the video device and into the red component

connector (labeled “Pr”) on the projector.

If the video device uses a round, four-prong S-video connector, plug an

S-video cable into the S-video connector on the video device and into the S-

video connector on the projector.

If the video device uses a yellow composite video connector, plug a compos-

ite video cable’s yellow connector into the video-out connector on the video

device. Plug the other yellow connector into the yellow Video connector on

the projector.

If the video device uses a DVI connector, plug an M1-D cable into the video-

out connector on the video device. Plug the other connector into the M1-DA

connector on the projector.

If the video device uses a VESA connector, plug a VESA cable into the

video-out connector on the video device. Plug the other connector into the

VESA connector on the projector.

Connecting the power cable

Connect the power cable to the connector on the back of the projector and to

your electrical outlet. The Power LED on the keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

connect component cable

IRin

Pr Pr

Pb Pb

serial control

M1-DA vesa trigger 1

trigger 2

component

s-video

video

component

connect S-video cable

IRin

Pr Pr

Pb Pb

serial control

M1-DA vesa trigger 1

trigger 2

component

s-video

video

component

connect composite video cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect M1-D cable IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect VESA cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect power cable

IRin

Pr Pr

Pb Pb

serial control

M1-DA vesa trigger 1

trigger 2

component

s-video

video

component

Displaying a video image

Remove the lens cap.

Press the Power button on the top of the projector.

The projector chimes if the chime feature is enabled (page 30). The LED

flashes green and the fans start to run. When the lamp comes on, the startup

screen displays and the LED is steady green. It can take a minute for the

image to achieve full brightness.

? No startup screen? Get help on page 12.

Plug in and turn on the video device.

An image from the video device should appear on the projection screen. If it

doesn’t, press the Source button on the keypad.

Adjust the height of the projector by pressing the release button to extend

the elevator foot. Rotate the leveling foot, if necessary.

Position the projector the desired distance from the screen at a 90 degree

angle to the screen. See page 34 for a table listing screen projected image

sizes and distances to the screen.

remove lens cap

press Power

turn on video device

adjust height

rotate

leveling

foot

elevator

foot

adjust distance

Autres manuels pour ScreenPlay 7205

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus Work Big IN38 Manuel utilisateur

InFocus

InFocus IN3118HD Manuel utilisateur

InFocus

InFocus LP 425 LiteMount Manuel utilisateur

InFocus

InFocus X1 Manuel utilisateur

InFocus

InFocus Work Big IN38 Manuel utilisateur

InFocus

InFocus LitePro 580 Manuel utilisateur

InFocus

InFocus LP720 Instructions d'installation

InFocus

InFocus ScreenPlay 7200 Manuel utilisateur

InFocus

InFocus LP130 Instructions de montage

InFocus

InFocus A4 Manuel utilisateur

InFocus

InFocus Work Big IN12 Manuel utilisateur

InFocus

InFocus X17 Manuel utilisateur

InFocus

InFocus CEILING MOUNT LP 1000 SERIES Manuel utilisateur

InFocus

InFocus Work Big IN32 Manuel utilisateur

InFocus

InFocus LP 240 Manuel utilisateur

InFocus

InFocus LP340 Manuel utilisateur

InFocus

InFocus LP800 Manuel d'installation

InFocus

InFocus LASER PROJECTOR LP 540 Manuel utilisateur

InFocus

InFocus LP 820 Guide de configuration rapide

InFocus

InFocus LP70+ Manuel utilisateur

InFocus

InFocus IN1110 Manuel utilisateur

InFocus

InFocus IN5122 Instructions d'installation et d'entretien

InFocus

InFocus IN1501 Manuel utilisateur

InFocus

InFocus LP425z Manuel de référence

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
