LP®600

USER’S GUIDE

6653_LP600_UG.qxd 4/2/04 2:14 PM Page 1

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Avenue, Wilsonville,

Oregon 97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conforms to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

May, 2004

Trademarks

Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trade-

marks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered

trademarks of Adobe Systems Incorporated. InFocus, LiteShow, LitePort, and LP are

trademarks or registered trademarks of InFocus Corporation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference when the equipment is oper-

ated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,

in which case the user may be required to take adequate measures. The typical use is

in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, TUV, GOST

Other specific Country Approvals may apply, please see product certification label.

This user’s guide applies to models LP600 and GEN205.

InFocus reserves the right to alter product offerings and specifications at any time.

Table of Contents

Introduction 5

Connecting a computer 7

Required computer connections 7

Displaying a computer image 9

First-time projector use with Windows 98 10

Adjusting the image 12

Connecting a video device 13

Displaying a video image 14

Shutting down the projector 16

Troubleshooting your setup 16

Using the keypad buttons 25

Using the remote control 26

Using the LitePort player 27

Using the audio 28

Optimizing computer images 29

Presentation features 29

Optimizing video images 29

Customizing the projector 29

Using the menus 30

Picture menu 31

Settings menu 34

Maintenance 39

Cleaning the lens 39

Using the security lock 39

Replacing the projection lamp 40

Cleaning the lamp filter screens 42

Appendix 43

Accessories 43

Red LED behavior and projector errors 44

Projected image size 44

If you are experienced in setting up presentation systems, use the included

Quick Set Up card. For complete details on connecting and operating the

projector, refer to this User’s Guide. Electronic versions of this User’s Guide

in multiple languages are available on the included CD. The most current

versions can be found on our website.

The website also has technical specifications (an interactive image size cal-

culator, laptop activation commands, connector pin outs, a glossary, the

product data sheet), a web store to buy accessories, and a page for online

registration. See the inside of the back cover for a list of all relevant web

addresses.

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this manual for proper startup and shutdown procedures.

• In the unlikely event of the lamp rupturing, discard any edible items

placed in the surrounding area and thoroughly clean the area along all

sides of the projector. Wash hands after cleaning the area and handling

the ruptured lamp. This product has a lamp which contains a very

small amount of mercury. Dispose of it as required by local, state or fed-

eral ordinances and regulations. For more information see

www.eiae.org.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty section at

the end of this user's guide.

2 ft (.6m)

Do not place objects or people in the 2 foot (.6m) area along the side of the projector.

For ceiling mount applications, this area should be 5 feet (1.5m).

5 ft (1.5m)

Introduction

Your new digital projector provides computer and video inputs and has

XGA 1024x768 resolution. The projector is easy to connect, easy to use, and

easy to maintain. An Interactive Display on the top of the projector gives

you constant feedback on the status of the projector.

Online Registration

announcements, and registration incentives. See the inside of the back cover

for the web address.

Included items

*The lens cap tether ships in the Documentation Pack. Attach it to the lens cap and

the projector if desired.

Projector components and features

documentation

remote

computer

cable

projector

lens cap

power

cable

video cable

audio cable

carry case

lens cap tether*

audio cable

adapter

keypad

speaker

zoom

focus

elevator foot release

remote

control

receiver (IR)

connectors

leveling

foot

heat vent

Interactive display

IR receiver

Connector Panel

The projector provides computer and video connectors:

• one M1-D/A (HD, DVI, and computer)

• one VESA (HD, HD component, and computer)

• one S-video

• one composite RCA video

• one audio in/one audio out

It also has an RS-232 serial connector for serial control. The Command Line

Interface (CLI) specifications and commands are on our website.

The projector also has a LitePortTM USB connector (Type A) and player for

JPEG (Joint Photographic Experts Group, .jpg, .jpe, or .jpeg) images. This

allows you to display any JPEG image automatically, without a computer

connected. Use your own JPEGs from your digital camera, or convert your

files, such as Microsoft PowerPointTM, WordTM, or ExcelTM files, into

JPEGs using LitePort Utility software (included on the CD), which allows

you to easily generate the highest quality JPEG images possible. Then trans-

fer the JPEG images from your computer to the projector using a USB mass

storage device and your images are ready to be displayed. (Please refer to

the Service and Support section of our website for advanced specifications

on the USB device and JPEG files.) You can use the remote control to select

which JPEGs to view (page 27) or you can set up the LitePort player using

the LitePort onscreen menu to select display preferences and automatically

display and advance your JPEGs (page 36).

Wireless Projection

You can use the projector’s M1 connector along with the InFocus

LiteShowwireless adapter and software for cable-free digital projection.

Contact an authorized InFocus dealer or visit the website listed on the back

inside cover of this User’s Guide for more information.

Connector panel

lock

power

connector

M1-D/A

s-video

composite

external

speaker

(audio out)

RS-232 serial control

video

computer

audio

VESA in/ USB JPEG

monitor out

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer. If

you are using a desktop computer, you first need to disconnect the monitor

cable from the computer’s video port.

Some Macintoshcomputers do not have a standard VESA-out video port.

If the supplied computer cable will not connect to your computer, purchase

the appropriate adapter from your Applereseller.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To advance slides in a PowerPoint™ presentation using the remote, plug the

USB connector on the computer cable into the USB mouse connector on

your computer. USB drivers must be installed to use the USB feature. For

more information, see page 11.

To have sound with your presentation, connect the audio cable to your com-

puter and to the Audio In connector on the projector.

connect computer cable

connect power cable

connect computer cable

connect audio cable

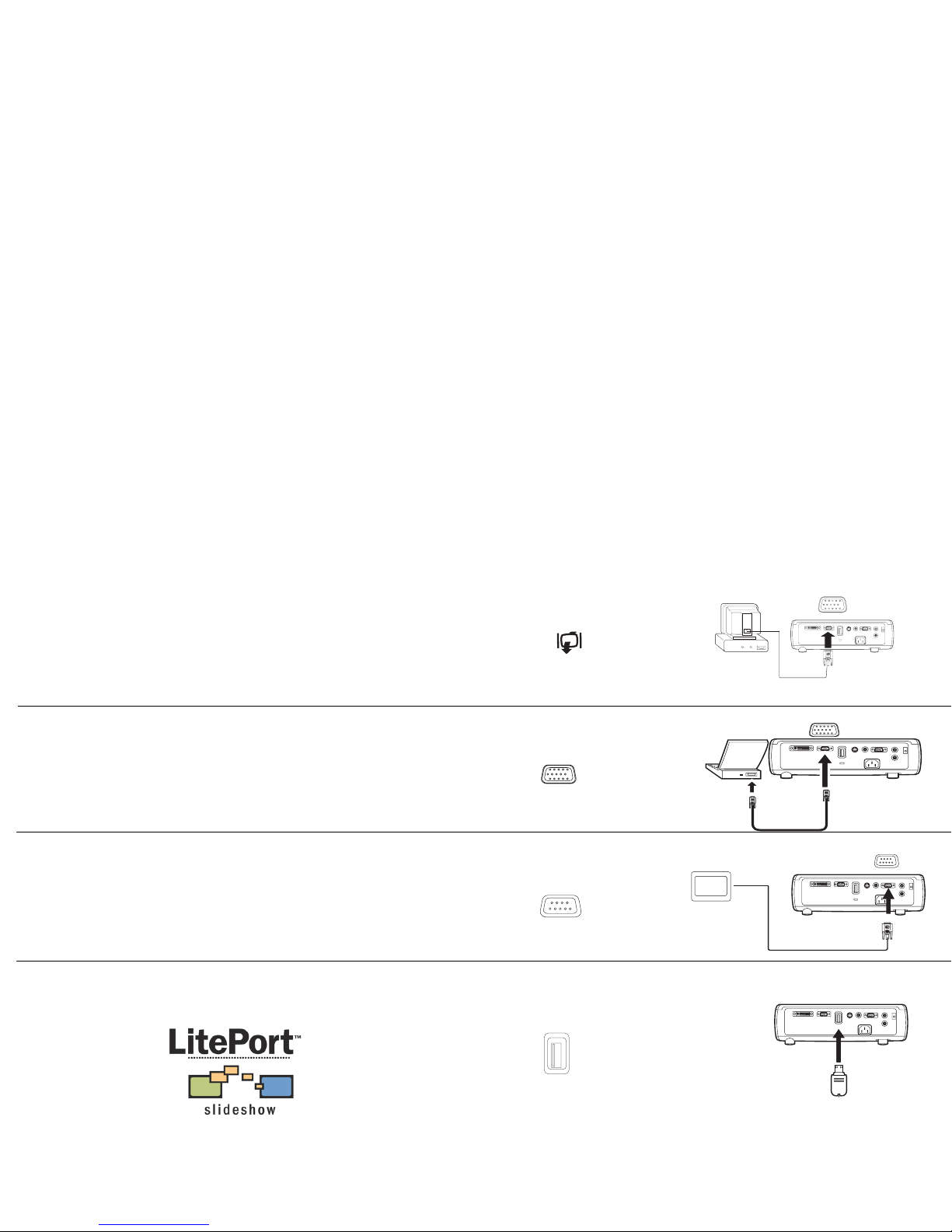

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the black Computer 2 connector on the projector. This connector can be

used as monitor out or VESA in. The default is VESA in, so you must

change this option in the menu to use monitor out. See page 34 to switch

between the two functions.

If you prefer connecting your projector to your computer with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

This connector can be used as monitor out or VESA in. The default is VESA

in.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial Control connector. Spe-

cific RS-232 commands can be found in the Service and Support section of

our website.

You can play JPEGs using the LitePort USB connector and LitePort player.

You need a USB mass storage device to use this connector. See page 27 for

details.

connect monitor cable

connect VESA cable

connect RS-232 cable

connect USB mass storage device

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,

the startup screen is displayed and the LED is steady green. It can take a

minute for the image to achieve full brightness. The Interactive Display on

the projector indicates the startup status.

? No startup screen? Get help on page 17.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Source button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F8 or CRT/LCD

key turns the external display on and off. Locate a function key labeled

CRT/LCD or a function key with a monitor symbol. Press FN and the

labeled function key simultaneously. Refer to your laptop’s documenta-

tion to learn your laptop’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 17.

remove lens cap

press Power button

turn on computer

activate laptop’s external port

First-time projector use with Windows 98

If you are running Windows 2000, Windows ME, or Window XP, skip these

steps and go to “Adjusting the image” on page 12.

The first time you connect a computer running Windows 98 to the projector,

the computer recognizes the projector as “new hardware” and the Add

New Hardware Wizard appears. Follow these instructions to use the Wiz-

ard to load the correct driver (which was installed with your Windows

operating system).

aClick Next to begin searching for the driver.

bMake sure “Search for the best driver” is selected, then click Next.

cUncheck any checked boxes, then click Next. Windows automatically

locates the driver. If this driver has been removed, reload the driver using

your Windows operating system CD.

dWhen Windows finds the driver, you are ready to install it. Click Next.

Autres manuels pour LP 600

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus ASK Proxima C170 Manuel utilisateur

InFocus

InFocus Work Big IN2102 Manuel utilisateur

InFocus

InFocus LitePro 210 Manuel utilisateur

InFocus

InFocus IN118HDSTa Manuel utilisateur

InFocus

InFocus IN112a Manuel utilisateur

InFocus

InFocus SP7200 Manuel utilisateur

InFocus

InFocus LP340 Manuel utilisateur

InFocus

InFocus Projectors Manuel utilisateur

InFocus

InFocus X1a Manuel utilisateur

InFocus

InFocus IN2112 Manuel utilisateur

InFocus

InFocus IN124STA Manuel utilisateur

InFocus

InFocus LP 250 Manuel utilisateur

InFocus

InFocus IN3124 Manuel utilisateur

InFocus

InFocus IN13x Series Manuel utilisateur

InFocus

InFocus IN72 Manuel utilisateur

InFocus

InFocus 540 LitePro Manuel utilisateur

InFocus

InFocus Work Big IN2102 Manuel utilisateur

InFocus

InFocus LP690 Manuel d'utilisation et d'entretien

InFocus

InFocus LP335 DRAGONFLY Manuel utilisateur

InFocus

InFocus IN81 Manuel utilisateur

InFocus

InFocus SP5700 Manuel utilisateur

InFocus

InFocus IN119HDxa Manuel utilisateur

InFocus

InFocus LP 820 Manuel utilisateur

InFocus

InFocus IN2114 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
