InFocus LP 640 Manuel utilisateur

LP®540/LP®640

USER’S GUIDE

6430LP820_UG.qxd 10/29/03 1:30 PM Page 1

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conforms to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

December, 2003

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or regis-

tered trademarks of Adobe Systems Incorporated. InFocus, ProjectorNet, LiteShow,

and LP are trademarks or registered trademarks of InFocus Corporation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference when the equipment is oper-

ated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,

in which case the user may be required to take adequate measures. The typical use is

in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, TUV, GOST

Other specific Country Approvals may apply, please see product certification label.

This user’s guide applies to models LP540, LP640, GEN200, and GEN201.

InFocus reserves the right to alter product offerings and specifications at any time.

Table of Contents

Introduction 5

Connecting a computer 7

Required computer connections 7

Displaying a computer image 9

First-time projector use with Windows 98 10

Adjusting the image 12

Connecting a video device 13

Displaying a video image 14

Shutting down the projector 16

Troubleshooting your setup 16

Using the keypad buttons 24

Using the remote control 25

Using the audio 26

Optimizing computer images 27

Presentation features 27

Optimizing video images 28

Customizing the projector 28

Using the menus 29

Picture menu 30

Settings menu 33

Maintenance 37

Cleaning the lens 37

Replacing the projection lamp 38

Cleaning the dust filter 40

Using the security lock 40

Appendix 41

Accessories 41

Red LED behavior and projector errors 42

Projected image size 42

If you are experienced in setting up presentation systems, use the included

Quick Set Up card. For complete details on connecting and operating the

projector, refer to this User’s Guide. Electronic versions of this User’s Guide

in multiple languages are available on the included CD and on our website.

The website also has technical specifications (an interactive image size cal-

culator, laptop activation commands, connector pin outs, a glossary, the

product data sheet), a web store to buy accessories, and a page for online

registration. See the inside of the back cover for a list of all contact numbers

and relevant web addresses.

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this manual for proper startup and shutdown procedures.

• In the unlikely event of the lamp rupturing, discard any edible items

placed in the surrounding area and thoroughly clean the area along all

sides of the projector. Wash hands after cleaning the area and handling

the ruptured lamp. This product has a lamp which contains a very

small amount of mercury. Dispose of it as required by local, state or fed-

eral ordinances and regulations. For more information see

www.eiae.org.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty section at

the end of this user's guide.

computer2network

monitorout

audioout

audioin

audio in

serialcontrol

computerin

computer1

video2

videoin

RS-video1

2 ft (.6m)

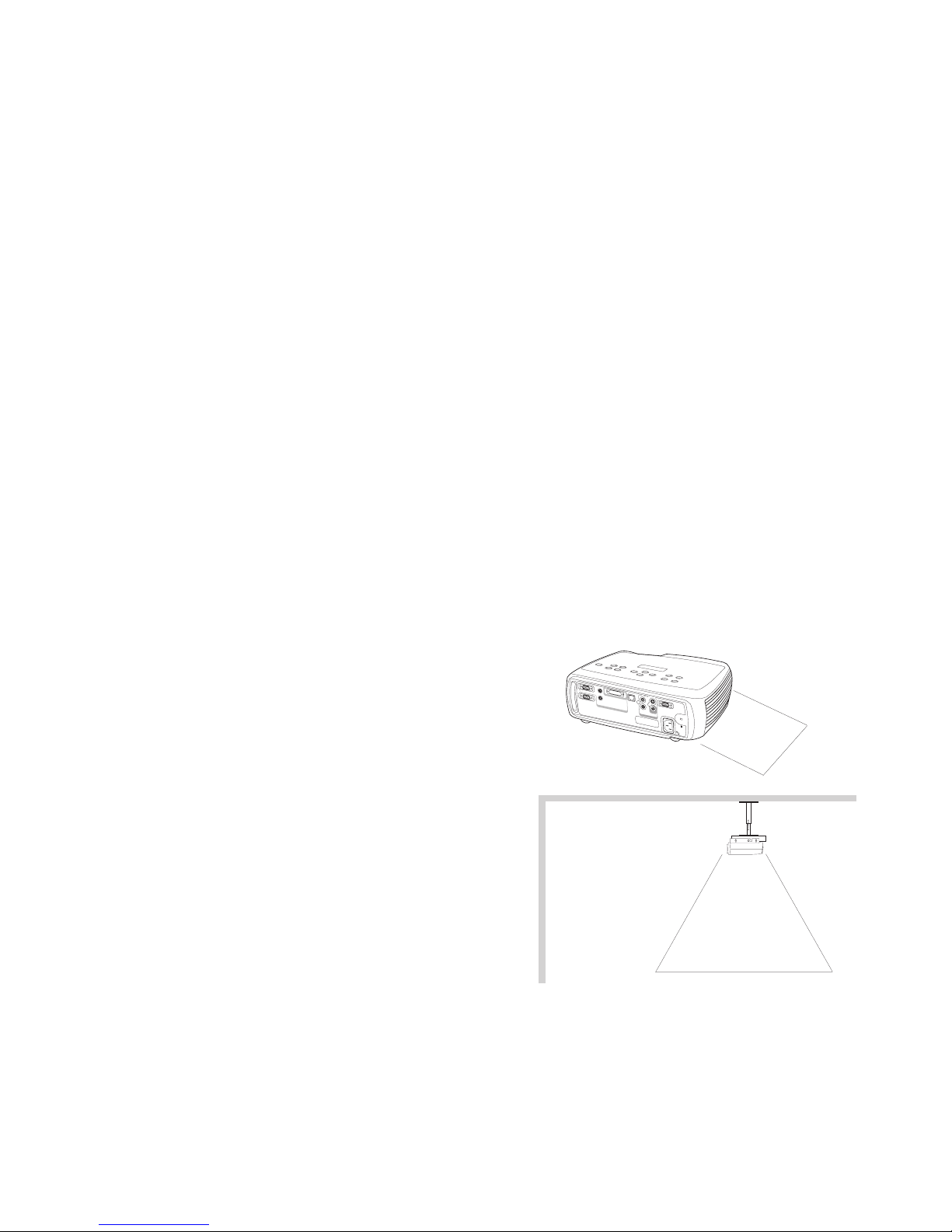

Do not place objects or people in the 2 foot (.6m) area along the side of the projector.

For ceiling mount applications, this area should be 5 feet (1.5m).

5 ft (1.5m)

Introduction

Your new digital projector provides computer and video inputs and has

XGA 1024x768 resolution. The projector is easy to connect, easy to use, easy

to maintain. An Interactive Display on the top of the projector gives you

constant feedback on the status of the projector.

Online Registration

announcements, and registration incentives. See the inside of the back cover

for the web address.

Included items

*The lens cap tether ships in the Documentation Pack. Attach it to the lens cap and

the projector if desired.

Projector components and features

documentation

remote

computer

cable

projector

lens cap

power

cable

audio/video cable

audio cable

carry case

lens cap tether*

keypad

speakers

zoom

focus

elevator foot release

remote

control

receiver (IR)

computer2network

monitorout

audioout

audioin

audio in

serialcontrol

computerin

computer1

video2

videoin

RS-video1

connectors

leveling

foot

heat vent

Interactive display

Connector Panel

The LP540 provides one computer and two video connectors:

• one M1-D/A (HD, DVI, and computer)

• one S-video

•onecompositeRCA

It also has an RS-232 serial connector for serial control. The Command Line

Interface (CLI) specifications and commands are on our website.

The LP640 has an additional VESA computer input (HD, HD component,

and computer) and an RJ-45 connector for networked control via

ProjectorNet software.

Wireless Projection

You can use the projector’s M1 connector along with the InFocus

LiteShowwireless adapter and software for cable-free digital projection.

Contact an authorized InFocus dealer or visit the website listed on the back

inside cover of this User’s Guide for more information.

Connector panel of LP540

Connector panel of LP640

audio out

audio in L

audio in

monitor out serial control

computer in

computer 1

video 2

video in

RS-video 1

lock

power

connector

M1-D/A

s-video

composite

computer

audio

external

speaker

(audio out)

RS232 serial control

video

computer audio

monitor

computer 2 network

monitor out

audio out

audio in L

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

lock

power

connector

M1-D/A

monitor

s-video

composite

computer

audio

external

speaker

(audio out) RJ-45

RS232 serial control

VESA computer

video

computer audio

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the to the Computer 1 con-

nector on the projector. Connect the blue end to the video port on your com-

puter. If you are using a desktop computer, you first need to disconnect the

monitor cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To advance slides in a PowerPoint™ presentation using the remote, plug the

USB connector on the computer cable into the USB mouse connector on

your computer. USB drivers must be installed to use the USB feature. For

more information, see page 11.

To have sound with your presentation, connect the audio cable to your com-

puter and to the computer Audio In connector on the projector.

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the black Monitor Out connector on the projector.

connect computer cable

computer 2 network

monitor out

audioout

audioin L

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

computer2 network

monitorout

audioout

audioin

serialcontrol

computerin

computer1

video2

videoin

RS-video1

connect power cable

connect computer cable

computer 2 network

monitor out

audioout

audioin L

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

computer2 network

monitorout

audioout

audioin

serialcontrol

computerin

computer1

video2

videoin

RS-video1

connect audio cable

connect monitor cable

computer2 network

monitorout

audioout

audioin

serialcontrol

computerin

computer1

video2

videoin

RS-video1

If you prefer connecting your LP640 to your computer with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial connector. Specific

RS-232 commands can be found in the Service and Support section of our

website.

The LP640 can be managed by ProjectorNet networking software through

its Network connector.

Contact an authorized dealer or visit our website for information on

ProjectorNet.

connect VESA cable

computer 2 network

monitor out

audioout

audioin L

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

connect RS-232 cable

computer 2 network

monitor out

audioout

audioin L

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

computer 2 network

monitor out

audioout

audioin

audio in

serial control

computer in

computer 1

video 2

video in

RS-video 1

Network

connect network cable

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,

the startup screen is displayed and the LED is steady green. It can take a

minute for the image to achieve full brightness. The Interactive Display on

the projector indicates the startup status.

? No startup screen? Get help on page 17.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Computer button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F5 is used to

turn the external display on and off. Refer to your computer’s documenta-

tion to learn your computer’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 17.

remove lens cap

press Power button

turn on computer

activate laptop’s external port

First-time projector use with Windows 98

The first time you connect a computer running Windows 98 to the projector,

the computer recognizes the projector as “new hardware” and the Add

New Hardware Wizard appears. Follow these instructions to use the Wiz-

ard to load the correct driver (which was installed with your Windows

operating system).

If you are running Windows 2000, Windows ME, or Window XP, skip these

steps and go to “Adjusting the image” on page 12.

aClick Next to begin searching for the driver.

bMake sure “Search for the best driver” is selected, then click Next.

cUncheck any checked boxes, then click Next. Windows automatically

locates the driver. If this driver has been removed, reload the driver using

your Windows operating system CD.

dWhen Windows finds the driver, you are ready to install it. Click Next.

Autres manuels pour LP 640

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus ScreenPlay 8602 Manuel utilisateur

InFocus

InFocus IN5542 Manuel utilisateur

InFocus

InFocus IN2136 Manuel utilisateur

InFocus

InFocus LP280 Manuel d'utilisation et d'entretien

InFocus

InFocus IN5533 Manuel utilisateur

InFocus

InFocus LightPro IN1004 Manuel utilisateur

InFocus

InFocus LP 650 Guide de l'utilisateur

InFocus

InFocus LitePro 580 Manuel utilisateur

InFocus

InFocus LP330 Manuel utilisateur

InFocus

InFocus Play Big IN81 full-HD 1080p Manuel utilisateur

InFocus

InFocus LP 840 Manuel utilisateur

InFocus

InFocus IN5312 Manuel utilisateur

InFocus

InFocus Proxima DP8200x Manuel utilisateur

InFocus

InFocus IN5122 Manuel utilisateur

InFocus

InFocus LP920 Manuel utilisateur

InFocus

InFocus SP7200 Manuel d'installation

InFocus

InFocus IN26 Manuel utilisateur

InFocus

InFocus P111 Manuel utilisateur

InFocus

InFocus Quantum Laser Core Series Manuel utilisateur

InFocus

InFocus IN1501 Manuel utilisateur

InFocus

InFocus IN5100 series Manuel utilisateur

InFocus

InFocus LP580 Manuel utilisateur

InFocus

InFocus SP7200 Instructions d'installation et d'utilisation

InFocus

InFocus IN5132c Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
