InFocus IN42ff Manuel utilisateur

InFocus Corporate Headquarters:

27700B SW Parkway Avenue

Wilsonville, Oregon 97070-9215,

USA

Phone: 503-685-8888

1-800-294-6400

Fax: 503-685-8887

In Europe

Strawinskylaan 585

1077 XX Amsterdam

The Netherlands

Phone: (31) 20 5792000

Fax: (31) 20 5792999

Freephone: 008000 4636287

(008000 INFOCUS)

In Asia

#07-01, Tanglin Shopping Centre

19 Tanglin Road

Singapore 247909

Phone: (65) 6334-9005

Fax: (65) 6333-4525

IN42

User’s Guide

IN42

User’s Guide

English, Deutsch, Español, Français, Italiano, Svensk,

Nederlands, Portugués,

IN42 User’s Guide

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conform to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1st Edition

October, 2003

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or

registered trademarks of Adobe Systems Incorporated. InFocus, In Focus, and

INFOCUS (stylized) are either registered trademarks or trademarks of InFocus

Corporation in the United States and other countries.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his

own expense.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,

in which case the user may be required to take adequate measures. The typical use is

in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, DEMKO-GS

Other specific Country Approvals may apply, see please product certification label.

InFocus reserves the right to alter product offerings and specifications at any time

without notice.

Battery Safety Information

CAUTION: Risk of explosion if the battery in this projector is replaced with the incorrect type of

battery. See page 33 for battery replacement instructions.

This user’s guide applies to models IN42, C445, and W400.

EDX Ref Guide.fm Page 1 Friday, June 30, 2006 10:48 AM

Table of Contents

Introduction 4

Included Items 4

Positioning the projector 6

Connecting a computer 7

Required computer connections 7

Displaying a computer image 9

Adjusting the image 10

Connecting a video device 11

Displaying a video image 12

Shutting down the projector 14

Troubleshooting your setup 14

Using the keypad buttons 21

Using the remote control 21

Using the audio 22

Optimizing computer images 23

Presentation features 23

Optimizing video images 24

Customizing the projector 24

Using the menus 25

Picture menu 26

Settings menu 29

Maintenance 33

Cleaning the lens 33

Replacing the clock batteries 33

Replacing the projection lamp 34

Cleaning the dust filter 36

Using the security lock 36

Appendix 37

Projected image size 37

RS-232 commands 40

For complete details on connecting and operating the projector, refer to this

User’s Guide. Electronic versions of this User’s Guide in multiple languages

are available on our website.

The website also has technical specifications (an interactive image size cal-

culator, laptop activation commands, connector pin outs, a glossary, the

product data sheet), a web store to buy accessories, and a page for online

registration. See the inside of the back cover for a list of all relevant web

addresses.

EDX Ref Guide.fm Page 2 Friday, June 30, 2006 10:48 AM

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 8 degrees off

axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this manual for proper startup and shutdown procedures.

• This product has a lamp which contains a very small amount of mer-

cury. Wash hands after cleaning the area and handling the ruptured

lamp. Dispose of it as required by local, state or federal ordinances and

regulations. For more information see www.eiae.org.

• In the unlikely event of a lamp rupture, particles may exit through the

projector vents. When the projector is turned on, keep people, food,

and drinks out of the "keep out" area under and around the projector, as

indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty booklet.

5’/1.5m

8’/2.4m

2’ / 0.6 m

3’ / 1 m

EDX Ref Guide.fm Page 3 Friday, June 30, 2006 10:48 AM

Introduction

Your new multimedia projector provides two computer, three video, and

two audio inputs, one audio output, and RS-232 and Network control. It has

XGA 1024x768 resolution. Optional user-changeable short, fixed short, long

and ultra long throw lenses make this a flexible product suitable for many

different uses. The projector is easy to connect, easy to use, and easy to

maintain.

Product specifications

To read the latest specifications on your multimedia projector, be sure to

visit our website. Web address information is located on the back inside

cover of this User’s Guide.

Online Registration

announcements, and registration incentives. See the inside back cover for

the web address.

Included Items

*the lens cap tether can attach the lens cap to the projector if desired.

Projector components and features: front

Projector components and features: back

VESA computer cable

A/V cable

documentation

remote

power cable

lens cap*

projector

leveling foot

elevator foot release

remote

control

receiver

air intake

vent

heat vent

zoom/focus/offset door

connectors

lamp door

power switch power plug

EDX Ref Guide.fm Page 4 Friday, June 30, 2006 10:48 AM

Connector Panel

The projector provides three computer and three video connection options:

• one M1-DA (DVI with USB)

• one VESA computer

• one component RCA video (Pr, Pb, Y)

• one S-video

• one composite RCA video

The projector provides computer and video connectors for audio support:

• two composite RCA stereo audio (L, R)

• one audio out

• two audio ins for computer

The projector also provides the following connectors:

• one wired remote

• one monitor out

• RS-232 serial connector (for serial control)

• RJ-45 connector (for networked control)

The RS-232 Command Line Interface (CLI) specifications and commands

are available in the Appendix and on our website. See the back inside cover

of this User’s Guide for website information.

lock

M1-DA computer

monitor

s-video composite

computer

audio

external

speakers

(audio out)

RJ-45

VESA computer

component video

video

RS232

serial control

audio in for

remote

control

receiver

(IR)

video sources

speaker

power connector and switch

EDX Ref Guide.fm Page 5 Friday, June 30, 2006 10:48 AM

Positioning the projector

To determine where to position the projector, consider the size and shape of

your screen, the location of your power outlets, and the distance between

the projector and the rest of your equipment. Here are some general guide-

lines:

• Position the projector on a flat surface at a right angle to the screen. The

projector (with the standard lens) must be at least 3 feet (0.9m) from the

projection screen.

• Position the projector within 10 feet (3m) of your power source and

within 6 feet (1.8m) of your video device (unless you purchase exten-

sion cables). To ensure adequate cable access, do not place the projector

within 6 inches (.15m) of a wall or other object.

• If you are installing the projector on the ceiling, refer to the installation

guide that comes with the Ceiling Mount Kit for more information. To

turn the image upside down, see “Ceiling” on page 29. We recom-

mends using an authorized ceiling mount. The Ceiling Mount Kit is

sold separately; visit our website for more information.

• Position the projector the desired distance from the screen. The distance

from the lens of the projector to the screen, the zoom setting, and the

video format determine the size of the projected image. For information

about image sizes at different distances, see “Projected image size” on

page 37.

• For the standard lens that comes with the projector, the image exits at a

given angle. However, the lens shift feature makes the image offset

variable. The image offset is 90% at a 9:1 ratio when the projector is in

4:3 mode (default mode). This means that if you have an image 10’

high, the bottom of the image will be 1’ below the center of the lens.

• The image offset is 50% when the lens shift is at a 1:1 ratio. This means

that if you have an image 10’ high, the bottom of the image will be 5’

below the center of the lens.

• For information about the optional lenses image offsets, see “Projected

image size” on page 37.

10 ft high image

9:1

bottom of image

10% below

lens center

1:1

bottom of image

50% below

lens center

Projection angle in 4:3 mode (default)

9:1

1:1

lens center

EDX Ref Guide.fm Page 6 Friday, June 30, 2006 10:48 AM

Connecting a computer

Required computer connections

Connect one end of the VESA computer cable to the Computer 2 connector

on the projector. Connect the other end to the video port on your computer.

If you are using a desktop computer, you first need to disconnect the moni-

tor cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To control your computer’s mouse using an optional remote control, con-

nect the optional M1-DA cable to the USB and DVI ports on your computer,

and connect the other end to the Computer 1 (M1-DA) connector on the

projector.

To have sound with your presentation, connect the audio cable to your com-

puter and to the corresponding computer Audio In connector on the projec-

tor.

connect computer cable

connect power cable

connect M1-DA cable

connect audio cable

EDX Ref Guide.fm Page 7 Friday, June 30, 2006 10:48 AM

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor out connector on the projector.

You can control the projector from an LCD control panel, touch screen, or

other control device or computer by connecting an RS-232 cable to the pro-

jector’s Serial Control connector. Specific RS-232 commands can be found

in the Service and Support section of our website and in the Appendix.

The projector can be managed by networking software through its Network

(RJ-45) connector. Detailed instructions on this feature can be found on our

website.

connect monitor cable

connect RS-232 cable

connect CAT-5 cable

Network

EDX Ref Guide.fm Page 8 Friday, June 30, 2006 10:48 AM

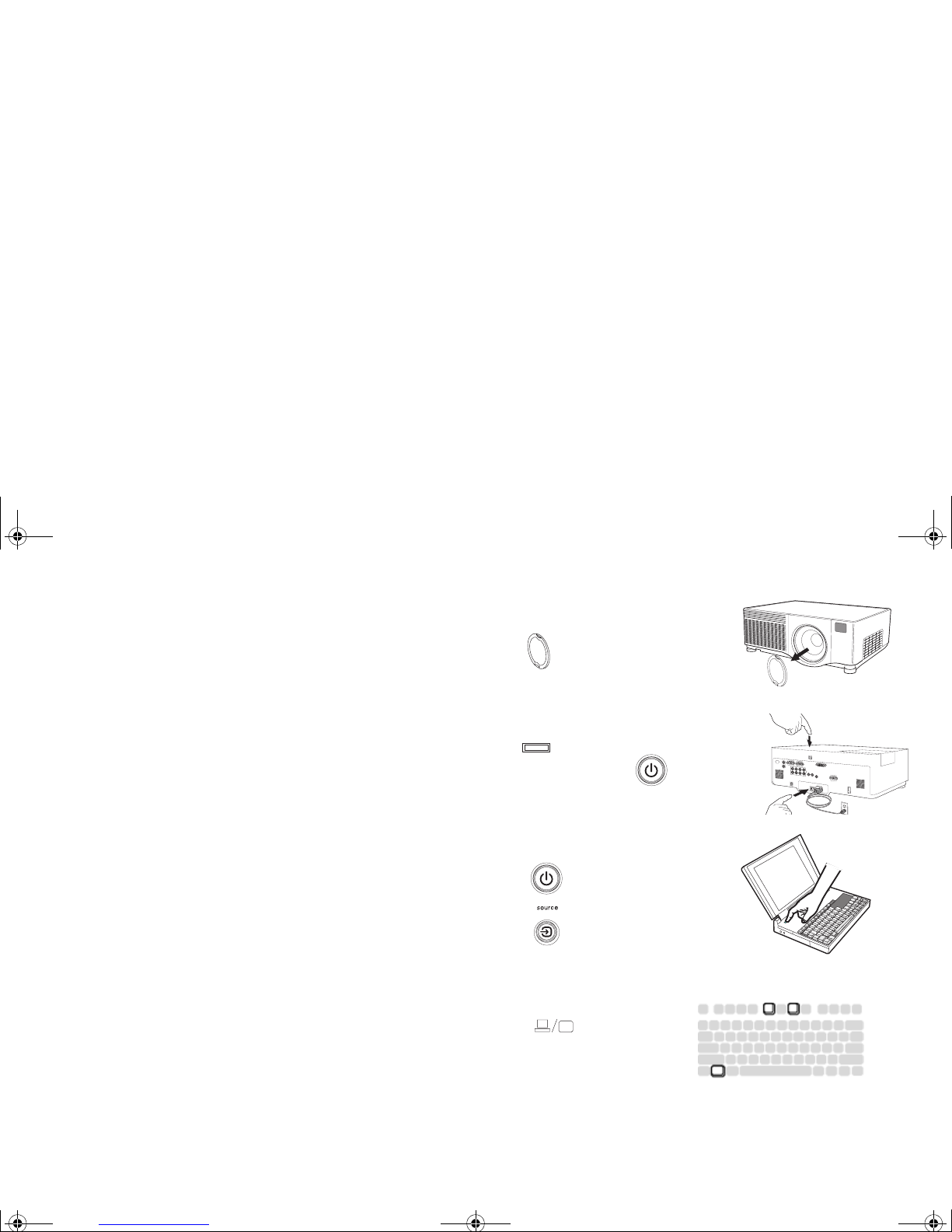

Displaying a computer image

Remove the lens cap.

Press the power switch on the back of the projector to the on (I) position.

The Power light on the Status Indicator Panel (page 14) lights green.

Press the Power button on the top of the projector or the remote.

The Power light blinks green and the fans start to run. When the lamp

comes on, the startup screen is displayed and the light is steady green. It can

take a minute for the image to achieve full brightness.

? No startup screen? Get help on page 15.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Source button on the keypad or remote.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F5 is used to

turn the external display on and off. Refer to your computer’s documenta-

tion to learn your computer’s key combination.

? No computer image? Get help on page 15.

remove lens cap

press Power buttonpress Power switch

turn on computer

activate laptop’s external port

EDX Ref Guide.fm Page 9 Friday, June 30, 2006 10:48 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels InFocus Projecteur

InFocus

InFocus Proxima DP2000s Manuel utilisateur

InFocus

InFocus IN1500 Series Manuel utilisateur

InFocus

InFocus IN24 Manuel utilisateur

InFocus

InFocus SCREENPLAY 5700 5700 Manuel utilisateur

InFocus

InFocus LP 600 Manuel utilisateur

InFocus

InFocus OverView 410P Manuel utilisateur

InFocus

InFocus LP335 DRAGONFLY Manuel utilisateur

InFocus

InFocus in124st Manuel utilisateur

InFocus

InFocus IN20 Series Manuel utilisateur

InFocus

InFocus IN5132c Manuel utilisateur

InFocus

InFocus IN5122 Manuel utilisateur

InFocus

InFocus LP 850 Manuel utilisateur

InFocus

InFocus LP280 Manuel utilisateur

InFocus

InFocus X2 multi-use perfomance Manuel utilisateur

InFocus

InFocus IN1501 Manuel utilisateur

InFocus

InFocus Work Big IN2102 Manuel utilisateur

InFocus

InFocus LP 600 Manuel utilisateur

InFocus

InFocus LP630 Mode d'emploi

InFocus

InFocus LP 650 Manuel utilisateur

InFocus

InFocus F5500 Manuel utilisateur

InFocus

InFocus Learn Big IN5102 Manuel utilisateur

InFocus

InFocus X2 multi-use perfomance Manuel utilisateur

InFocus

InFocus LP 240 Manuel utilisateur

InFocus

InFocus IN2112 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
