Infinity Total Solutions TSS-SAT500 Manuel utilisateur

TSS-SAT500

Owner’s Guide

TOTAL SPEAKER SOLUTIONS

TSS-SAT500 OM 11/14/05 4:14 PM Page 1

2TSS-SAT500

3Introduction

3Included

3Planning Your System

3Placement

4Wall-Mounting

5Connections

5Maintenance and Service

7Specifications

Table of Contents

TSS-SAT500 OWNER’SGUIDE

TSS-SAT500 OM 11/14/05 4:14 PM Page 2

TSS-SAT500

Infinity Total Solutions™

Infinity Total Solutions continues Infinity’s longstanding commitment

to accurate sound reproduction. Our high-quality drivers, precision

dividing networks and rigid, well-braced enclosures combine to deliver

uncompromised performance in any multichannel home theater system.

In addition, the TSS-SAT500 is magnetically shielded for safe place-

ment adjacent to a television.

INCLUDED

(1) Speaker (1) Wall bracket

INTRODUCTION

Before deciding where to best place your speakers, survey your room and

study Figures 1 and 2.

Figure 1.This overhead view shows a typical home theater plan.

Left/right rear channels are for a 7-channel system. Center rear

channel is for a 6-channel system.

Figure 2.This figure shows an alternate layout, which may be

more suitable for some rooms. Left/right rear channels are

for a 7-channel system. Center rear channel is for a 6-channel system.

Left Rear

Channel

Left

Surround

Channel

Right

Surround

Channel

Right Rear

Channel

Center Rear

Channel

Left Front

Channel

Subwoofer Right Front

Channel

Center

Channel

Couch

Left Rear

Channel

Left

Surround

Channel

Right

Surround

Channel

Right Rear

Channel

Center Rear

Channel

Left Front

Channel

Subwoofer

Right Front

Channel

Center

Channel

PLANNING YOUR SYSTEM

PLACEMENT

NOTE: The TSS-SAT500 can be placed directly on a shelf,

or mounted on a wall using the included wall bracket.

As Left and Right Front Channels

For left and right front channels, place one satellite to the left

and another to the right of the television, as shown in Figure 1.

Since the speakers are magnetically shielded, you can place

them very close to the TV without worrying about the magnetic

field distorting the picture.

As Surround Channels

For left and right surround channels, place one speaker on the

left and another on the right, to the side of or slightly behind the

listening area.The surround speakers should be mounted at a

height of between 5 ft. (1.5m) and 7 ft. (2m).

In 6- or 7-channel configurations, place the rear channel(s)

behind the listening position, as shown in Figures 1 and 2.

NOTE: An Infinity powered subwoofer will add impact and realism

to both music and film soundtracks. Contact your Infinity dealer

for recommendations on subwoofer models for your application.

Mounting on Floor Stands

An optional TSS-STAND500 floor stand is available, should you

prefer to place your TSS-SAT500 satellites on the floor; see your

dealer or visit www.infinitysystems.com for more information.

In addition, there is a 1/4"-20 insert in each satellite that allows

the satellite to be mounted to many third-party floor stands.

Unscrew the rear foot to reveal the insert.

keyhole on the back of the speaker to the screwhead on the

TSS-SAT500 OM 11/14/05 4:14 PM Page 3

4TSS-SAT500

WALL-MOUNTING

The TSS-SAT500 satellite is designed to be mounted on the wall.

There is a wall bracket included.The speaker bracket will

require four 1-1/2" #10 wood screws; each screw should be

fastened to a wall stud. If a wall stud is unavailable, install an

anchor appropriate for a 1-1/2"#10 screw.

NOTE: The customer is responsible for the correct selection

and use of mounting hardware (available through hardware

stores) that will ensure the proper and safe wall-mounting of

the speakers.

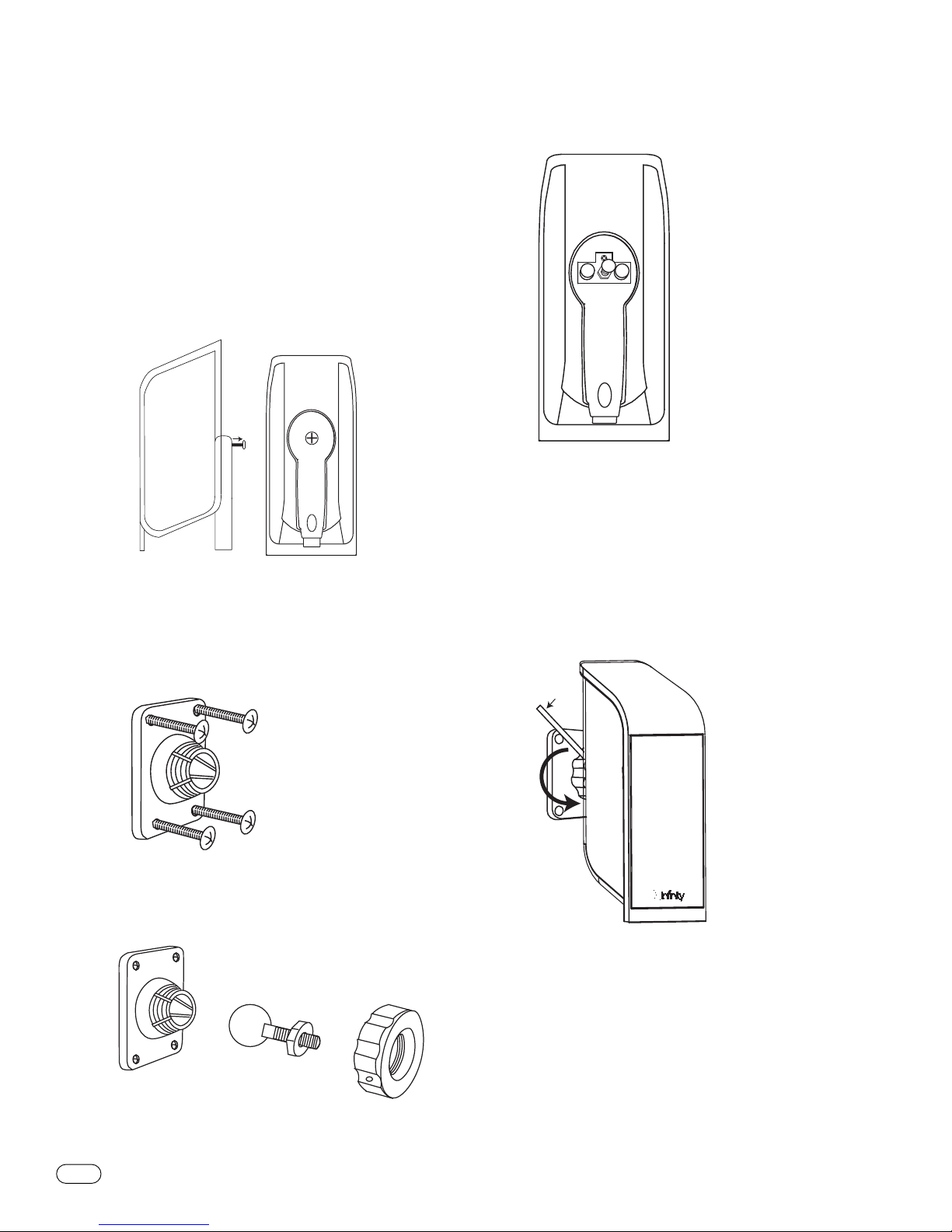

Step 1. Detach shelf stand by removing screw in rear of speaker.

Step 2. Mark the positions on the wall where you would like to

place the mounting screws.

Step 3. Place bracket against the wall and fasten four 1-1/2"

#10 wood screws through the bracket’s screw holes into the

wall. If a wall stud is not available, use an appropriate anchor.

Step 4. Unscrew round collar (C) from bracket (A).

Step 5. Screw the ball and shaft assembly (B) to 1/4"-20 insert

on rear of speaker. Back out 1/2 of a turn and tighten nut

against the speaker.

Step 6. Attach speaker wire as shown on page 5.

Step 7. Drop round collar (C) over ball and shaft assembly (B)

that is mounted to the speaker with the finished side of the

collar facing the rear of the speaker.

Step 8. Carefully push the ball straight into the socket mounted

on the wall, angle the speaker as desired and tighten the collar

using the enclosed metal bar.

Figure 3. Bracket on wall.

Metal bar

TSS-SAT500 OM 11/14/05 4:14 PM Page 4

TSS-SAT500

CONNECTIONS

After placing the speakers, you are ready to connect your system.

First, turn off all audio-system power. Use high-quality speaker

wire to make your connections. #18-gauge speaker wire with

polarity coding is included. For longer distances, #16-gauge or

heavier wire is recommended.The side of the wire with a ridge

or other coding is usually considered positive polarity (i.e., +).

Also, consult the owner’s manuals that were included with your

amplifier or receiver to confirm connection procedures. Observe

polarities when making speaker connections, as shown in Figure

4. Connect each + terminal on the back of the amplifier or

receiver to the respective + (red) terminal on each speaker.

Connect the – (black) terminals in the same way.

Important!

Do not reverse polarities (i.e., + to –, or – to +) when making

connections. Doing so will cause poor imaging and diminished

bass response. Be certain that positive and negative wire strands

are completely isolated to avoid short circuits that may damage

your equipment.

Press Connector

In and Hold

Insert Bare

End; Release

Connector

–+

Figure 4. Wiring diagram shows polarity connections

for one channel of a home theater system.

MAINTENANCE AND SERVICE

The TSS-SAT500 enclosure may be cleaned using a soft cloth to

remove fingerprints or to wipe off dust.

All wiring connections should be inspected and cleaned or

remade periodically. The frequency of maintenance depends on

the metals involved in the connections, atmospheric conditions

and other factors, but once per year is the minimum.

If a problem occurs, make sure that all connections are properly

made and clean. If a problem exists in one loudspeaker, reverse

the connection wires to the left and right system. If the problem

remains in the same speaker, then the fault is with the loud-

speaker. If the problem appears in the opposite speaker, the

cause is in another component or cable. In the event that your

TSS-SAT500 ever needs service, contact your local Infinity

dealer or distributor, or visit www.infinitysystems.com for a

service center near you.

TSS-SAT500 OM 11/14/05 4:14 PM Page 5

6TSS-SAT500

NOTES

TSS-SAT500 OM 11/14/05 4:14 PM Page 6

TSS-SAT500

Frequency Range: 150Hz – 25,000Hz (±3dB)

Recommended

Amplifier Power Range: 10 – 100 Watts

Sensitivity: 86dB

(2.83V @ 1 meter)

Nominal Impedance: 8Ω

Crossover Frequency: 7,000Hz

Midrange Driver(s): 2-1/2" (64mm) Magnetically shielded

High-Frequency Driver: 3/4" (19mm) Magnetically shielded

Dimensions (H x W x D): 7-11/16" x 3-1/2" x 2-3/4"

(195mm x 89mm x 70mm)

Weight: 1.2 lb (0.5kg)

Infinity continually strives to update and improve existing products, as well as

create new ones.The specifications and construction details in this and related

Infinity publications are therefore subject to change without notice.

SPECIFICATIONS

Laurent Rault

Harman Consumer Group International

Château du Loir, France 11/05

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the product described

in this owner’s manual is in compliance with technical

standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

TSS-SAT500 OM 11/14/05 4:14 PM Page 7

Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA www.infinitysystems.com

Infinity and Harman International are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Total Solutions is a trademark of Harman International Industries, Incorporated.

Dolby and Pro Logic are registered trademarks of Dolby Laboratories.

DTS is a registered trademark of DTS, Inc.

Part No. 406-000-05350-E 11/05
