INFINITY PRIMUS®SPEAKERS

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 1

INFINITY PRIMUS®SERIES

The Primus series of loudspeakers continues Infinity’s longstanding

commitment to accurate sound reproduction. Our proprietary Metal

Matrix Diaphragm™(MMD®) drivers, precision dividing networks, and

rigid, well-braced enclosures combine to deliver uncompromised

performance in any stereo or multichannel home theater system.

In addition, Primus series speakers are magnetically shielded for safe

placement adjacent to a television.

UNPACKING THE SPEAKERS

If you suspect damage from transit, report it immediately to your dealer.

Keep the shipping carton and packing materials for future use.

PLACEMENT

Stereo

Before deciding where to place your Primus speakers, survey your room

and think about placement, keeping the following points in mind, using

Figure 1 as a guide:

• For best results, place the speakers 6'– 8' apart.

• Position each speaker so that the tweeter is approximately at ear level.

• Generally, bass output will increase as the speaker is moved closer to a

wall or corner.

• Refer to the“Home Theater” section if you also plan to use the speak-

ers for home theater reproduction.

Figure 1. Experiment with speaker placement to obtain the best

bass level and stereo imaging in your room.

Home Theater

For front-channel use, place one speaker on the left and another on the

right, along either side of the television monitor. Since the speakers are

magnetically shielded, you can place them without worrying about the

field distorting the TV picture.

For surround use, place speakers alongside the listening position.

Final placement depends on room acoustics, availability of space,

and your listening preference (Figures 2 and 3).

The center channel speaker should be placed on top of or directly below

the television and aimed toward the listening area.

NOTE: An Infinity powered subwoofer will add impact and realism to both

music and film soundtracks. Contact your Infinity dealer for recommenda-

tions on subwoofer models for your application.

Figure 2.This overhead view shows a typical home theater

plan. Left/right rear channels are for a 7-channel system.

Center rear channel is for a 6-channel system.

Figure 3.This figure shows an alternate layout, which may

be more suitable for some rooms. Left/right rear channels

are for a 7-channel system. Center rear channel is for a

6-channel system.

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Infinity Subwoofer

(optional)

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Infinity Subwoofer

(optional)

Listening Position

Left

Channel

Right

Channel

2INFINITY PRIMUS SPEAKERS

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 2

INFINITY PRIMUS SPEAKERS

Figure 4.

Step 1.

Mark the positions on the wall where you would like to place the mounting

screws.

Step 2.

Fasten two 1-1/2," #10 wood screws to the wall using the markings

placed in Step 1 as your guide. Leave an 11/16" space between the wall

and screwhead. If a wall stud is not available, use an appropriate anchor.

Step 3.

Place the speaker on the wall by aligning the keyholes on the back of the

speaker to the screwheads on the wall. Once positioned properly, the

speaker should slide down slightly and become secure.

The P142 also allows the use of third-party wall brackets using the

1/4"-20 threaded insert located beneath the keyhole mount. Consult the

wall-bracket manufacturer for selection of proper bracket.ker on the wall

by aligning the keyhole on the back of the speaker to the screwhead on

the wall. Once positioned properly, the speaker should slide down slightly

and become secure.

– +

WALL-MOUNTING THE P142,P152 AND

PC250

The P142, P152 and PC250 are designed to mount directly to a wall.

Each speaker has two keyholes on the back, and will require (2) 1-1/2,"

#10 wood screws fastened to a wall stud. If a wall stud is unavailable,

install an anchor appropriate for a 1-1/2," #10 screw.

NOTE: The customer is responsible for the correct selection and use of

mounting hardware (available through hardware stores) that will ensure

the proper and safe wall-mounting of the speakers.

CHANGING THE P252 AND P362 FEET

The P252 and P362 feature attractive outboard feet, installed at the

factory. However, if you would like to replace them with the less visible

inboard feet (included), follow the instructions below.

1. Remove the four feet on the bottom of the speaker by loosening the

screw in each foot. Keep the screws for later use.

2. Remove the rubber plug from each inner hole (and save for possible

future use).

3. Attach the black inboard feet to the inner holes from which you just

removed the rubber plugs, using the same screws you just removed.

4. Hand-tighten securely, using a handheld Phillips (+ tip) screwdriver.

Do not use a powered screwdriver of any type.

CAUTION: Floorstanding (tower) loudspeakers have a high center of

gravity and may become unstable and tip over during earthquakes, or

if rocked, tipped or improperly positioned. If this is a concern, these

speakers should be anchored to the wall behind them, using the same

procedures and hardware customary for anchoring bookcases and wall

units.The customer is responsible for proper installation and proper

selection of hardware.

Keyhole mounts

1/4"-20 Threaded insert

(P142 only)

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 3

FINAL ADJUSTMENTS

Check the speakers for playback, first by setting the system volume control

to a minimum level, and then by applying power to your audio system. Play

a favorite music or video segment and increase the system volume control

to a comfortable level.

NOTE: You should hear balanced audio reproduction across the entire

frequency spectrum. If not, check all wiring connections or consult

the authorized Infinity dealer from whom you purchased the system

for more help.

The amount of bass you hear and the stereo-image quality will be affected

by a number of different factors, including the room’s size and shape,

the construction materials used to build the room, the listener’s position

relative to the speakers, and the position of the speakers in the room.

Listen to a variety of music selections and note the bass level. If there is

too much bass, move the speakers away from nearby walls. Conversely, if

you place the speakers closer to the walls, there will be more bass output.

Nearby reflecting surfaces can adversely affect stereo-imaging quality. If

this happens, try angling the speakers slightly inward toward the listening

position until the optimum effect is achieved.

CARE OF YOUR SPEAKER SYSTEM

Each Primus series cabinet has a wood-grain-vinyl finish that does not

require any routine maintenance.When needed, use a soft cloth to remove

any fingerprints or dust. Clean the grille by gentle vacuuming.

NOTE: Do not use any cleaning products or polishes on the cabinet

or grille.

In the event that your Infinity speaker needs service, contact your Infinity

dealer or distributor, or visit www.infinitysystems.com for the location of

the nearest service center.

4INFINITY PRIMUS SPEAKERS

+–

Receiver or

Amplifier

(rear view)

Speaker (rear view)

– +

(one channel shown)

REDBLACK

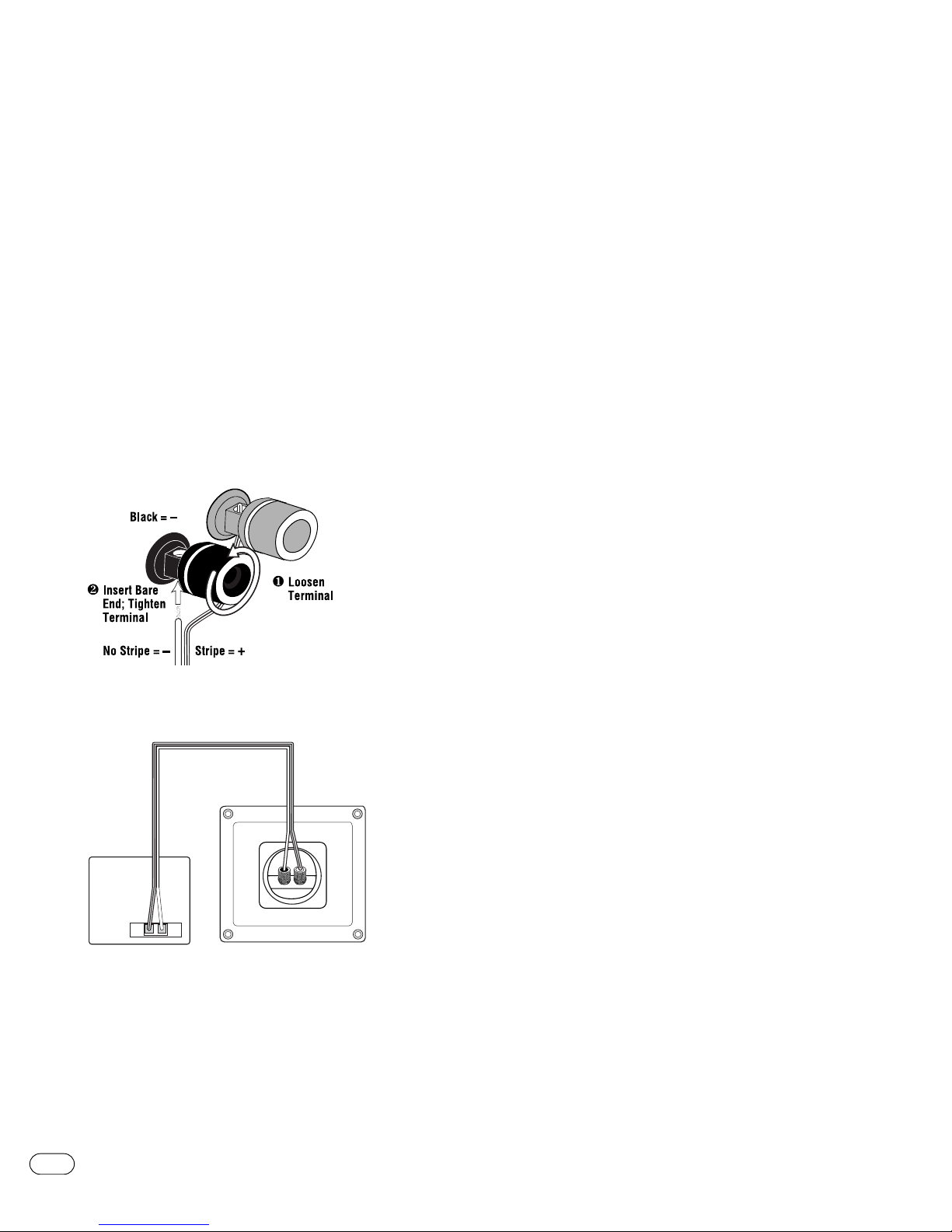

Figure 5.This example shows how to connect bare wires to the terminals.

Figure 6. Wiring diagram shows polarity connections for one

channel of a stereo or home theater system.

WIRING THE SYSTEM

IMPORTANT: Make sure all equipment is turned off before making any

connections.

For speaker connections, use a minimum #16-gauge speaker wire with

polarity coding.The side of the wire with a ridge or other coding is

usually considered positive polarity (i.e., +).

NOTE: If desired, consult your local Infinity dealer about speaker wire and

connection options.

The speakers have coded terminals that accept a variety of wire connec-

tors.The most common connection is shown in Figure 5.

To ensure proper polarity, connect each +terminal on the back of the

amplifier or receiver to the respective +(red) terminal on each speaker,

as shown in Figure 6. Connect the –(black) terminals in a similar way.

See the owner’s guides that were included with your amplifier, receiver

and television to confirm connection procedures.

IMPORTANT: Do not reverse polarities (i.e., + to –or –to +) when

making connections. Doing so will cause poor imaging and diminished

bass response.

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 4

SPECIFICATIONS

P142 P152 P162

Frequency Range (±3dB): 100Hz – 20,000Hz 58Hz – 20,000Hz 49Hz – 20,000Hz

Recommended

Amplifier Power Range: 10 – 100 watts 10 – 100 watts 10 – 150 watts

Sensitivity: 86dB 88dB 90dB

(2.83V @ 1 meter)

Nominal Impedance: 8Ω8Ω8Ω

Crossover Frequency: 3000Hz; 24dB/octave 3300Hz; 24dB/octave 3000Hz; 24dB/octave

Low-Frequency Driver: 4" (100mm) MMD,

®5-1/4" (130mm) MMD,

®6-1/2" (165mm) MMD,

magnetically shielded magnetically shielded magnetically shielded

High-Frequency Driver: 3/4" (19mm) MMD, 3/4" (19mm) MMD, 3/4" (19mm) MMD,

magnetically shielded magnetically shielded magnetically shielded

Dimensions (H x W x D): 9-7/8" x 5-15/16" x 6-13/16" 13" x 7-3/8" x 10-1/2" 14-3/4" x 8-1/4" x 11"

(with grille) (251mm x 150mm x 173mm) (330mm x 187mm x 267mm) (375mm x 208mm x 280mm)

Weight: 7 lb (3.2kg) 13.5 lb (6kg) 16.1 lb (7.3kg)

Infinity continually strives to update and improve existing products, as well as create new ones.The specifications and construction details in this and related Infinity publications are therefore

subject to change without notice.

INFINITY PRIMUS SPEAKERS

P252 P362 PC250 PC350

Frequency Range (±3dB): 49Hz – 20,000Hz 38Hz – 20,000Hz 80Hz – 20,000Hz 80Hz – 20,000Hz

Recommended

Amplifier Power Range: 10 – 150 watts 10 – 200 watts 10 – 150 watts 10 – 150 watts

Sensitivity: 92dB 93dB 90dB 91dB

(2.83V @ 1 meter)

Nominal Impedance: 8Ω8Ω8Ω8Ω

Crossover Frequency: 2500Hz; 24dB/octave 350Hz, 3300Hz; 24dB/octave 3000Hz; 24dB/octave 650Hz, 2800Hz; 24dB/octave

Low-Frequency Drivers: Dual 5-1/4" (130mm) MMD,

®Dual 6-1/2" (165mm) MMD,

®Dual 5-1/4" (133mm) MMD,

magnetically shielded magnetically shielded magnetically shielded magnetically shielded

Mid-Frequency Driver(s): N/A 4" (100mm) MMD, N/A Dual 3" (75mm) MMD,

magnetically shielded magnetically shielded

High-Frequency Driver: 3/4" (19mm) MMD, 3/4" (19mm) MMD, 3/4" (19mm) MMD, 3/4" (19mm) MMD,

magnetically shielded magnetically shielded magnetically shielded magnetically shielded

Dimensions (H x W x D): 35-3/4”x 7-3/8” x 11-3/4” 39-1/4" x 8-1/4" x 13" 7-5/8" x 18" x 9-5/8" 7-3/8" x 23-7/8" x 9-1/4"

(with grille) (908mm x 187mm x 300mm) (997mm x 208mm x 330mm) (194mm x 457mm x 245mm) (187mm x 606mm x 235mm)

Weight: 35.3 lb (16kg) 48.5 lb (22kg) 17.6 lb (8kg) 25 lb (11.4kg)

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 5

6INFINITY PRIMUS SPEAKERS

NOTES

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 6

INFINITY PRIMUS SPEAKERS

NOTES

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 7

Infinity Systems, 250 Crossways Park Drive,Woodbury, NY 11797 USA 516.674.4463 (USA only) www.infinitysystems.com

Infinity, Infinity Primus and MMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Metal Matrix Diaphragm is a trademark of Harman International Industries, Incorporated.

Part No. 406-000-05514-E 9/06

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the products described

in this owner’s manual are in compliance with technical

standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group International

Château du Loir, France 9/06

INFP1859PrimusII-OM 9/13/06 12:14 PM Page 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Infinity Intervenants

Infinity

Infinity Intermezzo 4.1t Manuel utilisateur

Infinity

Infinity Total Solutions TSS-800 Manuel utilisateur

Infinity

Infinity Crescendo CS 3006 Manuel utilisateur

Infinity

Infinity -1CMS Instructions de montage

Infinity

Infinity SAT-450 OM Manuel utilisateur

Infinity

Infinity Classia C255ES Manuel utilisateur

Infinity

Infinity BassLink Manuel utilisateur

Infinity

Infinity Total Solutions TSS-SUB4000 Manuel utilisateur

Infinity

Infinity QPS1 Manuel utilisateur

Infinity

Infinity 40.2cs Manuel utilisateur

Infinity

Infinity Overture 3 Compositions Series Manuel utilisateur

Infinity

Infinity Total Solutions TSS-SAT4000 Manuel utilisateur

Infinity

Infinity 652M Manuel utilisateur

Infinity

Infinity Prelude MTS Center Manuel utilisateur

Infinity

Infinity Total Solutions TSS-3IN1 Manuel utilisateur

Infinity

Infinity Overture 1 Manuel utilisateur

Infinity

Infinity FPS-1000 Manuel utilisateur

Infinity

Infinity HPS 1.5 Manuel utilisateur

Infinity

Infinity INTERMEZZO 2.6 Manuel utilisateur

Infinity

Infinity Total Solutions TSS-CENTER4000 Manuel utilisateur

Infinity

Infinity reference series Manuel utilisateur

Infinity

Infinity Outrigger Manuel utilisateur

Infinity

Infinity SONY KP-57XBR10W Manuel utilisateur

Infinity

Infinity Reference R152 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
