INels RF KEY-40/W Manuel utilisateur

WIRELESS LIGHT DIMMER

KEY FOB

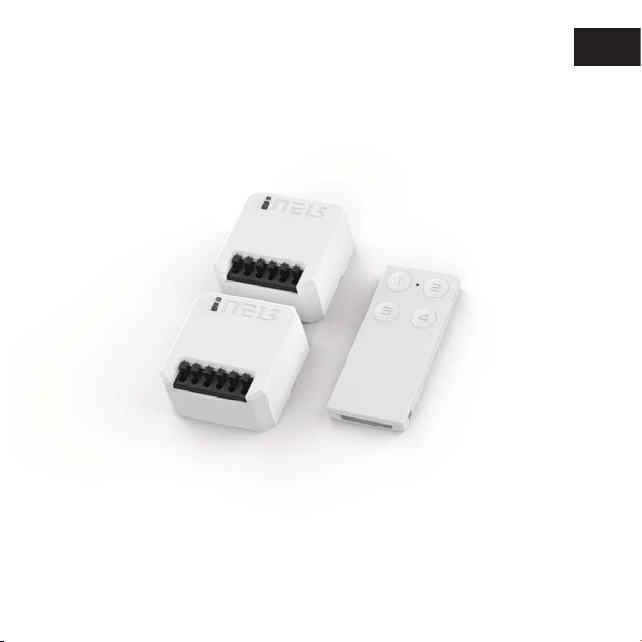

Combination of iNELS switching element for universal use. It can be used to control

electrical appliances, lights, sockets, garage doors, etc.

Content

The individual elements in the iNELS set are paired and their functions are preset.

iNELS kit with key fob enables the basic function of controlling electrical appliances - ON / OFF.

The appliances can be controlled independently by a key fob.

Controller – key fob RF KEY-40/W, RF KEY-40/B

ON function of

switching unit no. 1

OFF function of

switching unit no. 1

ON function of

switching unit no. 2

OFF function of

switching unit no. 2

EAN 8595188183109 (key fob - black + Universal dimmer, 1-channel)

EAN 8595188183116 (key fob - white + Universal dimmer, 1-channel)

EAN 8595188183123 (key fob - black + 2 x Universal dimmer, 1-channel)

EAN 8595188183130 (key fob - white + 2 x Universal dimmer, 1-channel)

Universal dimmer, 1-channel

RFDEL-71B-SL

The settings of the wall controllers can be changed - see detailed manuals of iNELS elements.

123

RF KEY 40

RF KEY 40/B – key fob , black

RF KEY 40/W – key fob , white

Detailed manual

Characteristics

• Key fob-sized remote control - used to control, lights, gate, garage door, shitters, etc.

• 4 buttons, each of which allows you to control an unlimited number of components.

• Replaceable battery (3 V CR 2032 - included in the package) with a service life of approx. 5 years (depen-

ding on the frequency of use).

Insertion and replacement of a battery RF KEY-40

Safe handling

When handling a device unboxed it is important to avoid contact with liquids. Never place the device

on the conductive pads or objects, avoid unnecessary contact with the components of the device.

Use a coin to open the key fob and

remove the front cover. Carefully tap

the device out of the bottom cover.

Slide the CR2032 battery into the

battery holder. Observe the polarity.

Insert the device into the bottom

cover. Attach the front of the cover

and click.

Controller – key fob

RF KEY-40/W, RF KEY-40/B

RF KEY-40

Supply voltage:

Battery life:

Transmission indication:

Number of buttons:

Communication Protocol:

Frequency:

Signal transmission method:

Range:

Other data

Operating temperature:

Operating position:

Colour design

Protection:

Pollution degree:

Dimensions:

Weight:

Related standards:

3 Vbattery CR2032

about 5 years depending on the frequency of use

red LED

RFIO2

868.5 MHz

one-way addressed message

in the open up to 200 m

-10 ... +50 °C (14 ... 122 °F)

any

white, black

IP20

64 x 25 x 10 mm

16 g

EN 60669, EN 300 220, EN 301489,

No 426/2000 Coll.

Technical parameters

Attention

When you install iNELS RF Control system, you have to keep a minimal distance of 1 cm (0.4“) between each

unit. Between the individual commands must be an interval of at least 1s.

RFDEL-71B-SL

Installation options

mounting in an installation box mounting into the ceiling light cover Under ceiling mounted

Detailed manual

Universal dimmer, 1-channel

RFDEL-71B-SL

Characteristics

• The universal built-in dimmer is used to regulate light sources.

• They can be combined with detectors, controllers, iNELS RF Control or system components.

• 7 light functions - smooth increase or decrease with time setting 2s-30 min. + additional function

SWITCH OFF

• Thanks to setting the min.brightness you will eliminate ﬂashing of the LED and ESL light sources

• The universal dimmer may be controlled by up to 25 channels (1 channel represents 1 button).

• Connection of the existing button on the control input “S“ enables combination of wireless control

with classic (wired) control.

• The programming button on the controller is also used for manual control of the output.

• For components labelled as iNELS RF Control2(RFIO2), it is possible to set the repeater function

via the RFAF/USB service device.

• Range up to 200 m (in open space), if the signal is insucient between the controller and unit,

use the signal repeater RFRP-20 or protocol component RFIO2that support this feature.

RFDEL-71B-SLTechnical parametres

230 V AC / 50 Hz

5 VA

0.5 W

+10/ -15 %

4 - wire, with NEUTRAL

R, L, C, LED, ESL

2 x MOSFET

300 W *

868.5 MHz

up to 200 m

button PROG (ON/OFF), external button

-15 ... + 45 °C

-30 ... +70°C

any

IP30 under normal conditions

III.

screwless terminals

0.2-1.5 mm2

43 x 44 x 22 mm

30 g

EN 60730, EN 63044, EN 300 220, EN 301 489

Supply voltage:

Apparent power:

Dissipated power:

Supply voltage tolerance:

Connection:

Dimmed load:

Output:

Contactless:

Load capacity:

Control:

RF command from the transmitter:

Range in open space:

Manual control:

Other data:

Operating temperature:

Storage temperature:

Operating position:

Protection:

Overvoltage category:

Contamination degree:

Connection:

Connecting conductor:

Dimensions:

Weight:

Related standards:

* loadability of power factor cos φ=1

60 - 90 % 80 - 95 % 20 - 60 % 0 - 10 % 80- 90 %

RFRP-20

LED, ESL, R

Compatibility

The device can be combined with all system components, controls and devices of iNELS RF Control and

iNELS RF Control2.

The detector can be assigned an iNELS RF Control2(RFIO2) communication protocol.

Connection

coil transformer electronic transformer

Radiofrequency signal penetration through various construction materials

brick walls wooden structures

with plaster boards reinforced concrete metal partitions common glass

Range up to 200 m in open space, if the signal is insucient between the controller and unit, use the signal

repeater RFRP-20 or protocol component RFIO2that supports this feature.

Instruction manual is designated for mounting and also for the usage of the device. It is always a part of its pac-

king. Installation and connection can be carried out only by a person with adequate professional qualiﬁcation

with understanding this instruction manual and functions of the device, and while observing all valid regulations.

Trouble-free function of the device also depends on transportation, storing and handling. In case you notice any

sign of damage, deformation, malfunction or missing part, do not install this device and return it to its seller.

It is necessary to treat this product and its parts as electronic waste after its lifetime is terminated. Before

starting installation, make sure that all wires, connected parts or terminals are de-energized. While mounting

and servicing observe safety regulations, norms, directives and professional, and export regulations for working

with electrical devices. Do not touch parts of the device that are energized – life threat. Due to transmissivity

of RF signal, observe correct location of RF components in a building where the installation is taking place. RF

Control is designated only for mounting in interiors. Devices are not designated for installation into exteriors

and humid spaces. The must not be installed into metal switchboards and into plastic switchboards with metal

door – transmissivity of RF signal is then impossible. RF Control is not recommended for pulleys etc. – radio-

frequency signal can be shielded by an obstruction, interfered, battery of the transceiver can get ﬂat etc. and

thus disable remote control.

Warning

Designed & manufactured by:

ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly, Czech republic

www.elkoep.com, Hotline: +420 800 100 671
