Revision overview
PROmesh P8+F - User Manual 3
Revision overview
© Copyright 2022 Indu-Sol GmbH
Subject to unannounced changes. We are constantly working on the further development of our products.
We reserve the right to make changes to the scope of delivery in terms of form, equipment and technology.
No claims can be derived from the information, figures and descriptions in this documentation. Any
reproduction, further processing and translation of this document or extracts thereof require the written
consent of Indu-Sol GmbH. All rights under copyright law are expressly reserved by Indu-Sol GmbH.
W A R N U N G
Commissioning and operation of this unit may only be carried out by qualified personnel. Qualified
personnel in the sense of the safety instructions in this manual are persons who are authorised to
commission, earth and label equipment, systems and circuits in accordance with safety engineering
standards.
Improper use or configuration of the PROmesh P8+F in the network can lead to serious physical injury
as well as damage to property and material, also due to uncontrolled machine movements.
Date Revision Change(s)
20.02.2023 0 First version
Table of contents
PROmesh P8+F - User Manual 4
Table of contents
Revision overview 3
Table of contents 4
1 General information 6
1.1 Overview of the PROmesh P8+F - Scope of Functions 6
1.2 Scope of delivery 7
1.3 Safety instructions 7
2 Connections and status indicators on the unit 8
2.1 Device connections 8
2.2 Installation 9
2.3 Installation 9
2.4 Power supply connection and error relay 10
2.5 LED displays 12
2.6 Reset button 12
2.7 Network integration & commissioning 13
Data ports 13
Media selection & connection 13
Wiring 13
2.8 Network topologies & redundancy 14
Network topologies 14
Ring structure 14
3 Web application 16
3.1 Preparations 16
3.2 System Login 17
3.3 Web interface 17
3.4 Start 18
3.5 System information 20
3.6 Diagnosis 20
Line diagnosis 20
Leakage current 22
Network statistics 23
Neighbourhood Detection (LLDP) 24
Port Mirroring 25
Alarm trigger 25
Messages 27
3.7 PROFINET 28
Table of contents
PROmesh P8+F - User Manual 5
3.8 Switching 28
Port configuration 29
Quality of Service 30
VLAN 31
Bandwidth control 34
Link aggregation 34
3.9 Redundancy 36
MRP 36
RSTP 37
MSTP 40
3.10 System configuration 40
Unit information 41
IP configuration 42
Password 43
Time setting 43
SNMP 44
Access time 45
Backup 46
Restoration 46
Firmware update 46
Factory settings 48
Restart 48
3.11 Support 48
3.12 Troubleshooting tips 48
4 Technical specification en 49
General information
PROmesh P8+F - User Manual 6
1 General information
Please read this document thoroughly from beginning to end before you start installing and commissioning
the device.
1.1 Overview of the PROmesh P8+F - Scope of Functions
The PROmesh P8+F is an industrial Ethernet switch with management and PROFINET functionality that
can be configured easily and conveniently via a web application. It supports the effective setup of all network
topologies, such as bus, star, and ring structure in your plant, with its comprehensive functions with Store &
Forward technology.
Features :
Web application for configuration
Reverse polarity protected supply 12-48V DC
Line diagnosis
Leakage current monitoring
Port statistics (network load in ms, errors, discards)
Alarm management
8 x 10/100/1000 Mbit/s RJ45
Switch technology: Store & Forward
MAC address table: 16K (16384 addresses)
PROFINET Conformance Class B
PROFINET Netload Class III
Quality of Service (QoS) with eight priority queues
Prioritisation according to Class of Service (COS), Type of Service (TOS) or port priority
Limitation of incoming and outgoing packets
Port Mirroring (Rx / Rx and Tx packets)
Port-based VLAN with 4096 possible VLAN IDs
Simple Network Time Protocol (SNTP) Client and NTP Server
Simple Mail Transfer Protocol (SMTP)
Internet Group Management Protocol - Snooping (IGMP Snooping)
Dynamic Host Configuration Protocol (DHCP) Client Function
Simple Network Management Protocol (SNMP), v1, v2c, v3
Updating, saving and backing up the system configuration via web interface, TFTP and memory card
General information
PROmesh P8+F - User Manual 7
1.2 Scope of delivery
The scope of delivery includes the following individual parts:
PROmesh P8+F
5-pole pluggable terminal block, 2.5mm² (power supply and alarm contact)
User Quick Start Guide (Hardcopy)
SD card, for backup and update
Please check the contents of your delivery for completeness before commissioning. If you have any
questions, please contact our technical support team immediately before commissioning.
Before using the device for the first time, insert the external memory card into the corresponding
slot on the back of the unit (see figure 1).
1.3 Safety instructions
Before putting the unit into operation, check that it is in perfect condition externally. If you suspect
damage, return the PROmesh P8+F to your supplier immediately and do not put the unit into
operation. If you have any questions, our technical support team will be happy to assist you.
The PROmesh P8+F has been developed for use in PROFINET applications according to
Conformance Class B. To fully support the PROFINET standards, also note the selection of the
data lines used according to the standard.
Always observe the technical specification of the unit to ensure safe and optimal use. The unit
was developed for protective environments according to IP20. Take appropriate measures in
deviating environments to ensure proper operation of the unit.
Do not open the housing under any circumstances. No serviceable parts have been installed.
Unauthorised opening of the housing will invalidate any warranty claims.
Connections and status indicators on the unit
PROmesh P8+F - User Manual 8
2 Connections and status indicators on the unit
2.1 Device connections
Status LEDs
X1 Data ports
8x RJ45
Figure 1: Unit connections
Power supply
,
alarm
contact and reset
Reset
24 V
0 V
Potential-free switching
contact
FE Connection
SD card holder on the
rigth side of the switch
Connections and status indicators on the unit
PROmesh P8+F - User Manual 9
2.2 Installation
The PROmesh P8+F is designed for individual use in control cabinets of various types and can be mounted
on a standard 35mm DIN rail.
Only use the existing top-hat rail fastening for mounting the unit or, if necessary, purchase appropriate
spare parts to ensure sufficient electrical contact and the mechanical load capacity of the unit.
2.3 Installation
The PROmesh P8+F is mounted vertically in the control cabinet on a 35 mm top-hat rail according to DIN
EN 60715.
Figure 2: Side view with connection terminal on the right
For correct installation, the following distances to other assemblies must be observed:
To the left and right: 20 mm
Upwards and downwards: 50 mm
The assembly and disassembly of the unit is shown in figure 3.
Connections and status indicators on the unit
PROmesh P8+F - User Manual 10

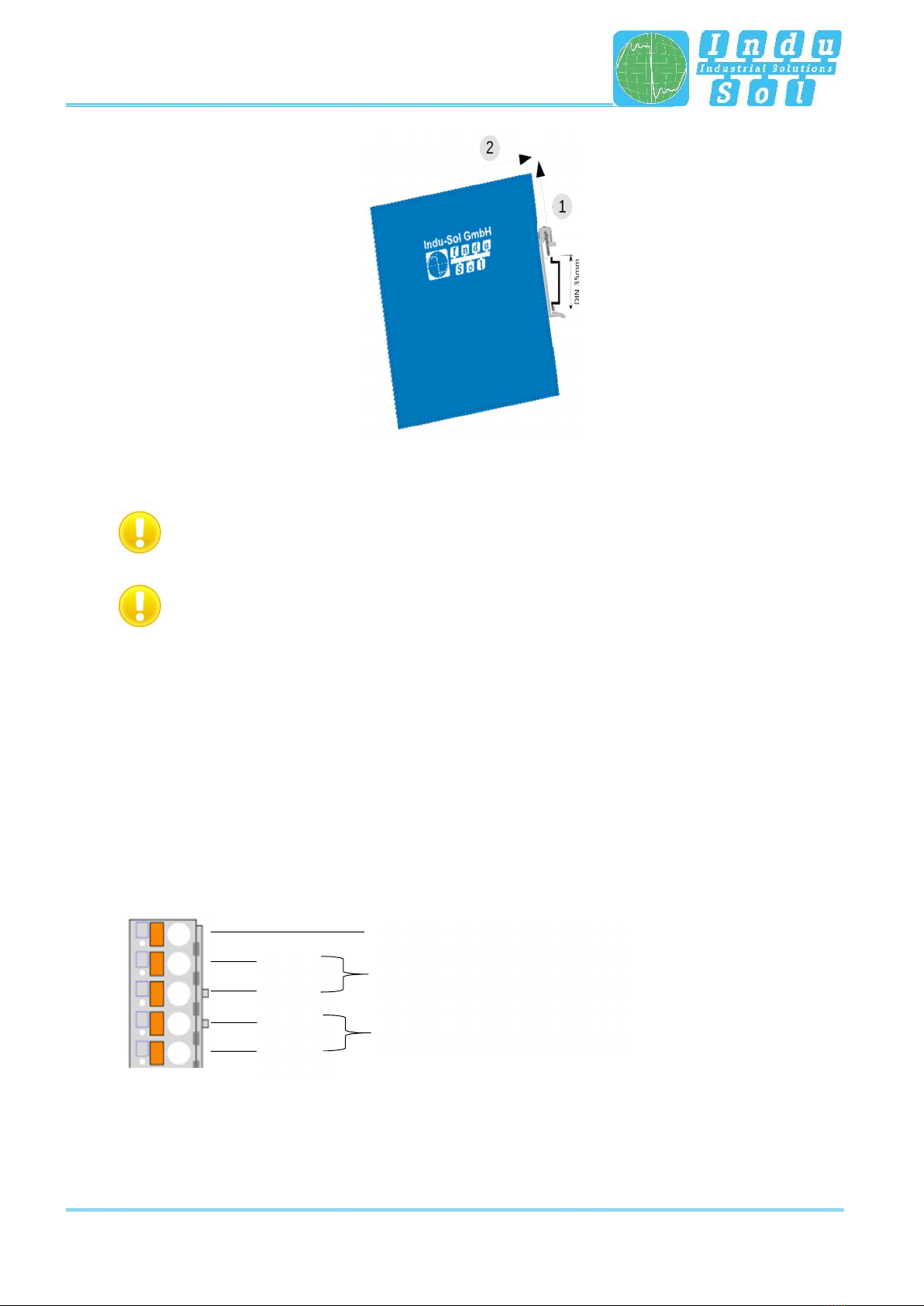

Figure 3: Mounting and dismounting on the top-hat rail
Do not mount the PROmesh P8+F switches directly next to devices that generate strong
electromagnetic interference fields, e.g. transformers, contactors, frequency converters, etc.
Do not mount the PROmesh P8+F switches directly next to heat-generating devices and protect
the switch from direct sunlight to avoid unwanted heating. Protect the PROmesh P8+F from
additional heat radiation and observe the approved storage and operating temperature range.
2.4 Power supply connection and error relay
Operate your PROmesh P8+F with a nominal voltage of DC 12 V to 48 V. Connect the power supply to the
correspondingly marked terminals of the supplied 5-pole terminal block adapter (VDC, GND). The power
supply must comply with UL60950-1/UL62368-1, Class 2 (NEC), limited energy source (UL61010-1).
The 5-pin 2.5mm² terminal block on the top of the unit is assigned as follows:
Figure 4: Connector terminal block assignment
Out 2
Out 1
GND
VDC
FE
Relay
Power Supply
