IMT IQL Helios Manuel utilisateur

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 2 Version 4.6 201302

Contents

1. Safety..................................................................................................................................... 3

2. Warranty................................................................................................................................ 3

2.1 General.................................................................................................................................... 3

2.2 Life span .................................................................................................................................. 3

3. Type plate .............................................................................................................................. 4

4. Product Description................................................................................................................ 5

5. Specifications......................................................................................................................... 6

5.1 General.................................................................................................................................... 6

5.2 Dimensions .............................................................................................................................. 6

6. Installation ............................................................................................................................ 7

6.1 Preparation .............................................................................................................................. 7

6.2 Assembly ................................................................................................................................. 7

6.3 Connections ............................................................................................................................12

7. Use....................................................................................................................................... 13

7.1 Commissioning ........................................................................................................................13

7.2 Insulation test .........................................................................................................................13

8. Maintenance......................................................................................................................... 13

9. Recycling.............................................................................................................................. 13

10. Contact details ..................................................................................................................... 13

11. EC Declaration of Conformity ............................................................................................... 14

No part of this User Manual may be copied, redistributed, published or changed without the prior written

permission of IMT B.V.

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 3 Version 4.6 201302

1. Safety

In order to use the product safely and optimise the life of the product, the following instructions must be

observed.

Only qualified personnel may install the product.

Work in accordance with locally applicable safety standards and regulations.

Ensure there is a reliable connection to the earthing system.

Do not clean the light fitting with a high pressure steam or water jet, to avoid damage not covered by

warranty.

2. Warranty

2.1 General

The guarantee on the IQL® Helios fittings is only applicable when the light fitting is used within the operational

limits.

Operational limits are:

The minimum and maximum ambient temperature for the IQL® Helios fittings are -20°C to +40°C.

The light fitting must be installed by a qualified person and in compliance with the installation

instructions.

Damage caused by incorrect installation, accidents or external influences such as lighting strike and

harmonic distortion not in accordance with EN 50055 are not covered by the guarantee.

The lighting level of the light fitting depends on the temperature and is therefore not covered by the guarantee.

If an IQL® Helios fitting fails within the warranty period, IMT B.V. will supply a new fitting with a comparable

specification free of charge. Before the guarantee can be confirmed, a defective light fitting must be sent to

IMT B.V. at the user’s expense for inspection. After this inspection the user will be informed of the result(s).

See invoice for individual guarantee agreements.

2.2 Life span

Switching the light fitting with a semiconductor photoelectric cell or a semiconductor relay has no known effect

on the life span of the light fitting.

It is expected that more than 70% of the original illumination power will be retained after 80,000 operating

hours.

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 4 Version 4.6 201302

3. Type plate

3.1 Standard model

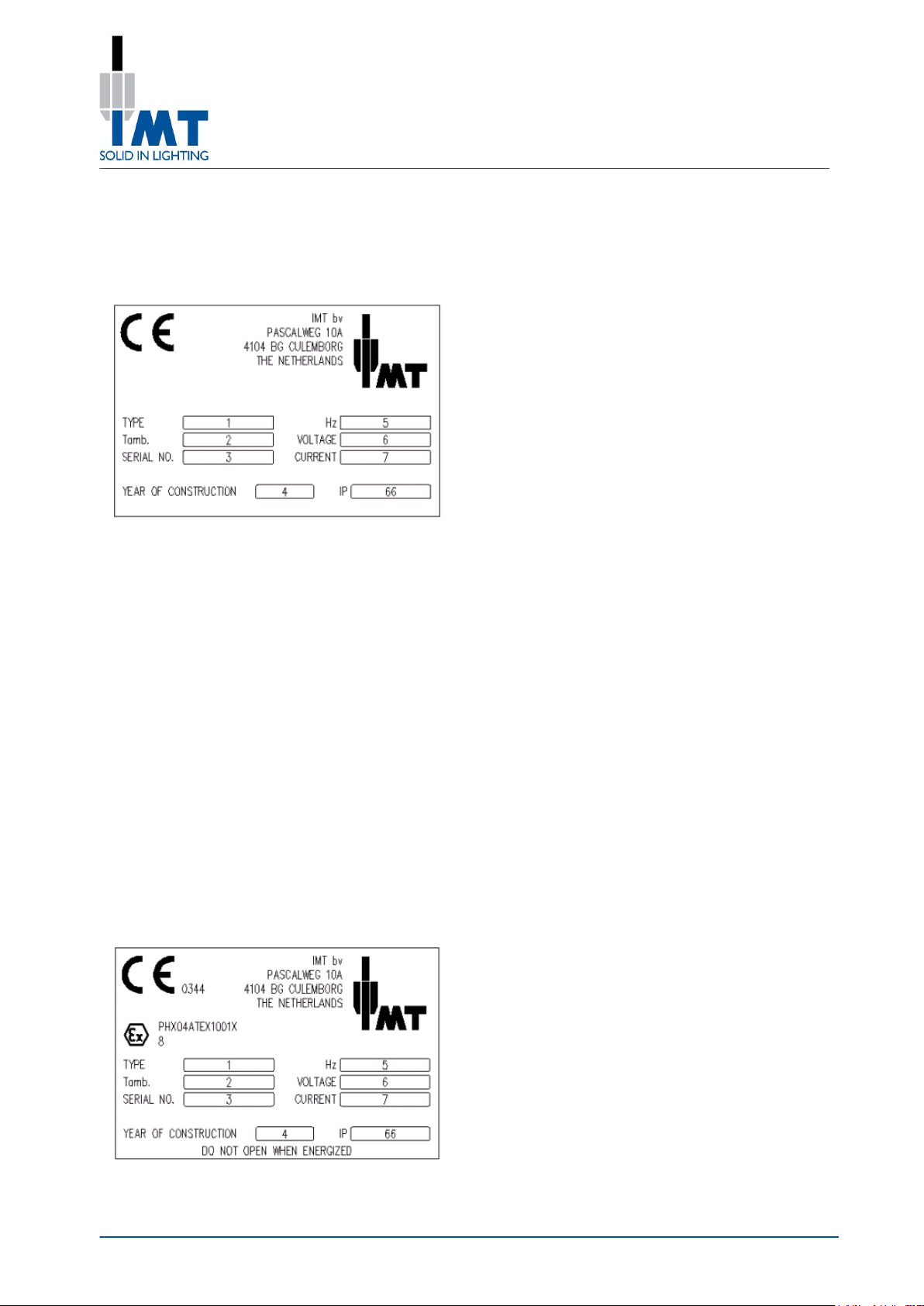

The standard model light fitting has a type plate attached:

TYPE PLATE

This contains the following information:

1. Type : Low temperature range IQL55-LT IQL85-LT

: Normal temperature range IQL55 IQL85

2. Ambient temp. : Low temperature range -40°C up to 40°C

: Normal temperature range -20°C up to 40°C

3. Serial number

4. Year of Manufacture

5. Frequency : AC 50/60

: DC none

6. Voltage : 200-277Vac/dc or 100-120Vac/dc

7. Current : 100-120 Vac/dc 200-277 Vac/dc

: 55W 460mA 260mA

: 85W 730mA 400mA

: 165W 1420mA 740mA

3.2 Explosion proof model

The explosion proof model light fitting has a type plate attached:

TYPE PLATE

This contains the following information:

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 5 Version 4.6 201302

1. Type : Low temperature range IQL55-LT IQL85-LT

: Normal temperature range IQL55 IQL85

2. Ambient temp. : Low temperature range -40°C up to 40°C

: Normal temperature range -20°C up to 40°C

3. Serial number

4. Year of Manufacture

5. Frequency : AC 50/60

: DC none

6. Voltage : 200-277Vac/dc or 100-120Vac/dc

7. Current : 100-120 Vac/dc 200-277 Vac/dc

: 55W 460mA 260mA

: 85W 730mA 400mA

:165W 1420mA 740mA

8. Marking : IQL 55 and IQL 85 : Ex II 3 GD EEx nA II T4 T135°C IP66

IQL165W : Ex II 3 GD EEx nA II T3 T160°C IP66

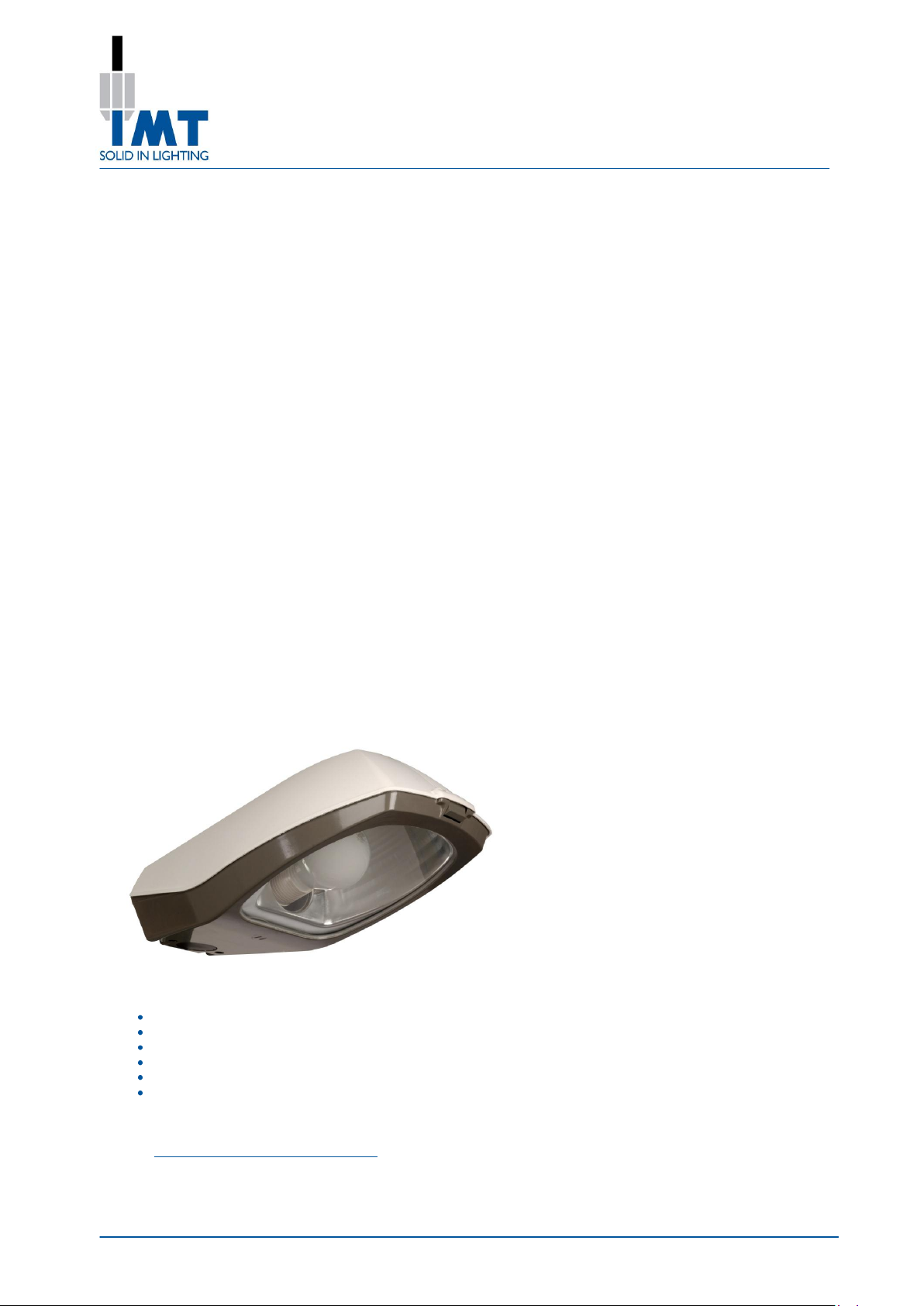

4. Product Description

All IQL® Helios light fittings have been designed for use in demanding conditions.

The characteristics of the IQL® Helios fittings are:

Maximum of 10 year guarantee on correct operation1

100,000 hours maintenance-free operation expected2

sealed for life

vibration proof

based on the principle of induction

explosion-safe model ATEX category 3 suitable for use in Zone 2 & 22

1For the Helios IQL®165 a different maximum guarantee period of 6 years applies. See invoice for individual guarantee

agreements.

2For the 165W version 60.000 hrs maintenance-free operation expected

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 6 Version 4.6 201302

5. Specifications

5.1 General

Housing : Copper free aluminium

Lens : Toughened glass

Colour recognition : Ra>80

Ingress protection : IP66

Burning position : Universal

(Re)ignition : Instant

Power factor : >0,92

Connection IP66 : Standard-3 pole Terminal Block

Connection EX Zone2 : Standard-12m flying lead Type RMcL H07RN-F 3x2.5mm²

Options:

The following options are available for the IQL® Helios light fittings:

Lamp Colour : Warm White (colour 827), Cool White (colour 840), Clear Sky

Wattage : 55 watt, 85 watt and 165 watt

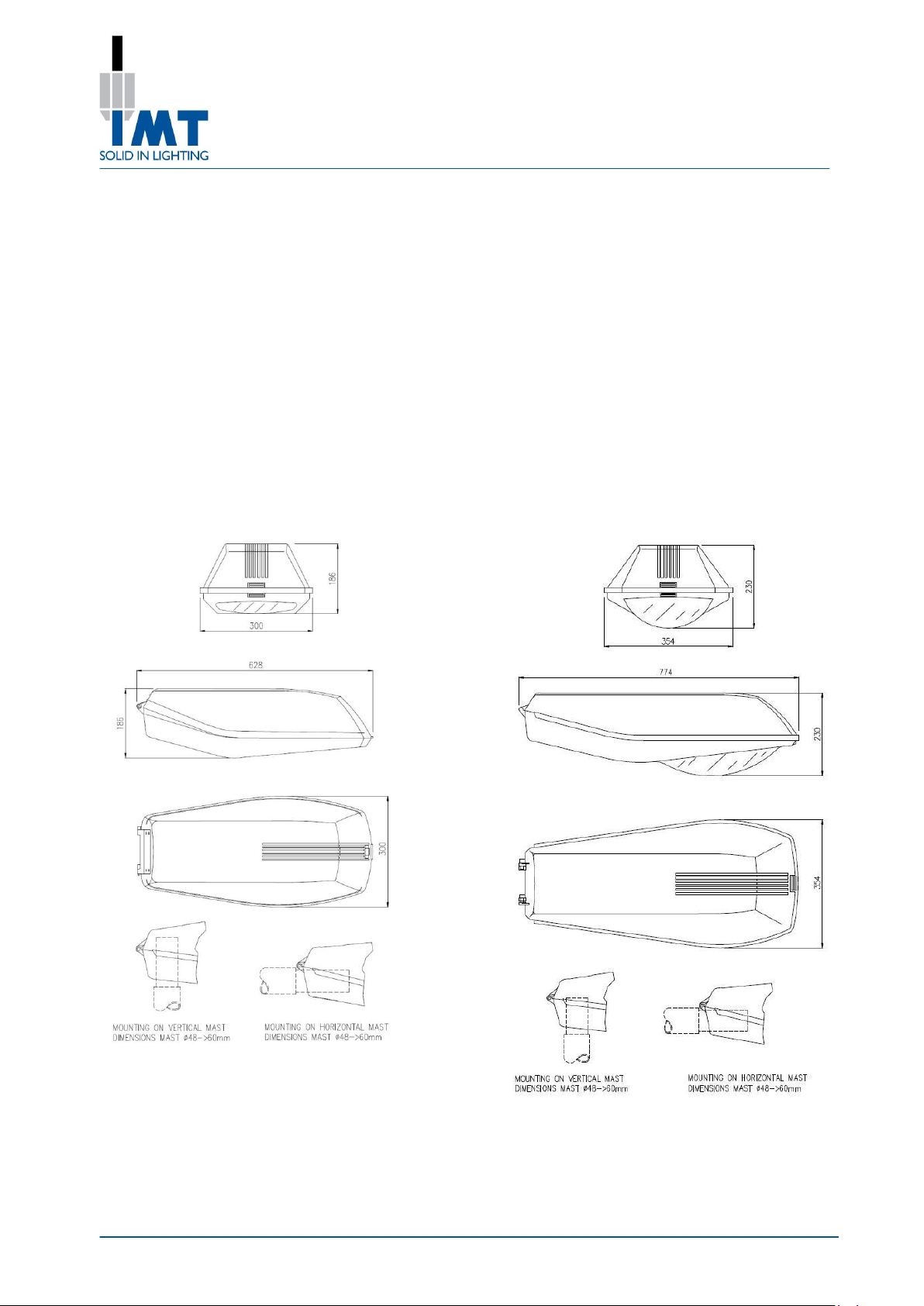

5.2 Dimensions

IQL® Helios Area-/Streetlight 55/85W IQL® Helios Area-/Streetlight 165W

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 7 Version 4.6 201302

6. Installation

6.1 Preparation

1. Check that the light fitting will be installed in an environment that matches the ambient temperatures, gas

group and temperature class (for Zone 2 and 22). This data is shown on the light fitting type plate.

WARNING

The installation of the light fitting in an environment that does not match the

specified conditions can result in a dangerous situation.

WARNING

The installation of the light fitting in an environment that does not match the

specified ambient temperatures can have a strong negative effect on the life span

of the light fitting.

2. Choose the correct type of protection for the light fitting. The protection device needs to be a fuse or a

circuit breaker of at least 4 kA with a C characteristic.

3. Determine the number of light fittings that can be installed in each group. Consult the following table for

this.

Installation

protection

55 W

85 W

165 W

100-120

VAC/DC

200-277

VAC/DC

100-120

VAC/DC

200-277

VAC/DC

200-277

VAC/DC

B Type, 10 A

C type, 10 A

B Type, 16 A

C type, 16 A

55 W

85 W

165 W

100-120

VAC/DC

200-277

VAC/DC

100-120

VAC/DC

200-277

VAC/DC

200-277

VAC/DC

Inrush currents

Peak duration

170 μs

140 μs

When using 30 mA earth leakage switches, provision must be made for a maximum of 30 light fittings on one

switch.

6.2 Assembly

Make sure there is a reliable connection to the earthing system.

WARNING

The installation of the light fitting in an environment that does not match the

specified conditions can result in a dangerous situation.

WARNING

The installation of the light fitting in an environment that does not match the

specified ambient temperatures can have a strong negative effect on the life span

of the light fitting.

WARNING

For Zone 2 and Zone 22 installation: the installation must be carried out in

accordance with (NEN-EN) IEC 60079-14.

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 8 Version 4.6 201302

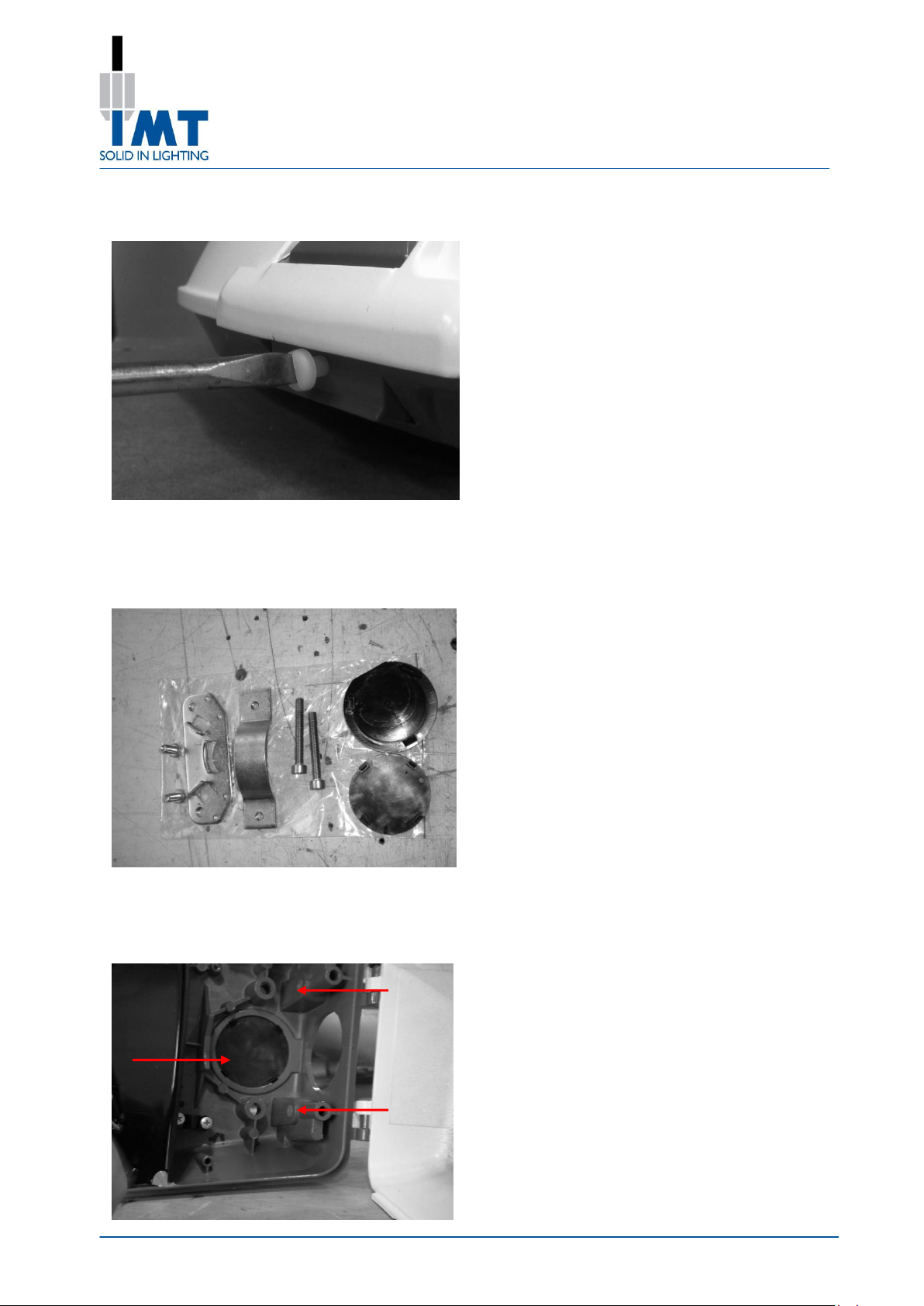

1. Take the light fitting out of the packaging.

2. Inspect the light fitting for mechanical damage.

3. Unscrew the metal screw to open the light fitting.

4. Check if the bag that comes with the product contains the following fixing materials:

2 plastic covers

2 long M8 socket-head bolts.

2 short M8 bolts (self drilling)

1 mast clamp.

1 strap clamp

5. Remove the plastic caps from the inserts.

For Horizontal Mounting (for vertical mounting see 13 onwards)

6. Place the corresponding plastic cover over the mounting hole that will not be used.

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 9 Version 4.6 201302

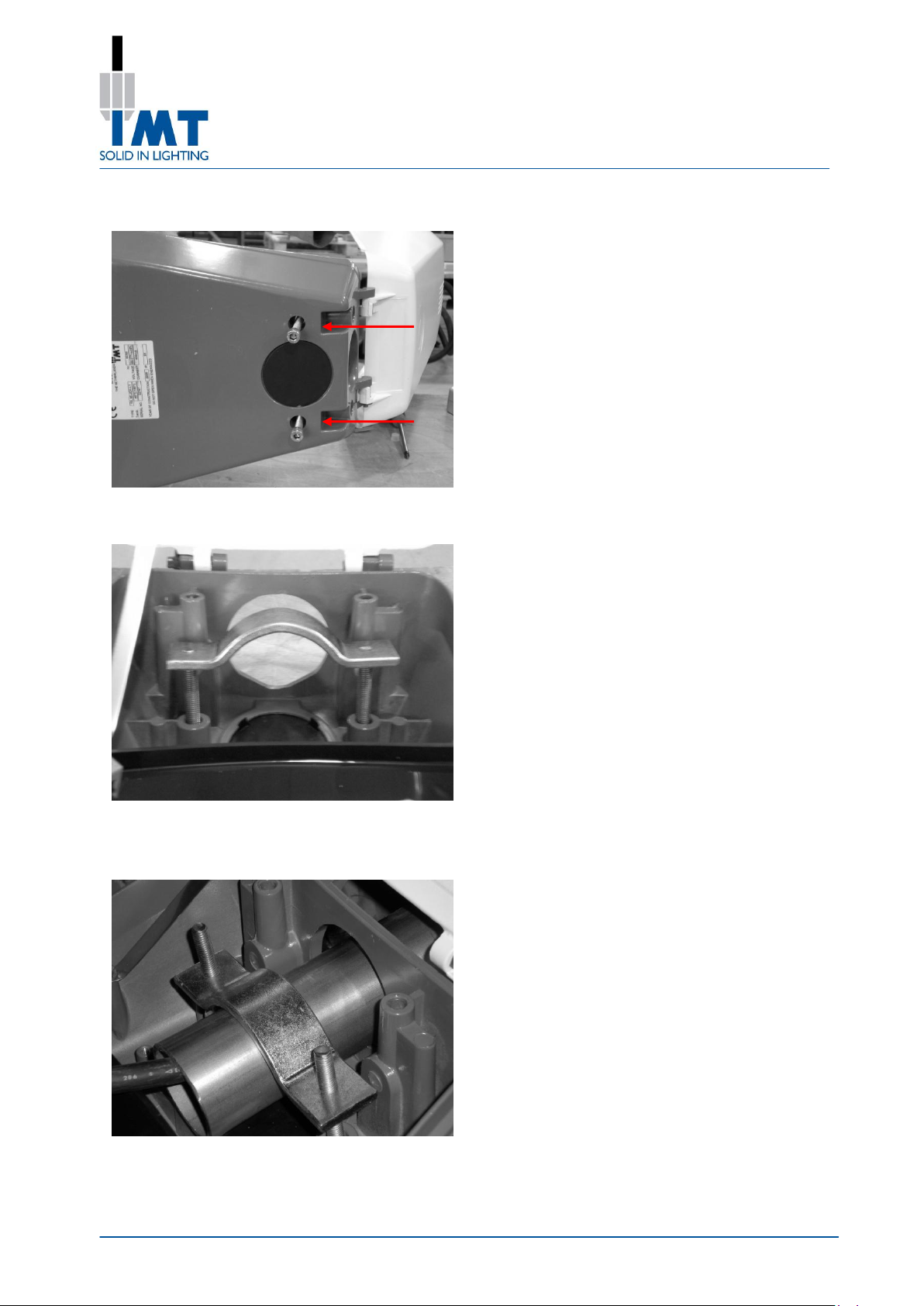

7. Slide the long M8 socket-head bolts from underneath into the light fitting.

8. Fasten the mast clamp by turning the socket-head bolts a few times into the clamp.

9. Place the light fitting on the mast and tighten the socket-head bolts until the light fitting is completely

fastened to the mast.

User Manual

IQL® Helios Area-/Streetlight

User Manual

IQL® Helios Area-/Streetlight 10 Version 4.6 201302

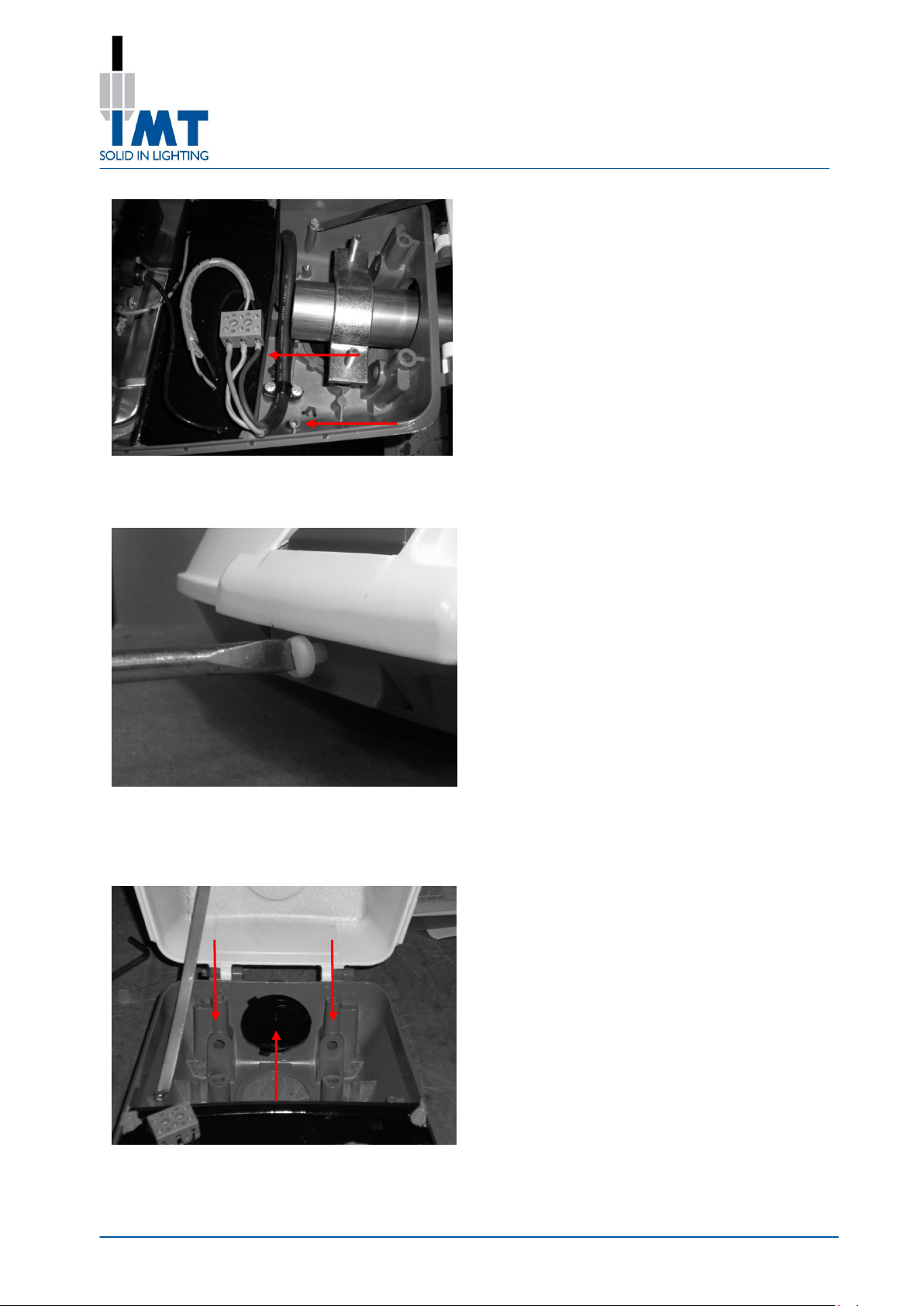

10. Connect the incoming cable to the connecting block.

11. Fasten the incoming cable by clamping it tight under the strain relief.

12. Close the light fitting. Fasten the metal screw securely to lock the light fitting.

For Vertical Mounting

13. Place the corresponding plastic cover over the mounting hole that will not be used.
