Impex MARCY MD-11.0 Manuel utilisateur

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

MD-11.0

Retain This

Manual for

Reference

06-23-06

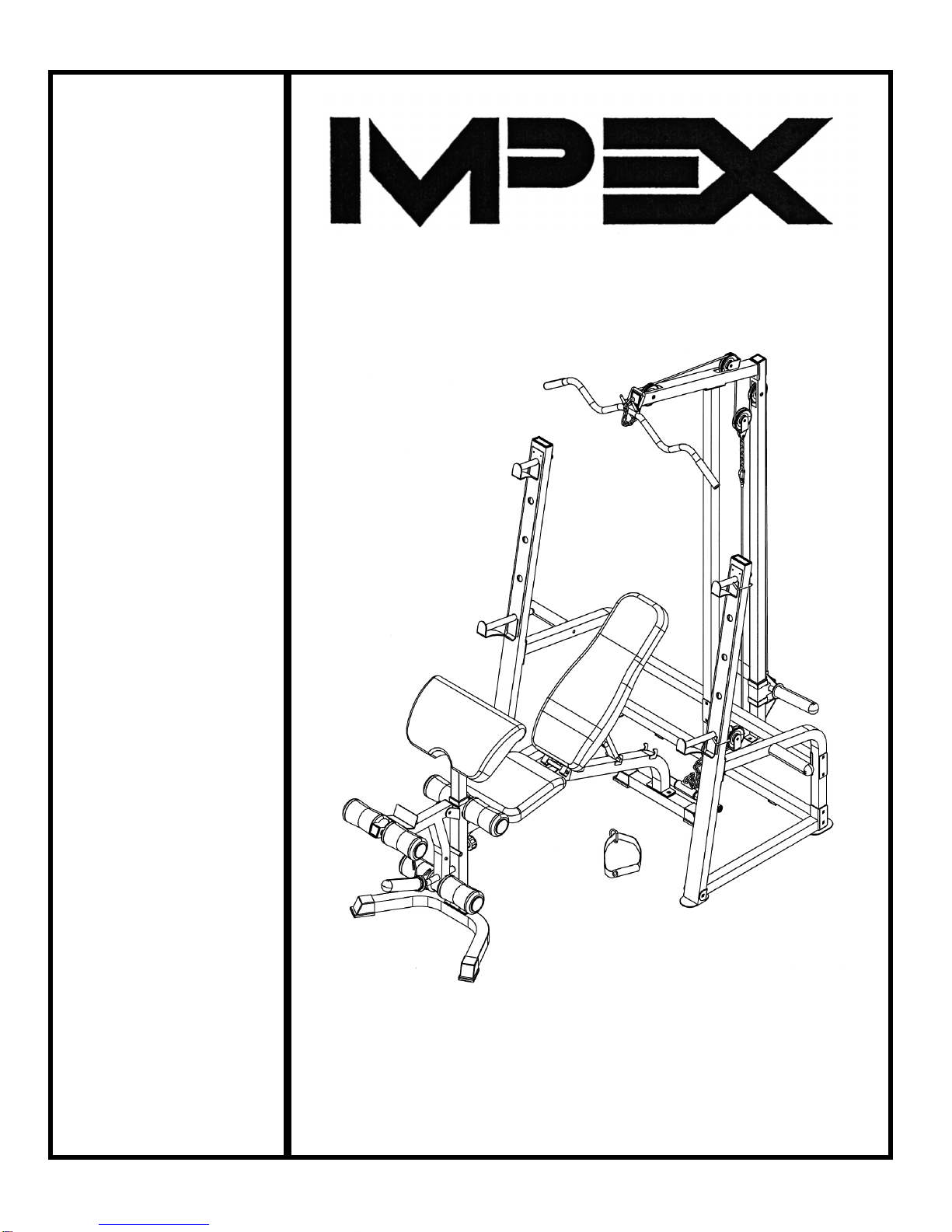

OWNER'S

MANUAL

MARCY DIAMOND ELITE

MD-11.0

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 7

EXPLODED DIAGRAM.........................................................................………. 18

PARTS LIST…………………………………………………………………………..20

WARRANTY.................................................................................................… 21

ORDERING PARTS......................................................................................... 21

BEFORE YOU BEGIN

Thank you for selecting the MARCY DIAMOND ELITE MD-11.0 Olympic Cage

by IMPEX®INC. For your safety and benefit, read this manual carefully

before using the machine. As a manufacturer, we are committed to provide

you complete customer satisfaction. If you have any questions, or find there

are missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer Service

Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weights on the rack: 600 lbs.

6. Maximum weights on Leg Developer: 100 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

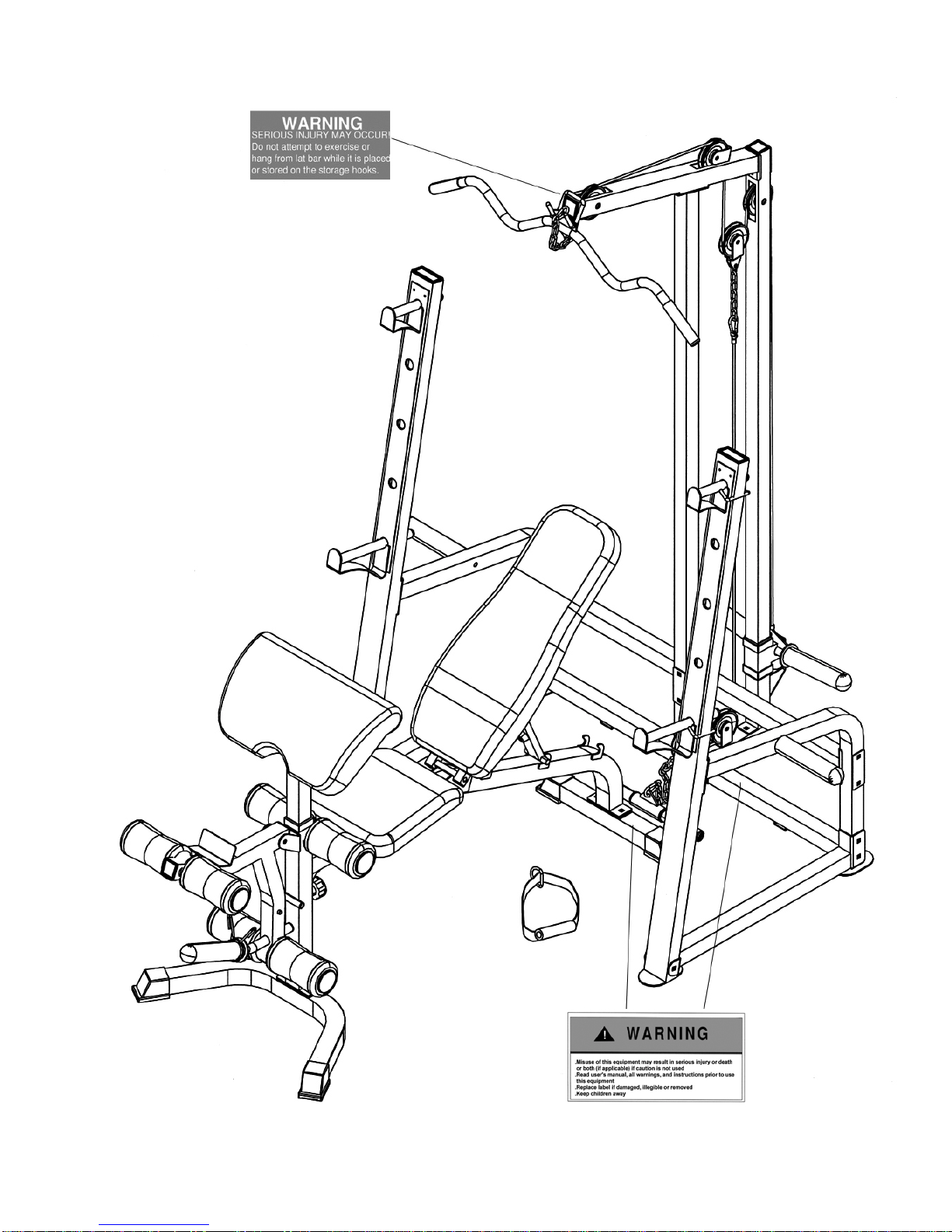

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Rear Stabilizer, and Upper Frame. If the labels are

missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the

location shown. 3

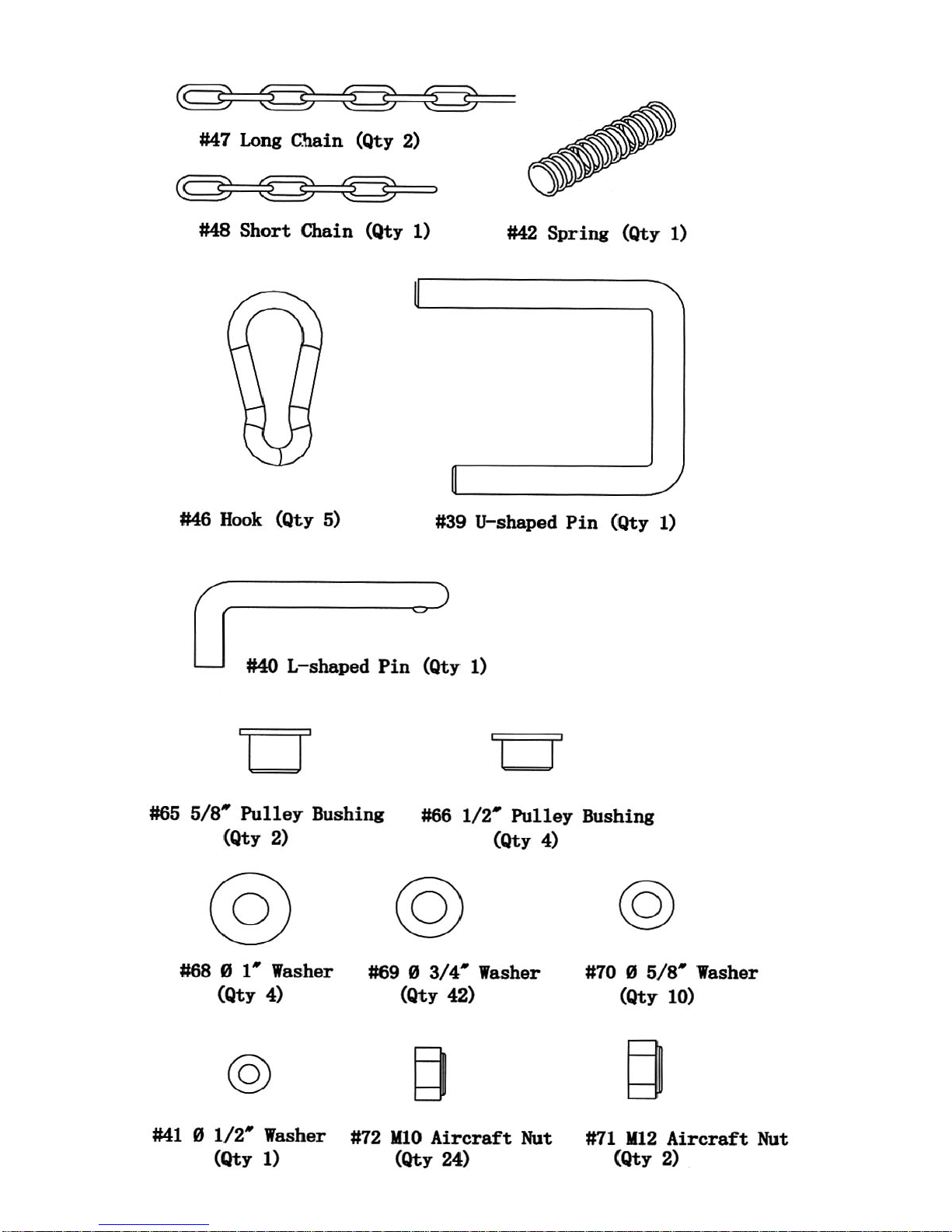

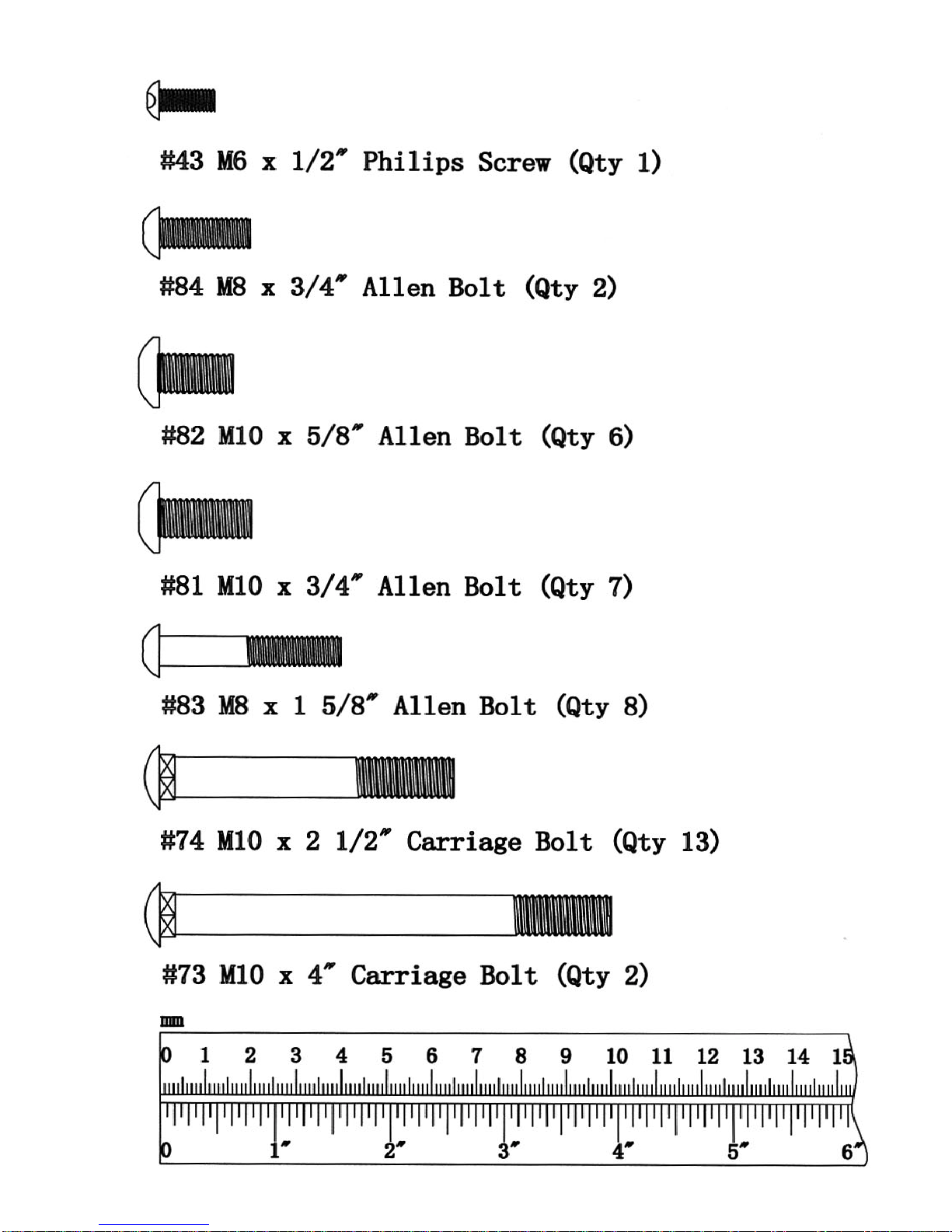

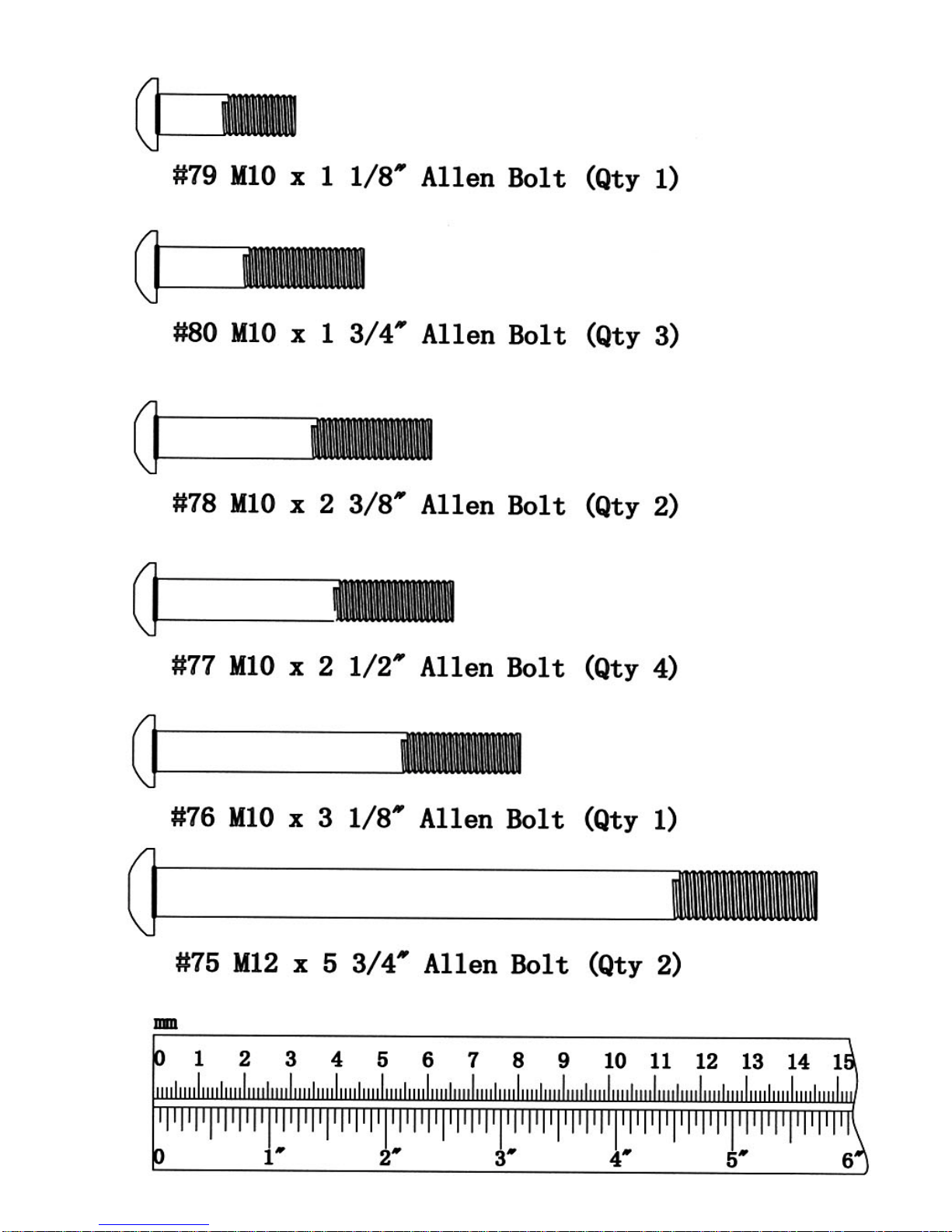

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches

NOTE: It is strongly recommended this machine be assembled by two or more people

to avoid possible injury.

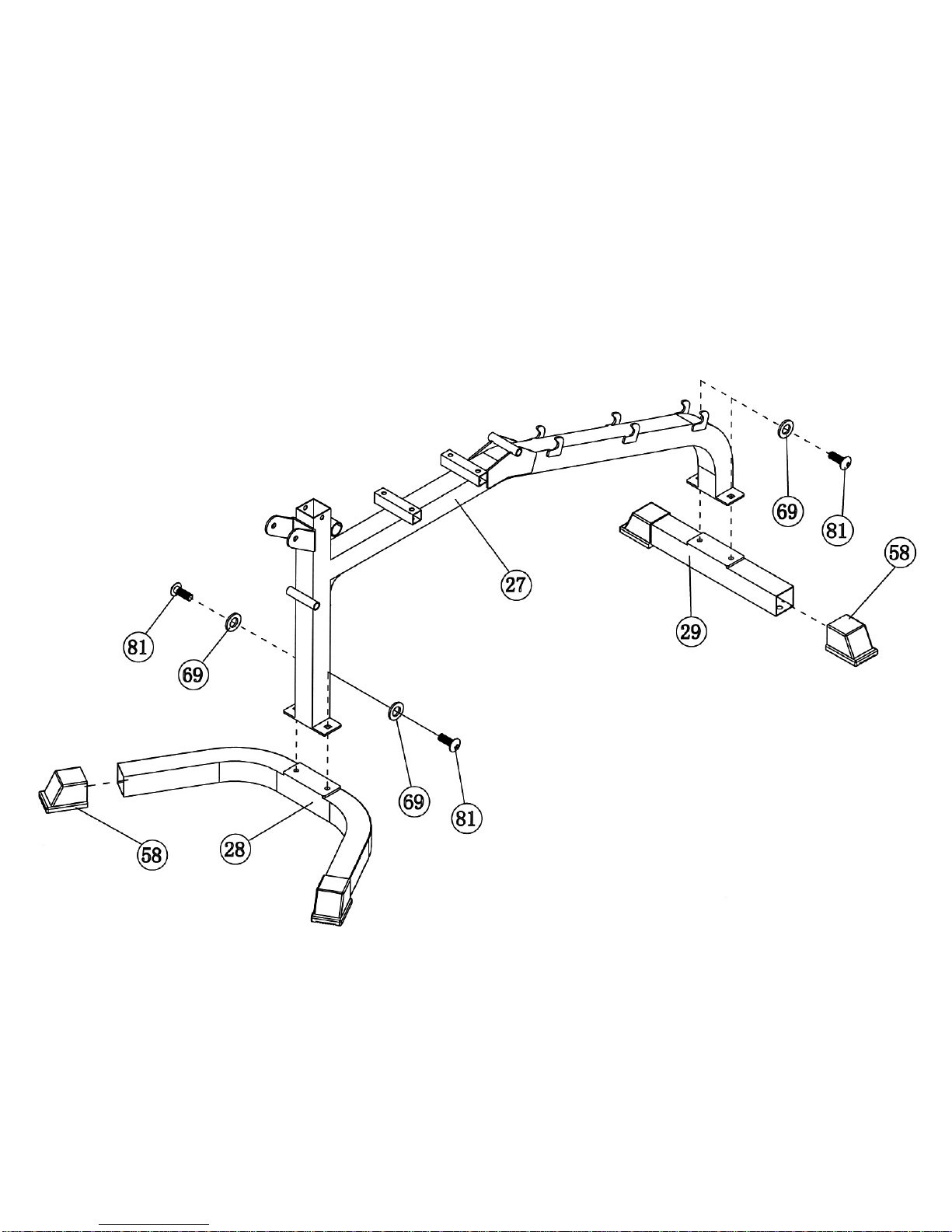

STEP 1 (See Diagram 1)

A.) Attach the Main Frame (#27) to the Bench Front & Rear Stabilizers (#28 & 29). Secure

each end with two M10 x ¾” Allen Bolts (#81) and ∅¾” Washers (#69).

B.) Attach four Stabilizer End Caps (#58) onto the Stabilizers. DIAGRAM 1

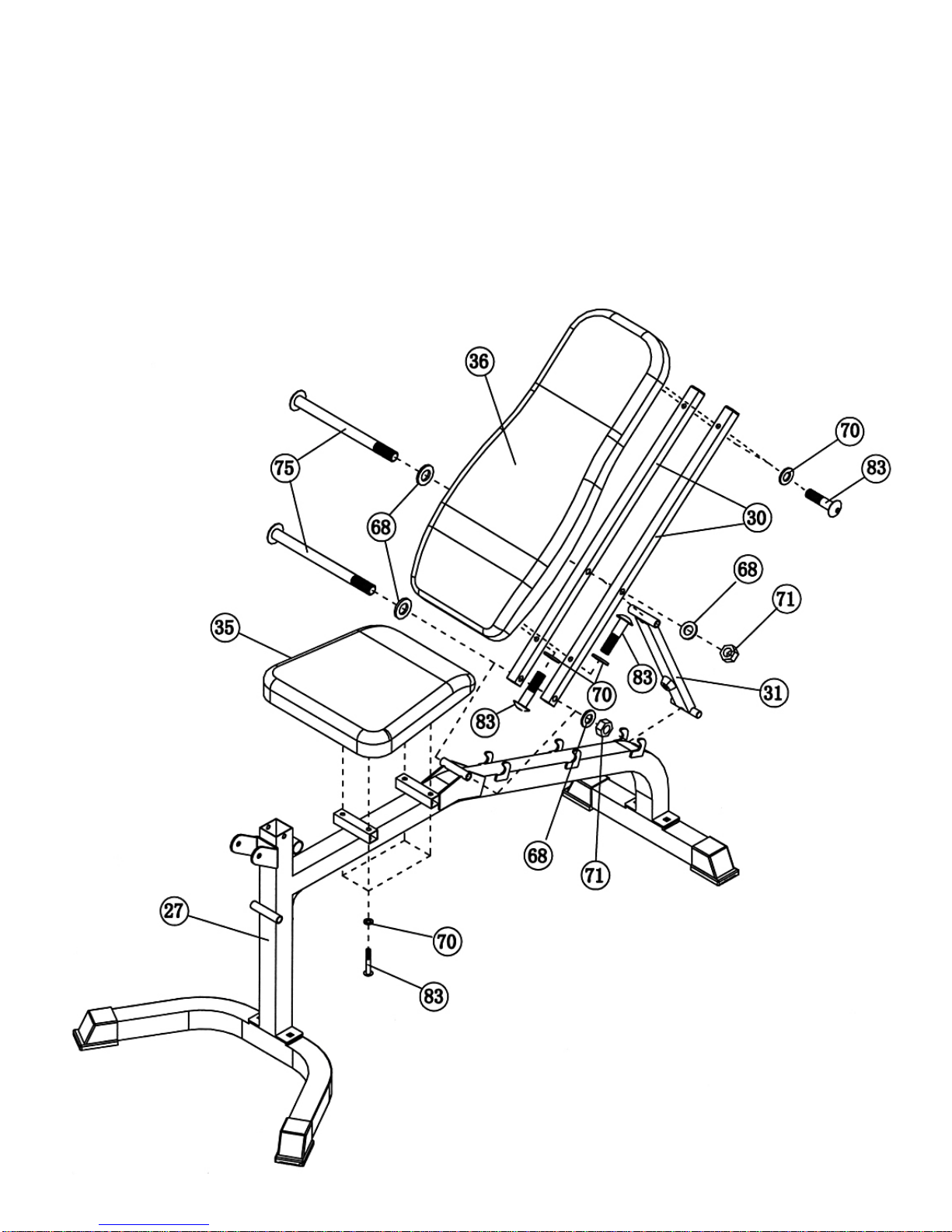

STEP 2 (See Diagram 2)

A.) Attach the two side-holes on bottom of Backrest Supports (#30) to the pivot on the Main

Frame (#27). Secure it with one M12 x 5 ¾” Allen Bolt (#75), two Ø 1” Washers (#68), and

one M12 Aircraft Nut (#71).

B.) Align the pivot on top of Backrest Incline Support (#31) to the middle side-holes in between

the Backrest Supports. Secure it with one M12 x 5 ¾” Allen Bolt (#75), two Ø 1” Washers

(#68), and one M12 Aircraft Nut (#71).

C.)Attach the Backrest Board (#36) onto the Backrest Supports and secure it with four M8 x 1

5/8” Allen Bolts (#83) and Ø 5/8” Washers (#70).

D.)Place the Seat Pad (#35) onto the Main Frame. Secure it with four M8 x 1 5/8” Allen Bolts

(#83) and Ø 5/8” Washers (#70). DIAGRAM 2

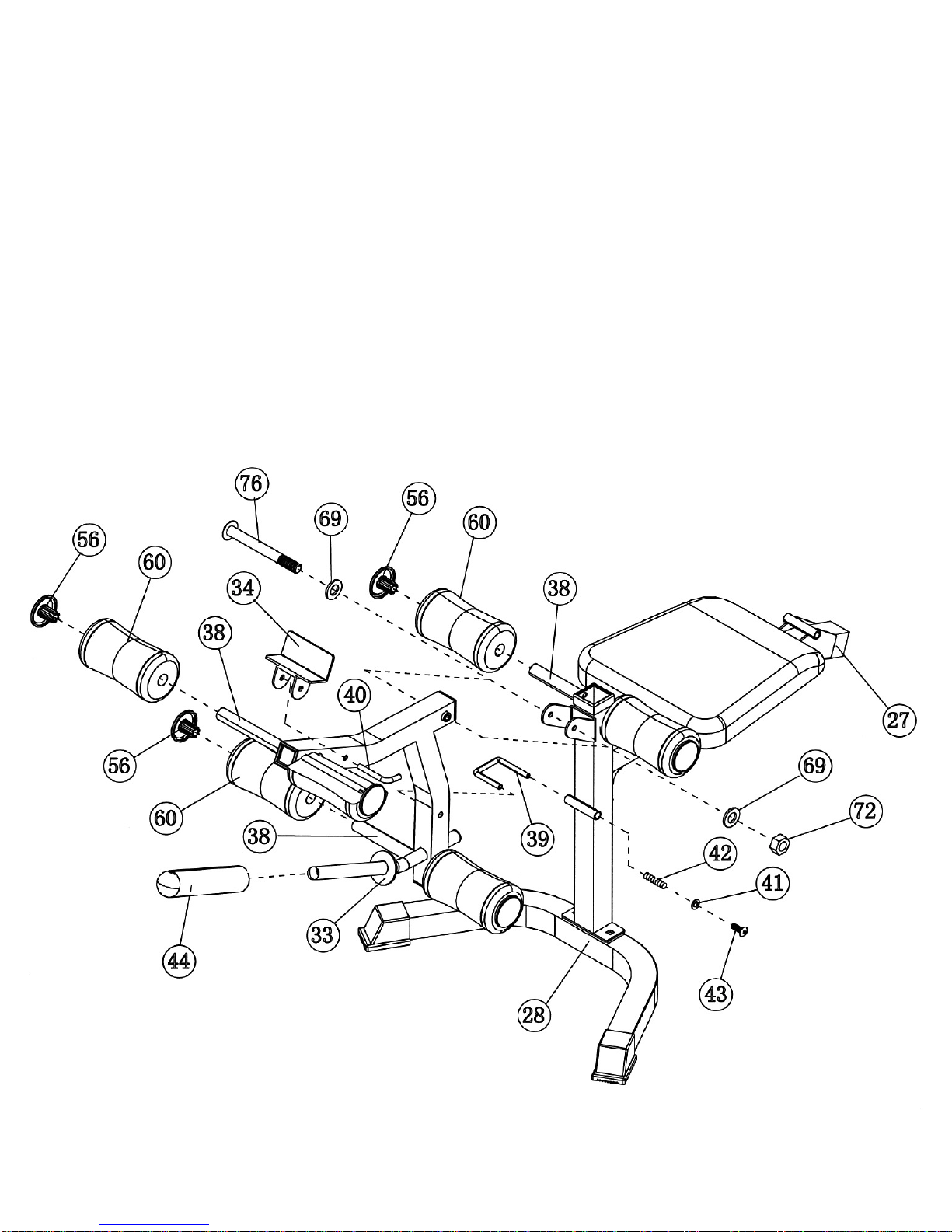

STEP 3 (See Diagram 3)

A.) Attach the Leg Developer (#33) to the open bracket on the Main Frame (#27). Secure it

with one M10 x 3 1/8” Allen Bolt (#76), two Ø ¾” Washers (#69), and one M10 Aircraft

Nut (#72). Do not over tighten the bolt and nut, make sure Leg Developer is able to

swivel.

B.) Insert the U-shaped Pin (#39) into the open tube on the Main Frame (#27). Secure it

with one M6 x ½” Philips Screw (#43), Ø ½” Washer (#41), and Spring (#42). Pull and

turn to lock the Leg Developer in position while using the bench at declined position.

C.)Insert three Foam Tubes (#38) halfway through the holes on the Main Frame and Leg

Developer. Push six Foam Rolls (#60) onto the Tubes from both ends. Plug six Foam

Roll End Caps (#56) into the ends.

D.)Slide an Olympic Sleeve (#44) onto the weight post on the Leg Developer.

E.) Attach the Curl Bar Holder (#34) to the Leg Developer and lock it with a L-shaped Pin

(#40). DIAGRAM 3
