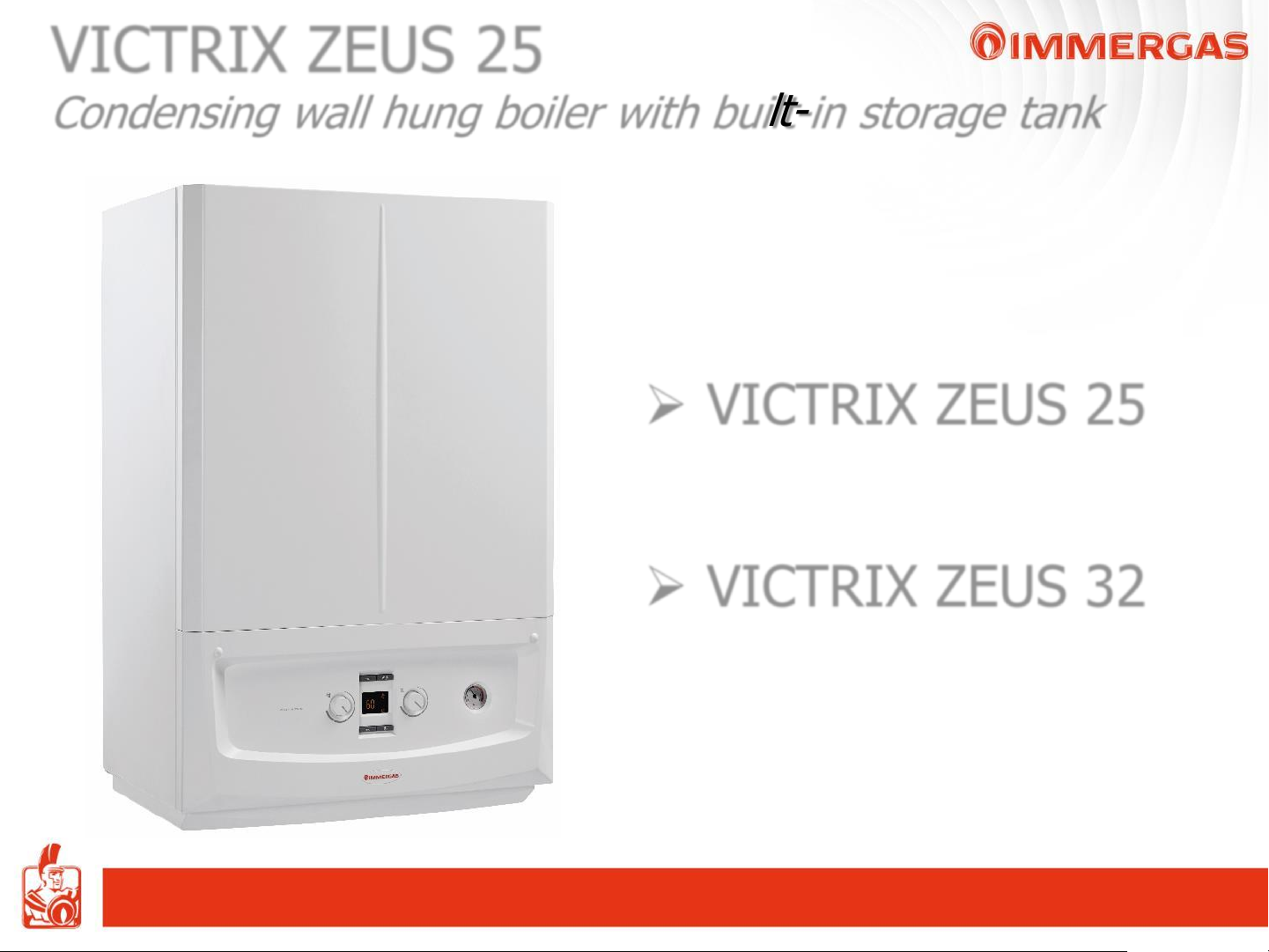

VICTRIX ZEUS 25

Condensing wall hung boiler with built-in storage tank

➢VICTRIX ZEUS 25

20 kW for CH; 25 kW for DHW

➢VICTRIX ZEUS 32

28 kW for CH; 32 kW for DHW

Customer Service

➢Main features

➢Hydraulic circuit

➢Gas and flue circuit

➢Control panel

➢Electronic board and parameters setting

➢Calibration

➢Main options

VICTRIX ZEUS

Customer Service

Main features

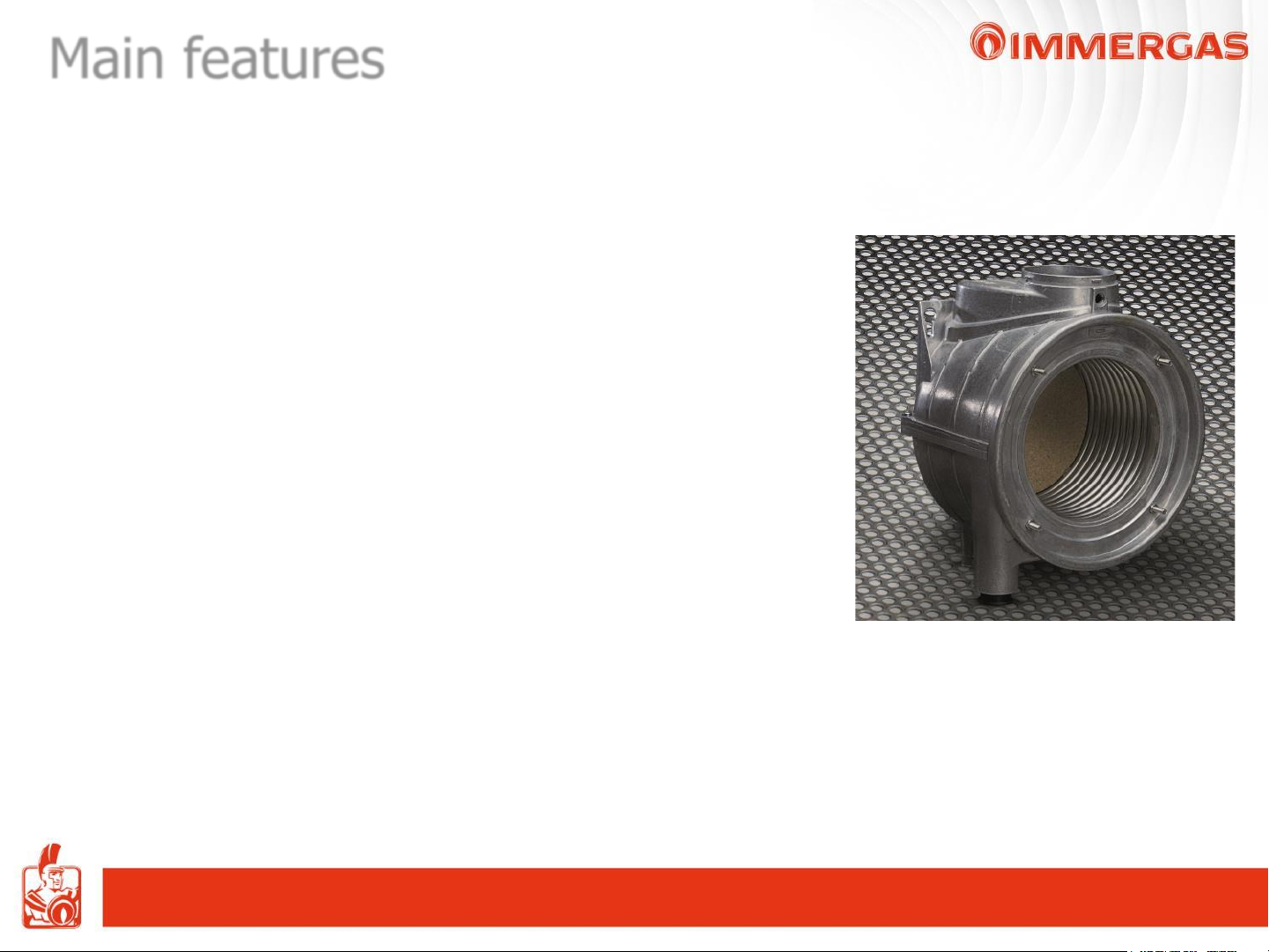

➢Stainless steel primary heat exchanger with aluminum shell

➢45 liters stainless steel storage tank

➢Advanced electronics - Capable to fit any gases changing PCB parameters

➢Electronic gas valve

➢Modulation range from 14÷100%

➢Low consumption modulating pump

➢ICHS hydraulic group, 3-way valve with stepper motor

➢DHW expansion vessel (2 litres)

➢Control panel with digital display - Electric control box

➢IPX5D electrical insulation

➢Ecofriendly - low NOx emissions (class 6)

➢“Green series” flue pipe for condensing boilers

➢Remote control via Smartphone o Tablet

(DOMINUS)

➢Prearranged for the connection with following optional:

- CARV2; CARV2 wireless

- External probe

- DIM ErP, Multi-zones control board and relay board kit

Customer Service

Energy label

Customer Service

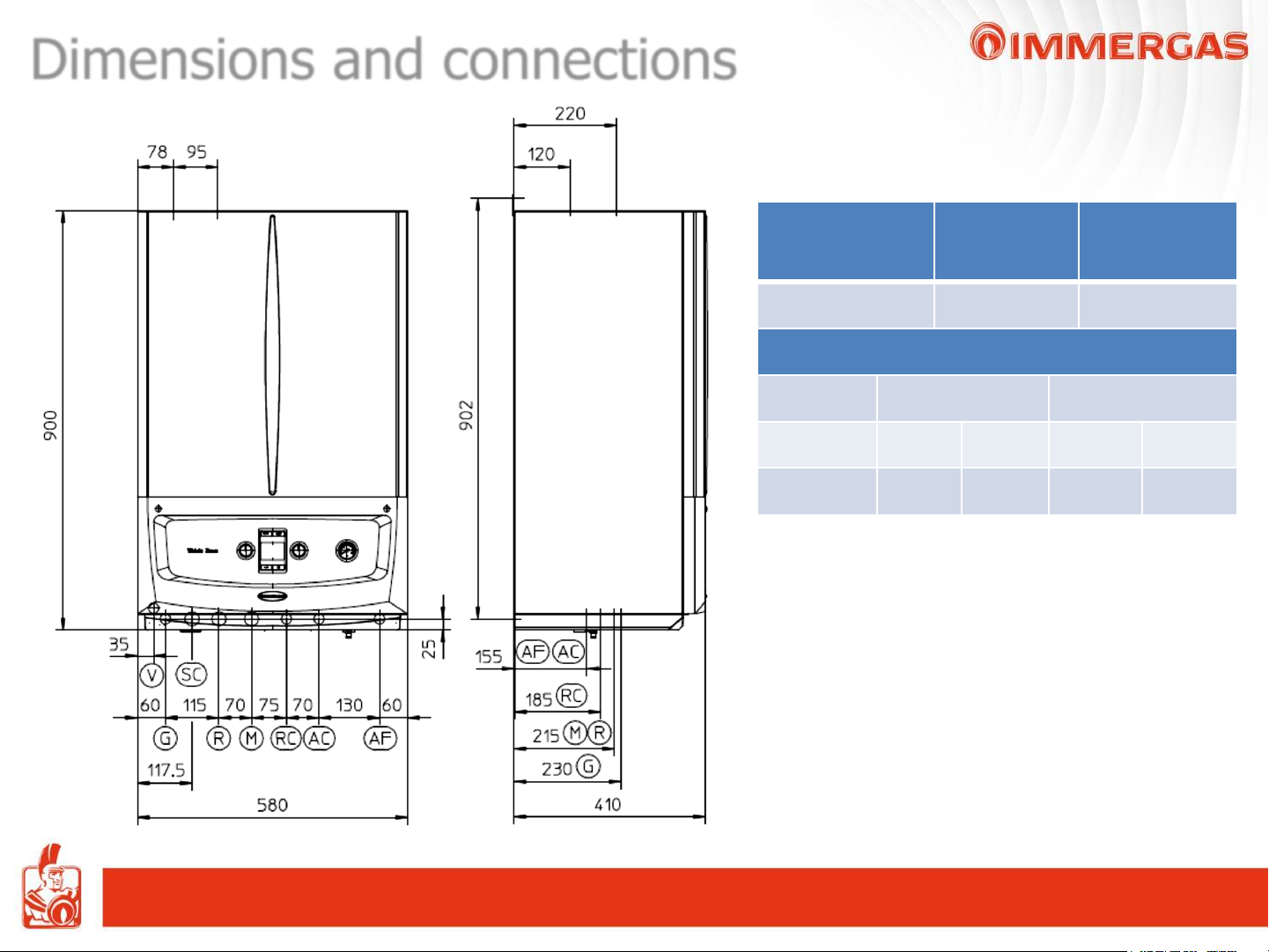

Dimensions and connections

Height

(mm)

Width

(mm)

Depth

(mm)

900 580 410

Connections

Gas DHW System

GAC AF R M

3/4"

1/2"

1/2" 3/4" 3/4"

Key:

V - Voltage supply

G - Gas supply

SC - Condensate drain (min. Ø13 mm)

R - System return

M - System delivery

RC - DHW recirculation pump (optional)

AC - DHW outlet

AF - DHW inlet

Customer Service

Key:

1 - Filling valve system

2 - Draining valve system

3 - Bypass

4 - 3-way valve (motorised)

5 - 3 bar safety valve

6 - Gas valve

7 - Boiler pump

8 - Air intake pipe

9 - Flow probe

10 - Return probe

11 - Air / gas manifold

12 - Flue probe

13 - Flue gas sample points (air-flue gas )

14 –DHW expansion vessel

15 - System expansion vessel

16 - Condensation module

17 - Burner

18 - Ignition/detection electrodes

19 - Fan

20 - Air / gas mixer

21 - Gas nozzle

22 - D.H.W. probe

23 - Air vent valve

24 - Stainless steel storage tank

25 - System pressure switch

26 - Condensate drain trap

27 - Control panel

28 - 8 bar safety valve

29 - Storage tank draining fitting

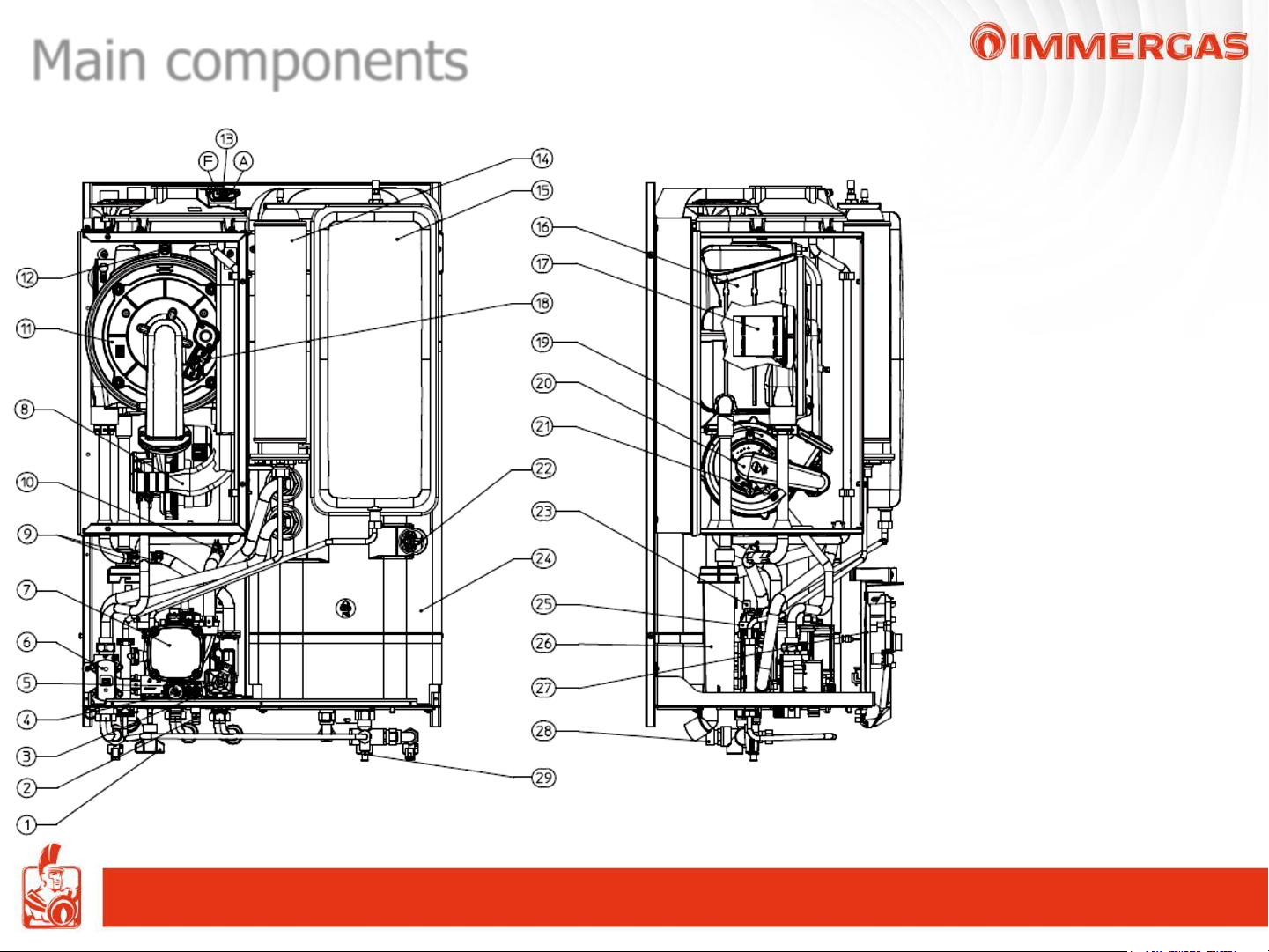

Main components

Customer Service

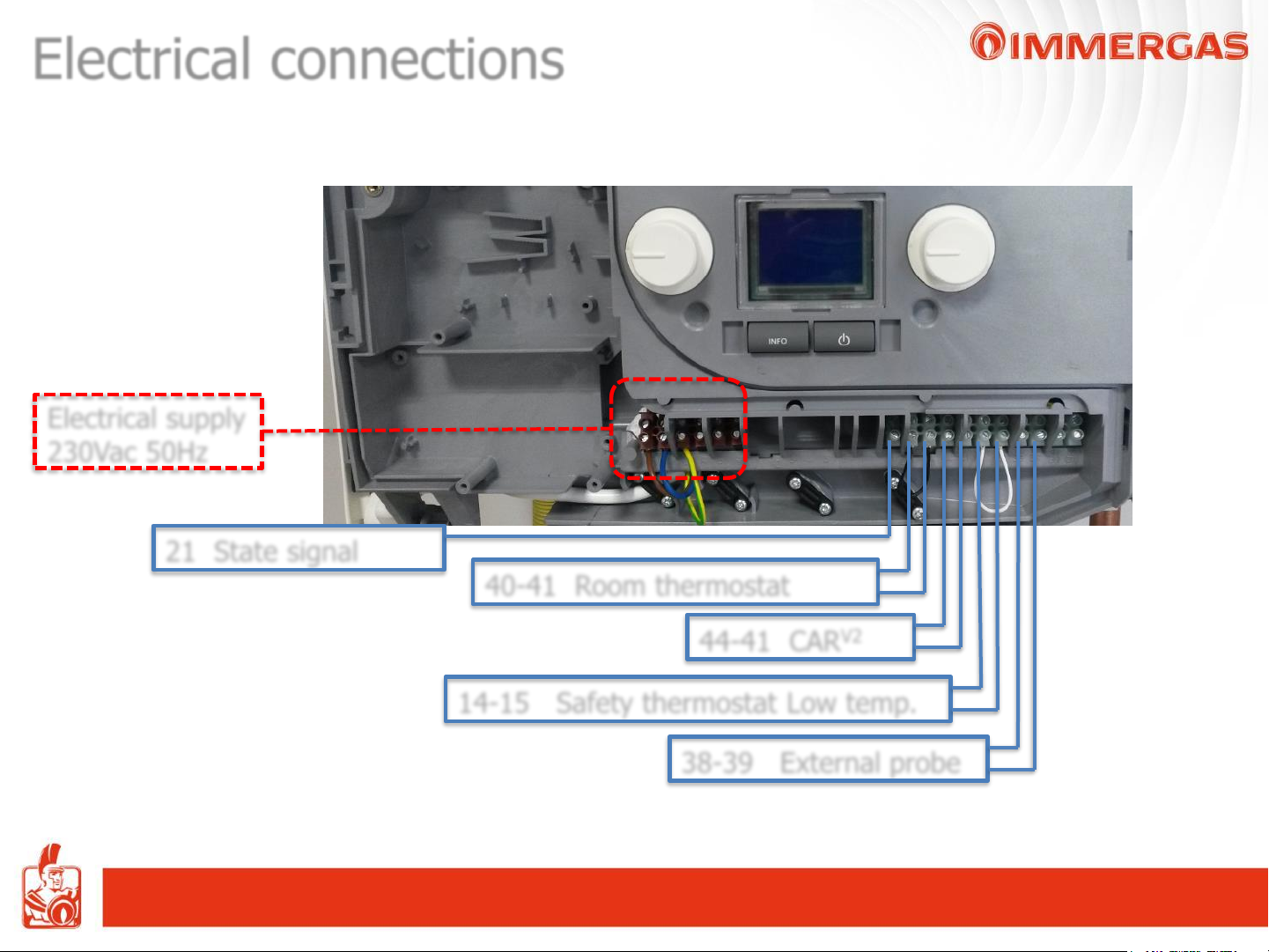

Electrical connections

Removing the aesthetic frame and the cover, it is possible to access to the external electrical

connection of the PCB.

38-39 External probe

14-15 Safety thermostat Low temp.

44-41 CARV2

40-41 Room thermostat

21 State signal

Electrical supply

230Vac 50Hz

Customer Service

➢Main features

➢Hydraulic circuit

➢Gas and flue circuit

➢Control panel

➢Electronic board and parameters setting

➢Calibration

➢Main options

VICTRIX ZEUS

Customer Service

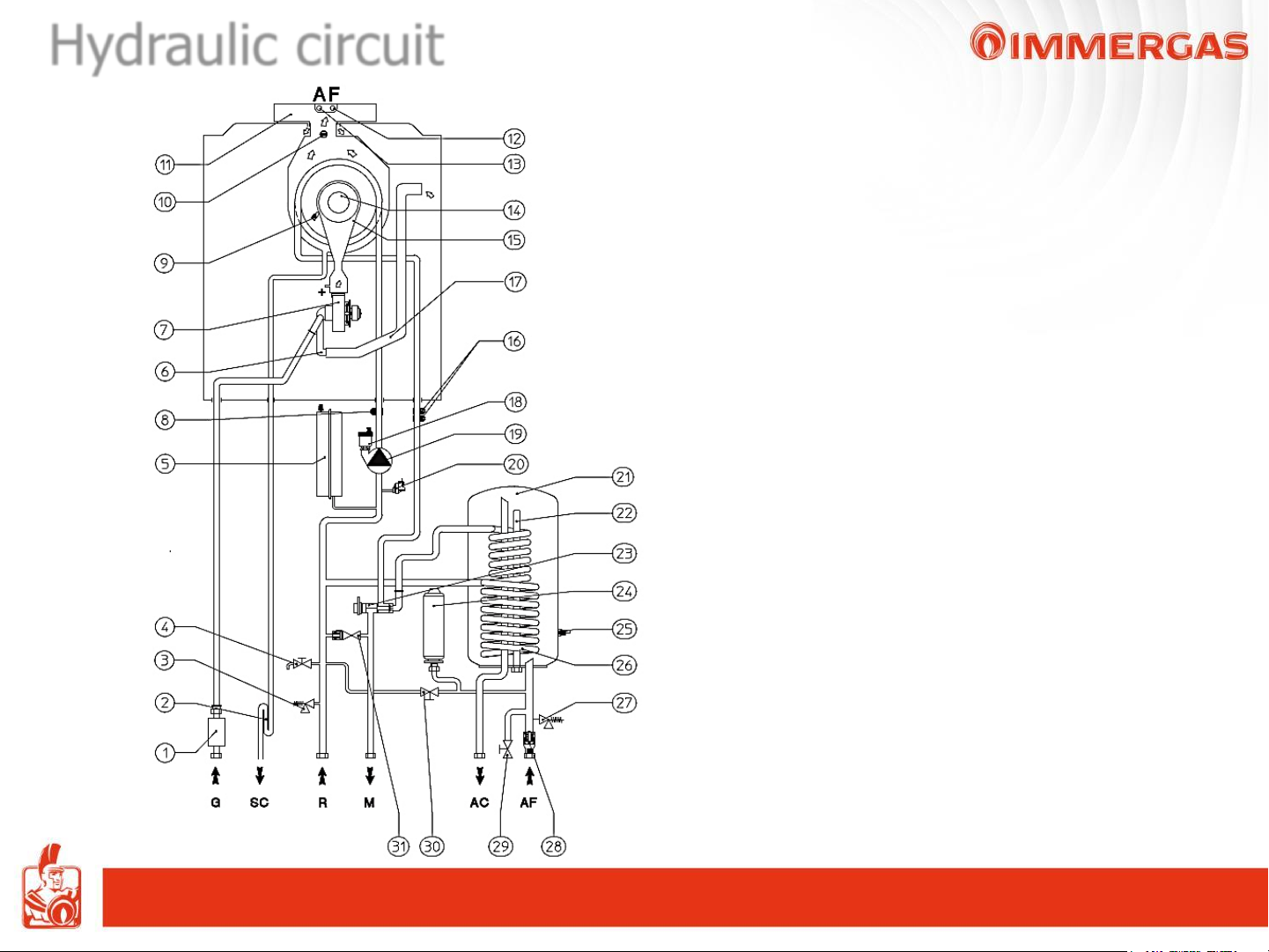

Hydraulic circuit

Key:

1 - Gas valve

2 - Condensate drain trap

3 - 3 bar safety valve

4 - System draining cock

5 - System expansion vessel

6 - Air / gas mixer

7 - Fan

8 - Return probe

9 - Ignition/detection electrode

10 - Flue probe

11 - Flue hood

12 - Flue sample point

13 - Air sample point

14 - Burner

15 - Air / gas manifold

16 - Flow probes

17 - Air intake pipe

18 - Air vent valve

19 - Boiler pump

20 - System pressure switch

21 - Stainless steel storage tank

22 - Magnesium anode

23 - 3-way valve (motorised)

24 - Domestic hot water expansion vessel

25 - D.H.W. probe

26 - Stainless steel coil for storage tank

27 - 8 bar safety valve

28 - Cold water inlet non-return valve

29 - Storage tank draining valve

30 - System filling cock

31 - Bypass

Customer Service

New primary heat exchanger with stainless steel single coil and aluminium shell

➢No manifolds

➢Internal section wide and constant

➢High water flow

➢Frontal access for servicing

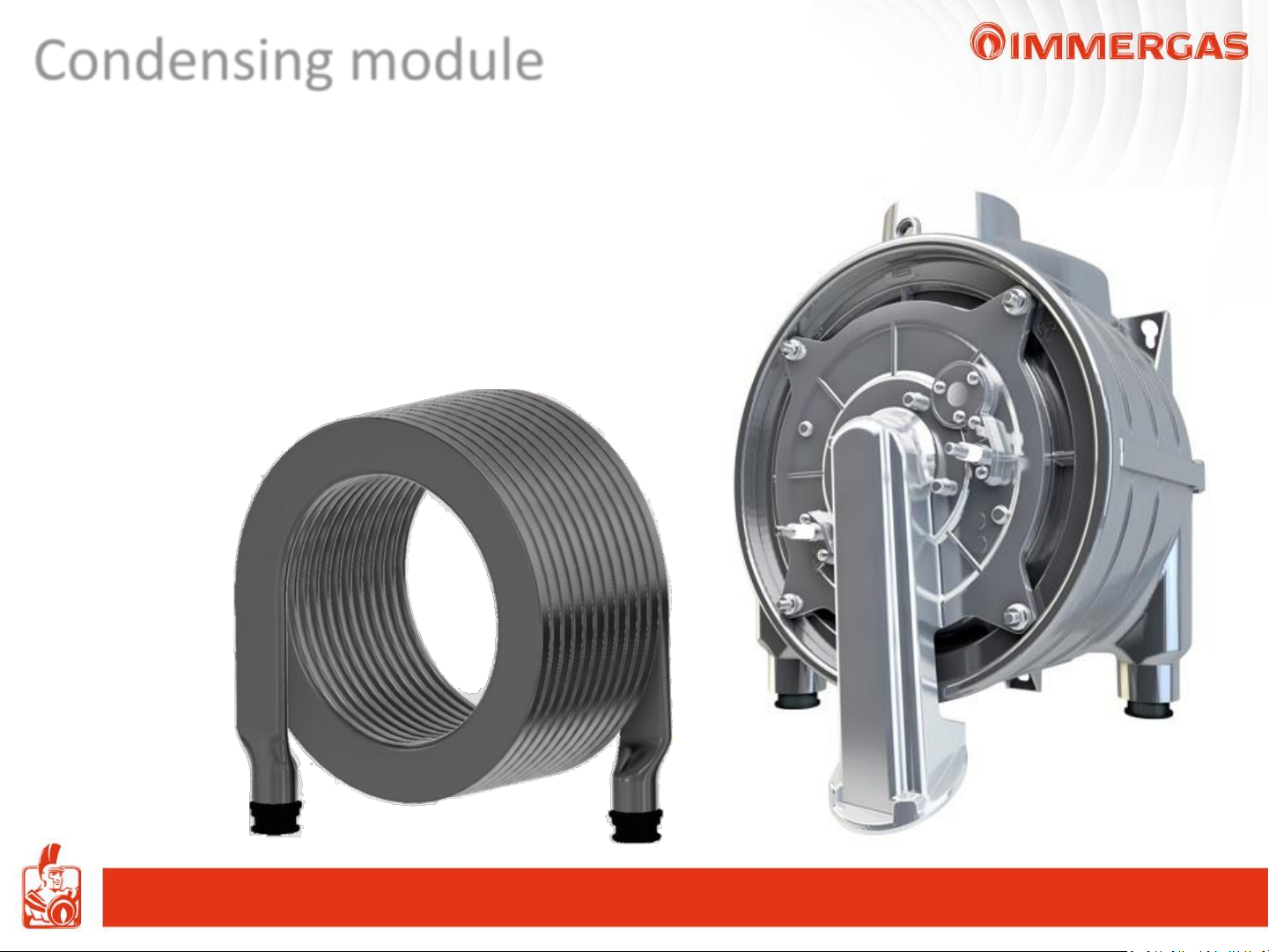

Condensing module
