Ikelite 6280.31 Manuel du propriétaire

Digital Housing

Supplemental Instructions

6280.31 Nikon L30 LTRAcompact Housing

6280.32 Nikon L30 LTRAcompact Housing Package

Thank you for your purchase of Ikelite equipment. Please read the

“Instruction anual” and “Supplemental Instructions” completely before

attempting to operate or dive with this product.

Housing Specifications (no camera installed)

Controls ................................All camera functions

Width ......................................5.8 in (147 mm) including controls

Height ....................................4.5in (114 mm) including controls

Depth......................................3.6 in (91 mm) including controls & lens port

Weight ....................................1.2 lb (544 g)

Buoyancy ..............................Slightly positive in freshwater

Depth Rating..........................200 ft (60 m)

Built-in Flash ........................Yes

Strobe Connection................Slave

Tray Mounting ......................12-24 thread with 3 in spacing (76 mm)

Main O-Ring ..........................0132.45

Port O-Ring............................0134.33

Port Outer Diameter..............3.0" (76 mm)

se 46mm Lenses ................No

se 67mm Lenses ................Yes

se Bayonet Lenses ............No

Supplied Accessories ..........0200 Vinyl Port Cover

................................................0321.10 Safety Lanyard

................................................Flash Diffuser

................................................Flash Deflector

................................................0184.1 Silicone Lubricant

Spare Parts ............................5020 Silicone lubricant in 4 1cc tubes

................................................0200 Vinyl port cover

................................................9523.10 ounting hardware kit 12-24 x 1/2"

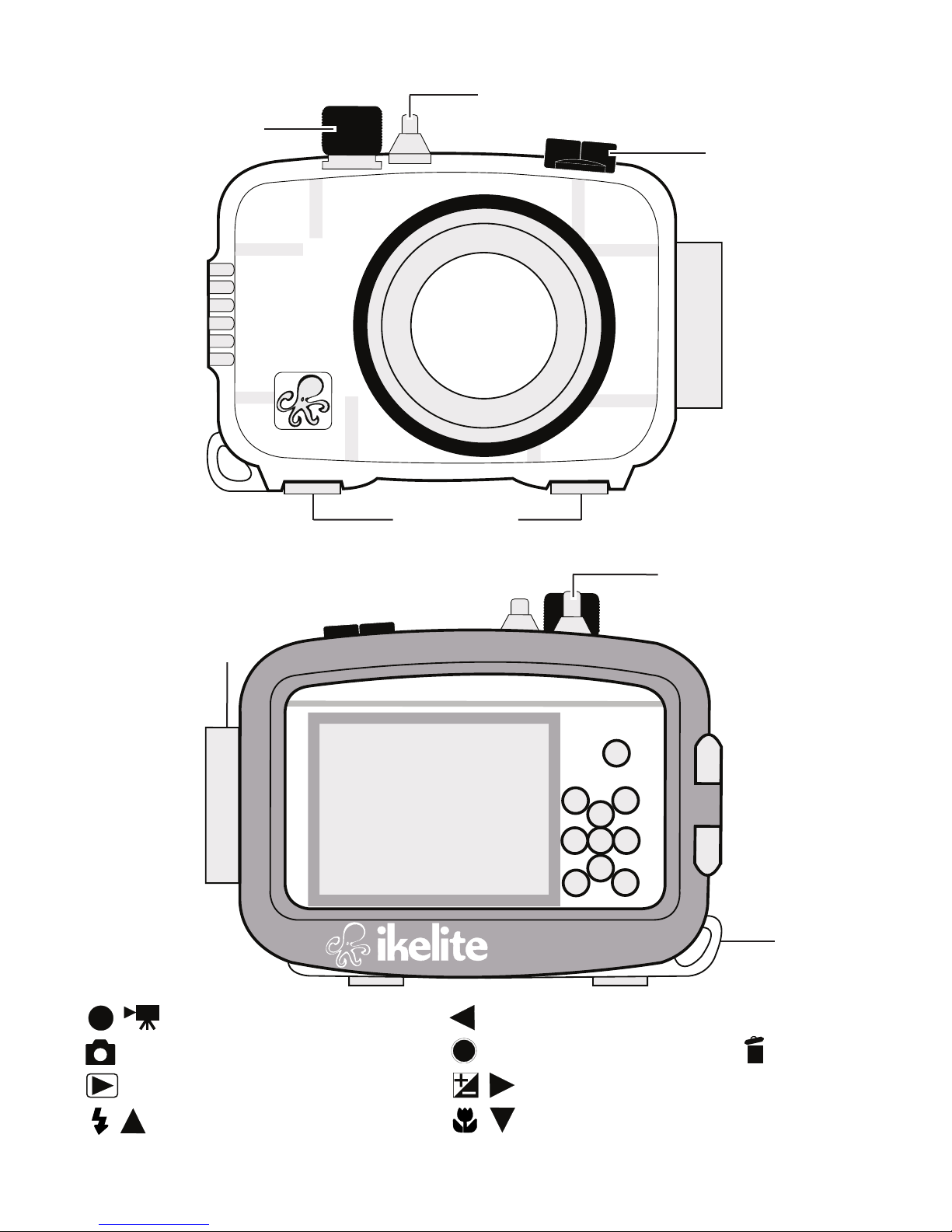

Parts of the Housing

Back View

Fiber Optic Ports

Power Switch

1. ovie-record Button

2. Shooting ode Button

3. Playback Button

4. Flash ode,

9. ENU Button

10. Delete

Lanyard

Attachment

Point

Latch

Tray ounts

5. Self-timer,

6. OK

7. Exp. Comp.,

8. acro ode,

Zoom Control

Front View Lens Port

ULTRA

compact

Made in USA

Shutter Release Button

L30 Camera Initial Camera Settings

- Press the button and set the shooting mode to Auto ode, not

Easy Auto, Scene odes or Smart Portrait.

- Set Flash to “Fill Flash.”

- Preset the following functions in the enu Settings:

Set Image ode to “20m.”

Set White Balance to “Auto.” For more accurate colors, we

recommend setting manual white balance underwater using a

white slate, white sandy bottom or your hand. anual white

balance should be reset for each working depth due to color

absorption caused by the water. When adding a UR-Pro color

filter, reset manual white balance.

Set Continuous to “S” Single.

Set Color Options to V1 “Vivid Color.”

- Preset the following functions in the enu Settings:

Set Autofocus ode to “AF-S.”

- Preset the following functions in the enu Settings:

Set Time Zone and Date.

Set Electronic VR to “Auto.

Set AF assist to “OFF.” A strobe focusing light is recommended to

assist AF underwater.

Set Auto off to “5m” and Sleep mode to “OFF.”

Insert and format a SD or SDHC memory card.

Note: Enable acro mode when shooting close-up subjects. If

overexposure occurs, back away from the subject and zoom in. If

overexposure continues, use “-” exposure compensation.

W-20 and W-30 Wide-Angle Conversion Lenses

The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and

other 67mm threaded wide angle or macro lenses without the need for

an adapter. An external wide angle conversion lens increases angle of

coverage so you can get closer to the subject while still fitting everything

in the frame.

Slight to moderate vignetting will occur at widest angle camera lens

setting with these lenses. Zoom in to eliminate, or crop the image in

post processing. NOTE: The L30 will not vignette at widest angle setting

underwater when using the W-30 lens.

Bayonet mount lenses cannot be used with this housing.

External Accessory Lenses

Ikelite 6430 W-30 Conversion Lens

Please visit www.ikelite.com for additional information.

AF35 Strobe Package 4035

The AutoFlash AF35 kit is a great compliment, and

an effortless, affordable way to add a flash to your

new Ikelite point and shoot camera system.

Everything you need to get started is in the box.

Just attach it to the bottom of your housing and

start taking pictures!

The AF35 Strobe Package is available to support

your housing along with a full range of accessories.

Please visit www.ikelite.com to see the most

current information about recommended accessories for your housing.

L30 AF35 Strobe Compatibility

AutoFlash AF35 Kits with a Serial Number below 1900 may

overexpose when used with the Nikon Coolpix L30 camera system. AF35

Kits with a Serial Number of 1900 or greater do not require modification

for use with the Nikon L30 camera. If necessary, strobes may be

returned to Ikelite postage prepaid for a complimentary electronics

update. Please include a brief letter of explanation with full contact

information and send to the Ikelite Service Department at the

address below.

Ikelite Under ater Systems

Attention: Service Department

50 West 33 Street

Indianapolis, IN 46208 USA

No reimbursements for postage paid will be issued.

You may also want to insure the package.

ikelite

AUTOFLASH

Limited Warranty

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Customer Support

Please read the troubleshooting section of the “Instruction anual”

before contacting Ikelite.

6280.31_Nikon_L30_Housing - 6280.32_Nikon_L30_Package_1-0314

Ikelite nderwater Systems

50 West 33rd Street

Indianapolis, IN 46208 SA

www.ikelite.com
