Thank you for your purchase of Ikelite equipment. Please read this instruction
manual completely before attempting to operate or dive with this product.
Mirrorless 2-inch Lens Extension
Product Number 5516.69
Instruction Manual
2
1. First,checktoseethatthereisathinlmoflubricantonthePortBase
and Lens Extension o-rings. The o-ring should appear slick. If necessary,
relubricate with the supplied Ikelite lubricant. Do not use excessive lubricant
which can attract hair or other debris. Use ONLY Ikelite lubricant.
2. MakesurethePortBaseandLensExtensiono-ringsarefreeofhairor
other debris.
3. LiftandREMOVEthegearsleevefrominsidethePortBaseifapplicable.
ThegearsleevemustberemovedBEFORE usingtheLensExtension.
Place the Gear Sleeve in storage for later use.
4. SlidetheLensExtensionoverthePortBaseuntilitSTOPS,Diagram A,
page 3. When properly installed, there should be an approximate 5/32” or
less gap between the bottom of the Lens Extension and the front of the
housing, Diagram B, page 4.
5. SnuglytightenthethreeSecuringScrewsintothePortBase.DONOT
overtighten. No Securing Screw threads will be visible once the Lens
Extension is properly secured.
6. Slide the Port over the Lens Extension and tighten the three Securing
Screws in the Port. When properly installed, the bottom of the Port will
contact the top Ledge of the Lens Extension below the Lens Extension
o-ring, Diagrams C and D, page 5.
7. Snugly tighten the Three Securing Screws into the Lens Extension. DO
NOT overtighten. No Securing Screw threads will be visible once the Lens
Extension is properly secured.
INSTALLING THE LENS EXTENSION and PORT
WHAT’S INCLUDED
- Lens extension
- Securing screws
- Silicone lubricant 1cc tube
3
INSTALLING THE LENS EXTENSION and PORT - continued
Diagram A
Drain Hole
Securing Screw
PortBaseO-ring:
should be lightly
lubricated - use Ikelite
lubricant only.
4
INSTALLING THE LENS EXTENSION and PORT - continued
Diagram B
Approximately 5/32” or
less gap will be present
between the Housing
Front and bottom of
the Port when the
Dome, Flat Port or Lens
Extension is properly
installed. Also, the
Securing Screw threads
will not be visible when
tightened.
PortBaseO-ring;
should be lightly
lubricated - use
Ikelite lubricant only.
Rotate clockwise
to tighten
5

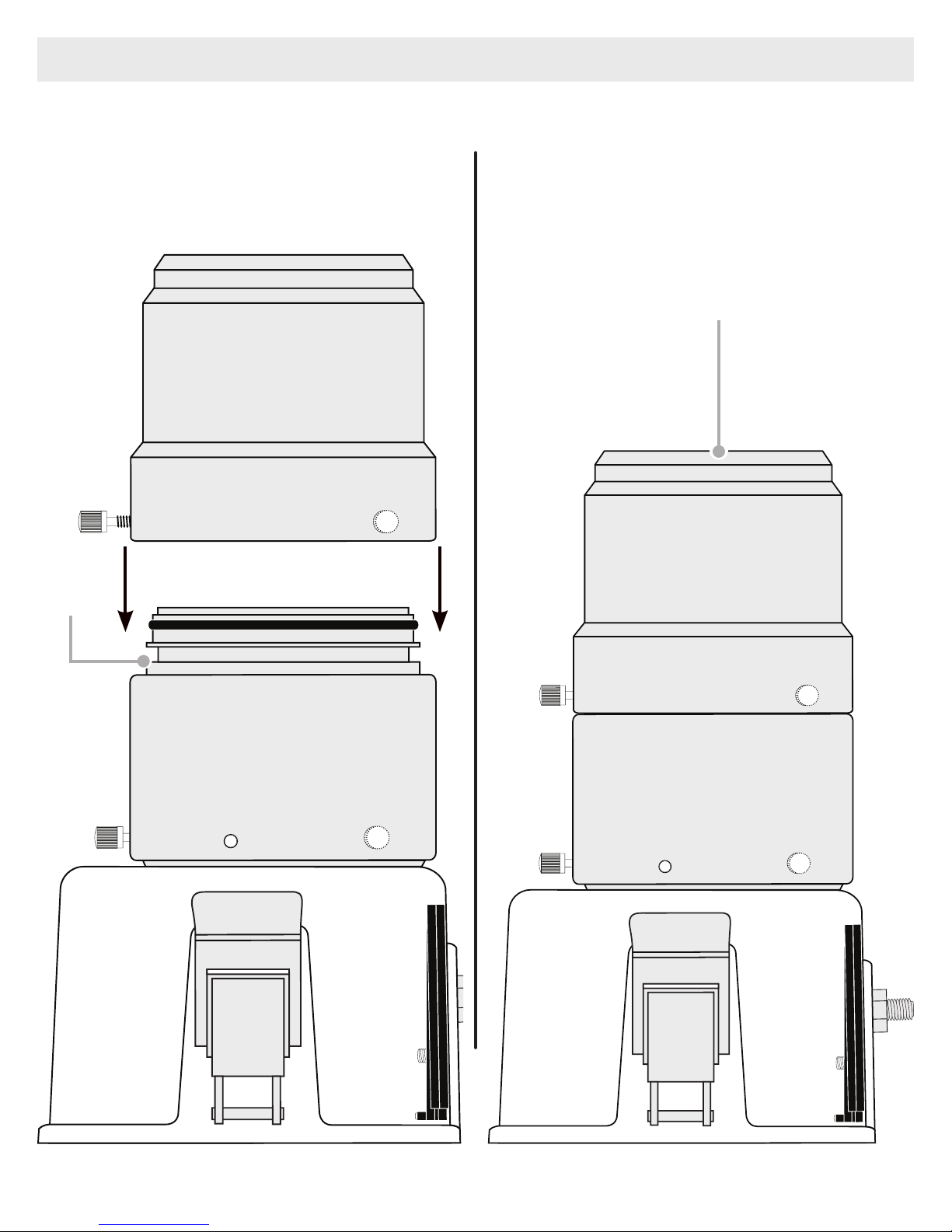

Diagram C Diagram D
INSTALLING THE LENS EXTENSION and PORT - continued
Lens Extension and Flat Port
properly installed on housing.
Ledge
6
LIMITED WARRANTY
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective products
should be returned to Ikelite postage paid. Ikelite will, at its sole discretion,
repair or replace such products, and will return to customer postage paid.
All other claims of any nature are not covered. Except as mentioned above,
no other warranty expressed or implied applies to this Ikelite product.
CUSTOMER SUPPORT
Please read the troubleshooting section of this instruction manual before
contacting Ikelite Customer Support.
Ikelite Underwater Systems
Service Department
50 West 33rd St.
Indianapolis, IN 46208 USA
Email: [email protected]
Phone: 317-923-4523
SPARE PARTS
- 0184.2 Silicone lubricant 2cc resealable tube
- 0132.36 O-ring
- 0203.896-32 x 1/4” thumb screw
7
Ikelite is most interested in performing any service to ensure that all
products perform as intended. Evidence of purchase date must be provided
to obtain warranty service.
No prior authorization is required. You may return directly to us or through
your dealer. Please include a brief description of the problem, any relevant
email correspondence, and/or instructions on what you want us to do.
Always include name, shipping address, email address, and phone number
insideofthepackage.Sendpostagepaidto:
Ikelite Underwater Systems
Attention: Service Department
50 West 33 Street
Indianapolis, IN 46208 USA
No reimbursements for postage paid will be issued.
You may also want to insure the package.
For the separate international customs documentation form that you
complete to accompany the shipment, please state or designate that the
enclosed products were originally manufactured in the USA and are being
returned to the manufacturer for repair service. Value of the equipment
listed for customs purposes should be zero.
RETURNING PRODUCTS FOR SERVICE
Returning Products for Service - outside the United States
5516.69_Mirrorless_Lens_Extension_2.0”_1-0116
© 2016 Ikelite Underwater Systems
Ikelite Underwater Systems
50 West 33rd Street
Indianapolis, IN 46208 USA
ikelite.com
