IKEA LUFTIG Manuel utilisateur

LUFTIG

ENGLISH 4

DEUTSCH 15

FRANÇAIS 26

ITALIANO 44

ENGLISH

For your safety and correct operation of the appliance, read this

manual carefully before installation and use. Always keep these

instructions with the appliance even if you move or sell it. Users must

fully know the operation and safety features of the appliance.

Recommendations and suggestions

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the

extractor hood is: for electrical hob 500mm and for gas hob

650mm.

• If the instructions for installation for the gas hob specify a greater

distance, this must be respected.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative

pressure in the room must not exceed 0,04 mbar to prevent fumes

being drawn back into the room by the cooker hood.

• If the supply cord is damaged, it must be replaced from the

Contents

Safety information 4

Product description 7

Care and cleaning 7

What to do if... 9

Technical Data 10

Energy efficiency 11

Environment concerns 12

IKEA GUARANTEE 12

Safety information

ENGLISH

manufacturer or its service agent.

• Connect the plug to a socket complying with current regulations,

located in an accessible place.

• With regards to the technical and safety measures to be adopted

for fume discharging it is importat to closely follow the regulations

provided by the local authorities.

• WARNING: Before installing the Hood, remove the protective films

(white and transparent).

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in

accordance with these instructions may result in electrical hazards.

• Connect the hood to the power net by using a bipolar switch

having a contact gap of at least 3 mm.

• Do not flambè under the range hood; risk of fire.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Children shall

not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

• Children should be supervised to ensure that they do not play with

the appliance.

Accessible parts may become hot when used with cooking

appliances.

• Clean and/or replace the Filters after the specified time period

(Fire hazard).

ENGLISH

Use

• Switch off or unplug the appliance from

the mains supply before carrying out any

maintenance work.

• The extractor hood has been designed

exclusively for domestic use to eliminate

kitchen smells.

• Never use the hood for purposes other

than for which it has been designed.

• Never leave high naked flames under the

hood when it is in operation.

• Adjust the flame intensity to direct it onto

the bottom of the pan only, making sure

that it does not engulf the sides.

• Deep fat fryers must be continuously

monitored during use: overheated oil can

burst into flames.

Care and cleaning

• Activated charcoal filter these filters

are not washable and cannot be

regenerated, and must be replaced

approximately every 4 months of

operation, or more frequently with heavy

usage.

• Grease filters the filters must be cleaned

every 2 months of operation, or more

frequently for particularly heavy usage,

and can be washed in a dishwasher.

• Clean the hood using a damp cloth and

a neutral liquid detergent.

ENGLISH

Product description

Upper Chimney

Lower Chimney

Hood body

Lighting

Grease filters

Control Pannel

DCBA E

BUTTON FUNCTION

A =

Pilot

Light ON if the motor is working.

B =

Speed Turns the Motor ON at Speed

one. Turns the Motor OFF.

C =

Speed Set the Motor at Speed two.

D =

Speed Set the Motor at speed three.

E =

Light Turns the Lighting System ON

and OFF.

Care and cleaning

Switch off or unplug the appliance from

the mains supply before carrying out any

maintenance work.

Clean the hood using a damp cloth and a

neutral liquid detergent.

Charcoal Filter

These filters are not washable and cannot

be regenerated, and must be replaced

approximately every 4 months of operation, or

more frequently with heavy usage.

ENGLISH

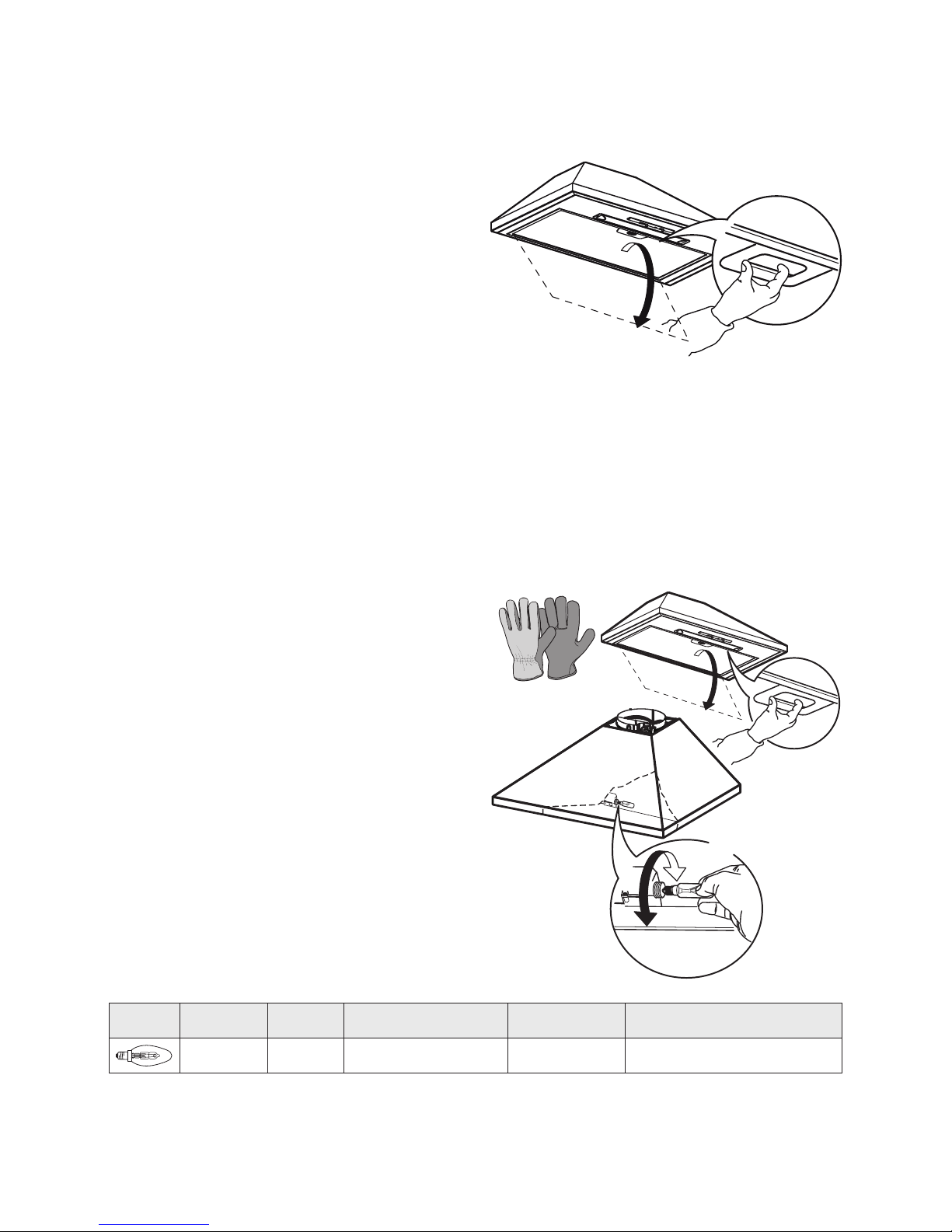

Grease Filters

Clean or replace the filters continuously

according to below time intervals, to maintain

good performance of the hood and to prevent

a potential fire hazard, caused by excessive

grease build-up.

The grease filters must be cleaned every 2

months of operation, or more frequently for

particularly heavy usage, and can be washed in

a dishwasher.

Replacing the lamps

Unscrew the bulbs, by using the gloves, and

replace them with new ones having the same

characteristics 28W (Connection type: E14).

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code

28 E14 220-240 104 x 35 HSGSB/C/UB-28-220/240-E14

ENGLISH

What to do if...

PROBLEM POSSIBLE CAUSE SOLUTION

Appliance not stable. The appliance is not correctly

installed. Respect the Installation instruction

enclosed to the appliance.

Appliance is not in horizontal

position. The appliance is not correctly

installed. Respect the Installation instruction

enclosed to the appliance.

Performance in terms of oil

capture arent satisfying. Oil and grease on metal lters. Respect the cleaning frequency of

lters as described in the user manual.

Appliance doesn't work. The appliance is not correctly

connected.

Verify that the main cable is

connected to the motor group or the

plug is connected to the socket.

The lamp is not working. The lamp is not correctly xed. Verify that the lamp is screwed

properly to the lampholder.

The lamp is not working. The lamp is faulty. Replace the lamp bulb.

If there is a fault, first try to find a solution to the

problem yourself. If you cannot find a solution

to the problem yourself, contact an authorized

service center.

If you operated the appliance wrongly, or

the installation was not carried out

according to the Assembly instructions, the visit

from the After Sales Service technician may not

take place free of charge, even during the

warranty period.

ENGLISH

Technical Data

Unit Value

Product Type Wall mounted hood

Dimension

Width mm 598

Depth mm 471

Height min/max mm 620/995

Airow max* - Exhaust m3/h 400

Noise max* - Exhaust dBA 64

Airow max* - Recirculating m3/h 270

Noise max* - Recirculating dBA 72

Total Power W161

Lamps info

Halogen Bulb

2 x 28W

E14

Installation minimum height - gas hob mm 650

Installation minimum height - elec hob mm 500

Net Weight Kg 6,4

This appliance has been designed,

manufactured and marketed in compliance with

the E.E.C. Directives.

The technical information is situated in the rating

plate on the internal side of the appliance.

* Maximum speed (boost excluded).
