IKEA LUFTIG Manuel utilisateur

LUFTIG

ENGLISH 4

DEUTSCH 15

FRANÇAIS 27

ITALIANO 44

ENGLISH

For your safety and correct operation of the appliance,

read this manual carefully before installation and use.

Always keep these instructions with the appliance even if

you move or sell it. Users must fully know the operation

and safety features of the appliance.

Recommendations and suggestions

• The manufacturer will not be held liable for any

damages resulting from incorrect or improper

installation.

• The minimum safety distance between the cooker top

and the extractor hood is: for electrical hob 500mm and

for gas hob 650mm.

• If the instructions for installation for the gas hob specify

a greater distance, this must be respected.

• Check that the mains voltage corresponds to that

indicated on the rating plate fixed to the inside of the

hood.

• For Class I appliances, check that the domestic power

supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe

of minimum diameter 120 mm. The route of the flue

must be as short as possible.

• Do not connect the extractor hood to exhaust ducts

carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical

appliances (e.g. gas burning appliances), a sufficient

degree of aeration must be guaranteed in the room in

order to prevent the backflow of exhaust gas. When

the cooker hood is used in conjunction with appliances

supplied with energy other than electric, the negative

Contents

Safety information 4

Product description 7

Care and cleaning 7

What to do if... 9

Technical data 10

Energy efficiency 11

Environment concerns 12

IKEA GUARANTEE 12

Safety information

ENGLISH

pressure in the room must not exceed 0,04 mbar to

prevent fumes being drawn back into the room by the

cooker hood.

• If the supply cord is damaged, it must be replaced from

the manufacturer or its service agent.

• Connect the plug to a socket complying with current

regulations, located in an accessible place.

• With regards to the technical and safety measures to

be adopted for fume discharging it is importat to closely

follow the regulations provided by the local authorities.

• WARNING: Before installing the Hood, remove the

protective films (white and transparent).

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device

in accordance with these instructions may result in

electrical hazards.

• Connect the hood to the power net by using a bipolar

switch having a contact gap of at least 3 mm.

• Do not flambè under the range hood; risk of fire.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

• Children should be supervised to ensure that they do

not play with the appliance.

Accessible parts may become hot when used with

cooking appliances.

• Clean and/or replace the Filters after the specified time

period (Fire hazard).

ENGLISH

Use

• Switch off or unplug the appliance

from the mains supply before

carrying out any maintenance

work.

• The extractor hood has been

designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes

other than for which it has been

designed.

• Never leave high naked flames

under the hood when it is in

operation.

• Adjust the flame intensity to direct

it onto the bottom of the pan

only, making sure that it does not

engulf the sides.

• Deep fat fryers must be

continuously monitored during

use: overheated oil can burst into

flames.

Care and cleaning

• Activated charcoal filter these

filters are not washable and

cannot be regenerated, and must

be replaced approximately every

4 months of operation, or more

frequently with heavy usage.

• Grease filters the filters must

be cleaned every 2 months of

operation, or more frequently for

particularly heavy usage, and can

be washed in a dishwasher.

• Clean the hood using a damp cloth

and a neutral liquid detergent.

ENGLISH

Product description

Upper Chimney

Lower Chimney

Hood body

Lighting

Grease filters

Control Pannel

DCBA E

BUTTON FUNCTION

A =

Pilot

Light

ON if the motor is

working.

B =

Speed

Turns the Motor ON at

Speed one.

Turns the Motor OFF.

C =

Speed Set the Motor at Speed

two.

D =

Speed Set the Motor at speed

three.

E =

Light Turns the Lighting System

ON and OFF.

Care and cleaning

Switch off or unplug the appliance from

the mains supply before carrying out

any maintenance work.

Clean the hood using a damp cloth and

a neutral liquid detergent.

Charcoal Filter

These filters are not washable and

cannot be regenerated, and must be

replaced approximately every 4 months

of operation, or more frequently with

heavy usage.

ENGLISH

Grease Filters

Clean or replace the filters continuously

according to below time intervals, to

maintain good performance of the hood

and to prevent a potential fire hazard,

caused by excessive grease build-up.

The grease filters must be cleaned

every 2 months of operation, or more

frequently for particularly heavy usage,

and can be washed in a dishwasher.

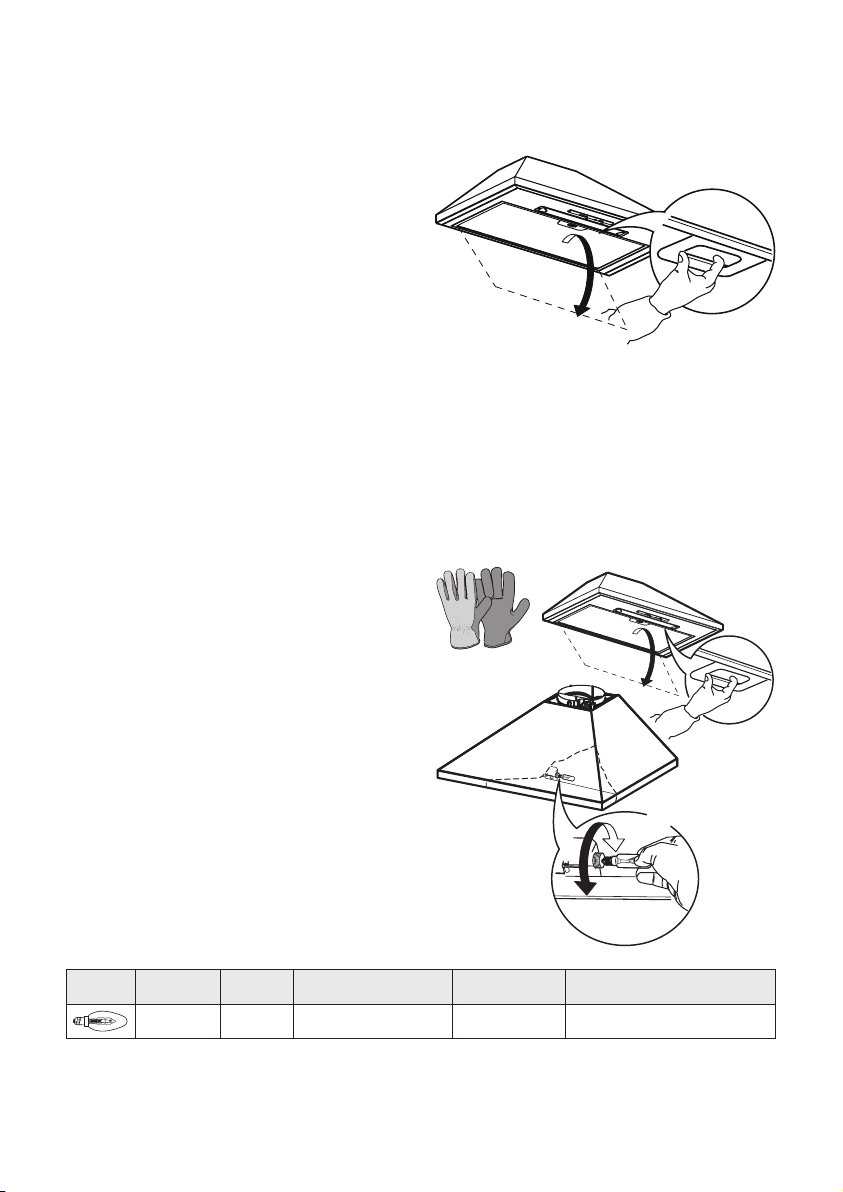

Replacing the lamps

Unscrew the bulbs, by using the gloves,

and replace them with new ones

having the same characteristics 28W

(Connection type: E14).

Lamp Power (W) Socket Voltage (V) Dimension

(mm) ILCOS Code

28 E14 220-240 104 x 35 HSGSB/C/UB-28-220/240-

E14

ENGLISH

What to do if...

PROBLEM POSSIBLE CAUSE SOLUTION

Appliance not stable. The appliance is not correctly

installed.

Respect the Installation

instruction enclosed to the

appliance.

Appliance is not in

horizontal position. The appliance is not correctly

installed.

Respect the Installation

instruction enclosed to the

appliance.

Performance in terms of oil

capture arent satisfying. Oil and grease on metal

lters.

Respect the cleaning frequency

of lters as described in the

user manual.

Appliance doesn't work. The appliance is not correctly

connected.

Verify that the main cable is

connected to the motor group

or the plug is connected to the

socket.

The lamp is not working. The lamp is not correctly

xed. Verify that the lamp is screwed

properly to the lampholder.

The lamp is not working. The lamp is faulty. Replace the lamp bulb.

If there is a fault, first try to find a

solution to the problem yourself. If you

cannot find a solution to the problem

yourself, contact an authorized service

center.

If you operated the appliance

wrongly, or the installation was not

carried out according to the Assembly

instructions, the visit from the After

Sales Service technician may not take

place free of charge, even during the

warranty period.

ENGLISH

Technical Data

Unit Value

Product Type Wall mounted hood

Dimension

Width mm 598

Depth mm 471

Height min/max mm 620/995

Airow max* - Exhaust m3/h 400

Noise max* - Exhaust dBA 64

Airow max* - Recirculating m3/h 270

Noise max* - Recirculating dBA 72

Total Power W161

Lamps info

Halogen Bulb

2 x 28W

E14

Installation minimum height - gas hob mm 650

Installation minimum height - elec hob mm 500

Net Weight Kg 6,4

This appliance has been designed,

manufactured and marketed in

compliance with the E.E.C. Directives.

The technical information is situated in

the rating plate on the internal side of

the appliance.

* Maximum speed (boost excluded).
